L11 RPD Lecture Recap

Removable Partial Dentures Overview

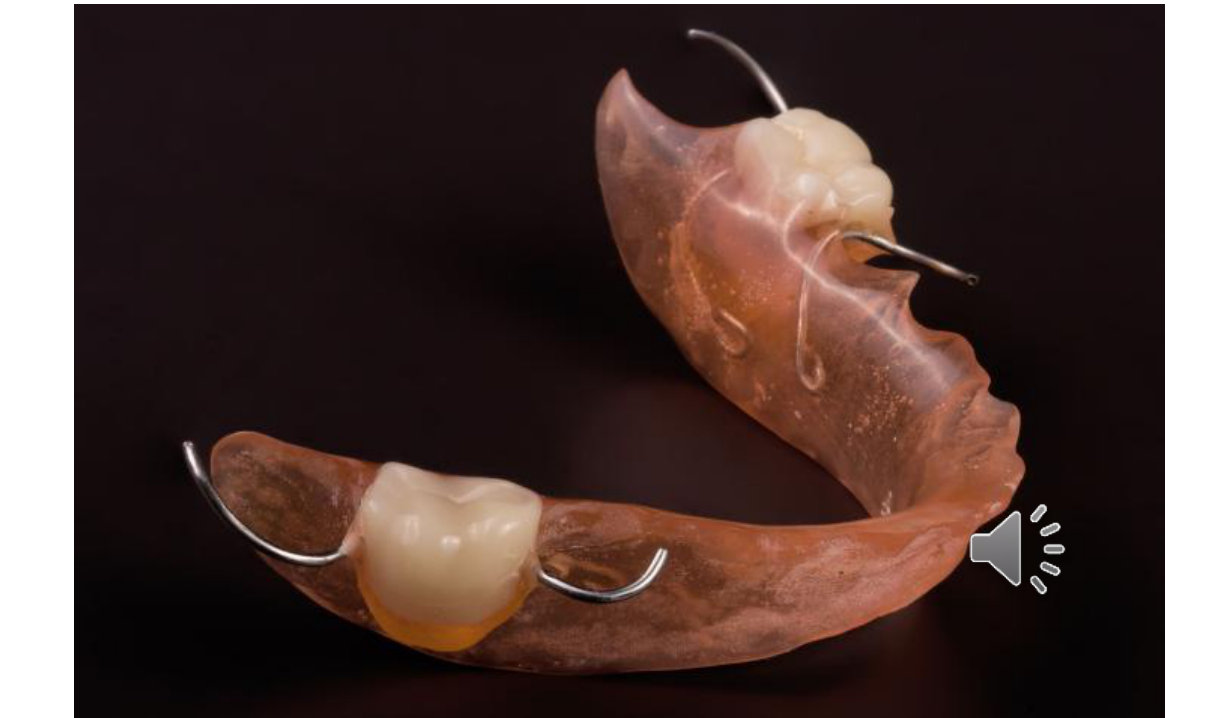

Introduction to Removable Partial Dentures¹

This presentation provides a comprehensive overview of Removable Partial Dentures (RPD), covering fundamental concepts and clinical applications.

Presentation Details

• Subject: Removable Partial Dentures (RPD)
• Presenter: Dr. Marrwa Ibrahim, Lecturer at the UWA Dental School

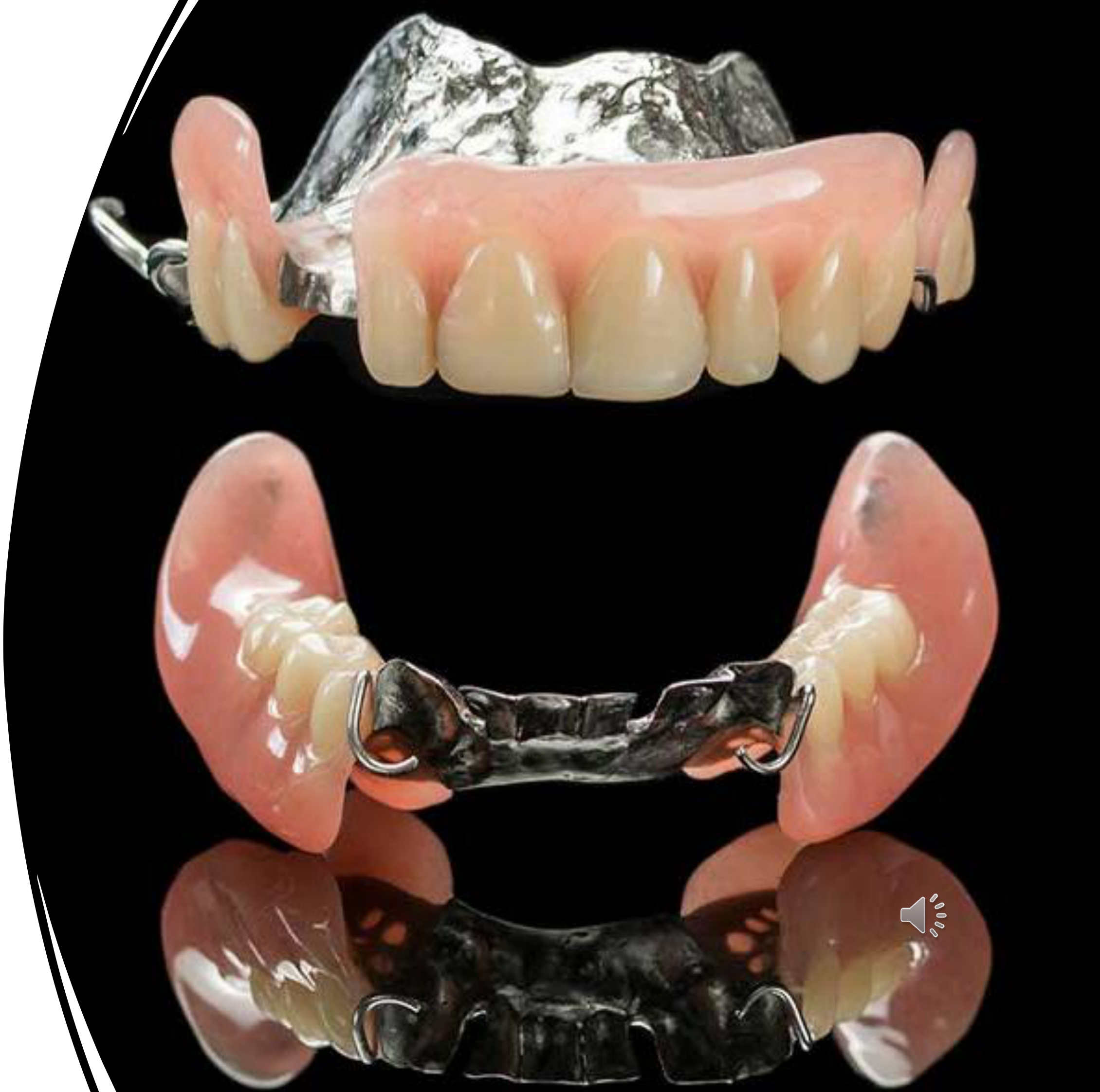

Introduction to Removable Partial Dentures²

This section introduces the fundamental concepts and clinical applications of Removable Partial Dentures (RPDs).

Definition and Key Concepts

Essential Terminology³

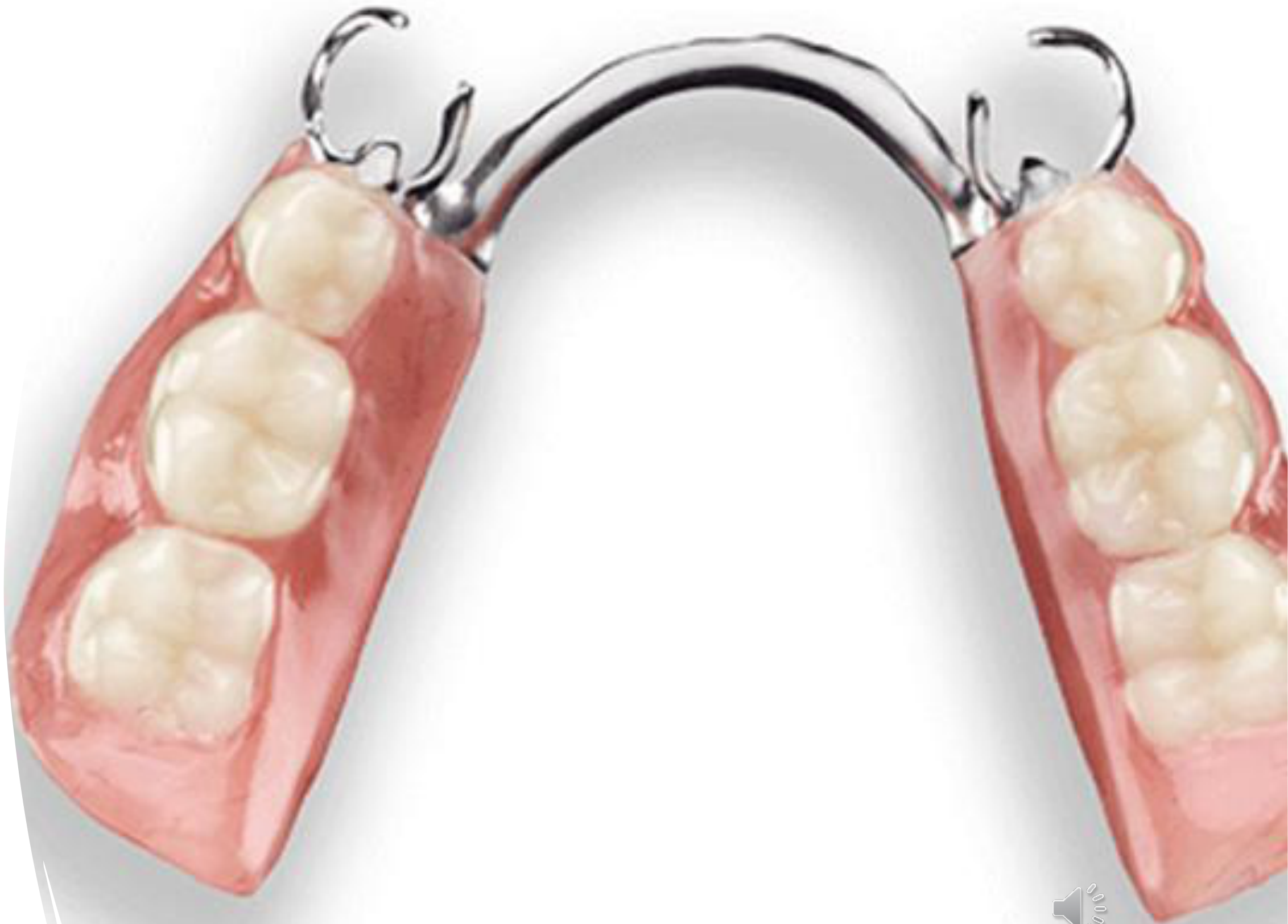

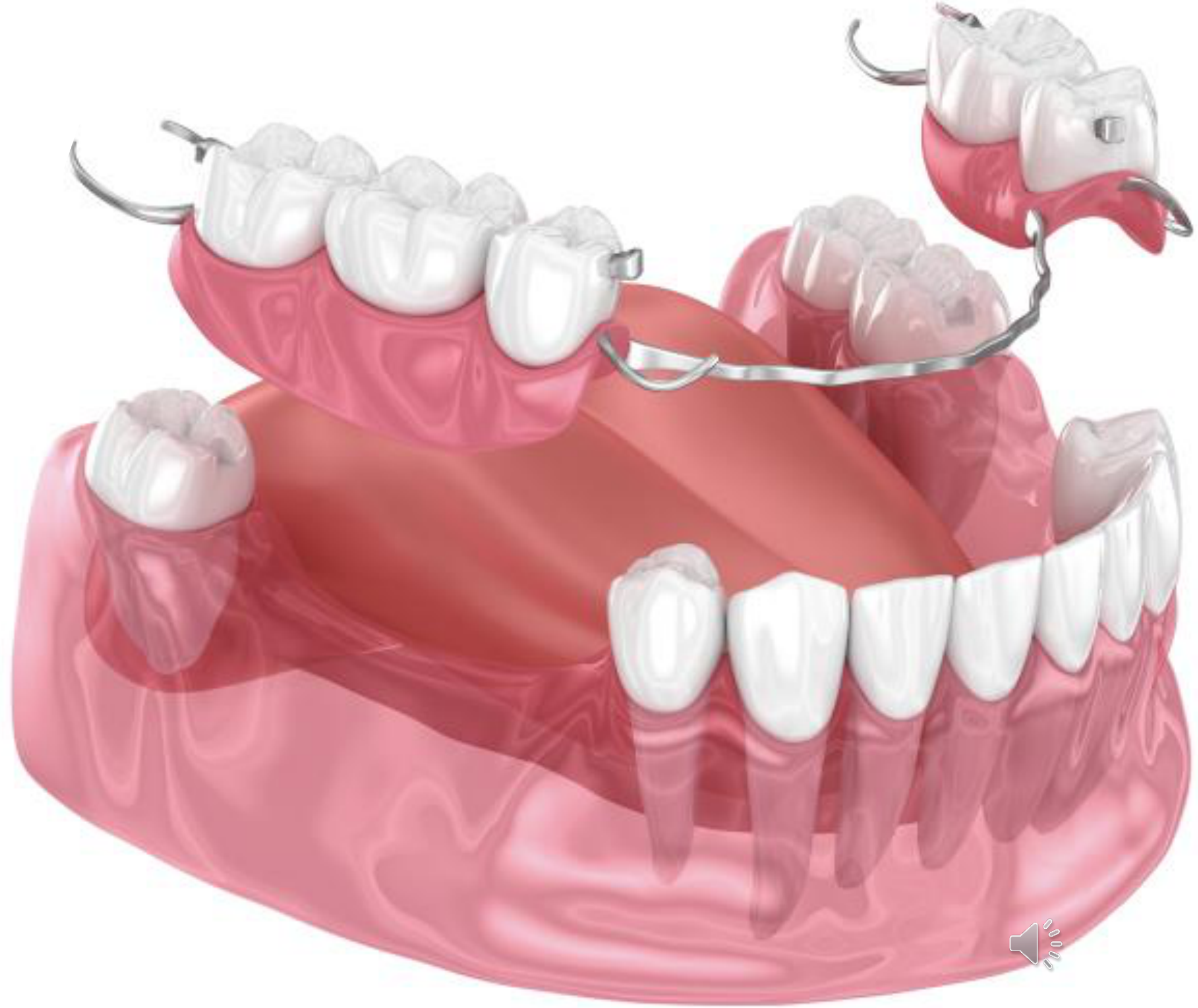

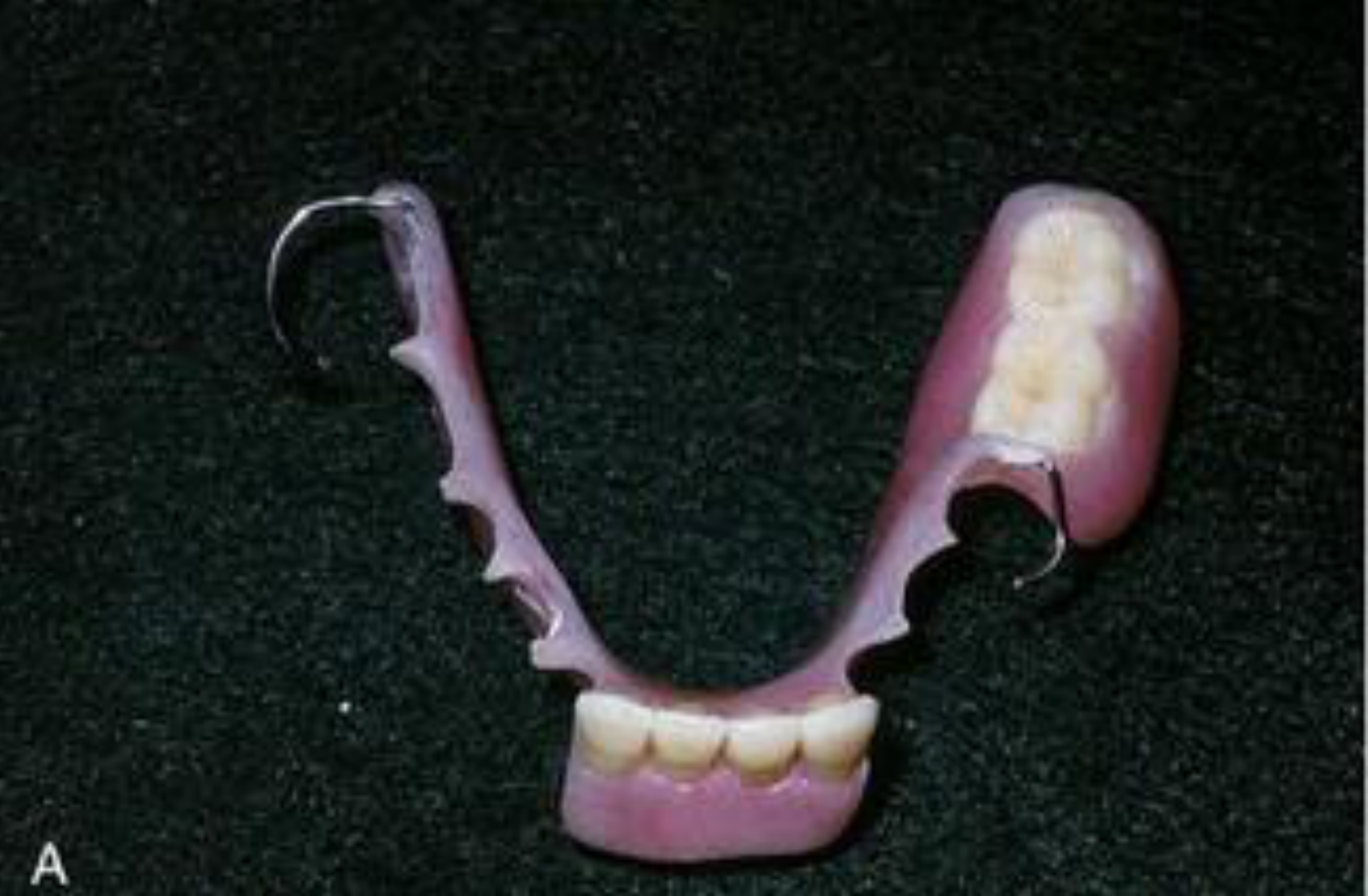

• Removable partial denture (RPD): A removable prosthesis replacing one or more missing teeth and associated tissues.
• Partially edentulous arch: An arch with remaining natural teeth and one or more edentulous areas.
• Abutment tooth: A tooth that provides support, retention, and stability for an RPD.

Functional Components and Framework⁴

• Support vs. Stability vs. Retention: These represent different mechanical functions that guide RPD design decisions.
• RPD framework: The metal or polymer “skeleton” that supports the denture base and clasp assemblies.

Key Design and Biomechanics Terms

Placement and Guidance⁵

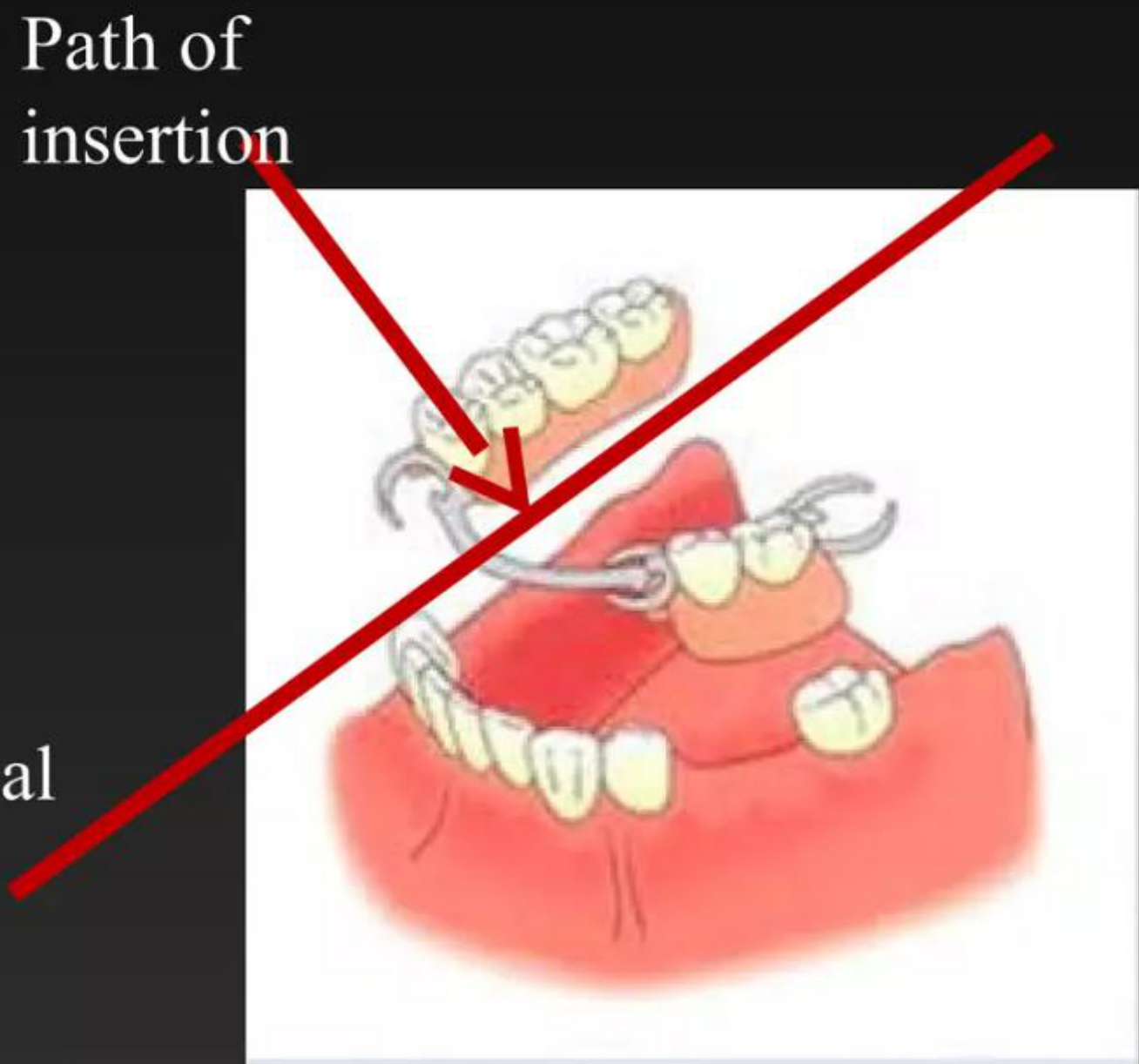

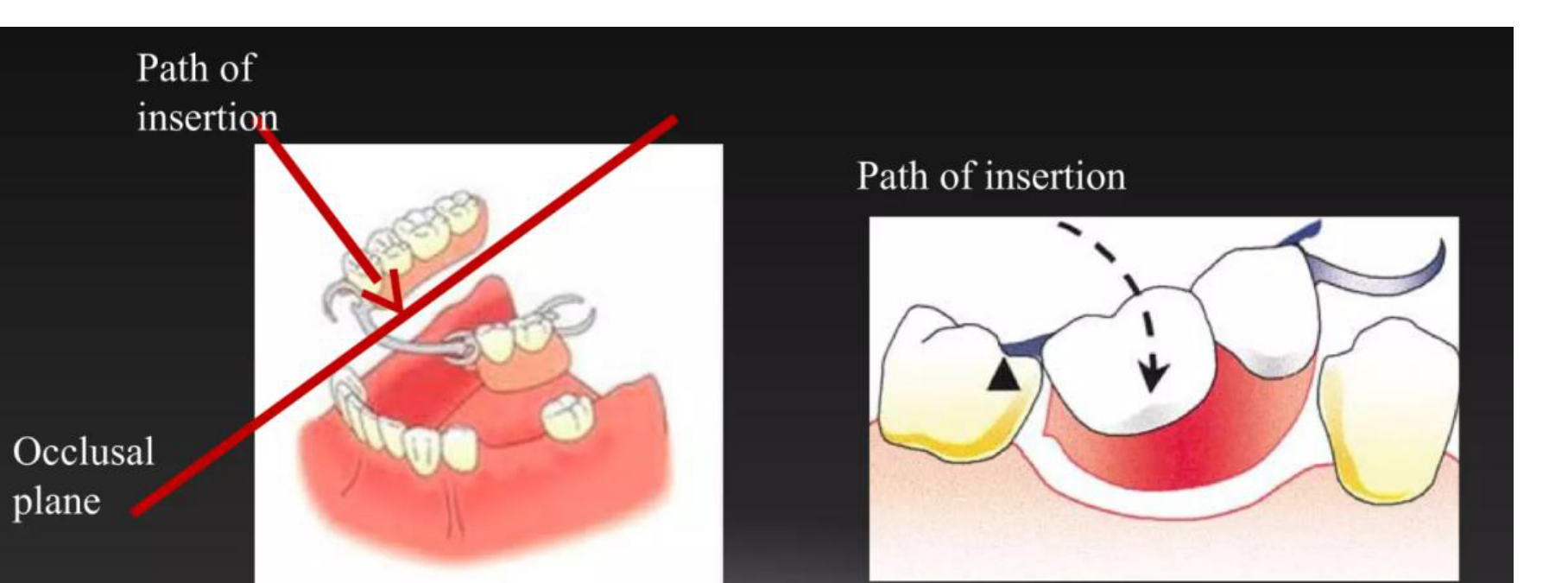

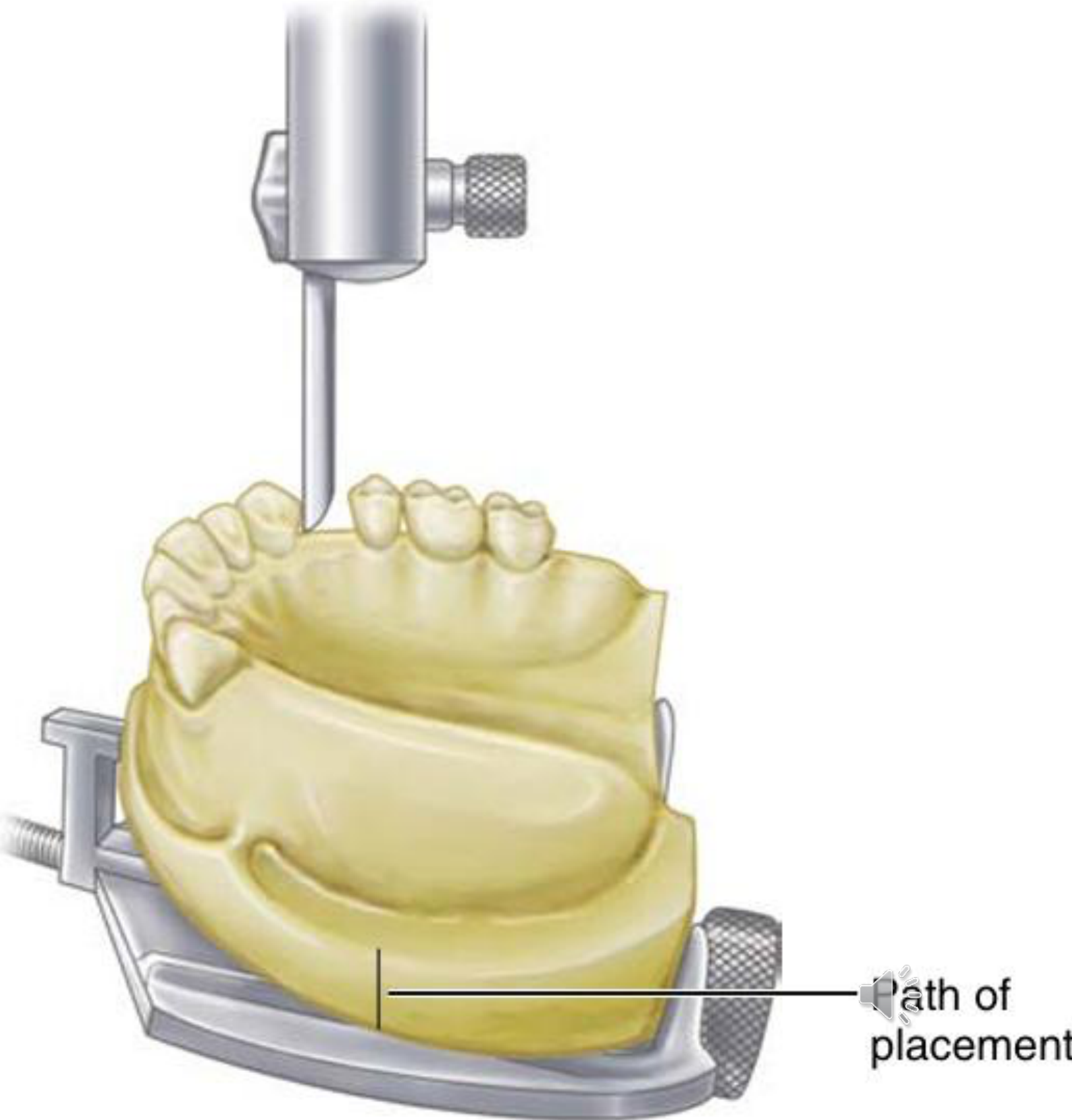

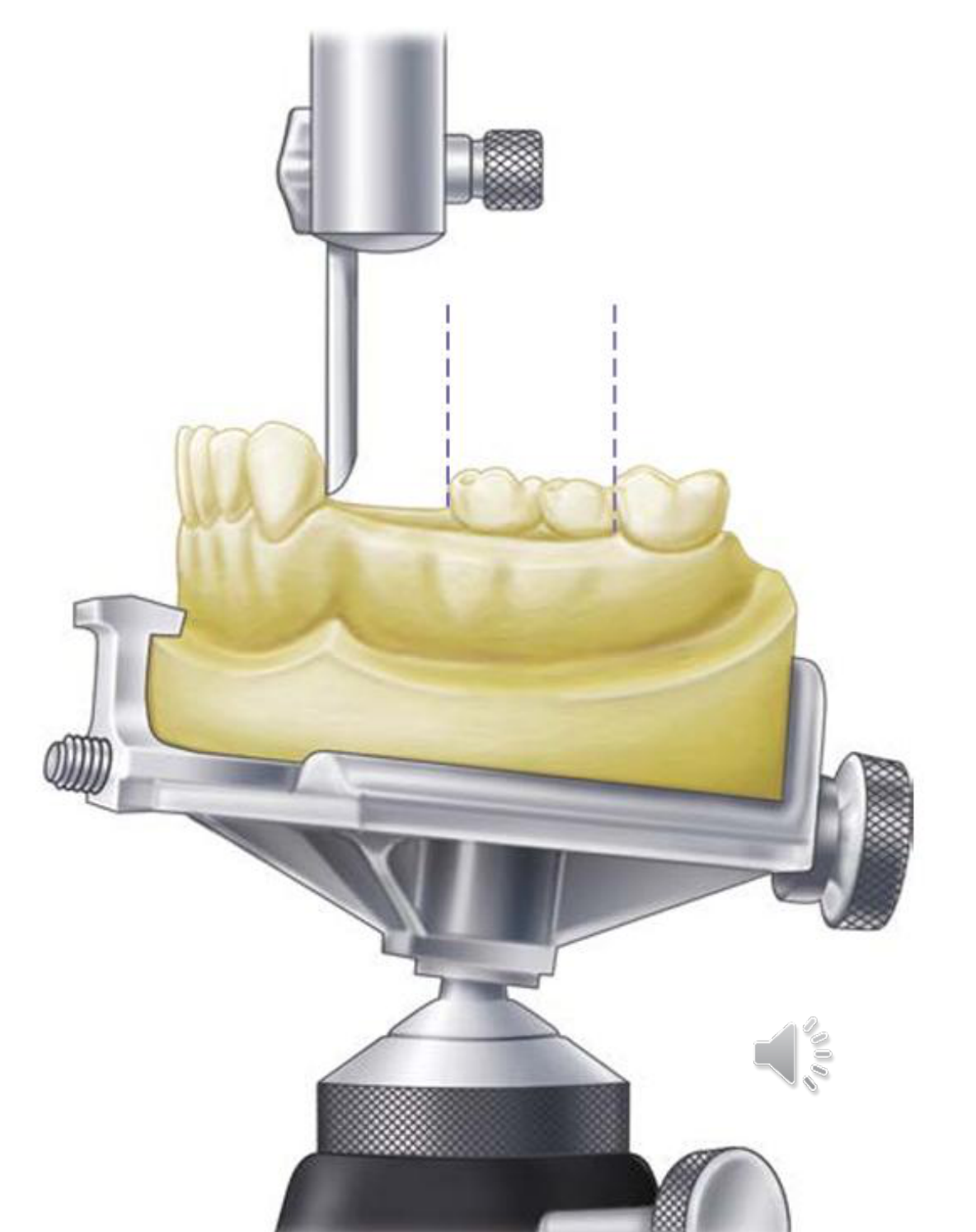

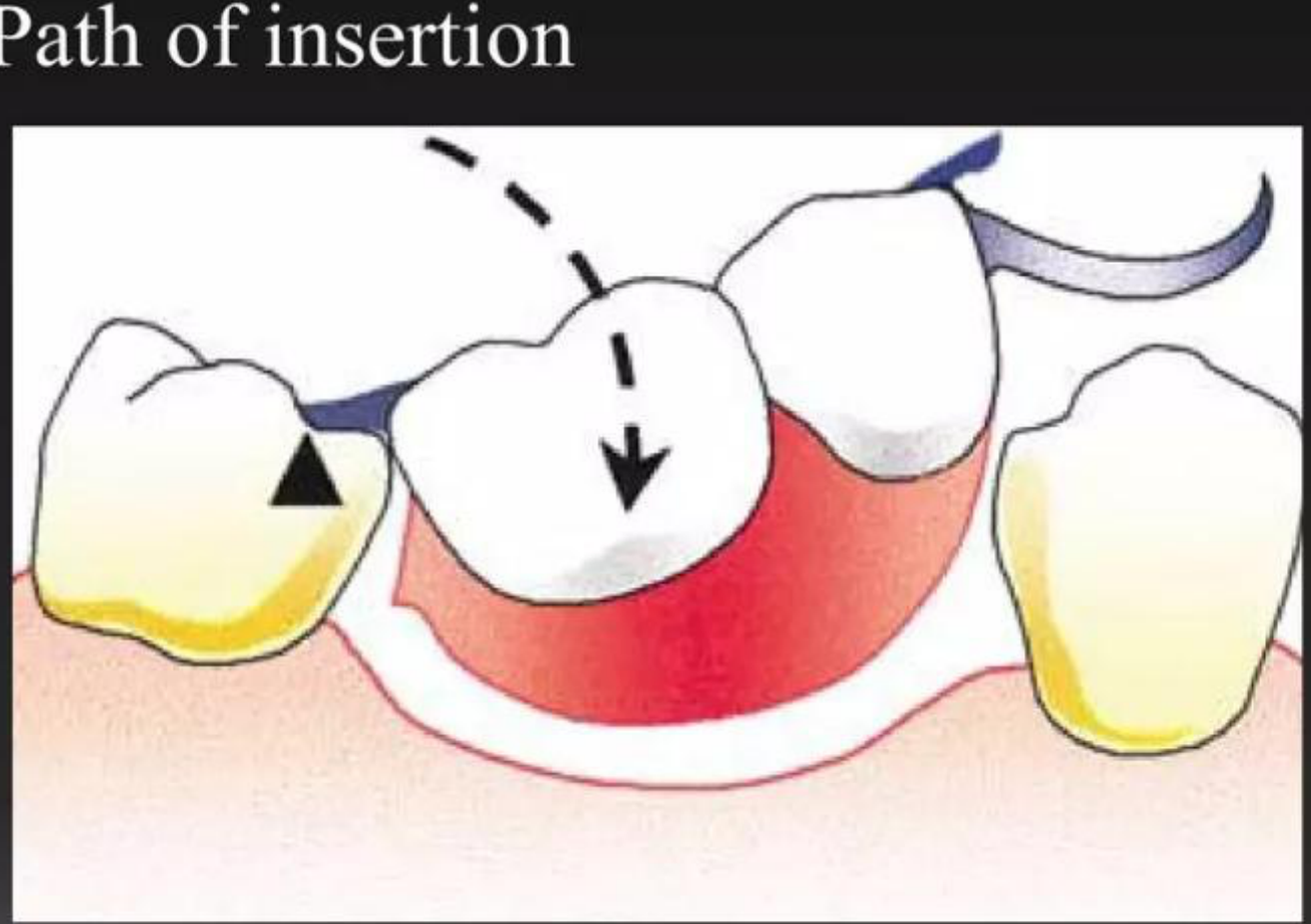

• Path of insertion: The specific direction in which an RPD is placed onto or removed from the abutment teeth.

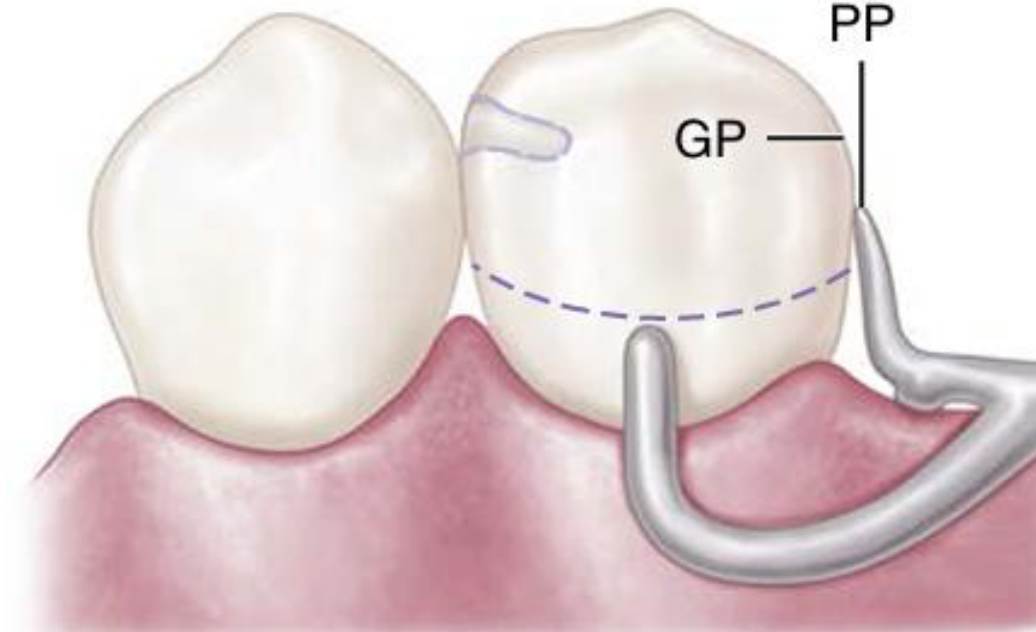

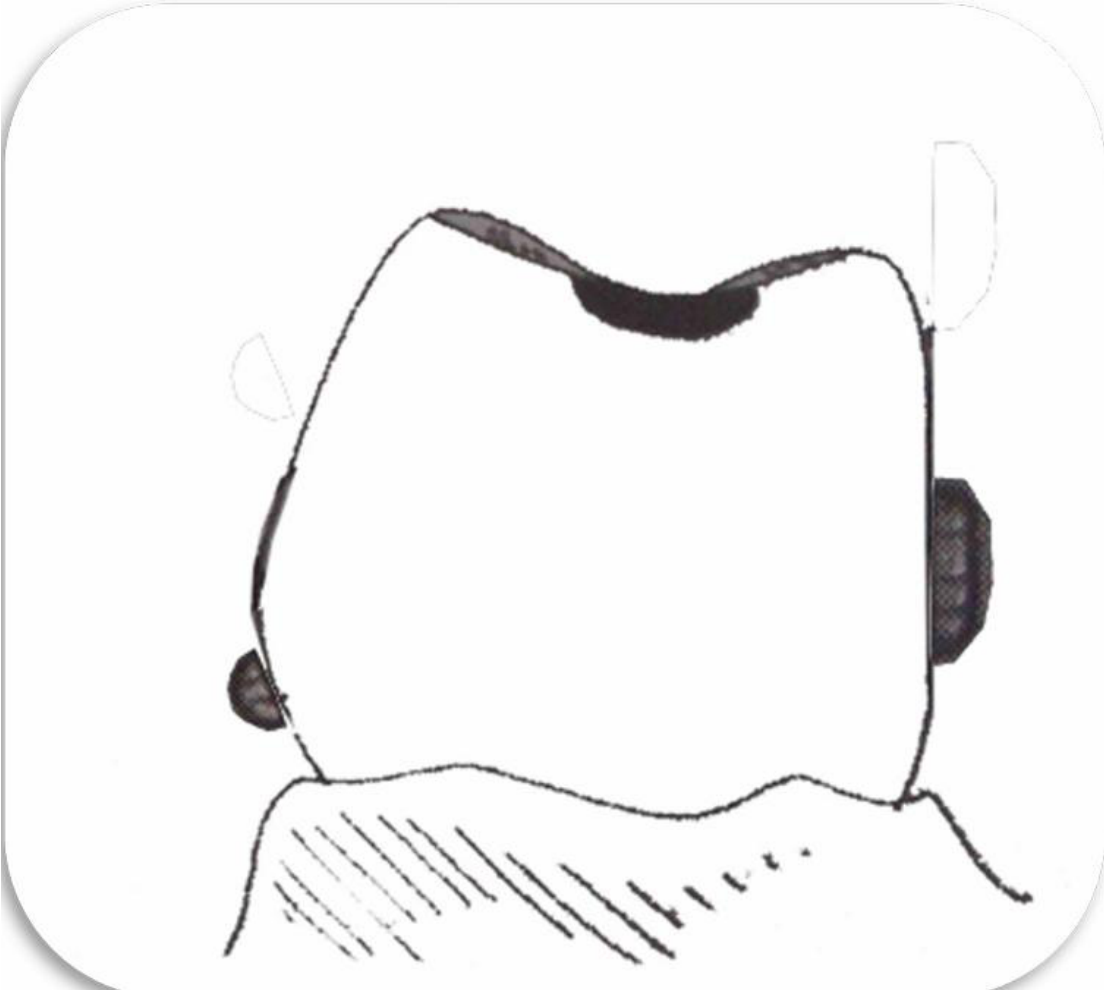

• Guide plane: A prepared axial surface of an abutment tooth designed to help guide the placement of the prosthesis and improve its stability.

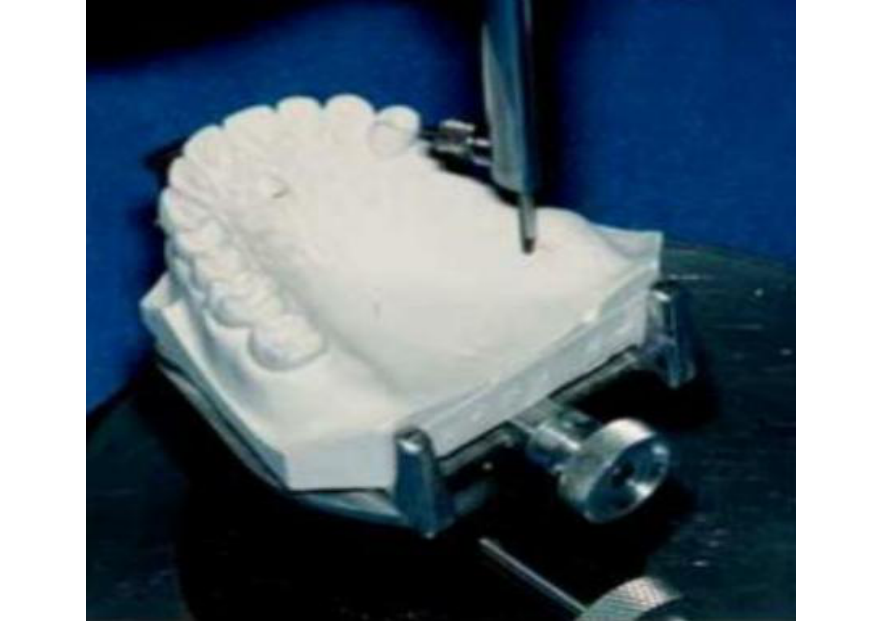

Tooth Contours and Retention⁶

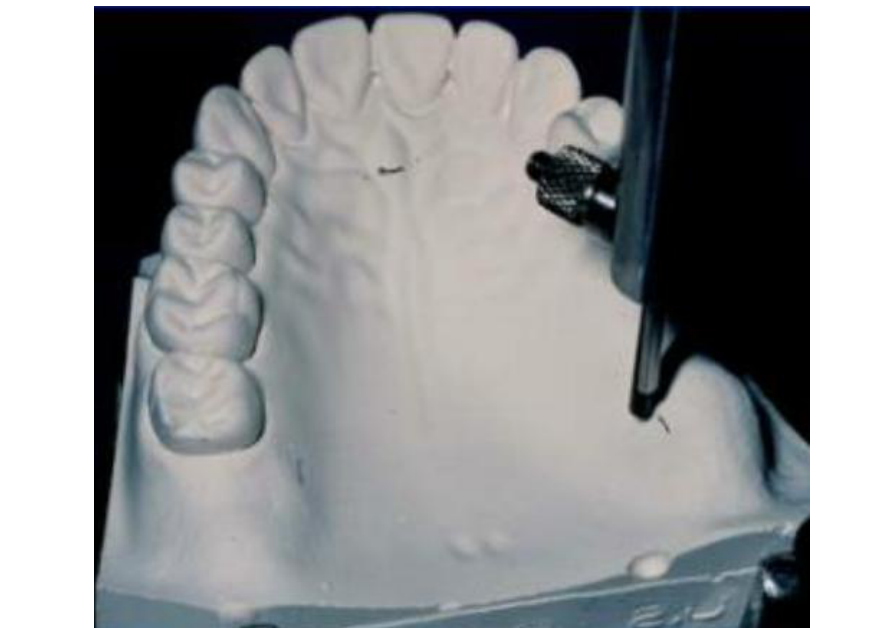

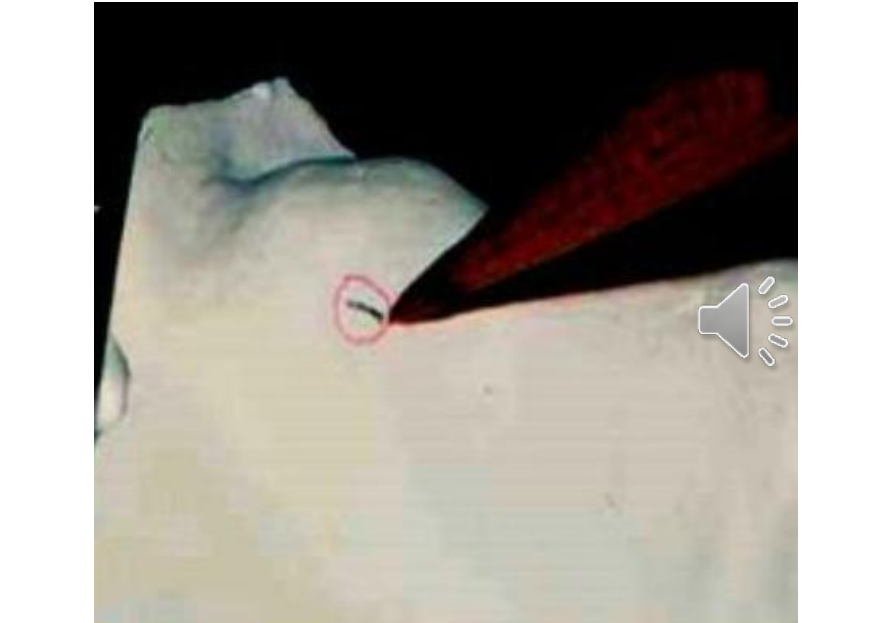

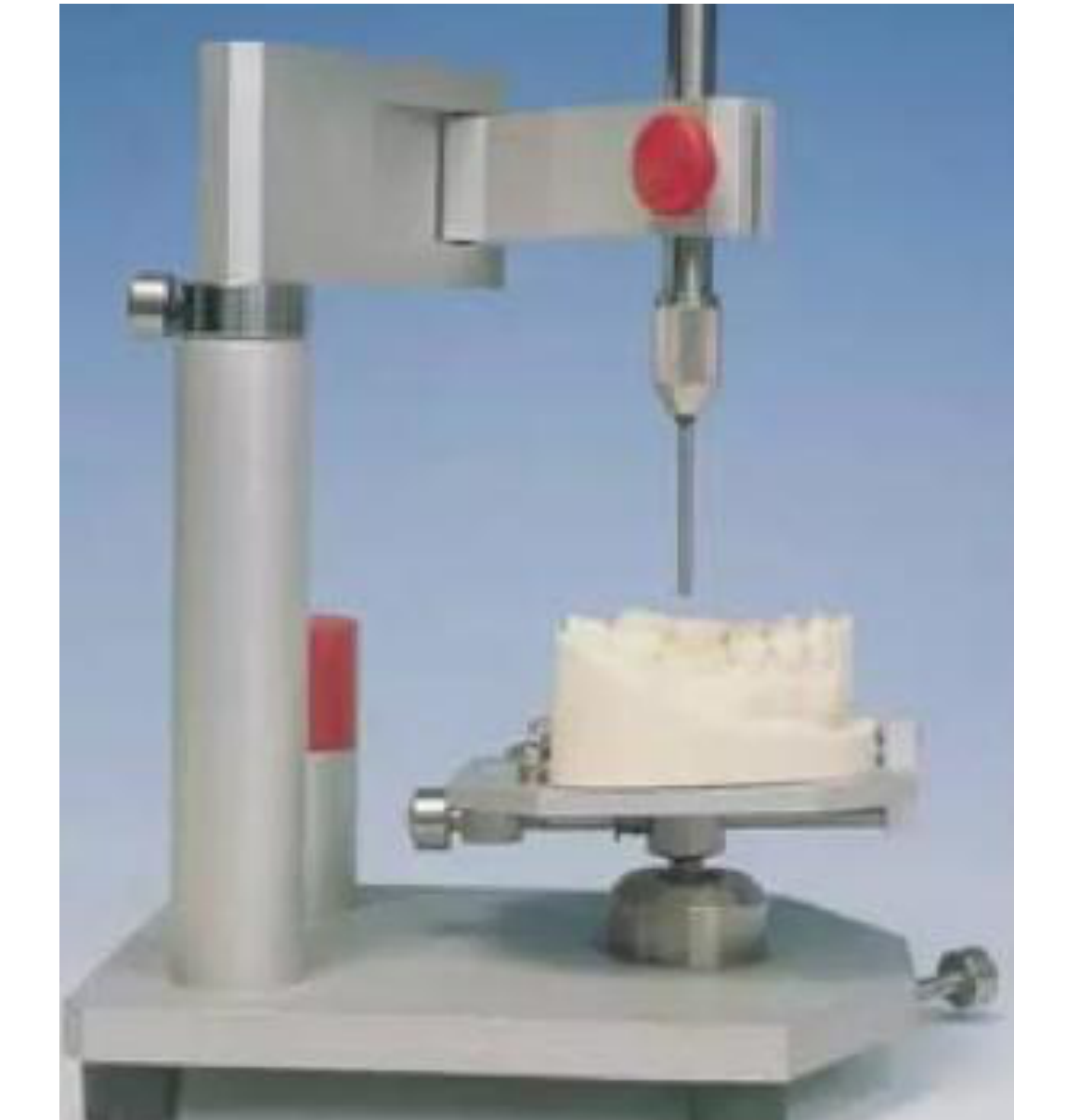

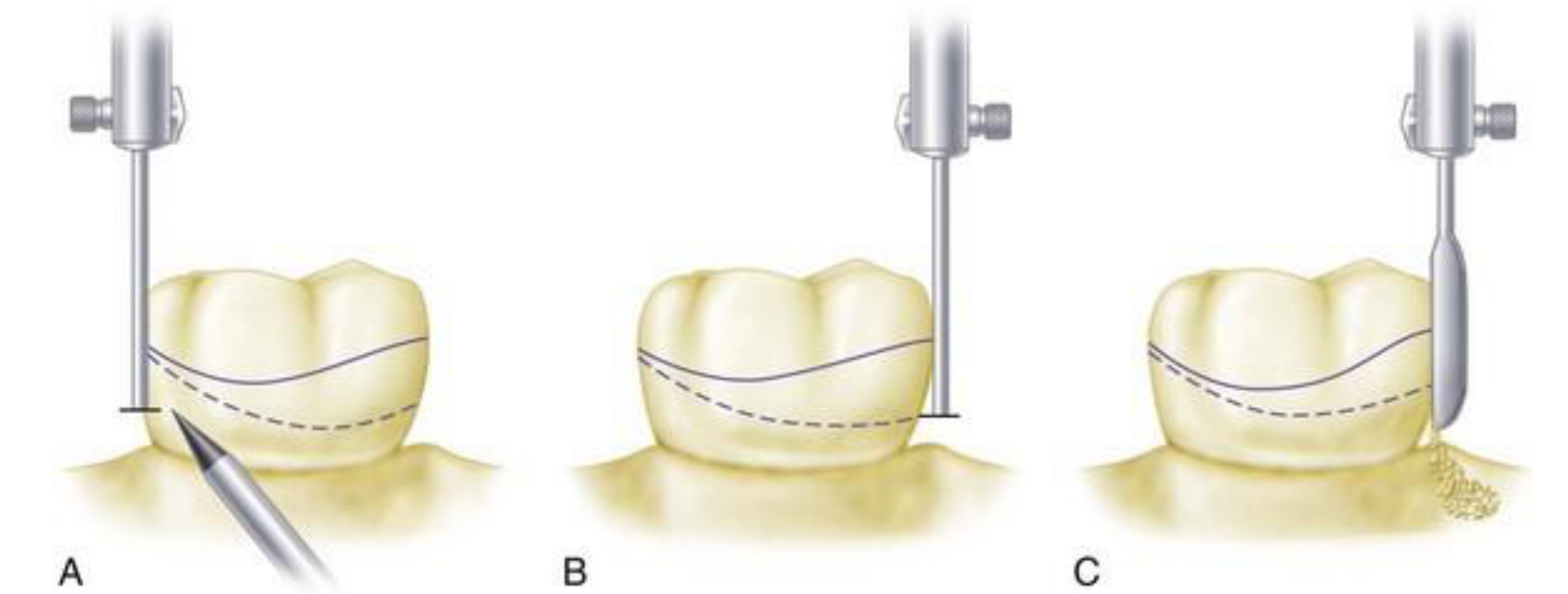

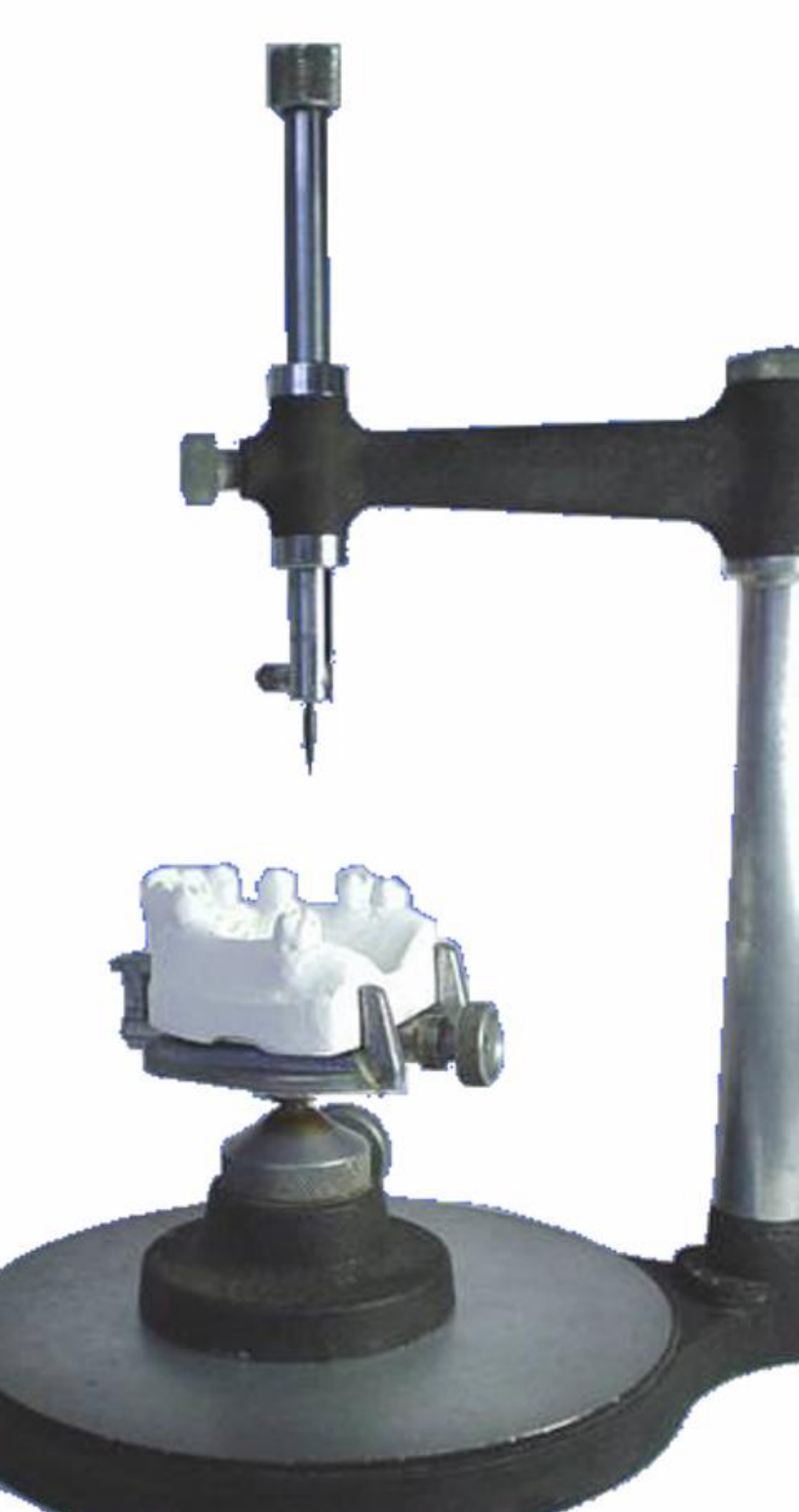

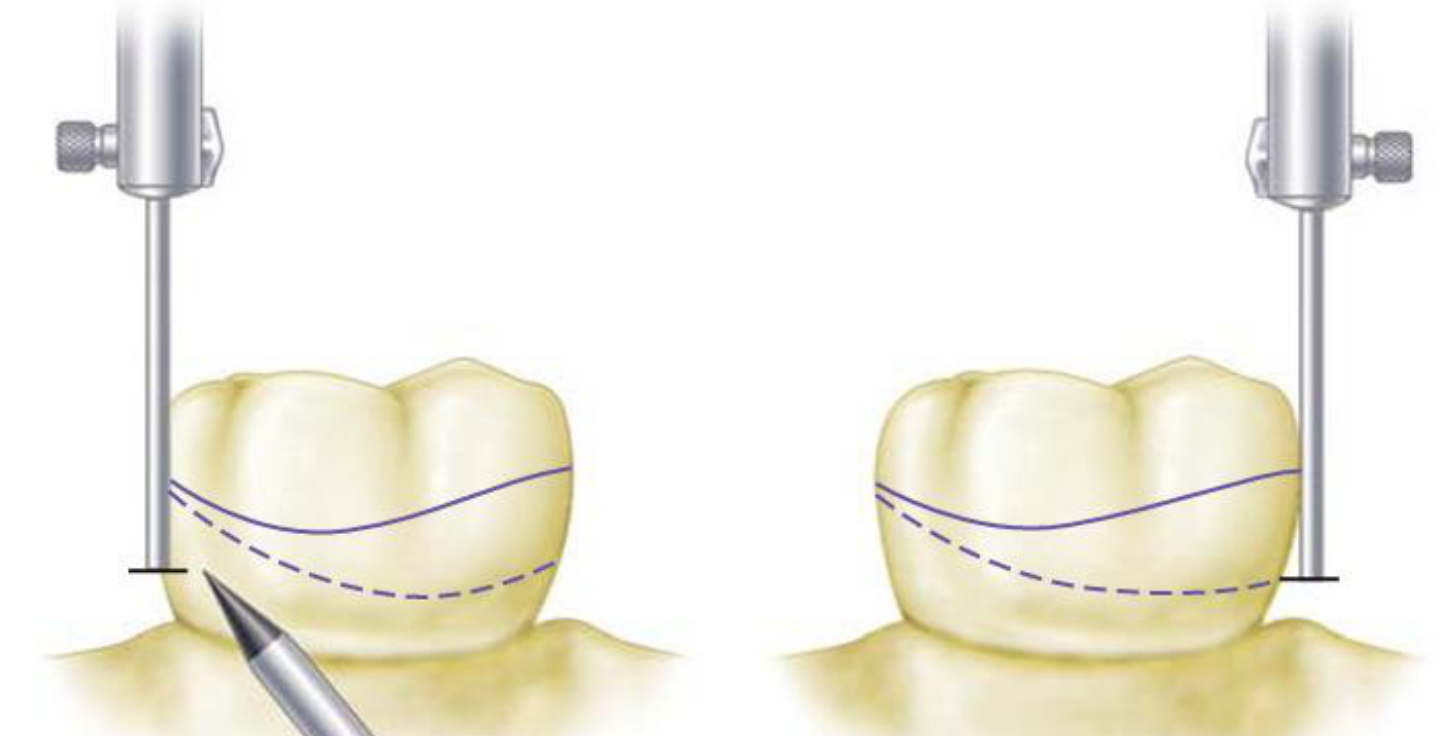

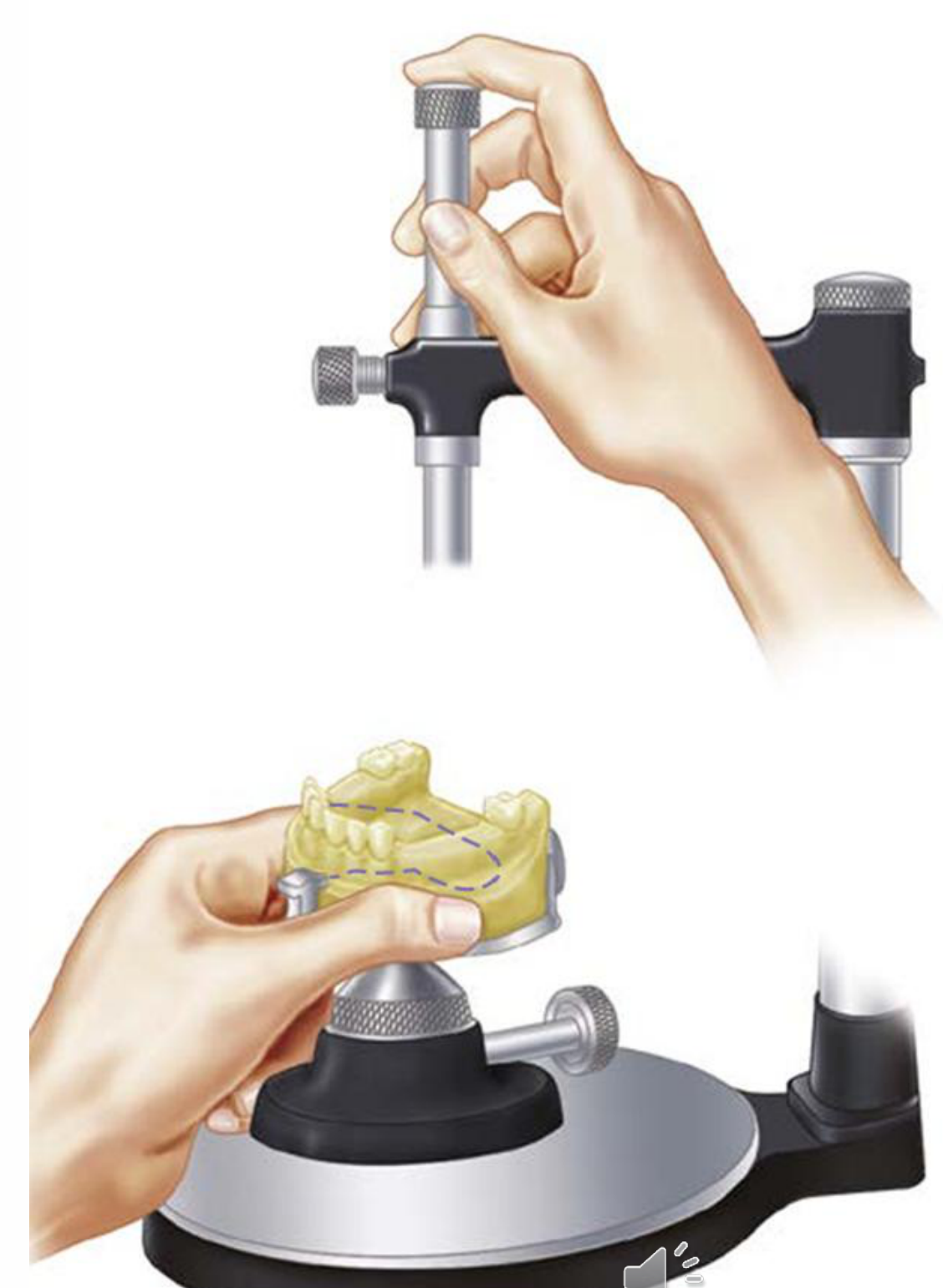

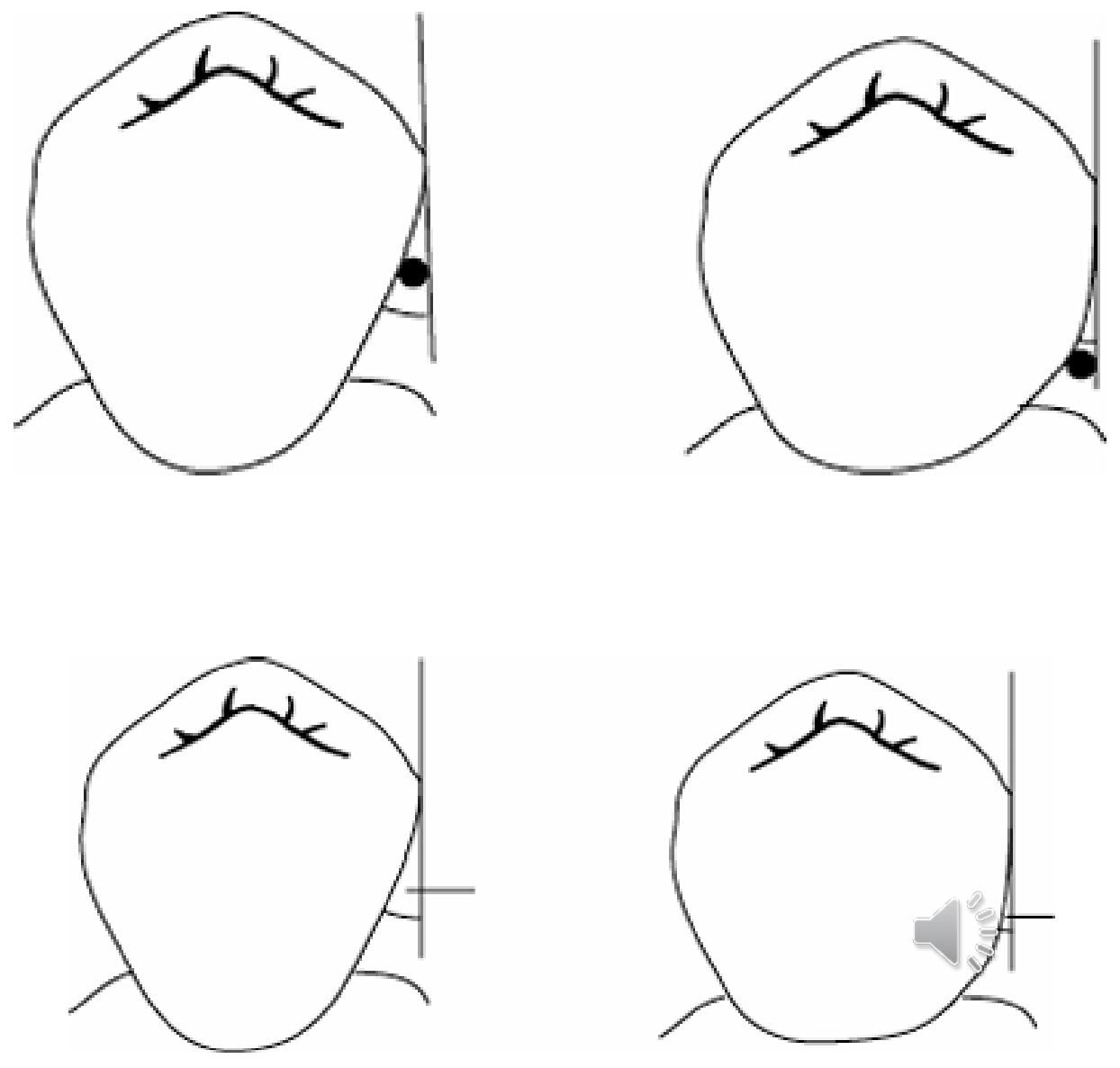

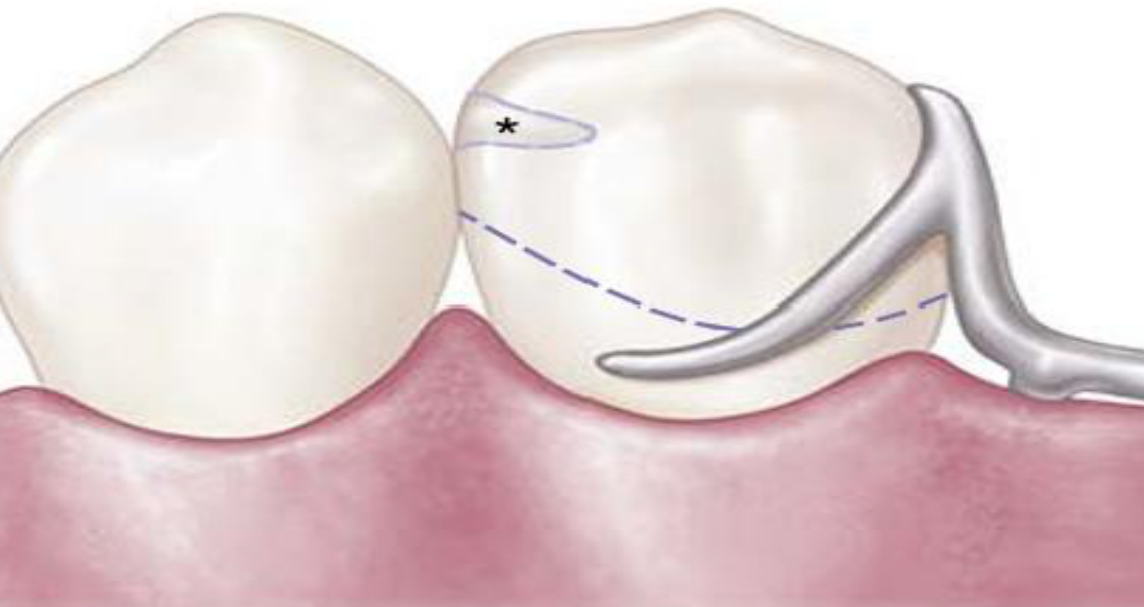

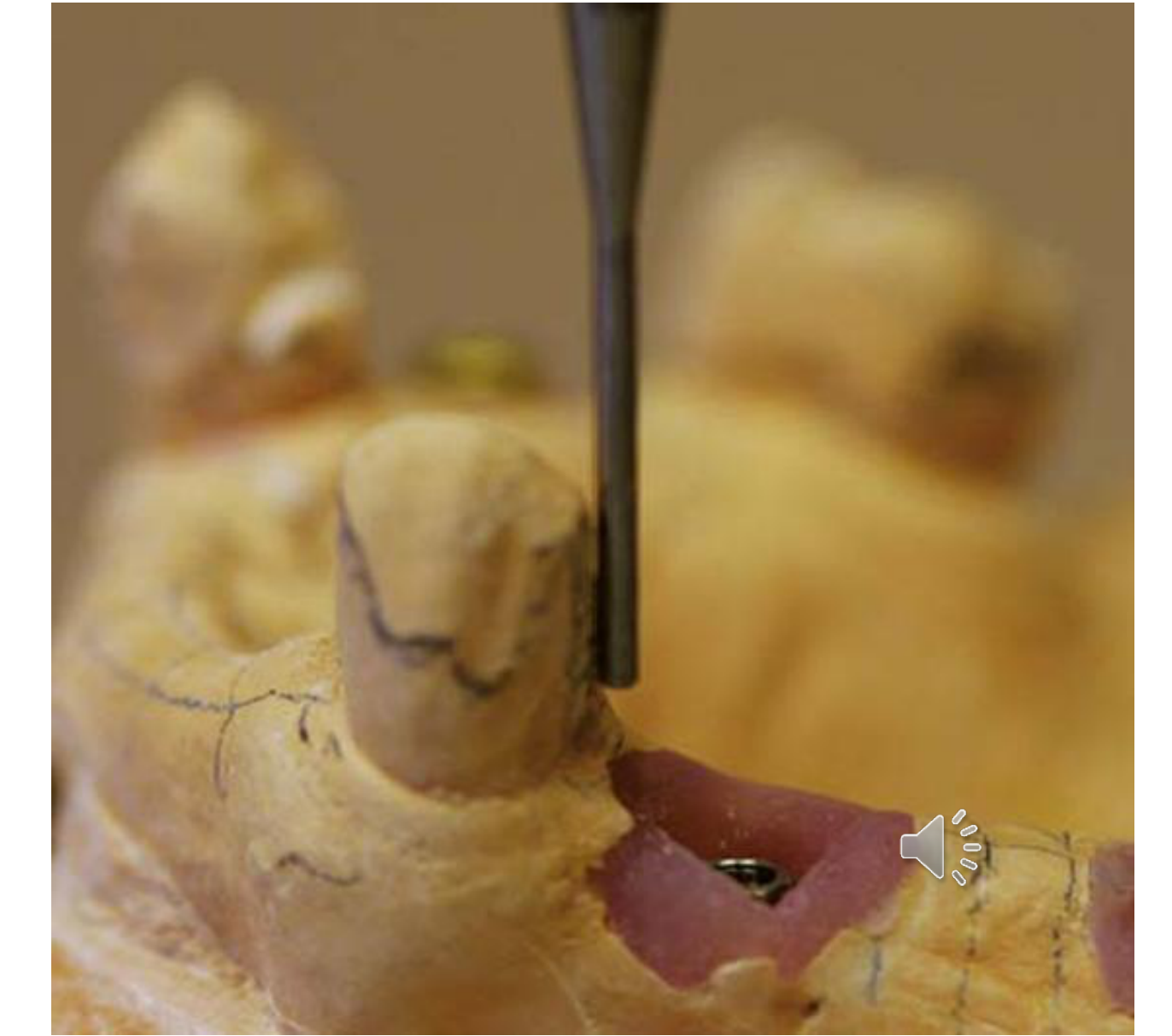

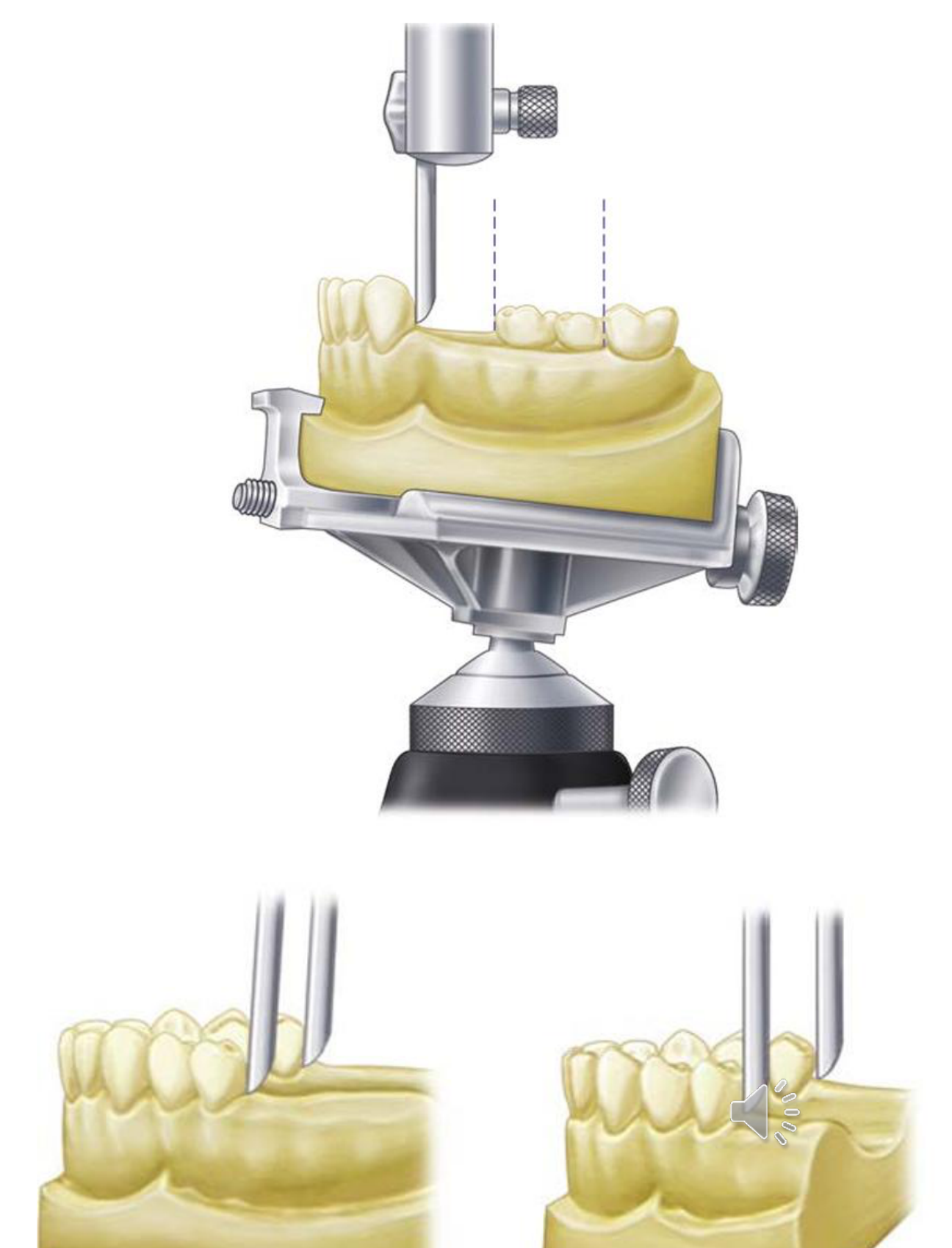

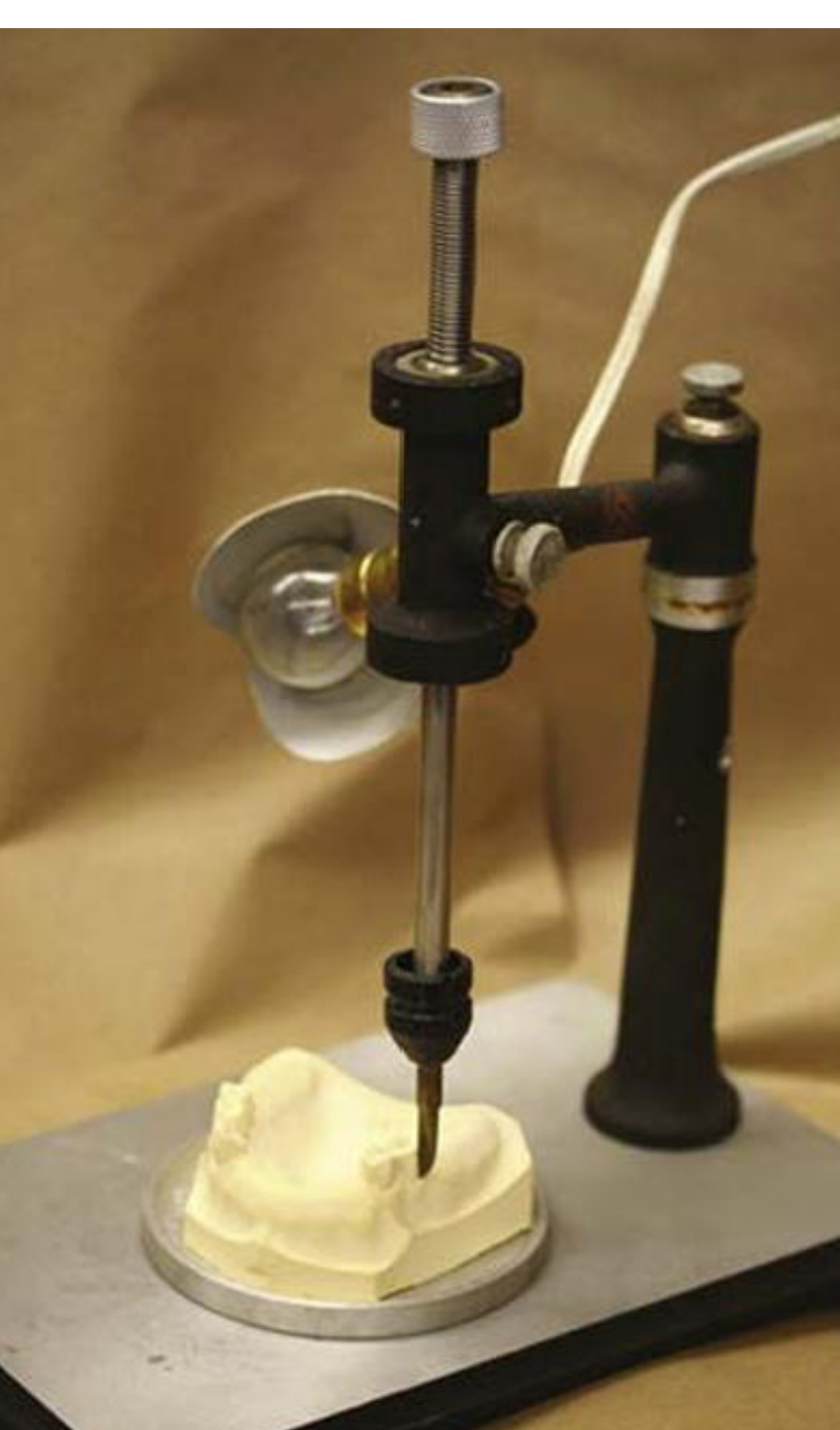

• Survey line (height of contour): The line marking the greatest bulge on a tooth relative to the chosen path of insertion.
• Retentive undercut: The area of a tooth surface located below the height of contour that is engaged by a retentive clasp tip to provide resistance to removal.

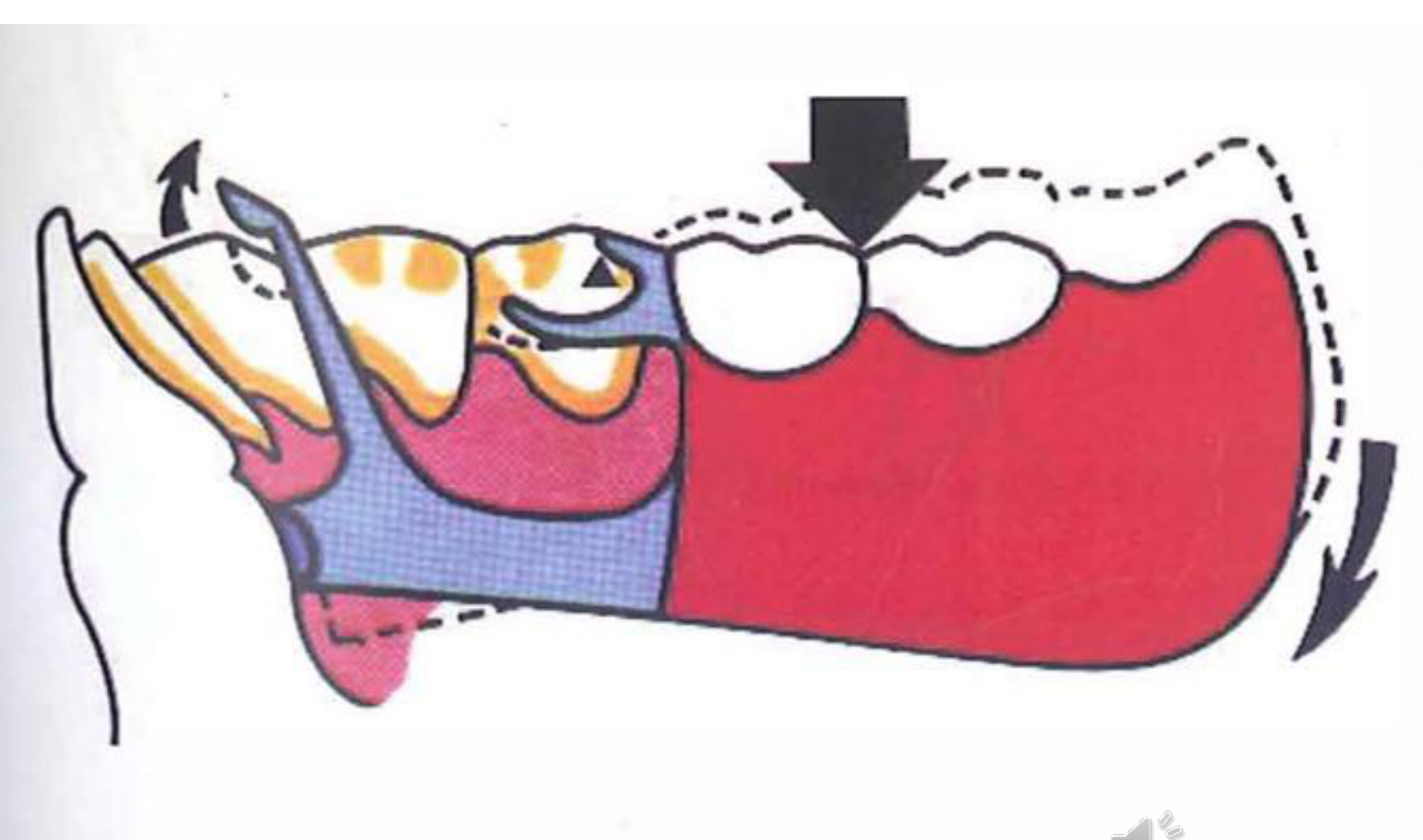

Rotational Dynamics⁷

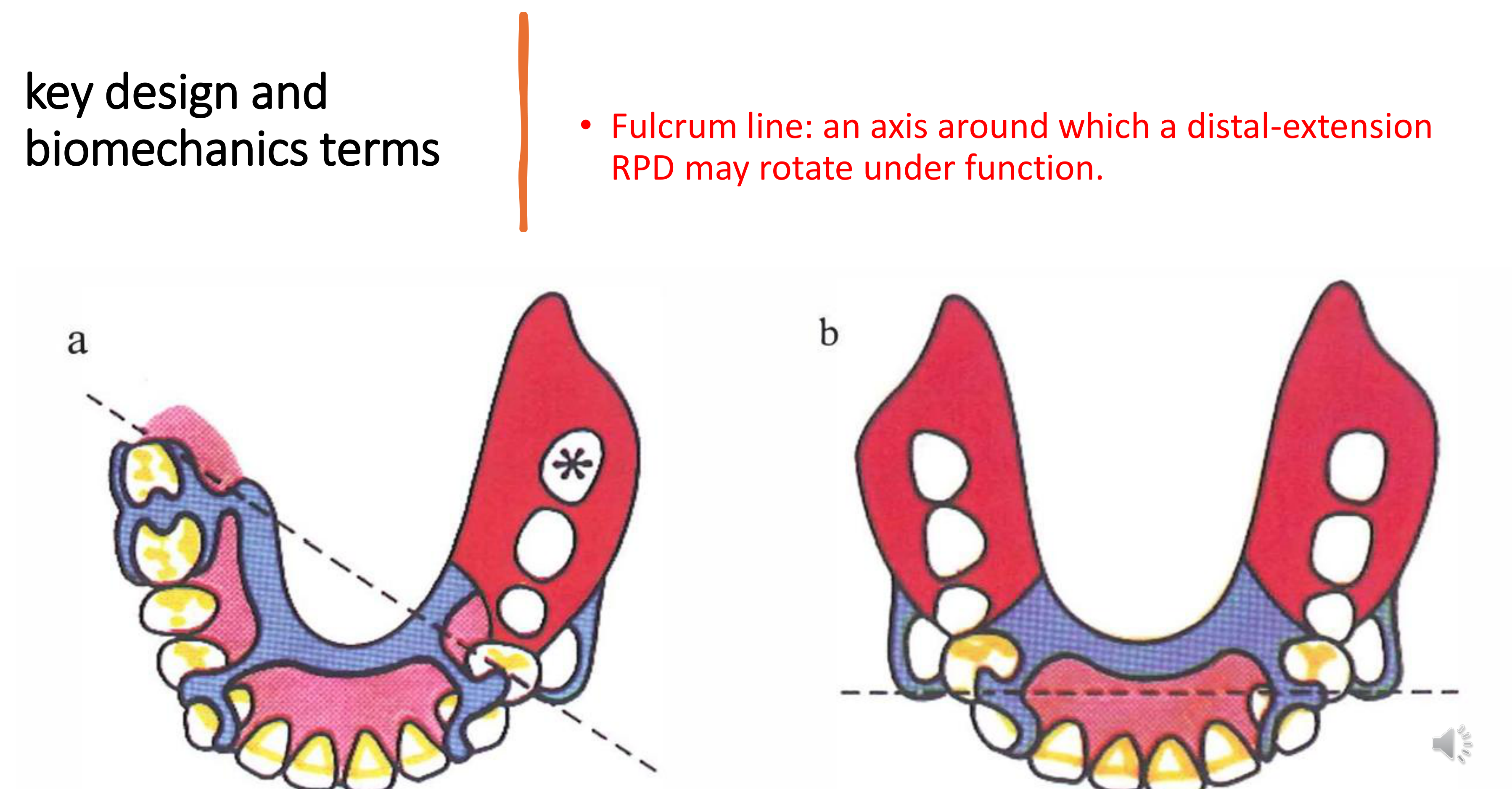

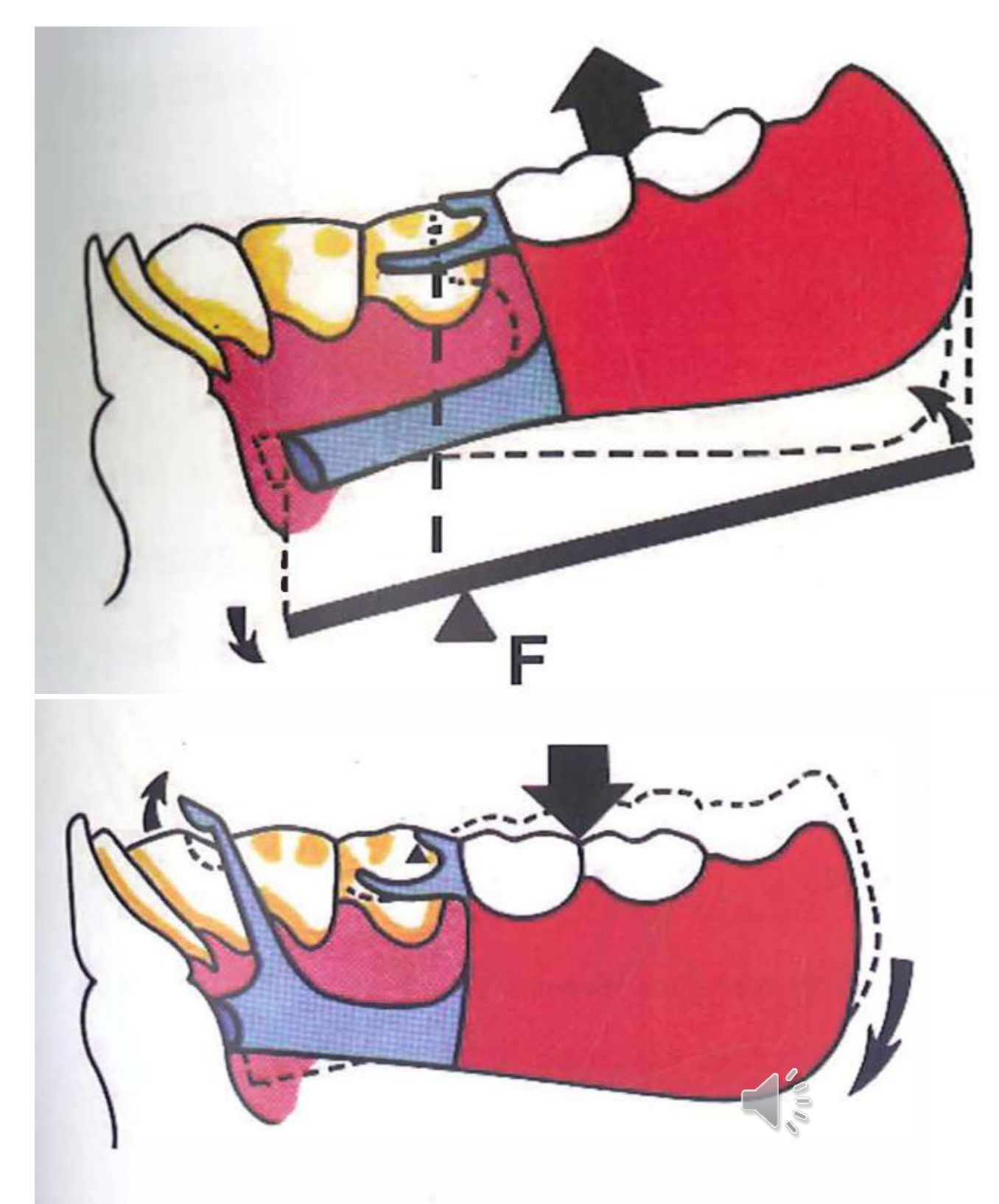

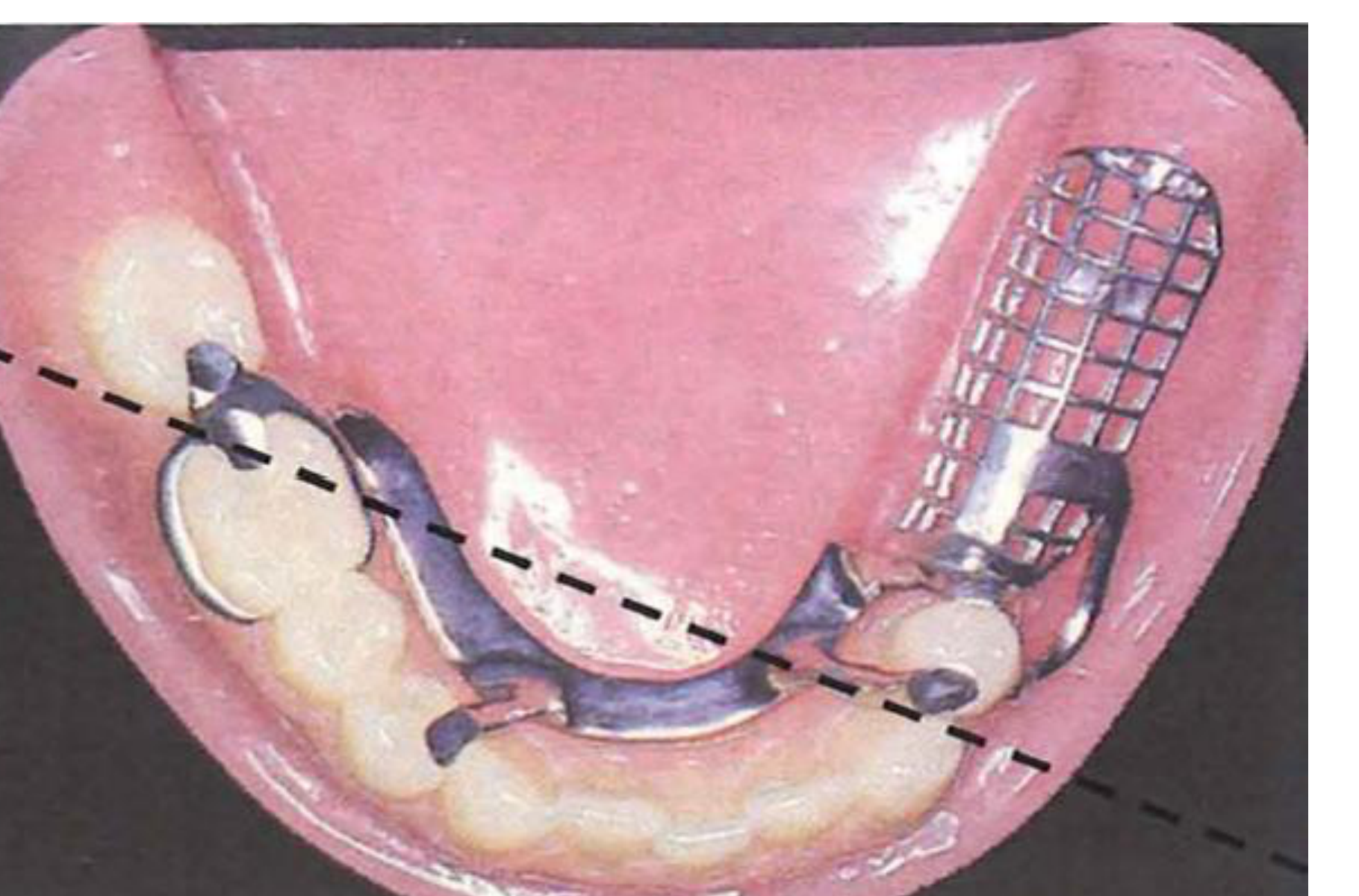

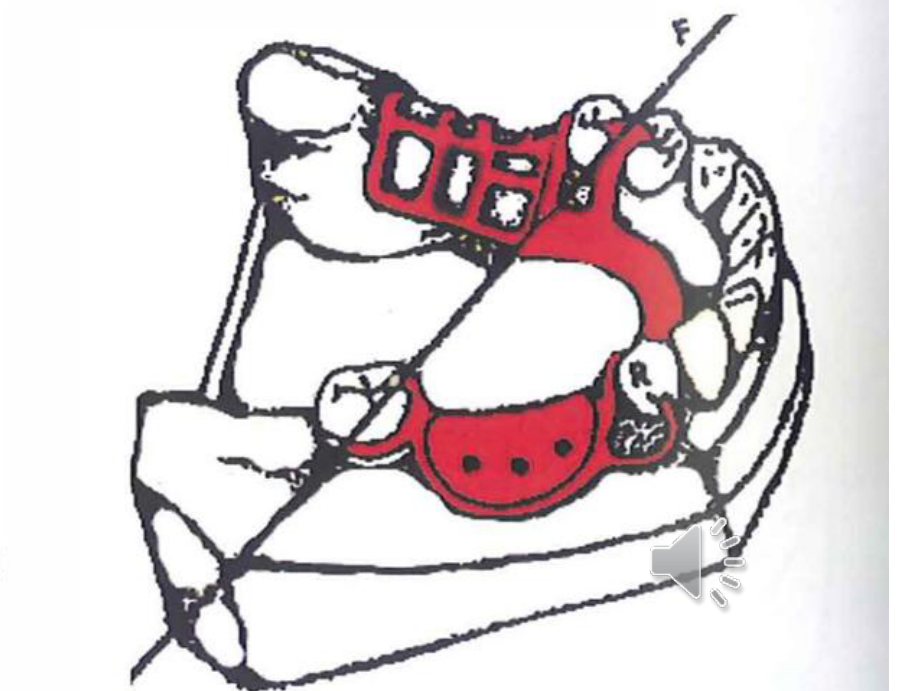

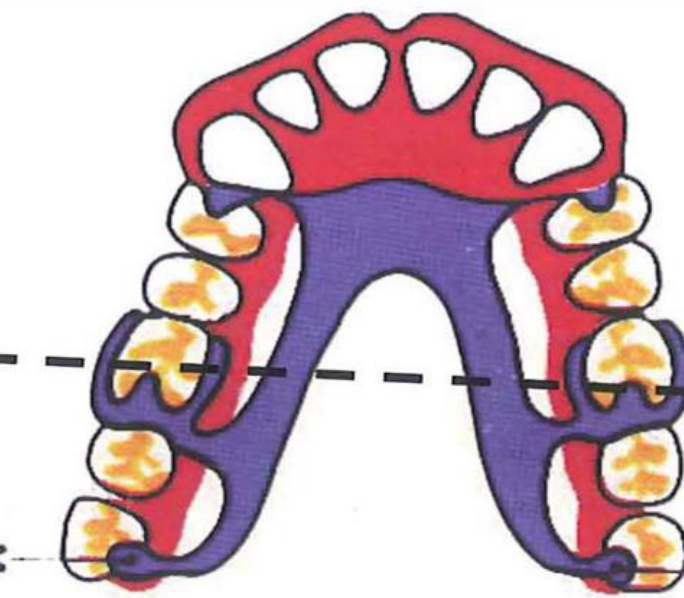

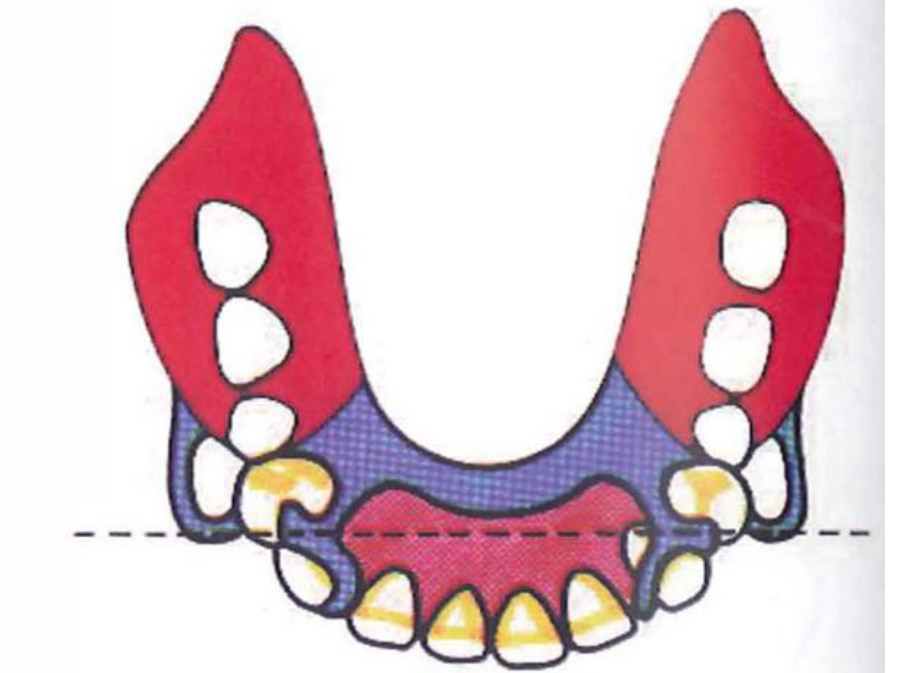

• Fulcrum line: An imaginary axis around which a distal-extension RPD may rotate during functional loading.

Indications of Removable Partial Dentures

Primary Clinical Indications⁸

• Multiple missing teeth where the remaining natural teeth are suitable to serve as abutments.
• Distal extension edentulism (cases where there is no posterior abutment tooth) where fixed prosthetic options are limited or not preferred by the patient.

Supplementary Clinical Indications⁹

• Use as an interim or provisional prosthesis during complex treatment sequencing.
• Situations where economic, anatomical, or medical factors limit the feasibility of fixed bridges or dental implant therapy.
• Cases requiring cross-arch stabilization and additional occlusal support.

Practical Considerations and Limitations

Patient and Environmental Factors

• Patient factors: Assessment of motivation, oral hygiene ability, personal expectations, and the patient’s psychological tolerance for a removable prosthesis.
• Oral environment: Evaluation of caries risk, periodontal condition, mucosal health, salivary flow, and existing occlusion.
• Anatomy and space: Consideration of available inter-arch space, residual ridge form, frenal attachments, and the presence of tori.

Note: The success of an RPD depends on the combination of high-quality design, thorough mouth preparation, and diligent patient maintenance.

Objectives of Removable Partial Dentures

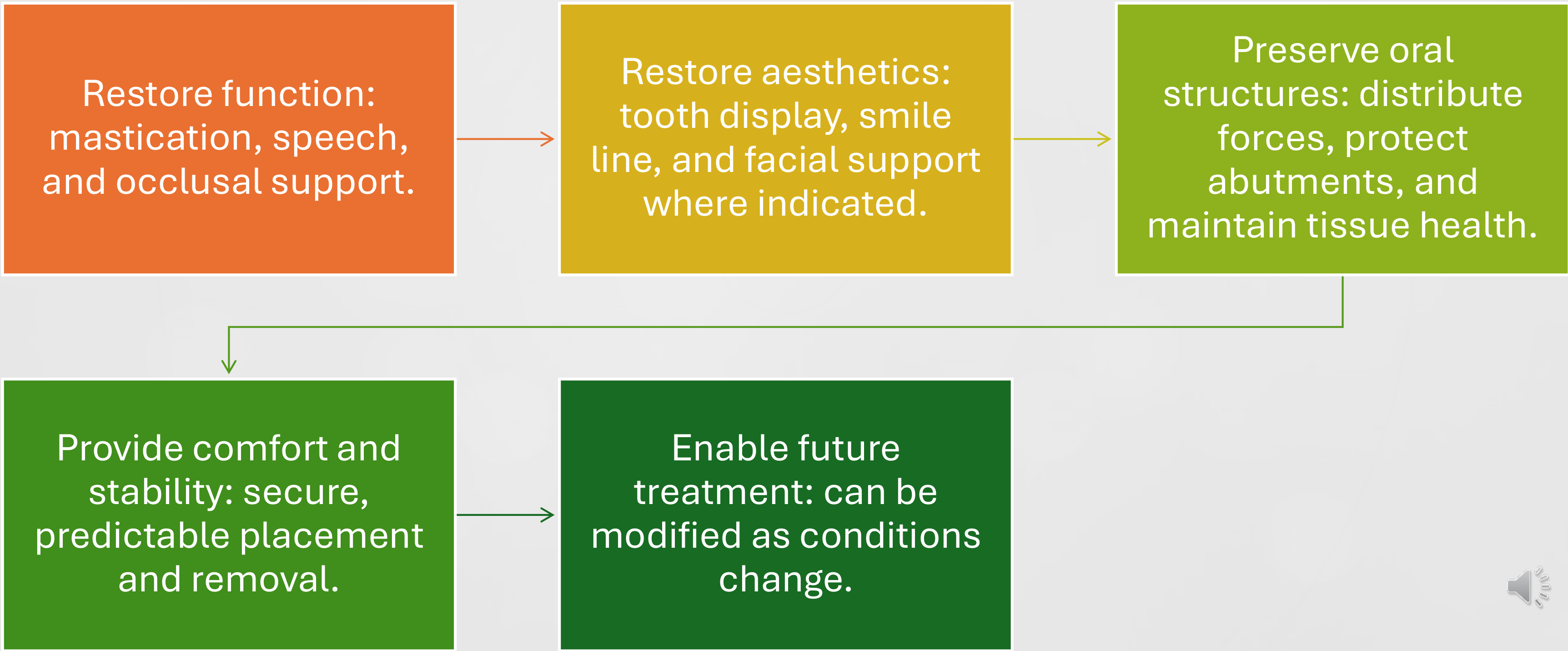

Core Treatment Goals¹⁰

1. Restore function: Improve mastication, speech clarity, and provide necessary occlusal support.
2. Restore aesthetics: Improve tooth display, the smile line, and provide facial tissue support where indicated.
3. Preserve oral structures: Effectively distribute functional forces, protect remaining abutment teeth, and maintain the health of the surrounding soft tissues.
4. Provide comfort and stability: Ensure secure, predictable placement and removal for the patient.
5. Enable future treatment: Design the prosthesis so it can be modified as oral conditions change over time.

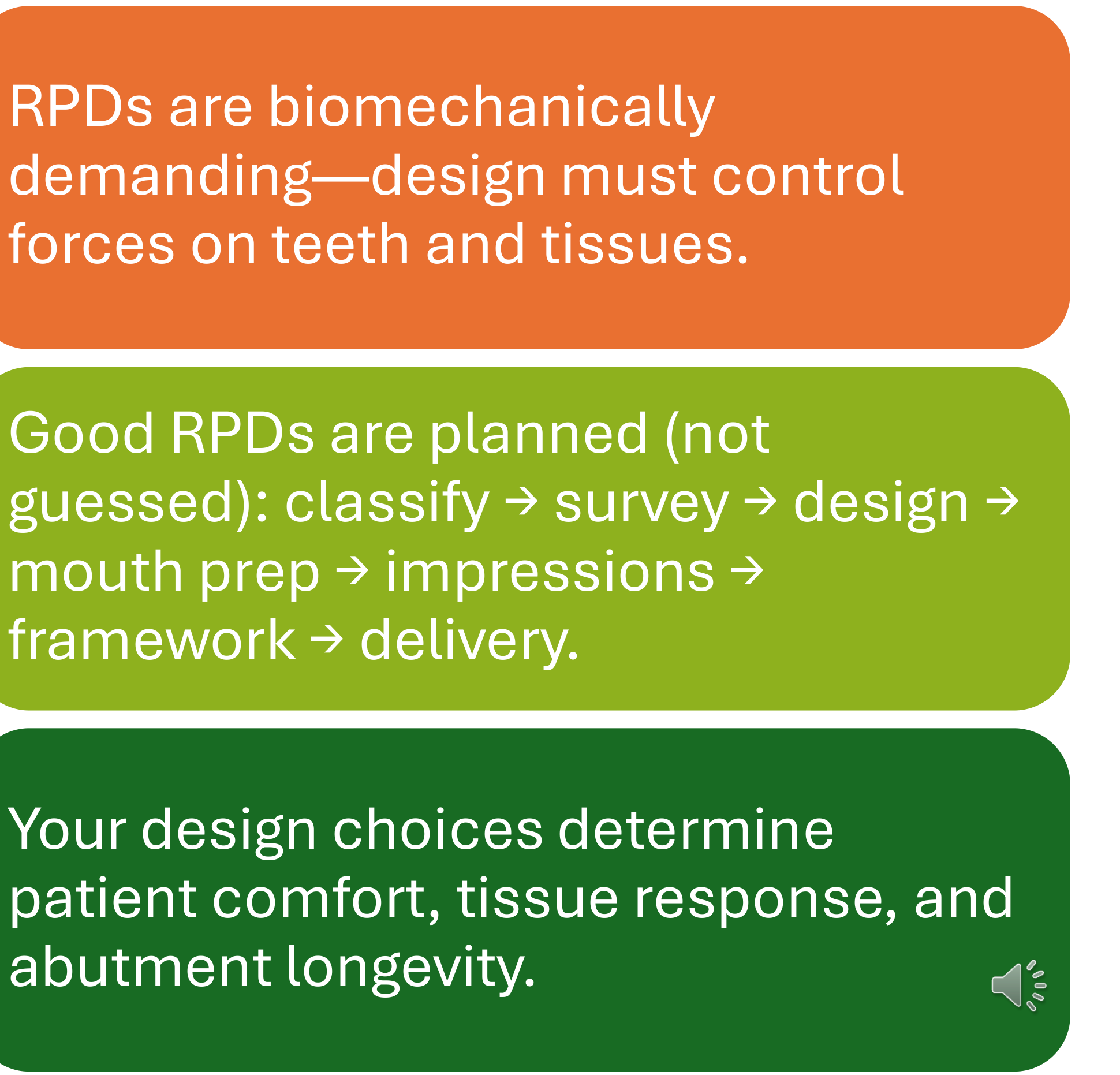

Biomechanical Principles¹¹

• Force Control: RPDs are biomechanically demanding; the design must strictly control forces exerted on both teeth and soft tissues.

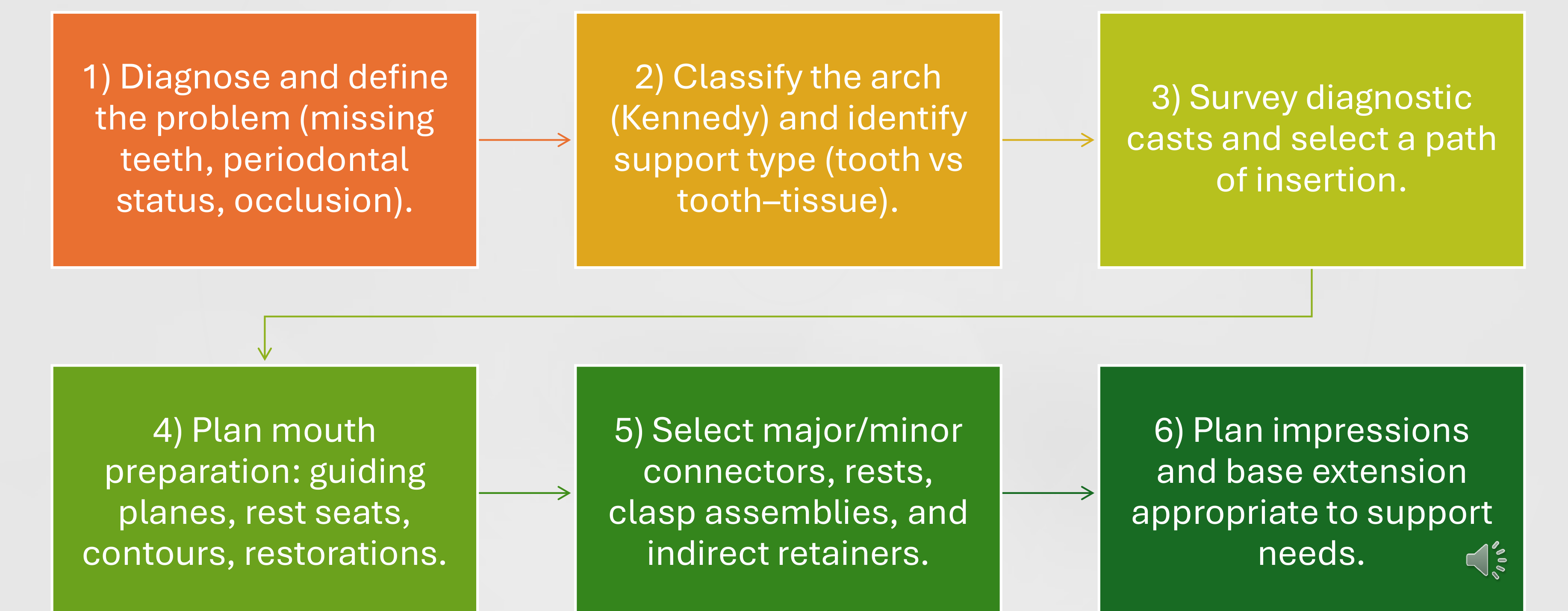

• Systematic Planning: Successful RPDs are planned through a specific sequence: Classify → Survey → Design → Mouth Preparation → Impressions → Framework Fabrication → Delivery.
• Clinical Impact: Design choices directly determine patient comfort, the biological response of the tissues, and the long-term longevity of the abutment teeth.

Hazards of Improperly Designed Partial Dentures¹²

An improperly designed and constructed partial denture may adversely affect oral tissues in the following ways:

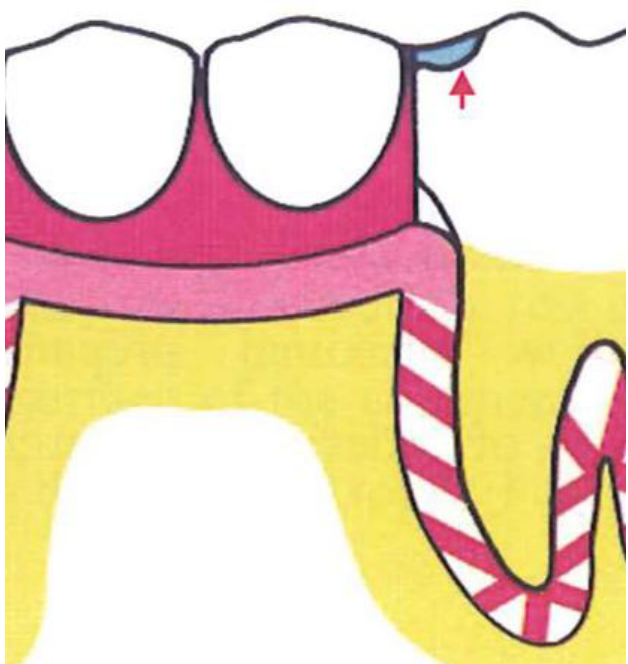

1. Tooth Decay: Stagnation of food around RPD components in contact with tooth surfaces that are not easily cleaned can lead to caries.
2. Pathologic Tissue Changes: Inducing stresses on abutment teeth and tissues that exceed physiologic limits can cause destruction:
   • Periodontal Damage: Excessive stress on abutments can cause periodontal membrane destruction, pocket formation, increased mobility, and tooth loss.
   • Soft Tissue Injury: Inflammation, ulceration, and gingival recession may occur due to excessive stress or undue tissue coverage. Inadequate support (lack of rests/stoppers) can cause the restoration to displace toward the tissues, resulting in “gum stripping.”
   • Bone Resorption: Excessive stresses can lead to the loss of the bony foundation necessary to support the prosthesis.
3. TMJ Disorders: Improper occlusion or the presence of premature contacts can lead to Temporomandibular Joint disorders.

Classification of Partially Edentulous Arches¹³

The classification of partially edentulous arches is a fundamental step in the design and fabrication of removable partial dentures.

Purpose of Classification

Clinical Rationale for Classification¹⁴

• Classification provides a common language for communication and design planning.

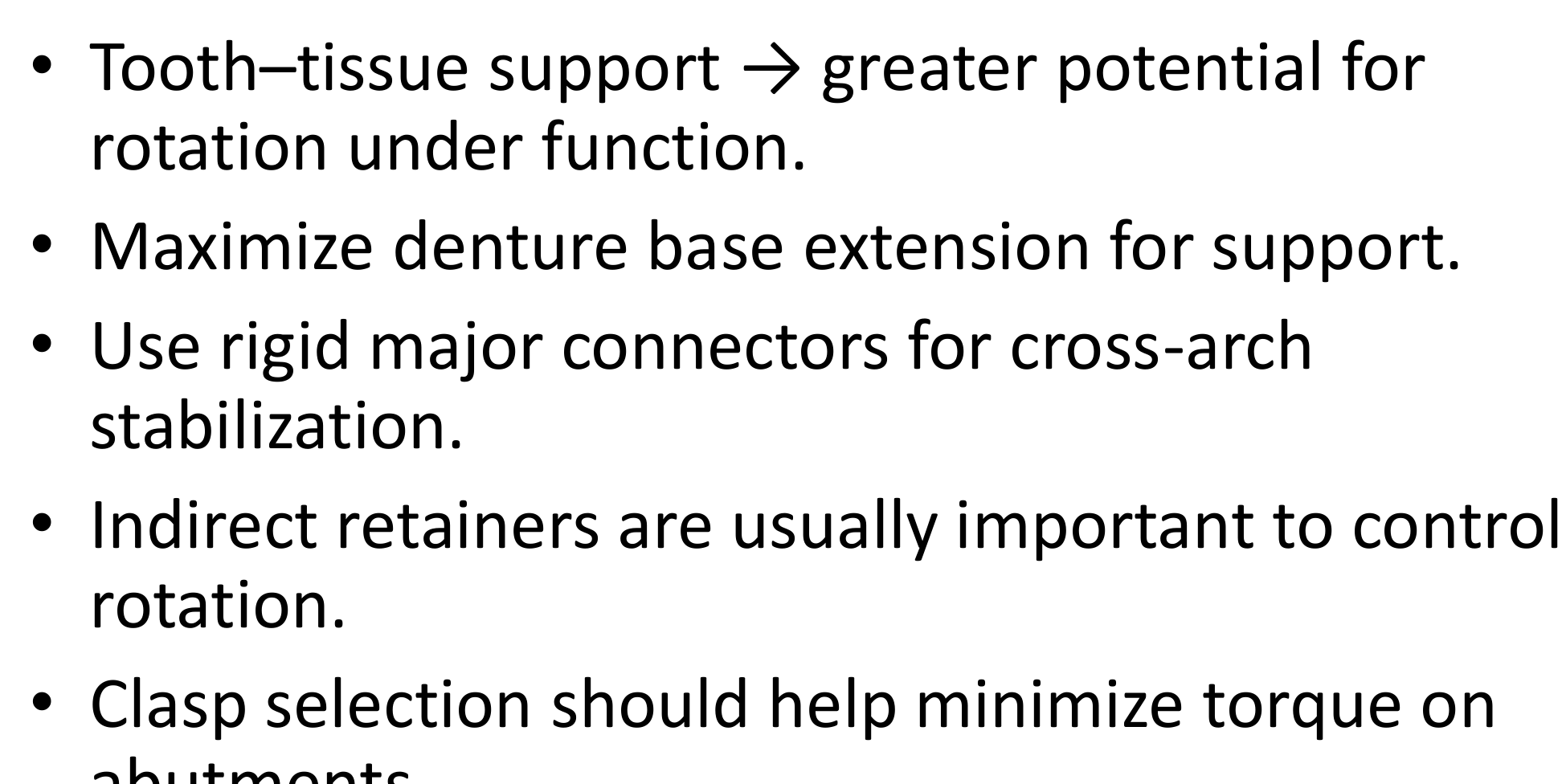

• It predicts biomechanics: tooth-supported vs tooth–tissue supported patterns.
• It guides design features: denture base extension, indirect retention, and clasp selection.
• The most commonly used system is the Kennedy classification.

Kennedy Classification Overview

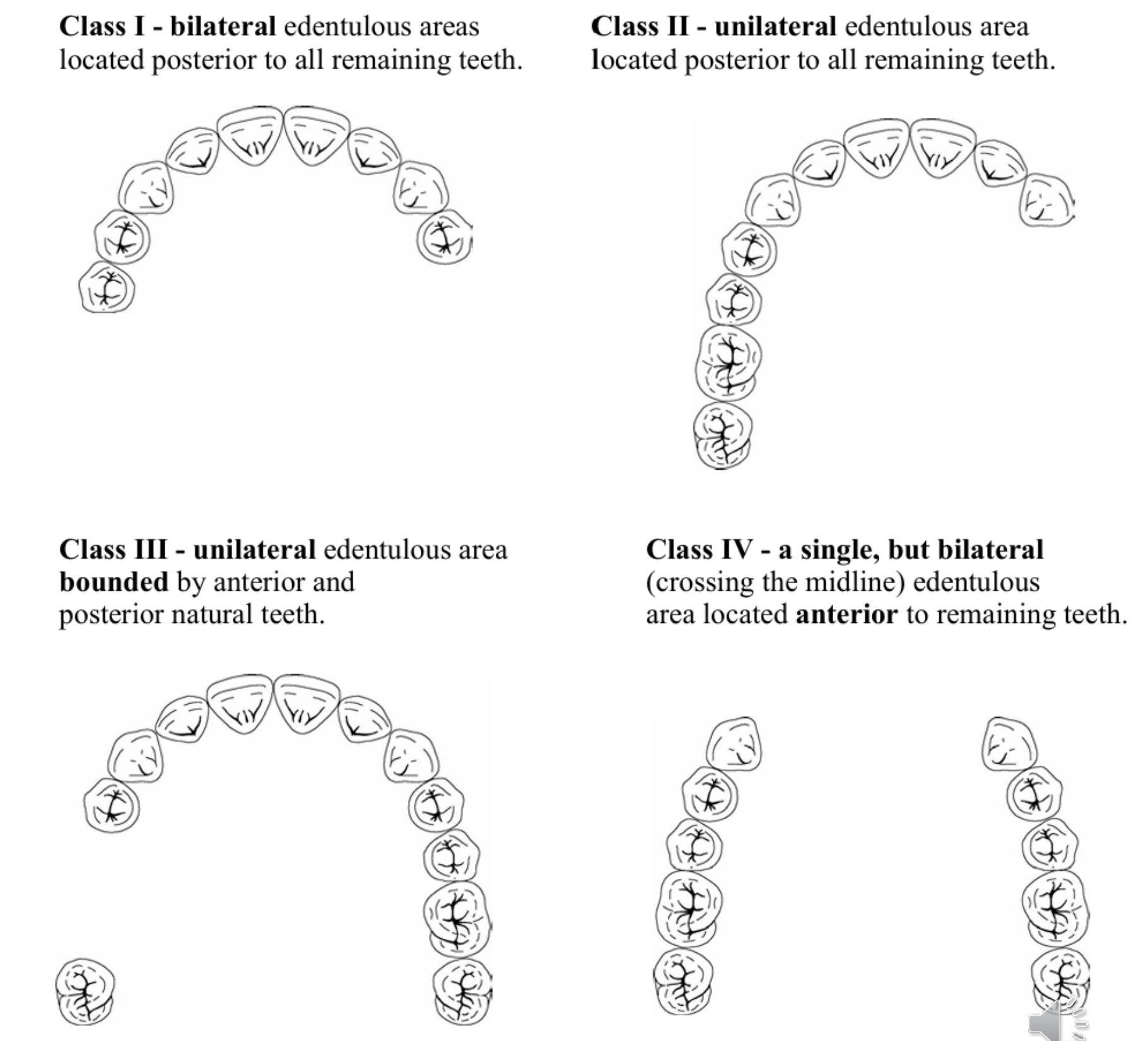

Primary Kennedy Classes¹⁵

• Class I: Bilateral posterior edentulous areas (distal extensions) located posterior to all remaining teeth.
• Class II: Unilateral posterior edentulous area (distal extension) located posterior to all remaining teeth.
• Class III: Unilateral edentulous area bounded by anterior and posterior natural teeth.

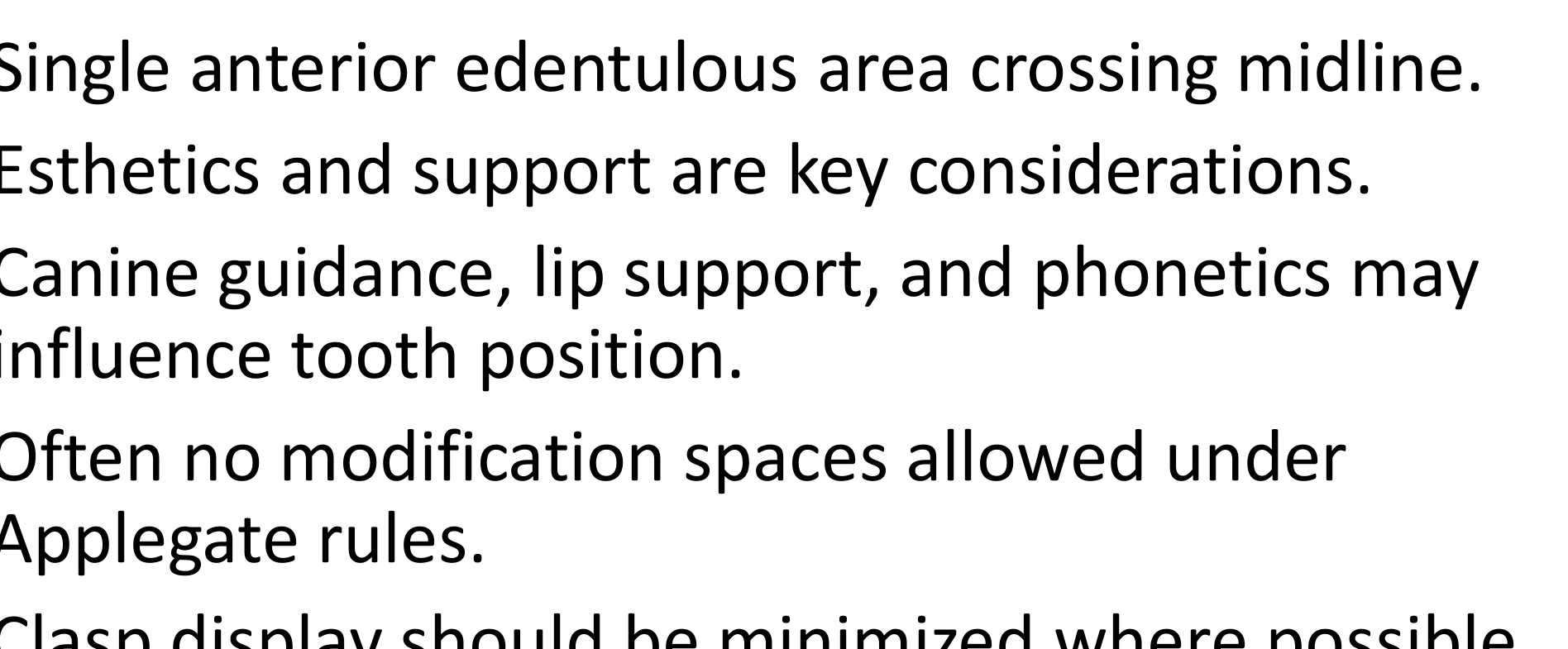

• Class IV: A single, but bilateral (crossing the midline) edentulous area located anterior to remaining teeth.

Modification Spaces

• Additional edentulous areas beyond the primary class are considered modification spaces (except in Class IV).

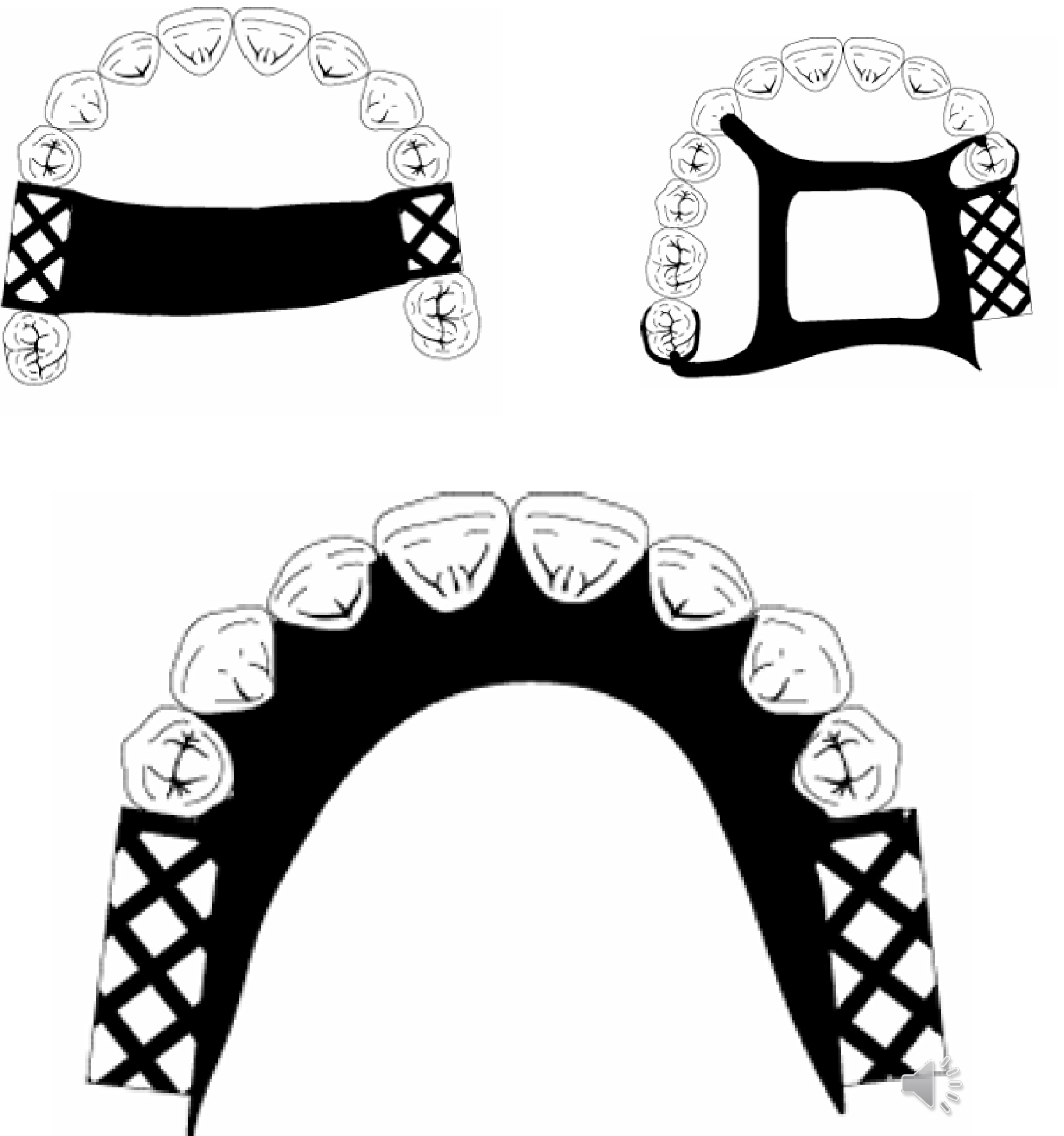

Kennedy Classification Categories¹⁶

• Class I: Bilateral posterior edentulous areas (distal extensions).

• Class II: Unilateral posterior edentulous area (distal extension).

• Class III: Unilateral edentulous area with teeth remaining both anterior and posterior.

• Class IV: Single anterior edentulous area crossing the midline.

• Modification spaces are additional edentulous areas beyond the primary class (except Class IV).

Applegate Rules and Modification Spaces

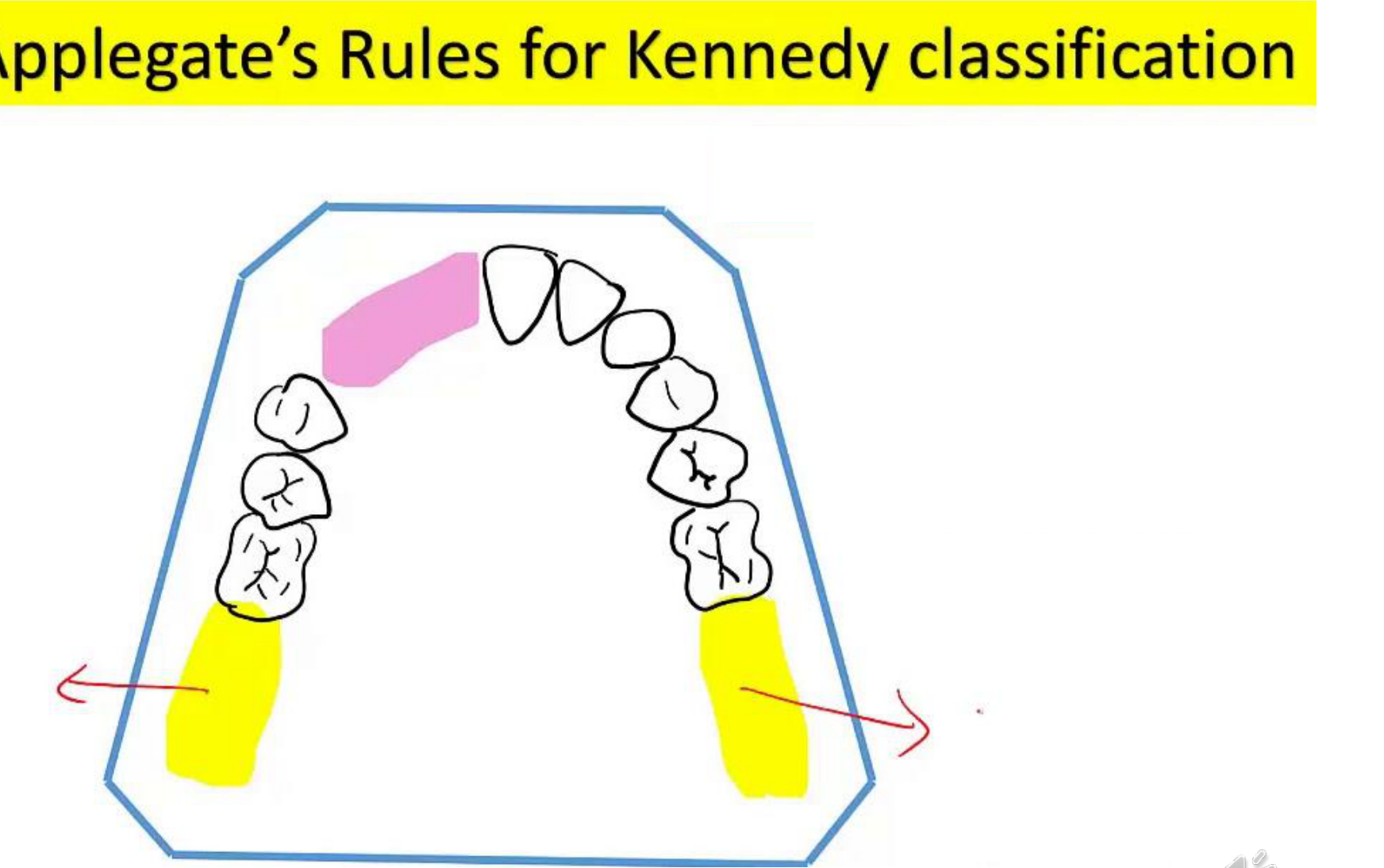

Applegate’s Rules for Kennedy Classification¹⁷

1. Classify after extractions are completed (final arch form).
2. The most posterior edentulous area determines the class.
3. Additional edentulous areas are modification spaces. They are identified by number only; the extent of the modification is not considered.
4. There are no modifications for Class IV.
5. If the 3rd molar is missing and not to be replaced, it is not considered in the classification.
6. If a second molar is missing and not to be replaced, it may not influence classification (subject to clinical judgment).

Quick Classification Practice

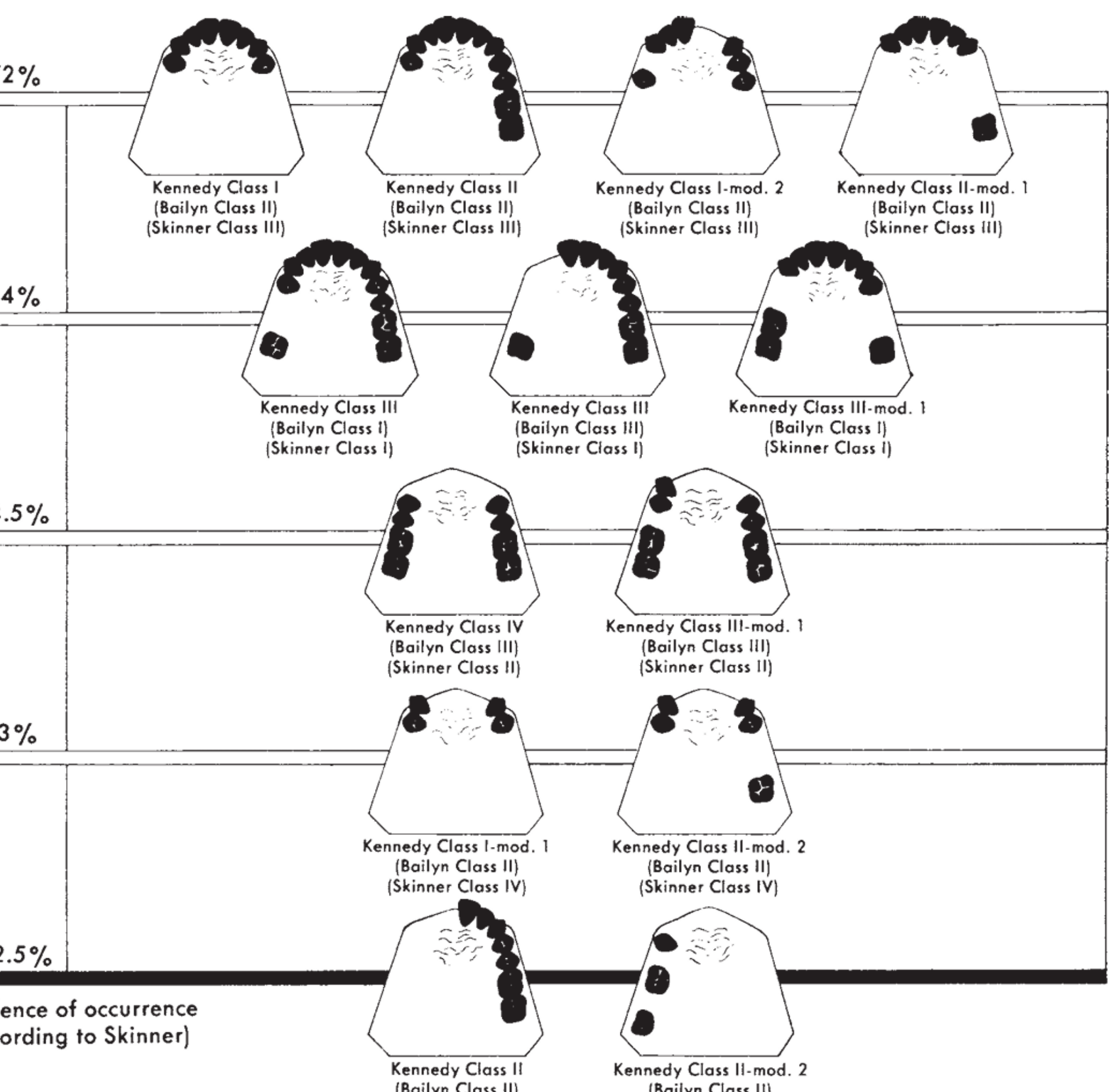

Incidence of Occurrence (According to Skinner)¹⁸

Percentage	Kennedy Classification Examples
72%	Kennedy Class I; Kennedy Class II; Kennedy Class I-mod. 2; Kennedy Class I-mod. 1
14%	Kennedy Class II; Kennedy Class III; Kennedy Class III mod. 1
8.5%	Kennedy Class IV; Kennedy Class III mod. 1
3%	Kennedy Class I-mod. 1; Kennedy Class II-mod. 2
2.5%	Kennedy Class II; Kennedy Class II-mod. 2

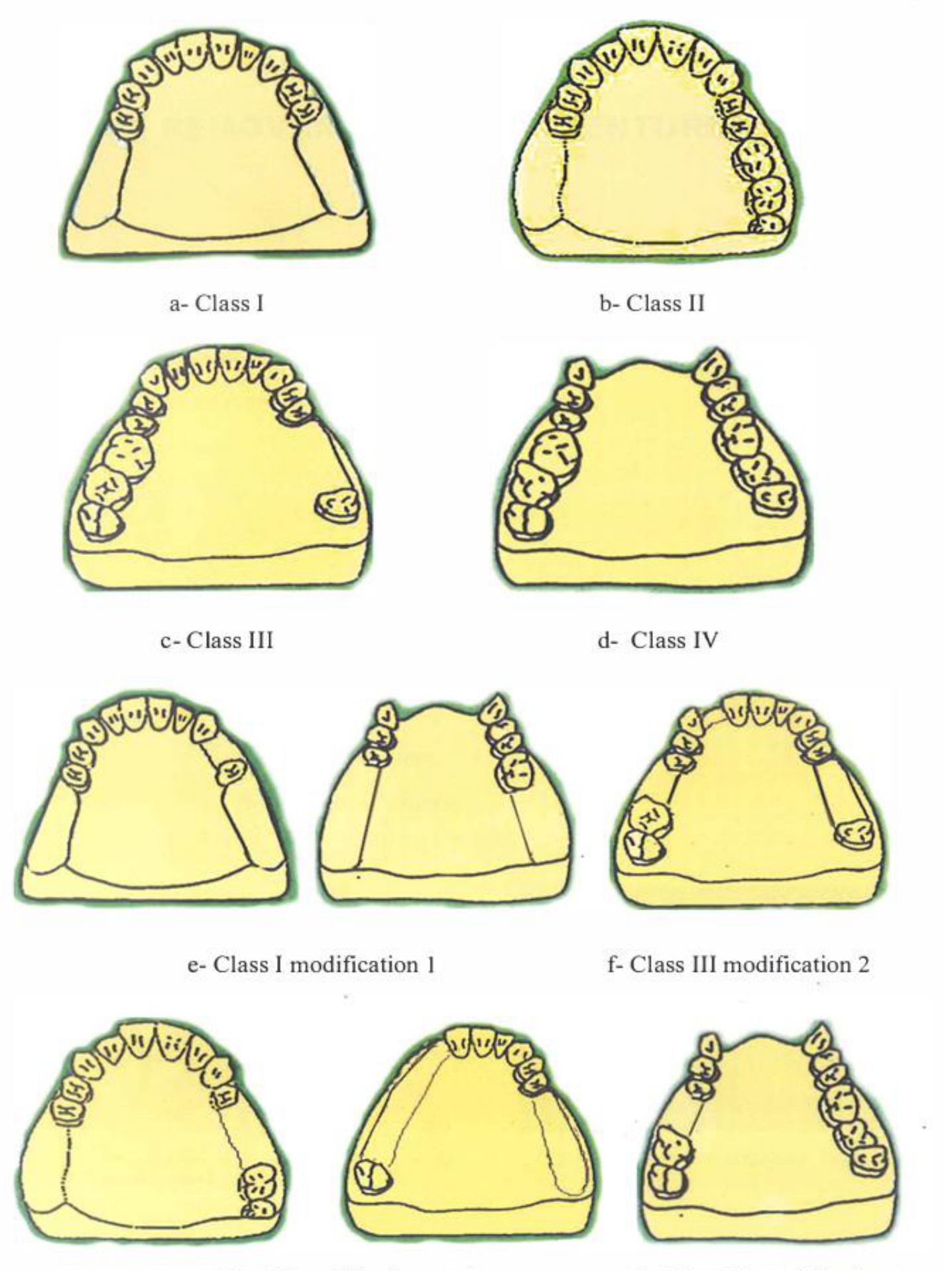

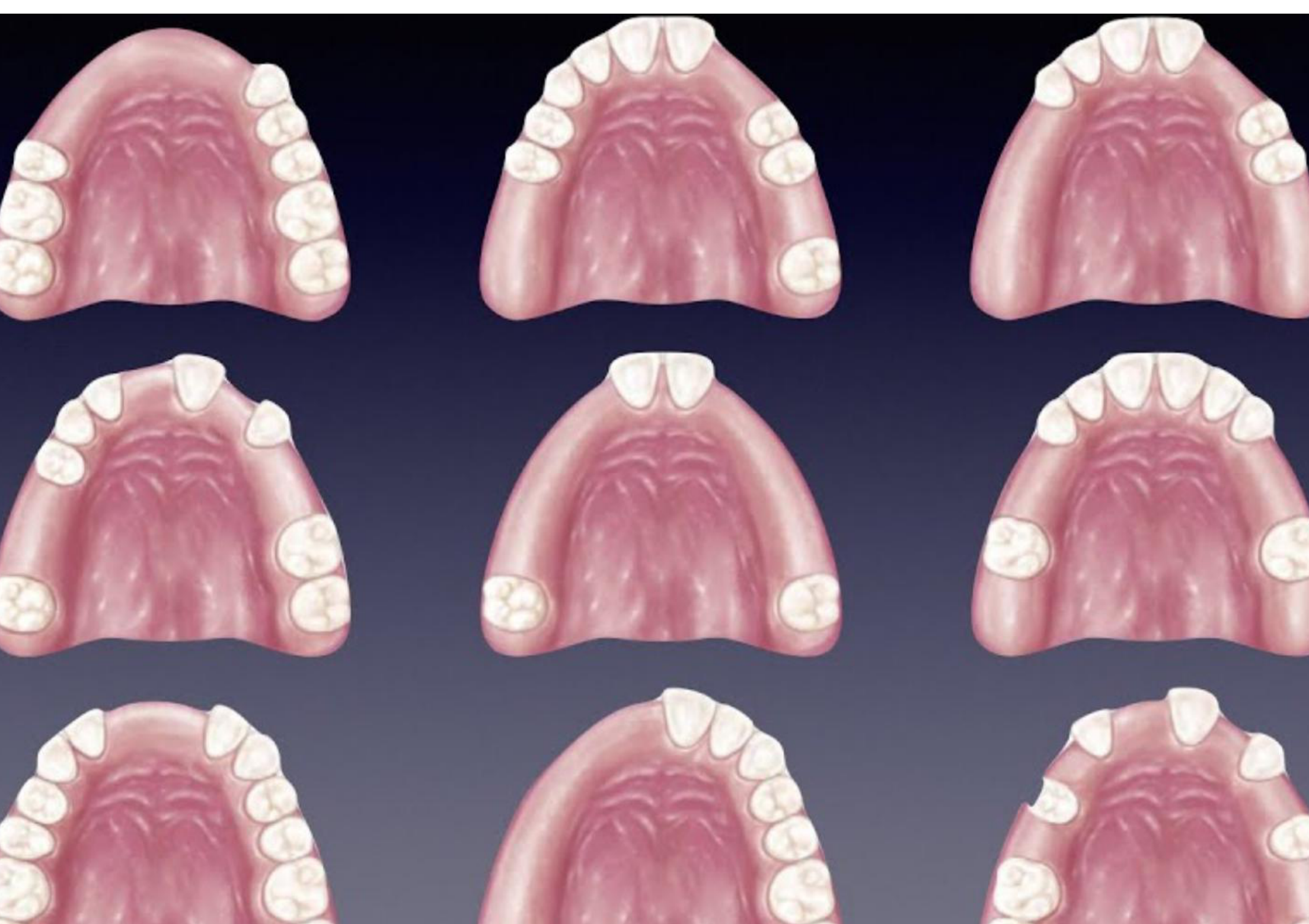

Mini Case Practice

Representative examples of partially edentulous arches classified by the Kennedy method are used to practice identifying the primary class and any associated modification spaces.

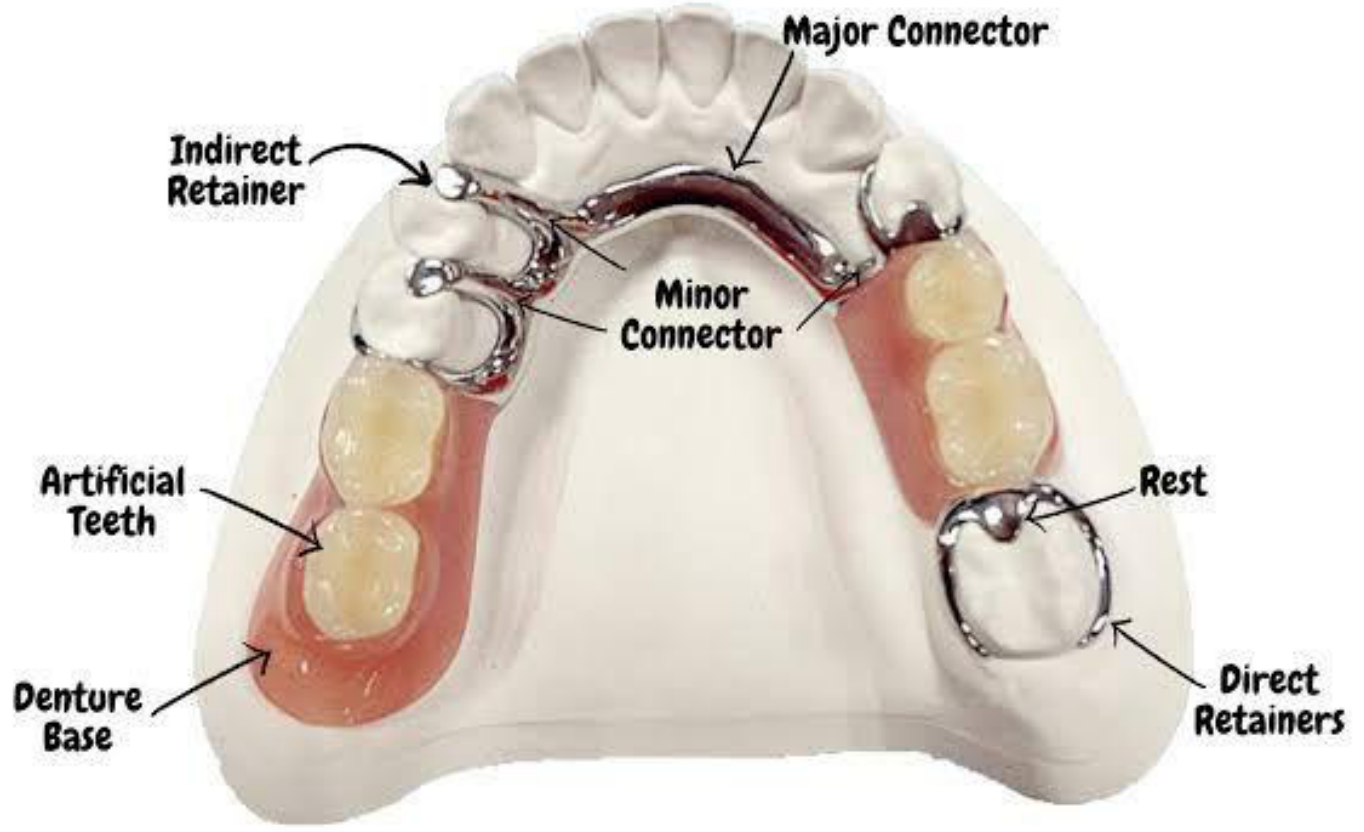

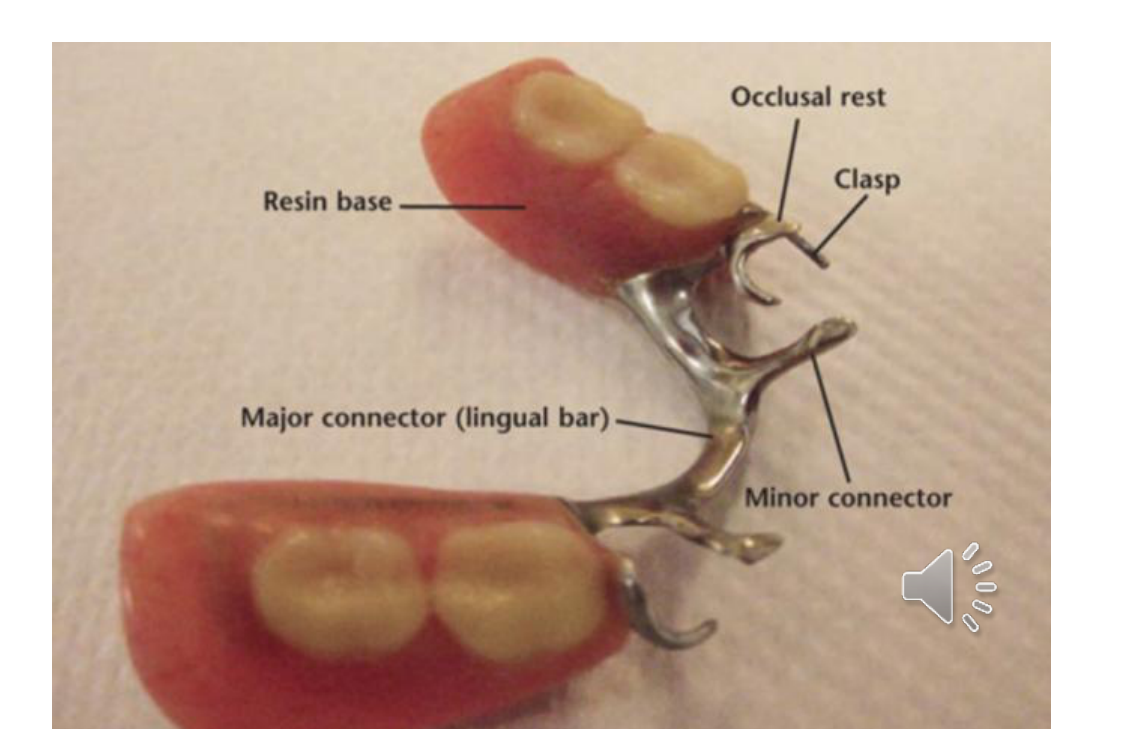

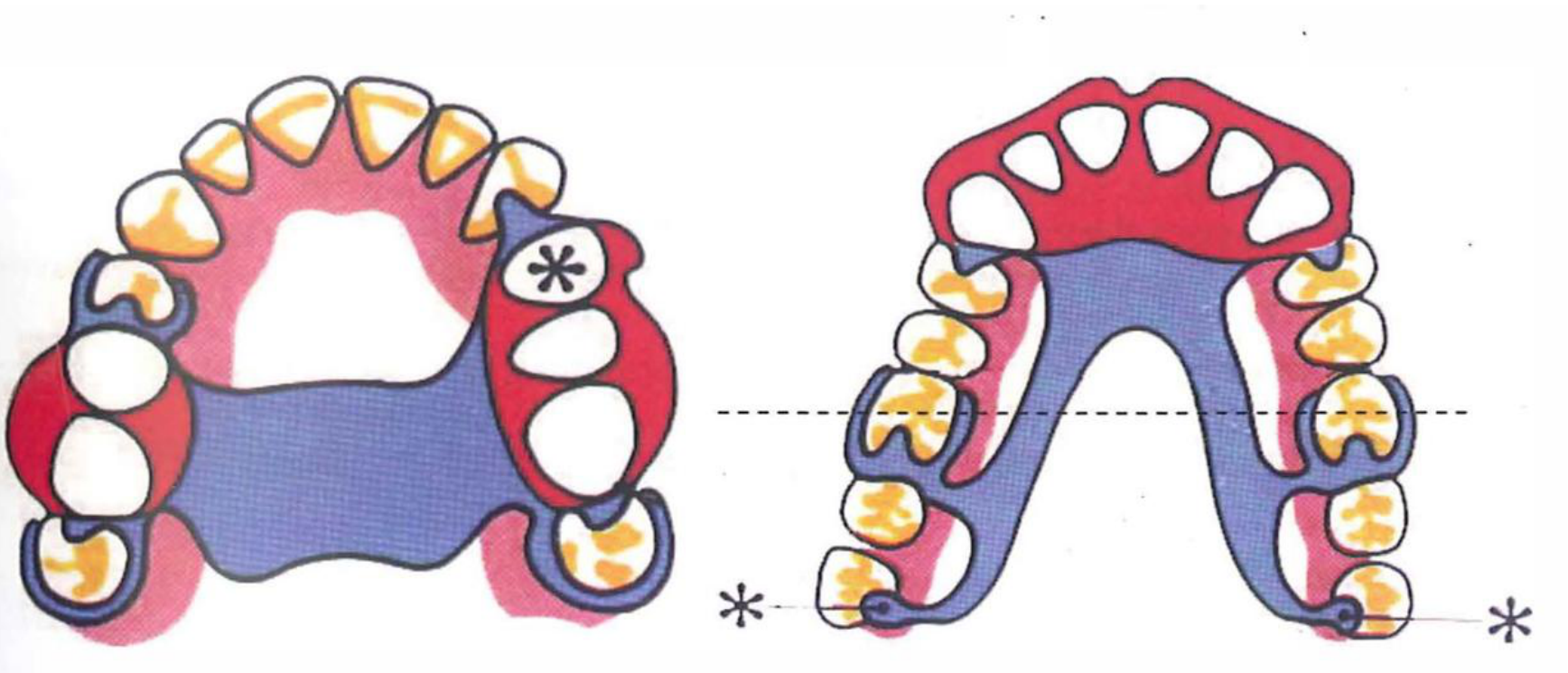

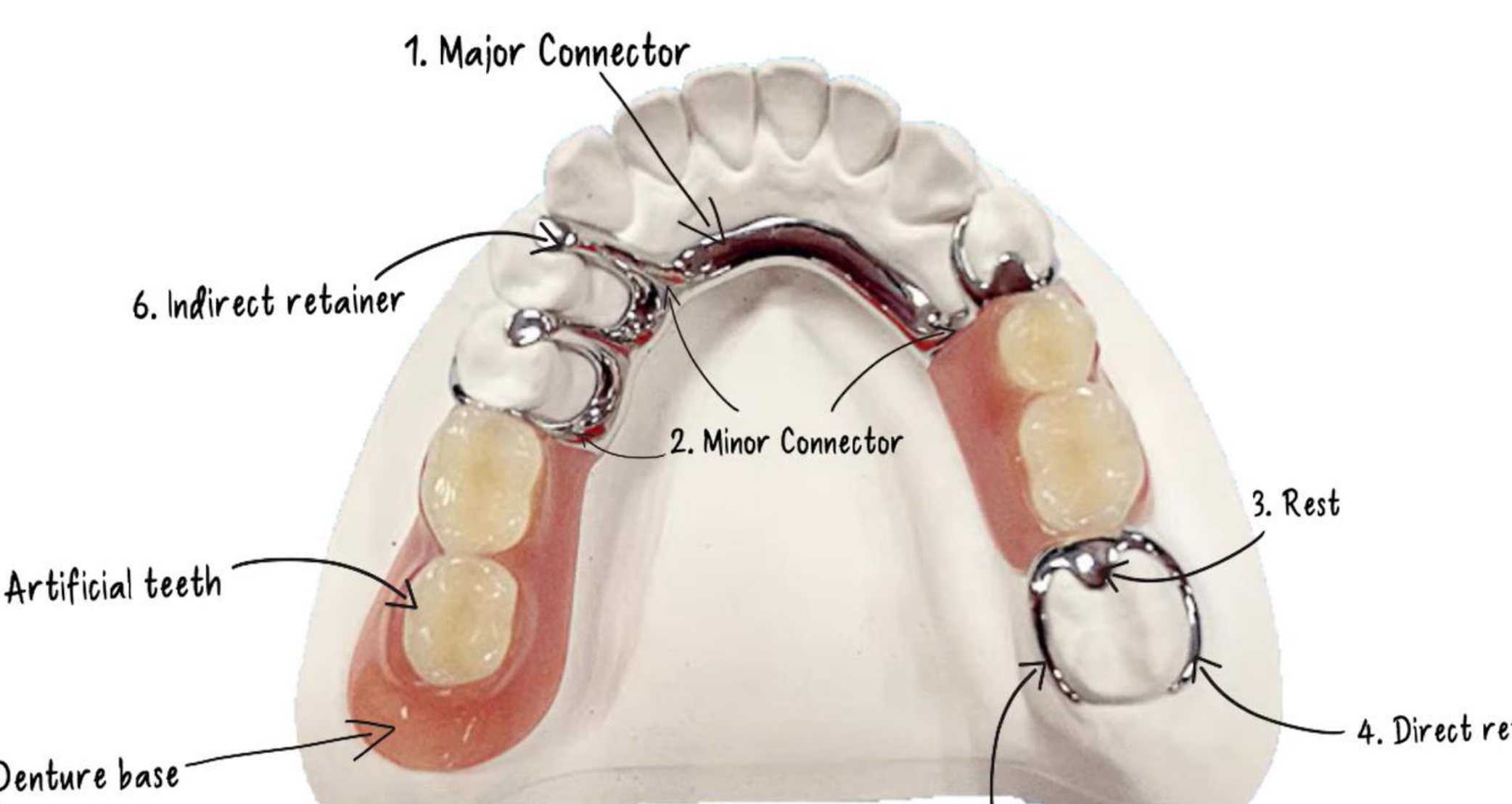

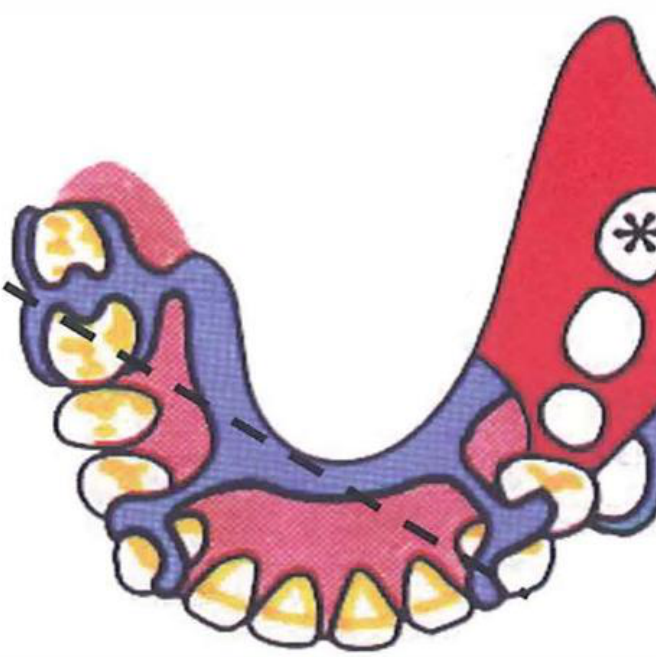

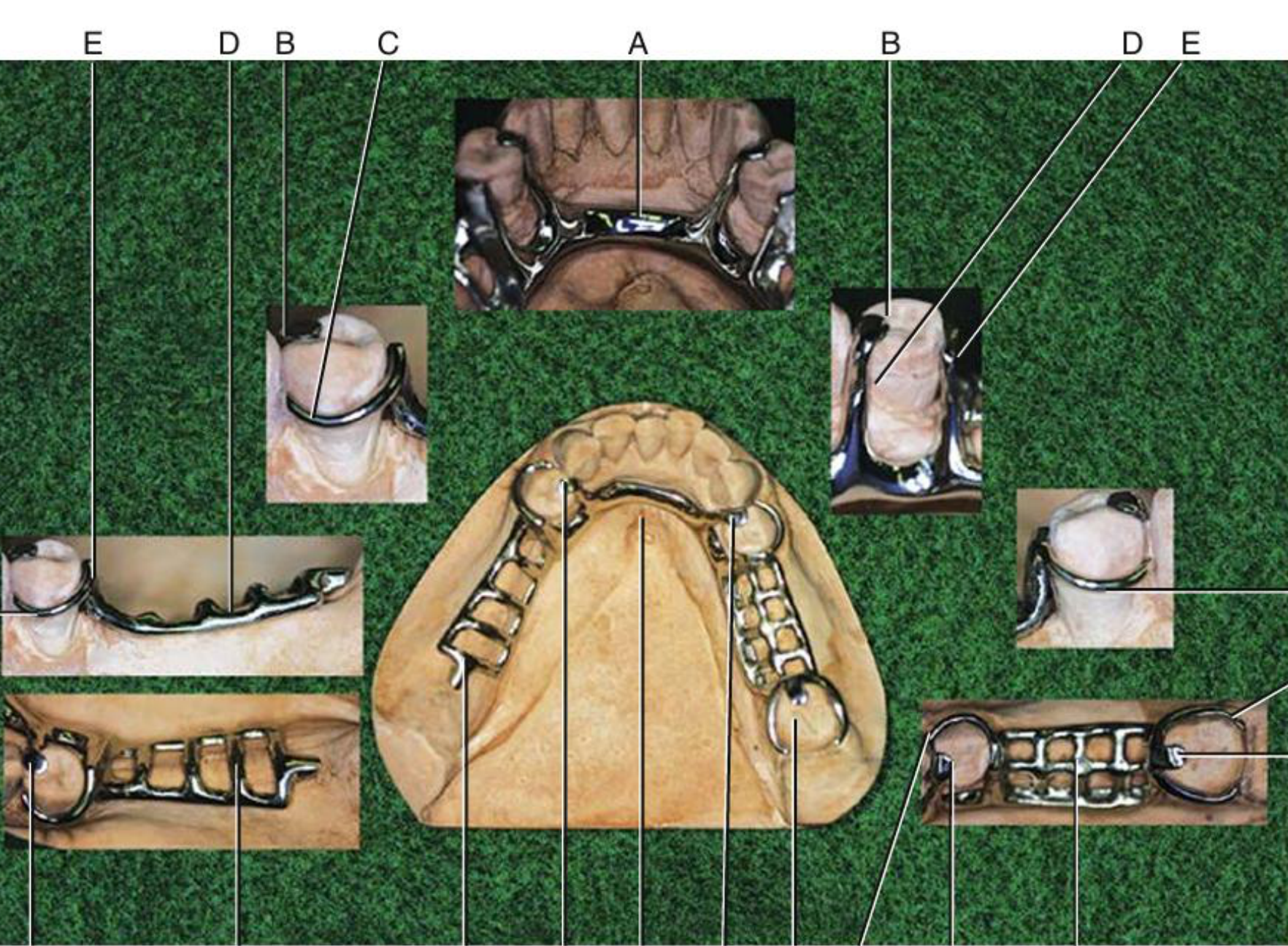

Components of Partial Dentures¹⁹

The following components are identified in a mandibular framework for a Kennedy Classification II, modification 1 arch:

• A: Major connector
• B: Rests
• C: Direct retainer
• D: Minor connector
• E: Guide plane
• F: Indirect retainer

Overview of RPD Components

Component Functions²⁰

• Framework: Provides rigidity and connects components across the arch.

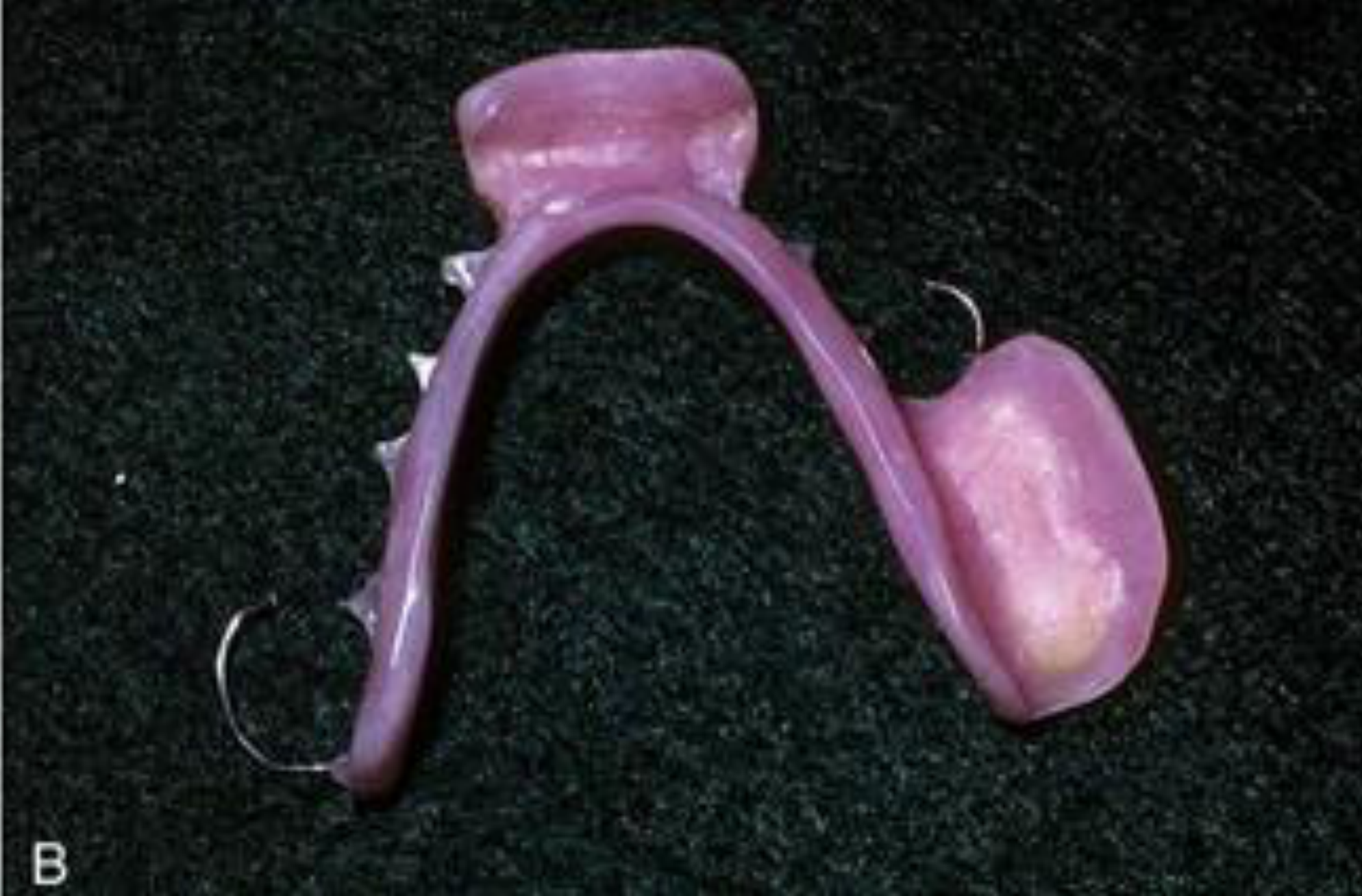

• Denture base: Supports replacement teeth and transmits forces to the tissues.
• Rests/rest seats: Provide support and prevent tissue-ward movement.
• Connectors:
  • Major: Cross-arch connection.
  • Minor: Link to saddles and retainers.
• Retainers:
  • Direct: Clasp assemblies for retention.
  • Indirect: Control rotation of the prosthesis.

Functions of RPD Components

Primary Mechanical Functions²¹

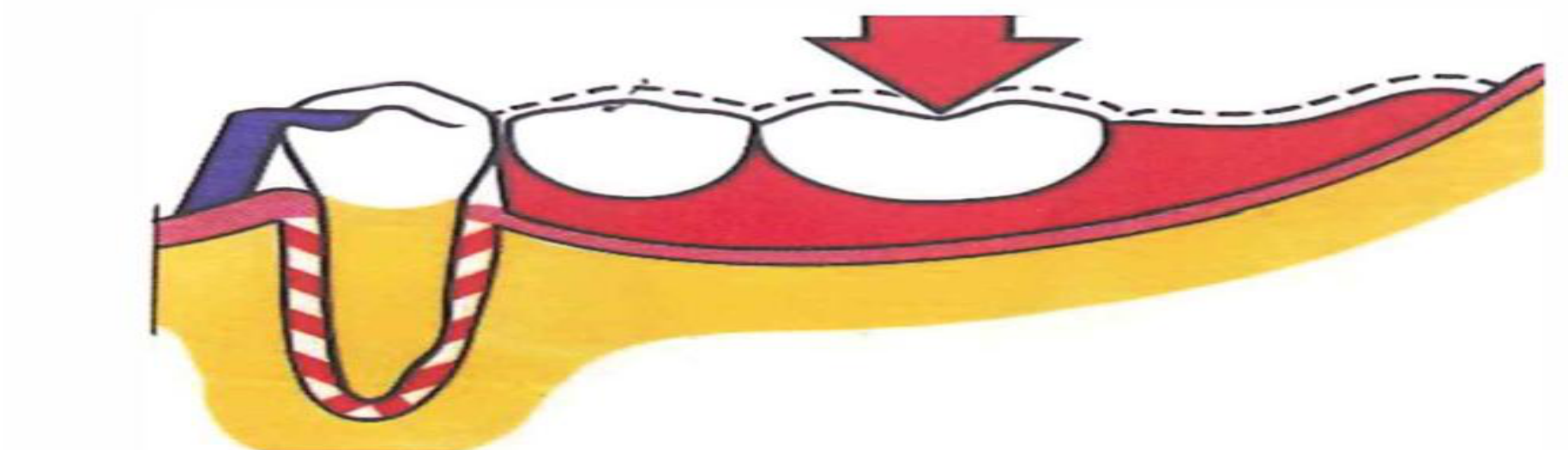

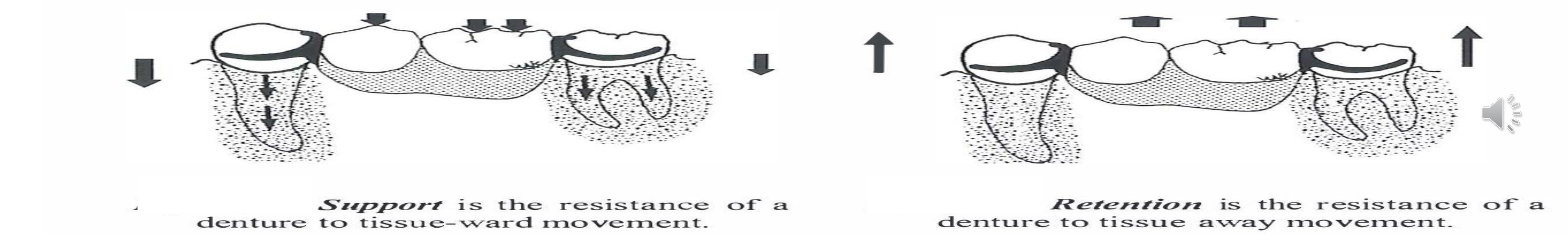

• Support: The resistance of a denture to tissue-ward movement.
• Retention: The resistance of a denture to vertical displacement force (moving away from its tissue foundation).
• Indirect retention: The resistance of denture rotation away from the tissues about an axis.
• Bracing: The resistance of a denture to lateral forces.

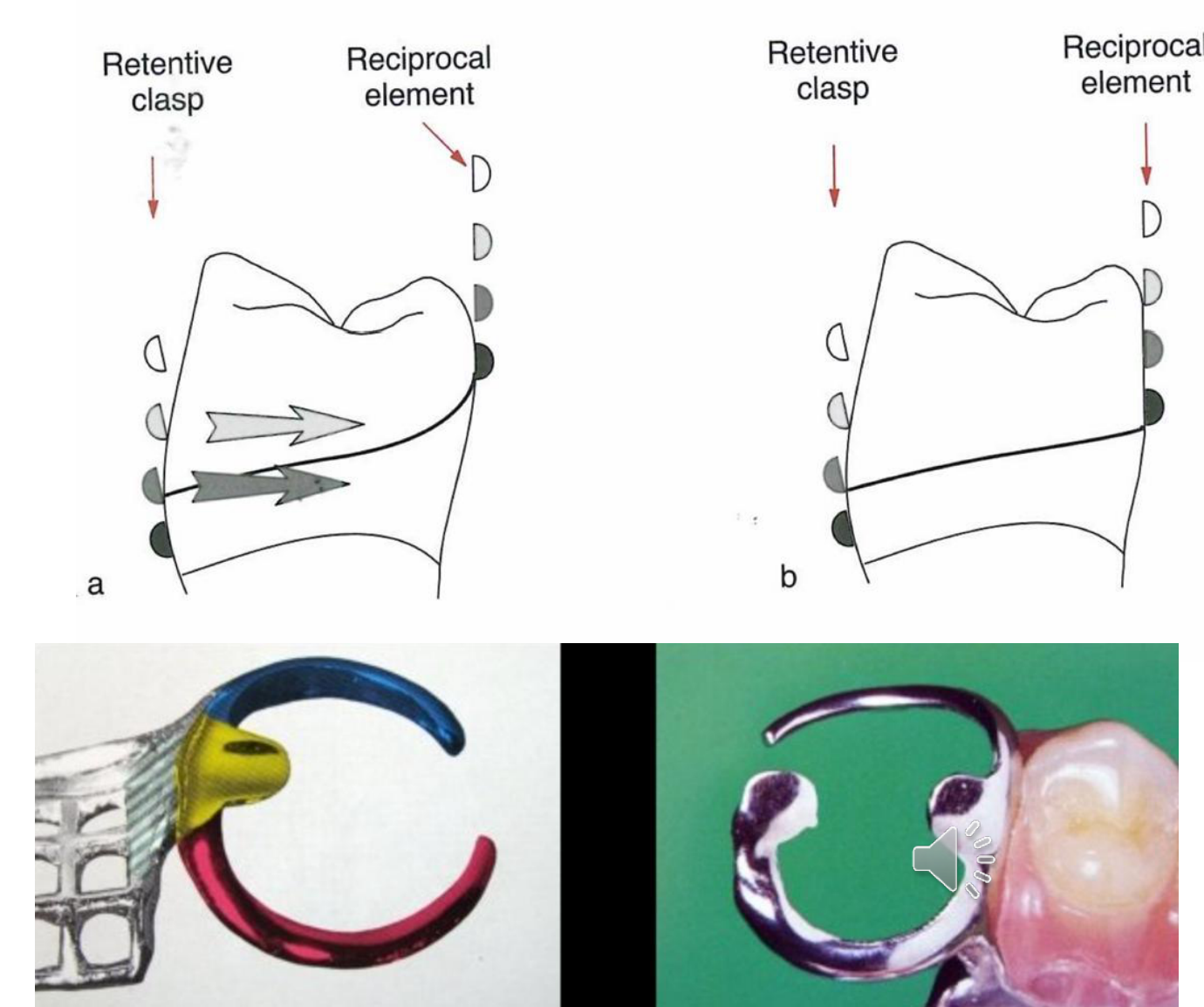

• Reciprocation: The resistance of lateral forces on the abutment during insertion and removal of the removable partial denture.
  • Note: Reciprocation is required as the denture is being displaced occlusally, while bracing comes into play when the denture is fully seated.
• Stability: The resistance of a denture to tipping movement.
  • Tipping movement: Vertical rotation around a line parallel to the ridge crest (twisting of the denture base).

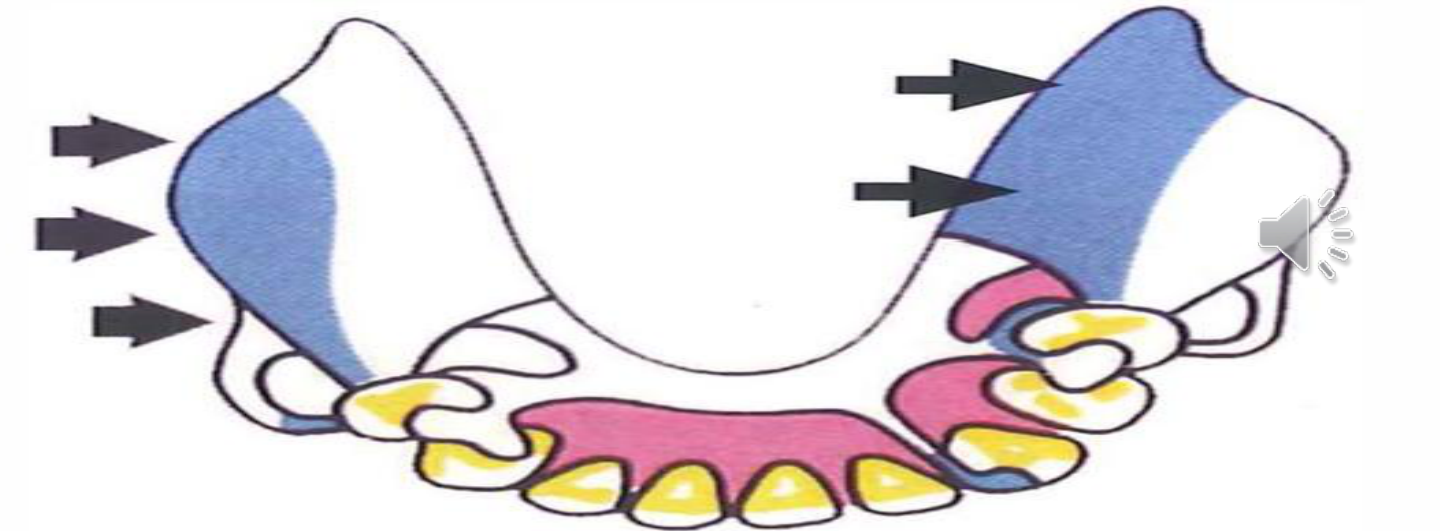

Denture Bases

Functions and Design Goals²²

• Tissue Replacement: Replace missing teeth and associated tissues; provide support for artificial teeth.
• Load Distribution: Transmit functional loads to teeth and mucosa (distal extensions rely more on mucosal support).
• Coverage: Maximize coverage within functional limits to improve support.
• Stability: Provide stability via proper extension and intimate tissue adaptation.
• Maintenance: Allow future relines, rebases, or repairs where expected.
• Framework Integration: The metal framework provides the base for acrylic resin attachment using mesh, lattice, beads, or finish lines.
• Structural Integrity: The denture base should have adequate thickness and strength without overbulking.
• Finish Lines: Provide a defined junction between metal and acrylic.
• Hygiene: Design should permit hygiene and minimize food traps.

Major Connectors

Functions and Requirements²³

• Unification: Unite RPD components across the arch and provide cross-arch stabilization.
• Rigidity: Must be rigid to distribute forces and prevent flexure.
• Tissue Health: Should avoid impinging on gingival margins and allow hygiene access.
• Patient Comfort: Borders should be shaped for comfort and to minimize food entrapment.
• Anatomical Considerations: Design is influenced by palatal/lingual anatomy and the presence of tori.

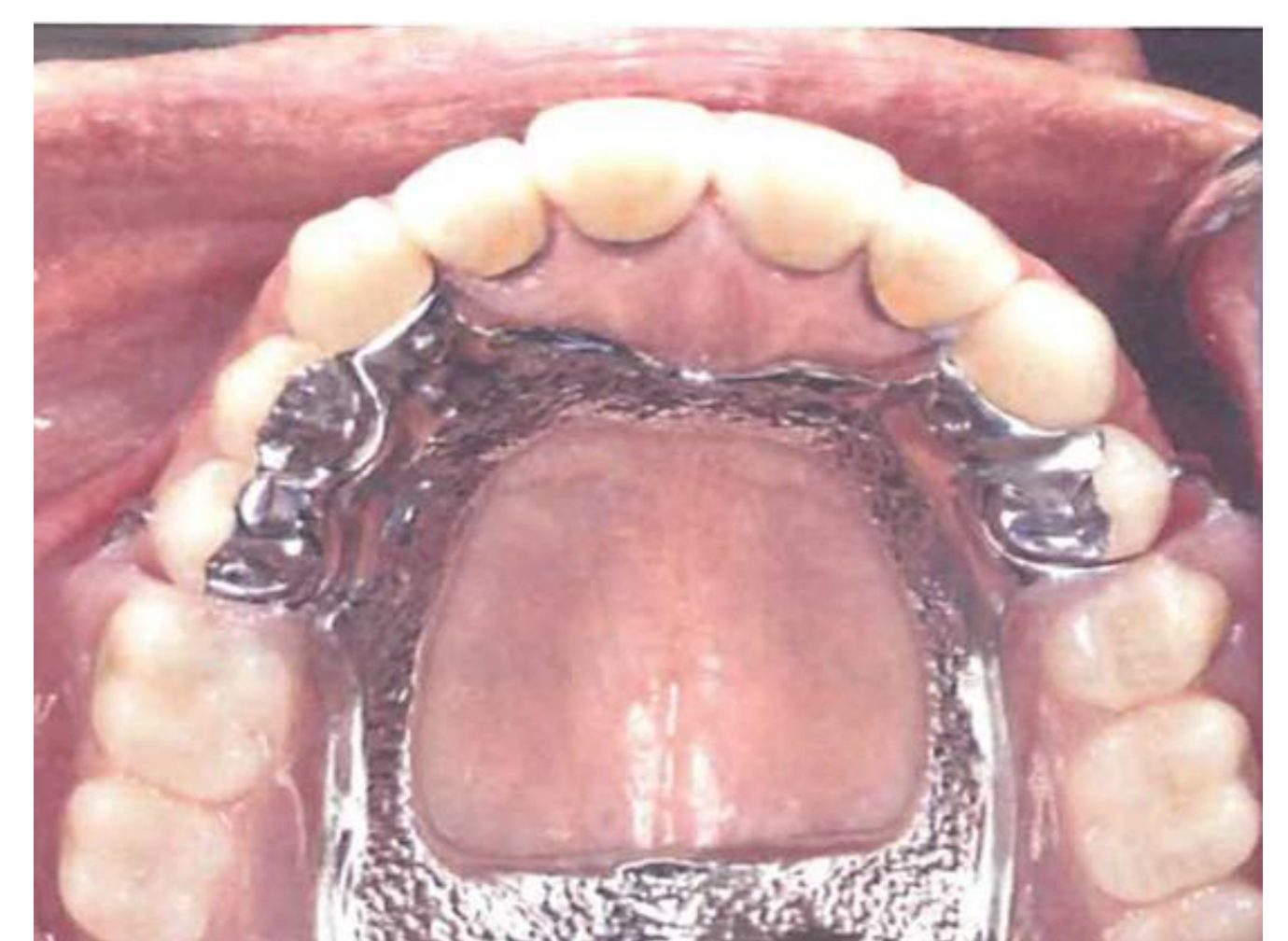

Maxillary Major Connectors

Design Overview

• Common Designs:
  • Palatal strap or bar
  • Anteroposterior (A-P) strap
  • Palatal plate
  • U-shaped connector
• Selection Criteria: Depends on support needs, palatal shape, tooth distribution, and the presence of tori.
• Rigidity: Aim for rigidity with minimal tissue coverage compatible with support requirements.
• Gingival Clearance: Borders should generally be away from gingival margins where possible.
• Relief: Relief may be needed over the midline suture or torus areas.

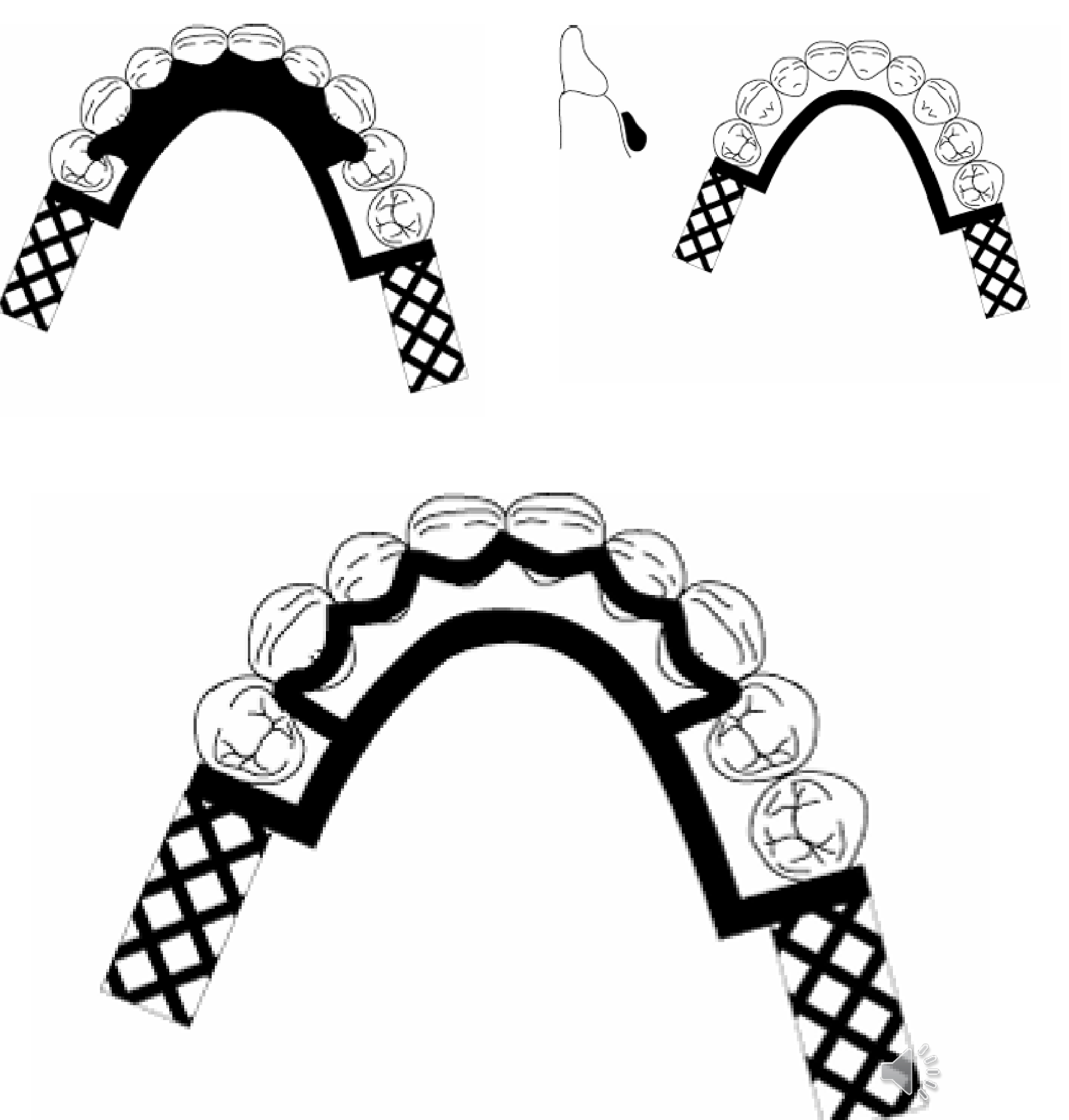

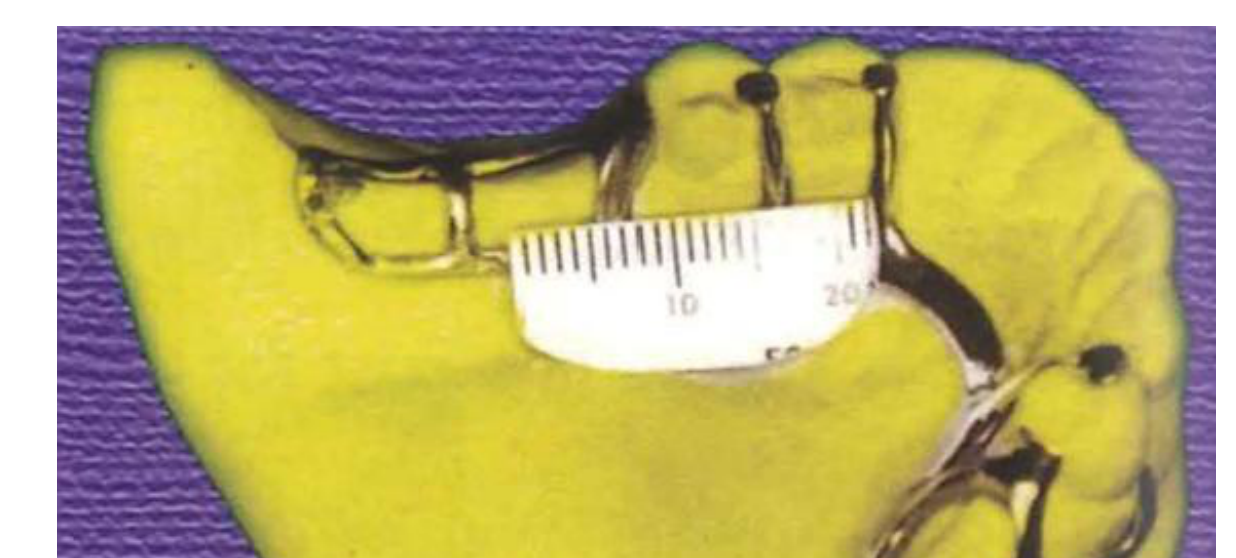

Mandibular Major Connectors

Design Overview

• Common Designs: Lingual bar and lingual plate (others are less common).
• Lingual Bar: Requires adequate functional depth of the floor of the mouth.
• Lingual Plate: May be indicated when depth is limited or for additional stabilization (case-dependent).
• Gingival Health: Avoid gingival impingement and allow cleaning of gingival margins.
• Anatomical Respect: Connector borders must respect tongue movement and frena.

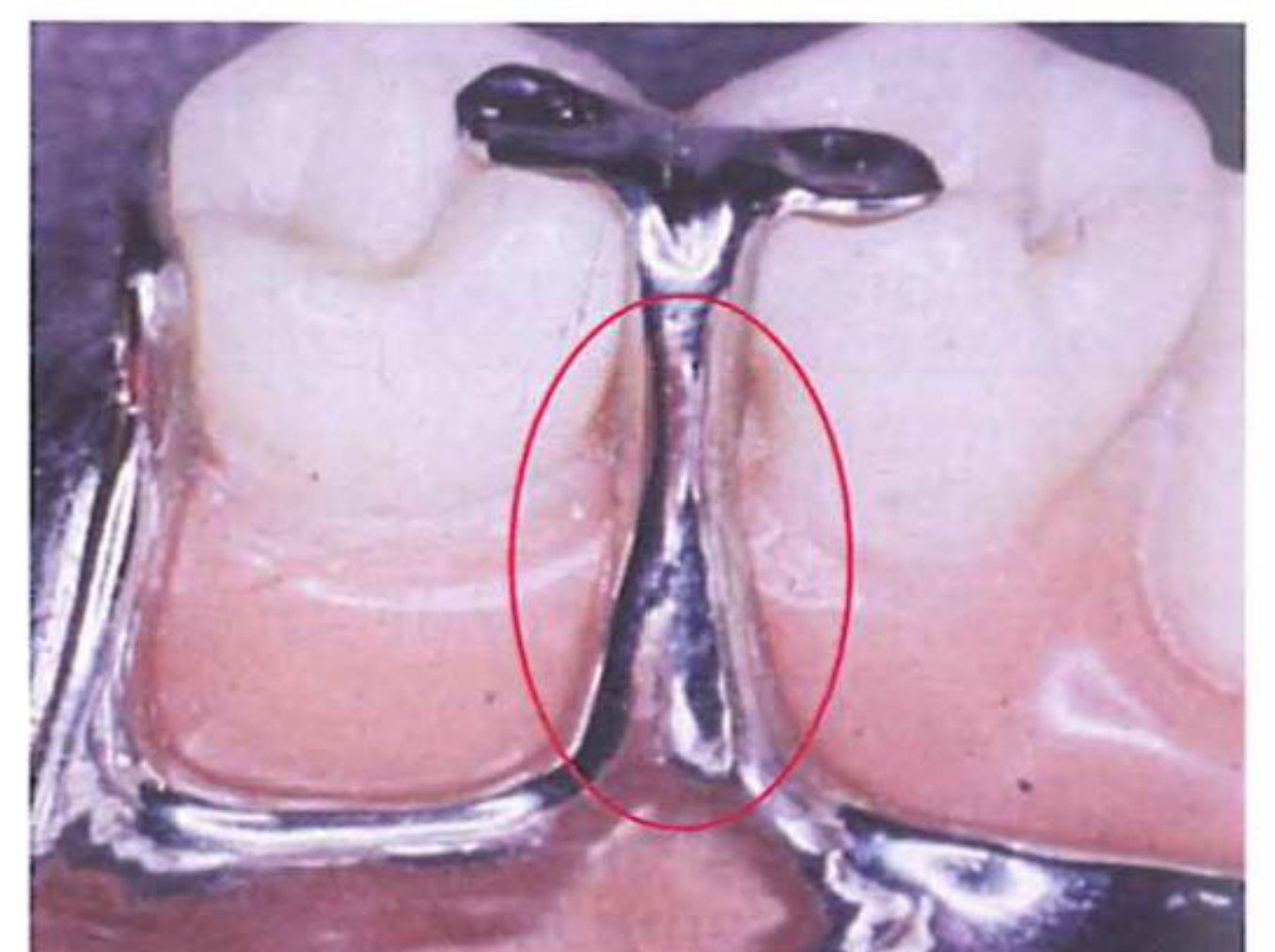

Minor Connectors

Functions²⁴

• Connection: Join the major connector to other components such as rests, clasp assemblies, and denture bases.
• Force Transmission: Transmit forces between teeth, the base, and the major connector.

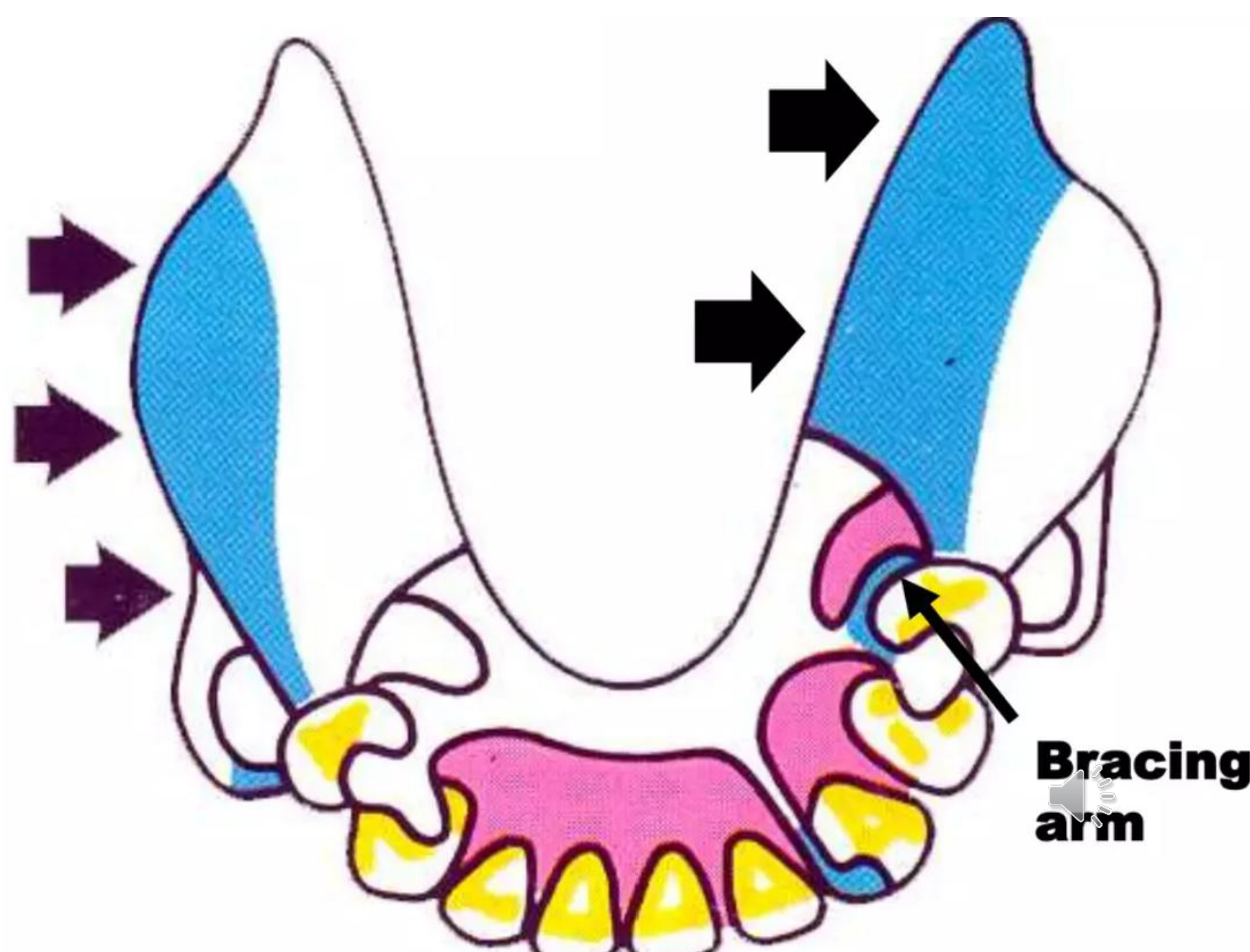

• Bracing: Provide bracing and stabilization via contact with guiding planes (proximal plates).
• Acrylic Support: Define finish lines and support acrylic attachments.
• Rigidity: Support the principle of rigid cross-arch design.

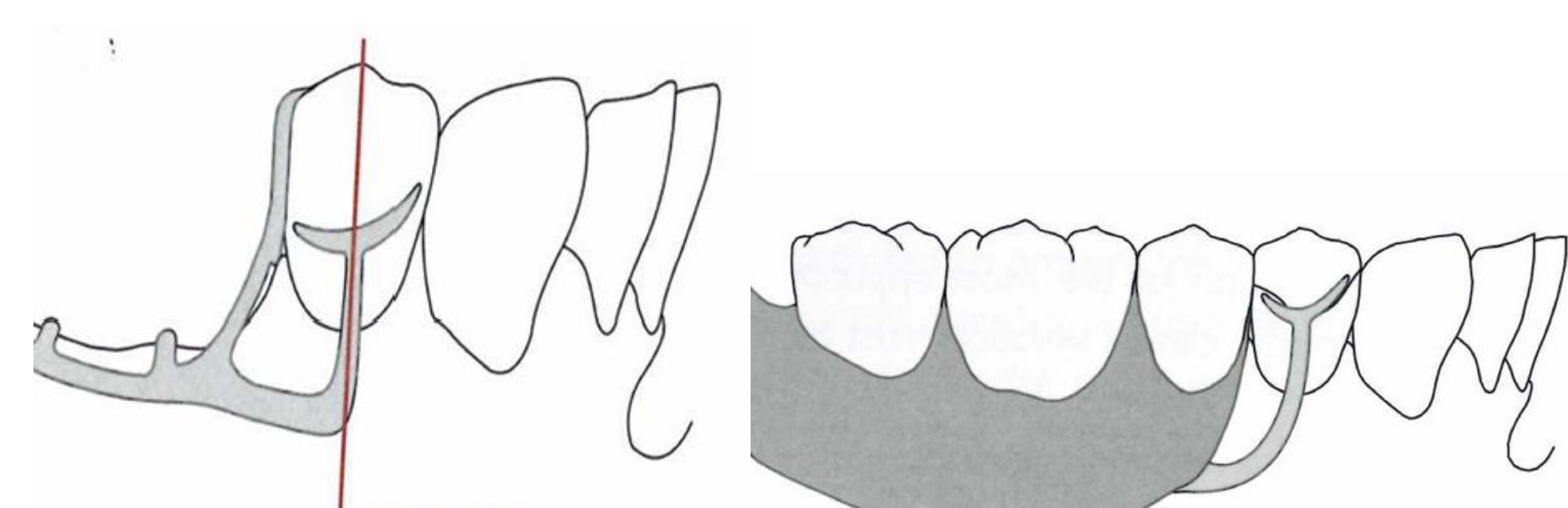

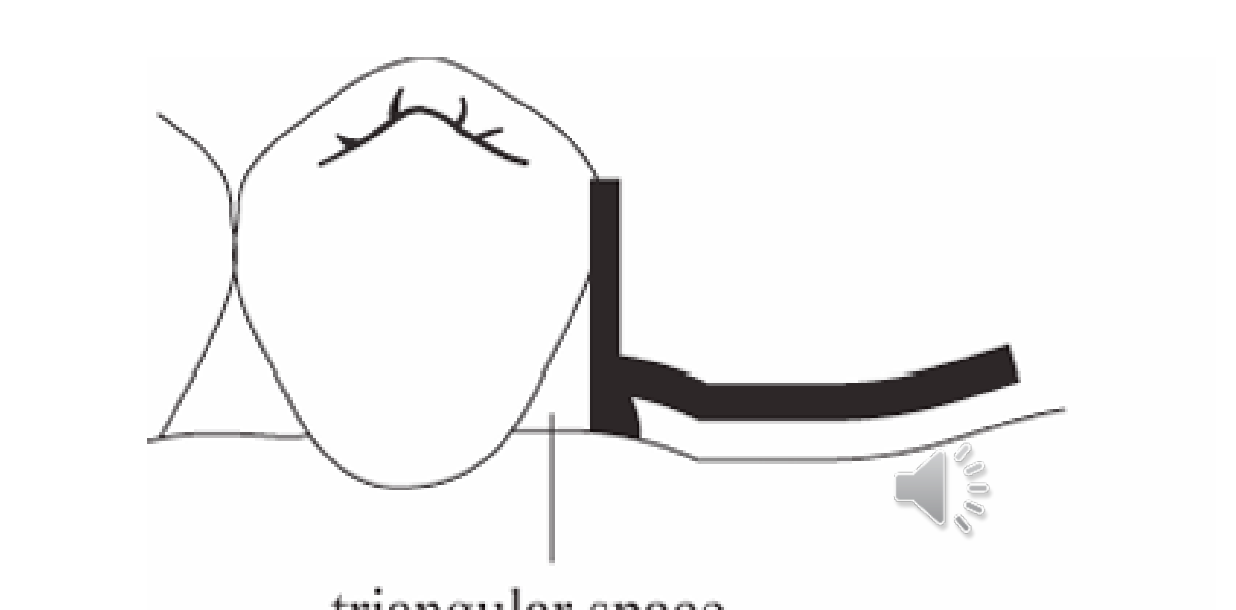

Design Principles of Minor Connectors

General Design Principles

• Contour and Rigidity: Should be rigid and properly contoured to avoid soft tissue impingement.
• Guiding Planes: Proximal plates should contact prepared guiding planes appropriately.
• Gingival Protection: Avoid unnecessary coverage of gingival tissues.
• Embrasure Clearance: Maintain adequate embrasure clearance and avoid food traps.
• Finish Lines: Provide well-defined finish lines for acrylic resin.

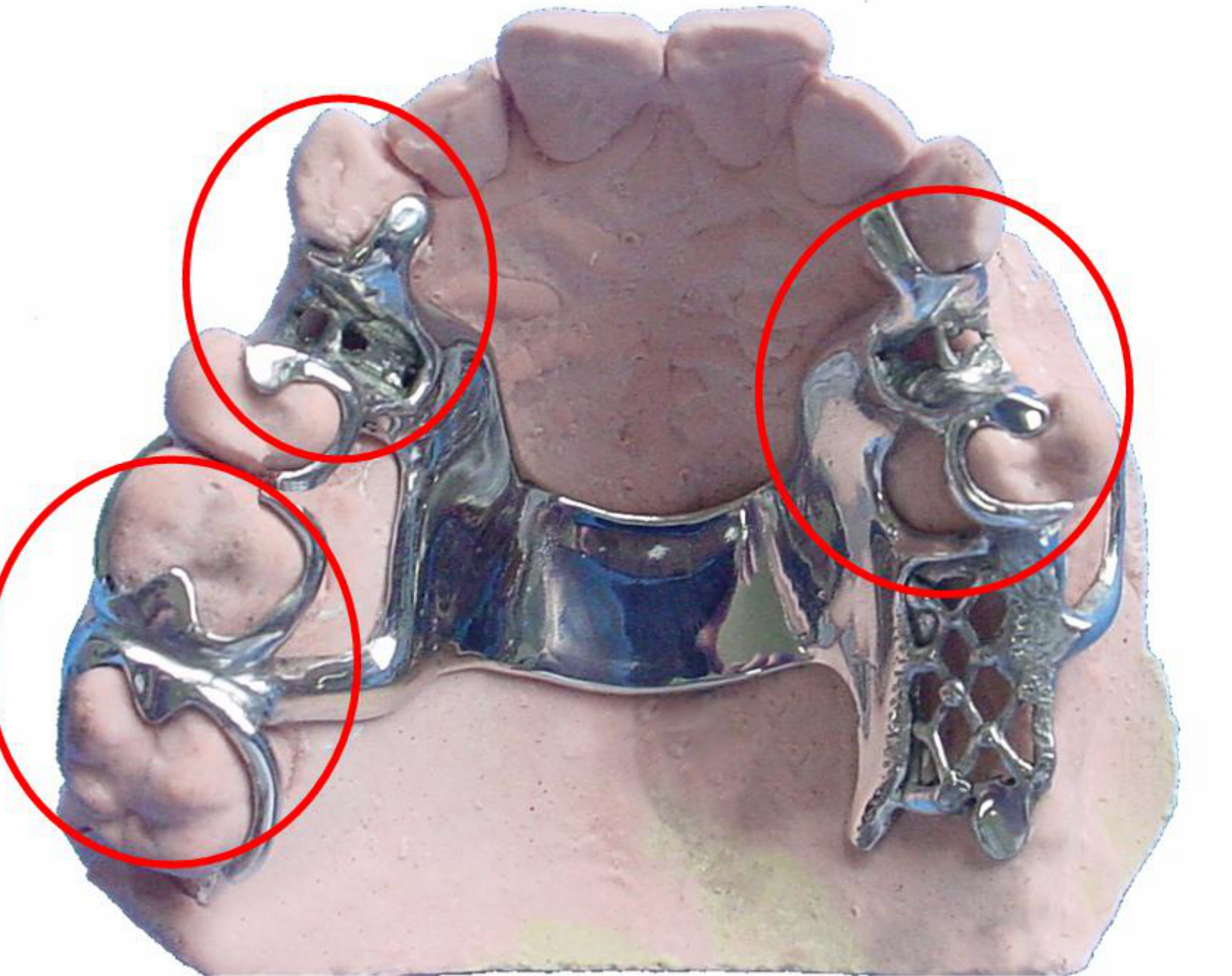

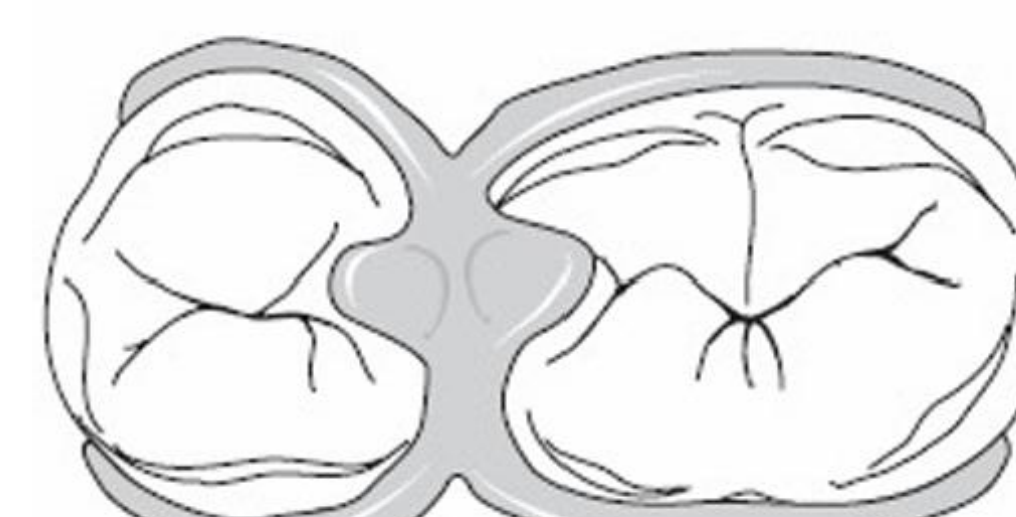

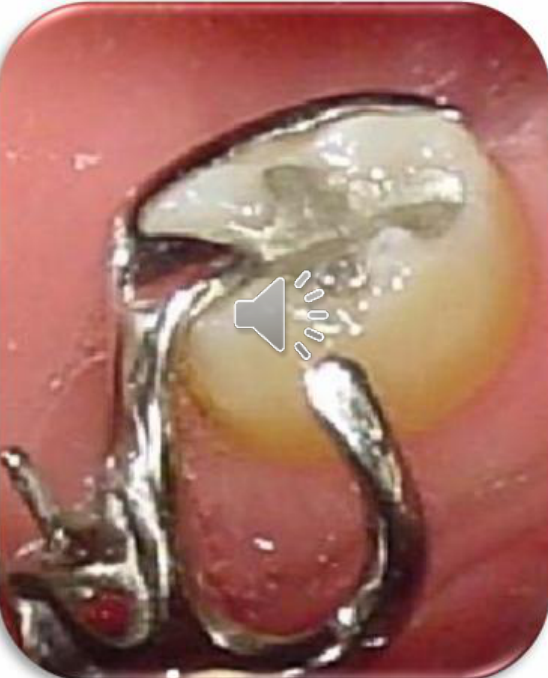

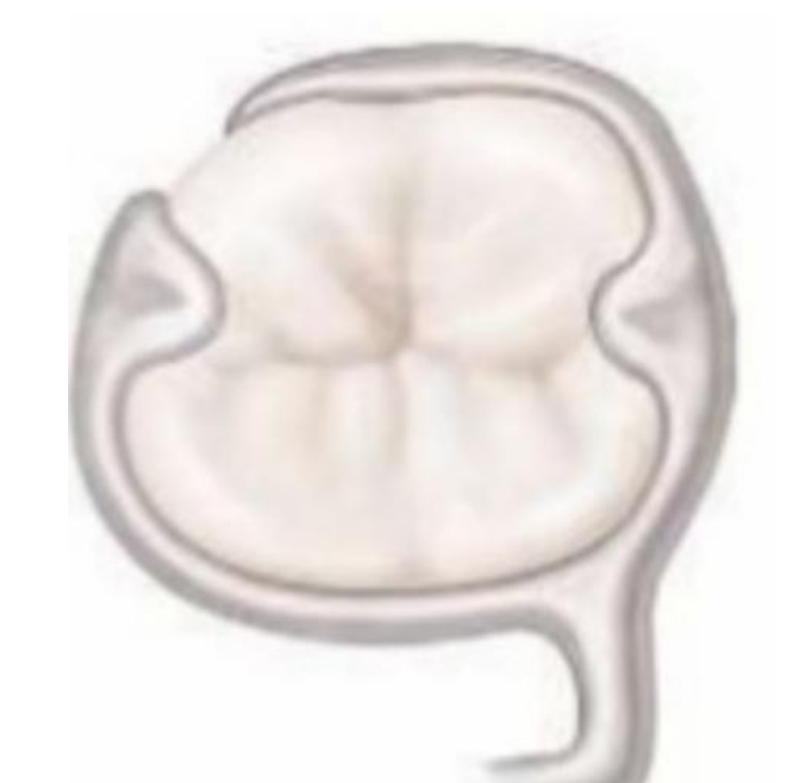

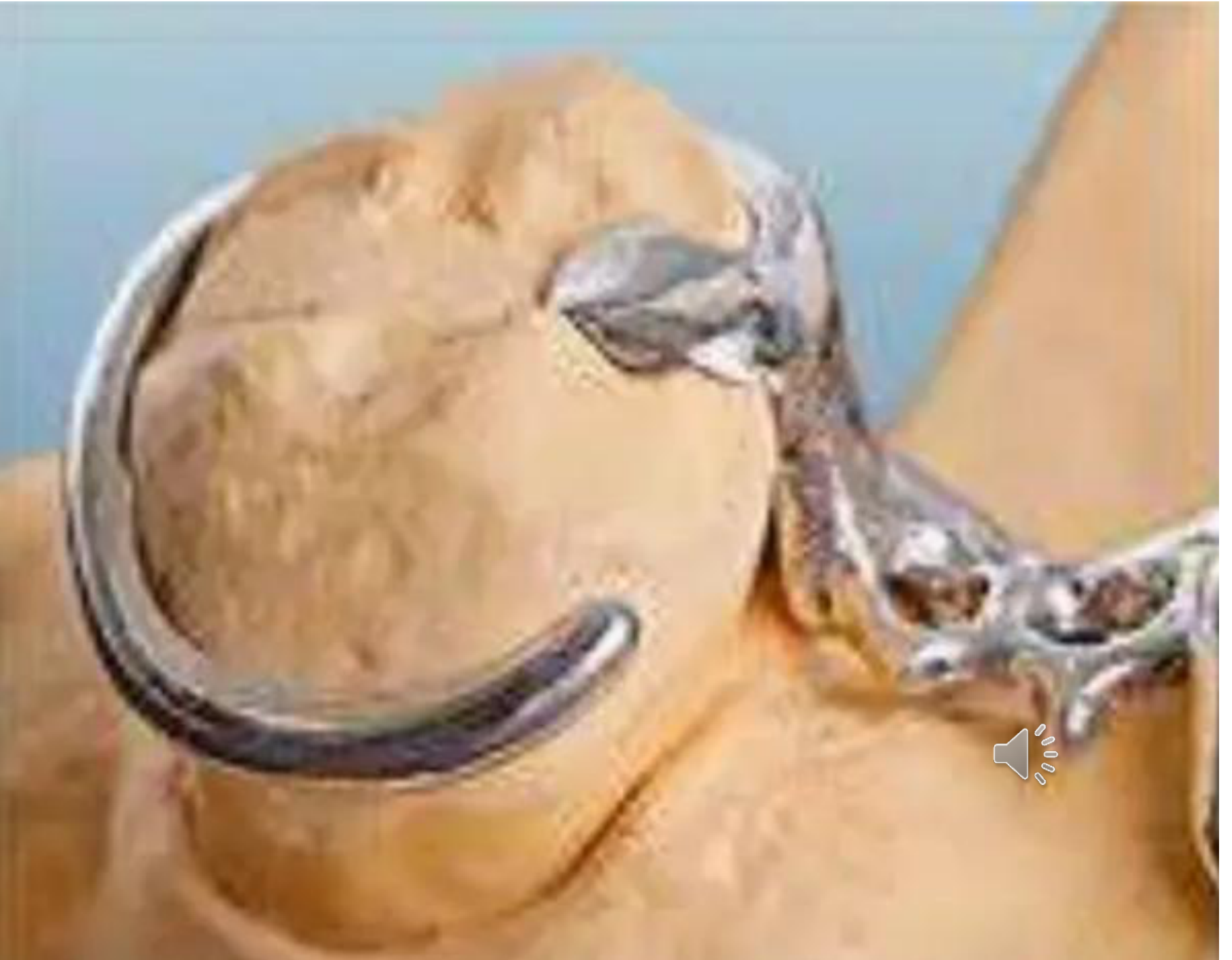

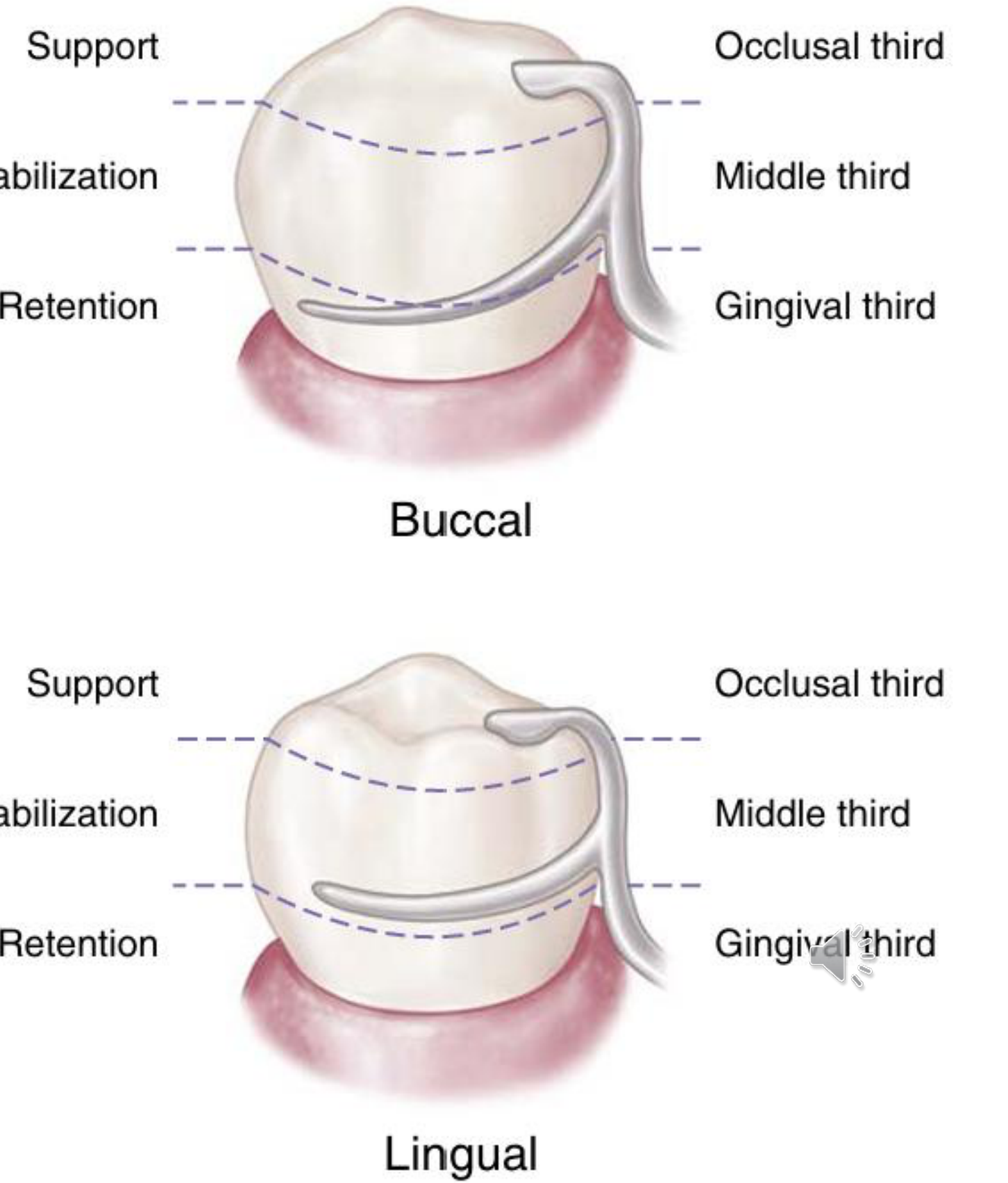

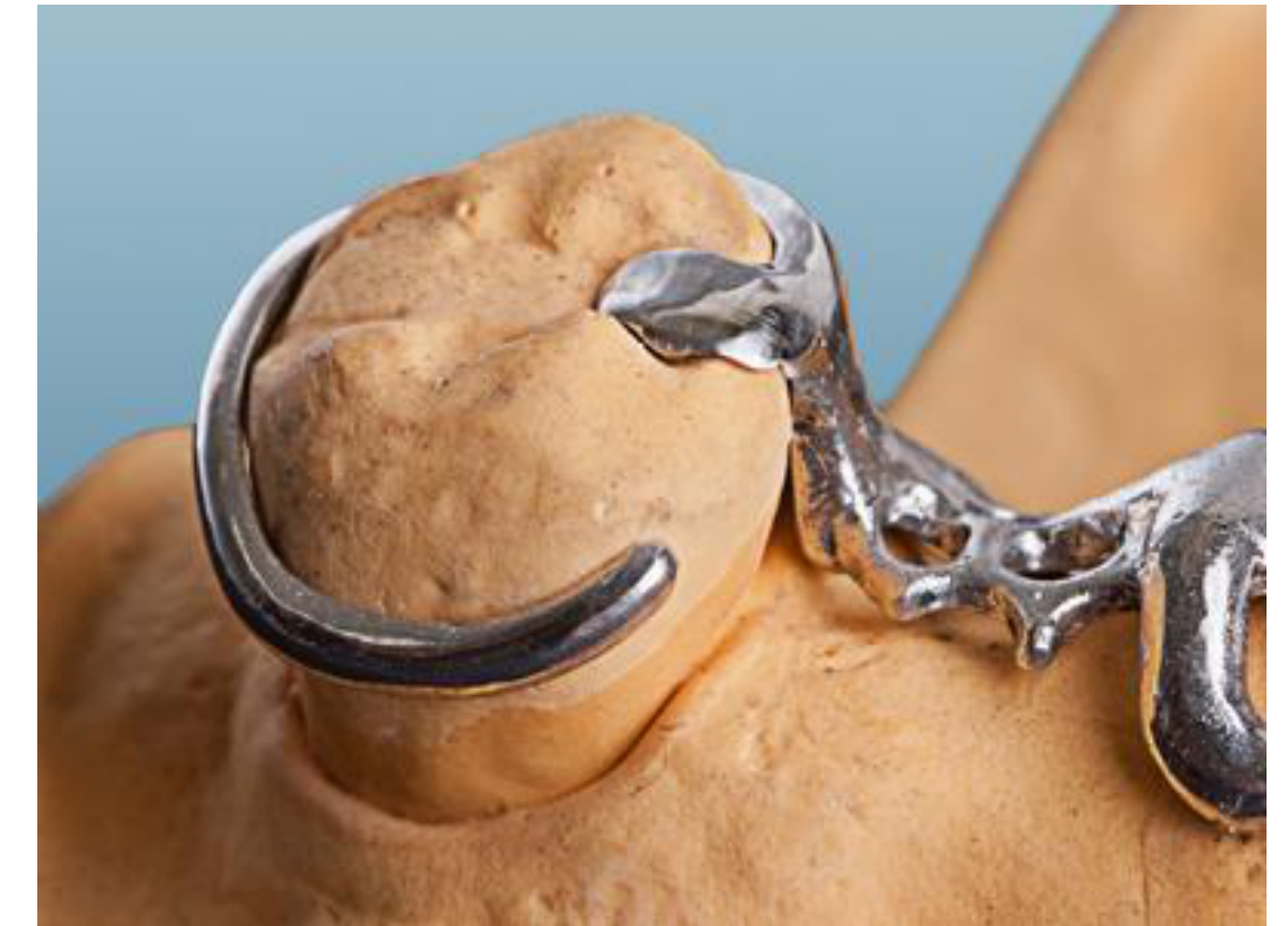

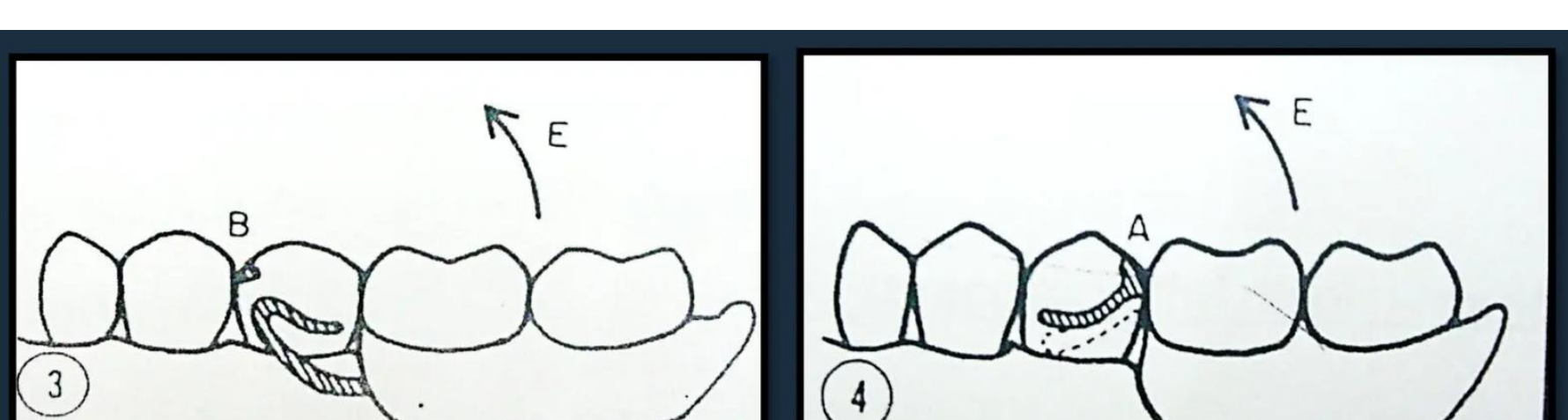

Clasp Assembly

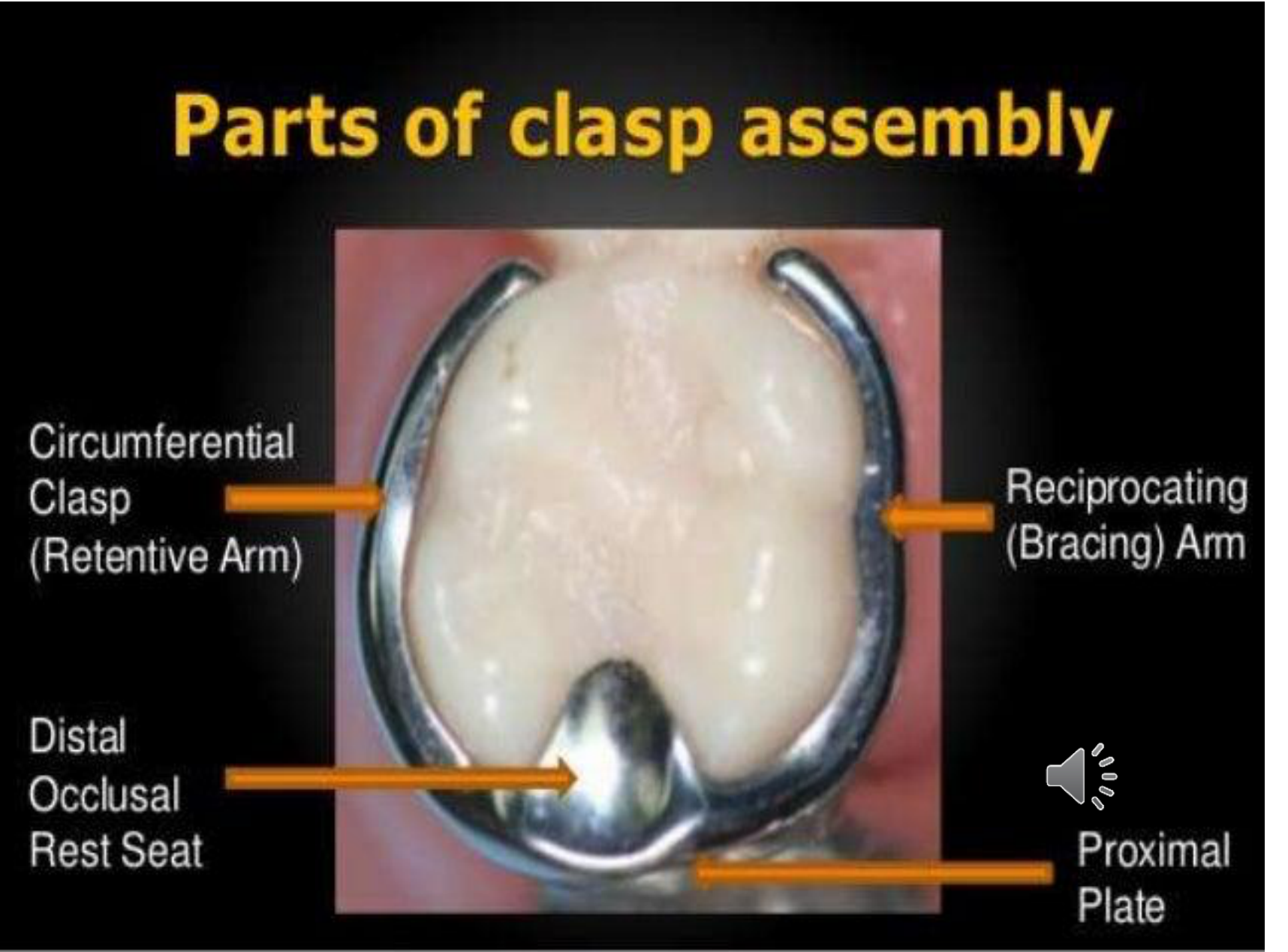

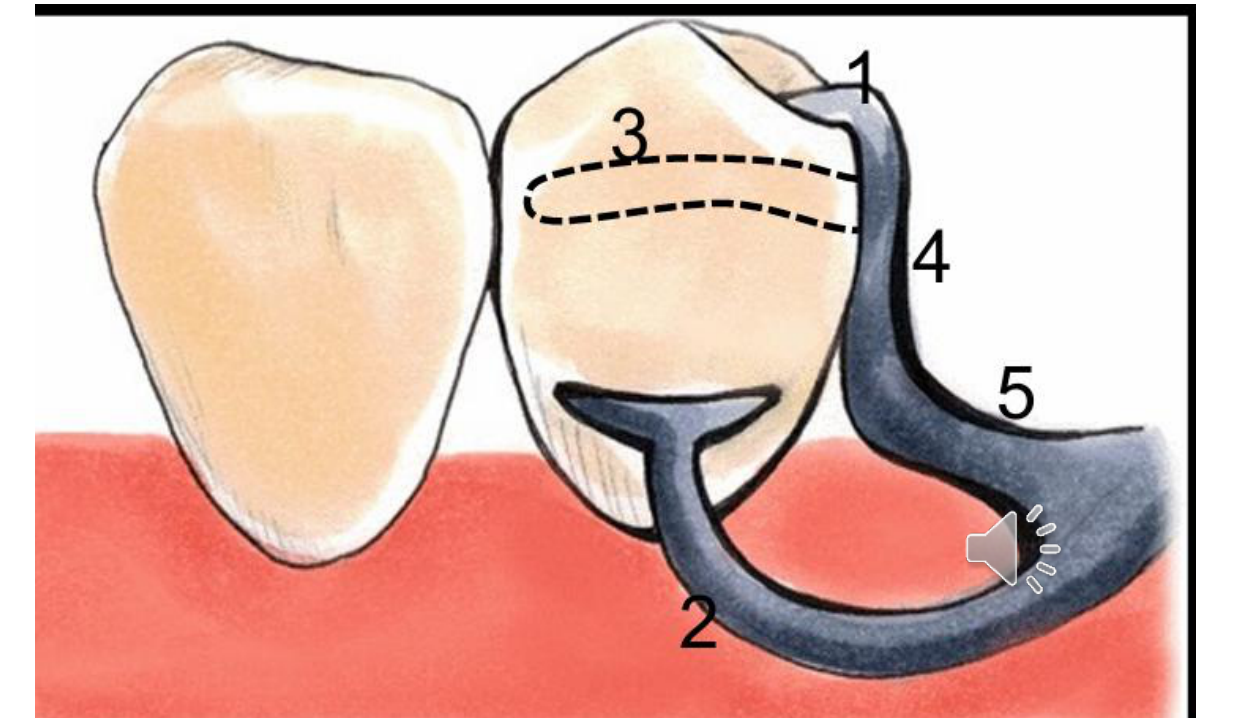

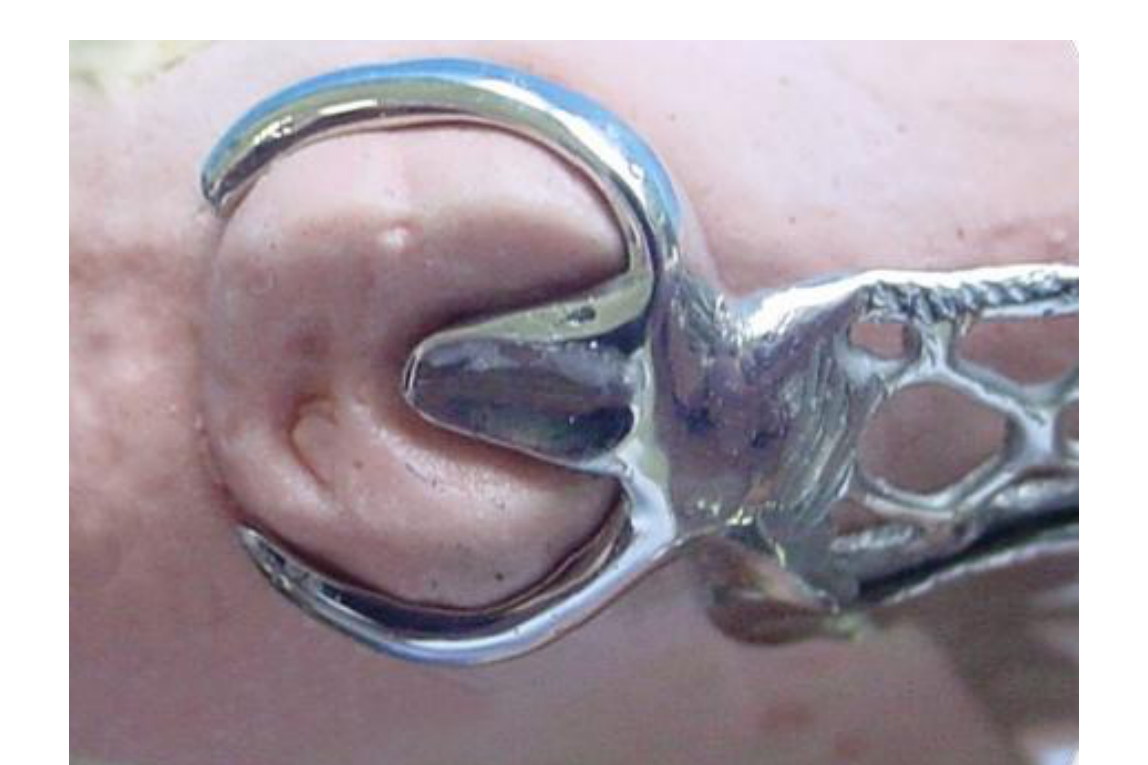

Clasp Assembly Overview²⁵

Clasp assemblies are essential components in RPDs that provide retention and stability. Retentive tips should be avoided in areas prone to food impaction or soft tissue interference.

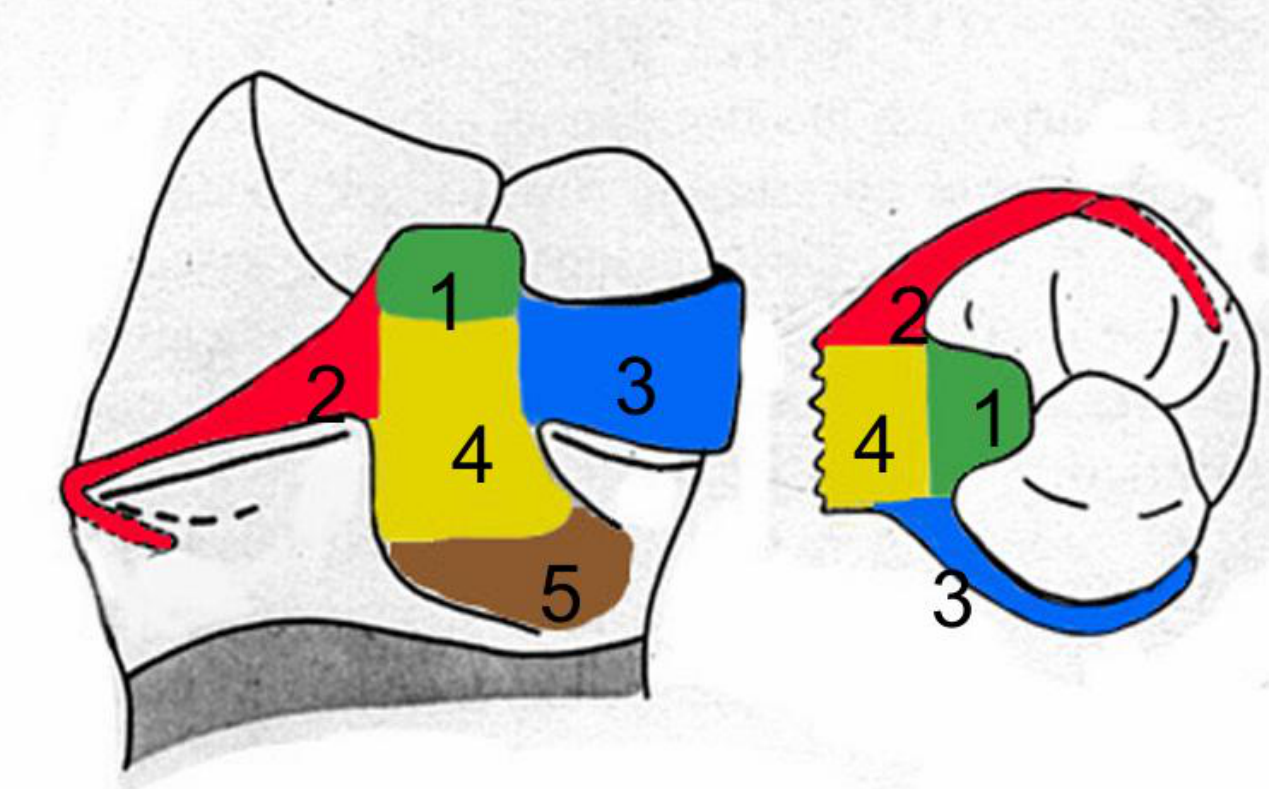

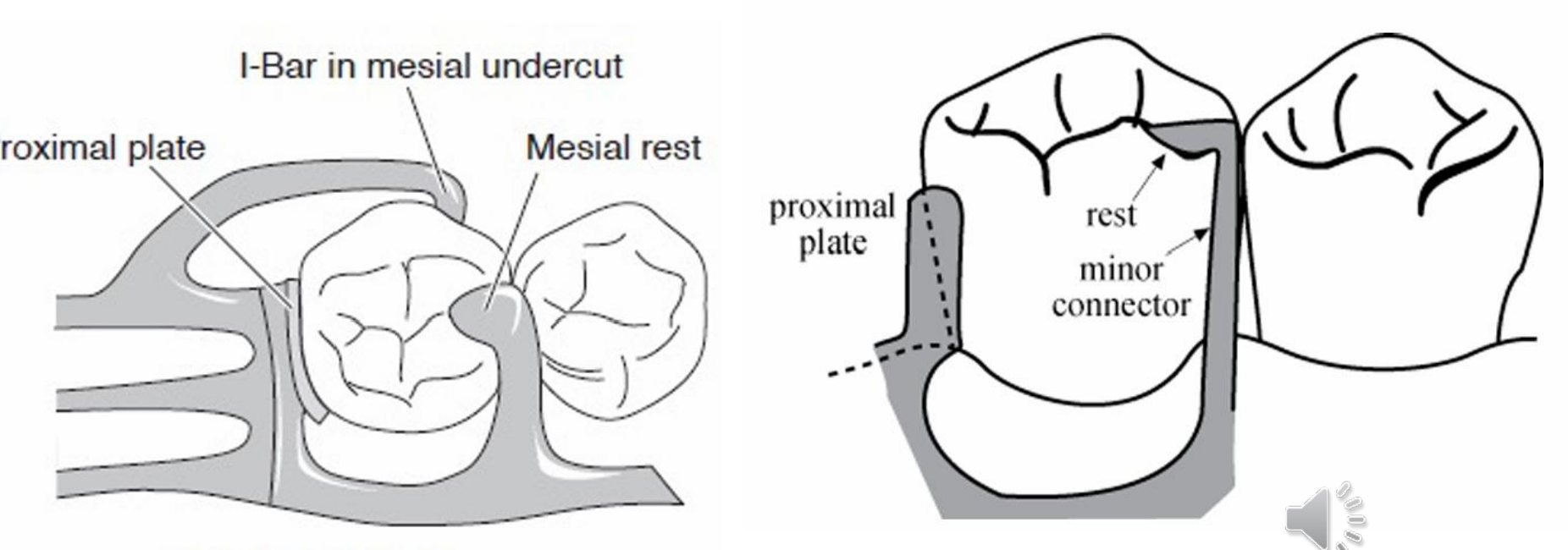

Components of a Clasp Assembly:

1. Rest
2. Retentive arm
3. Reciprocating arm
4. Clasp body (proximal plate)
5. Minor connector

Function of Clasp Assembly

Component Functions

• Rest: Provides support and a positive seat.

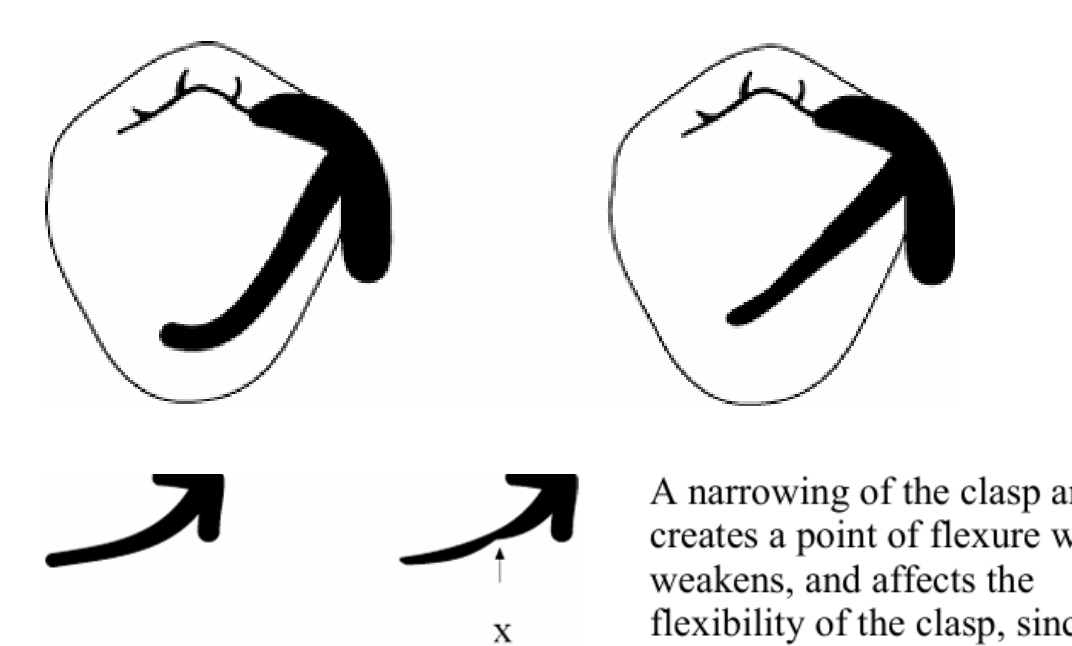

• Retentive Clasp Arm: Engages an undercut to resist dislodgement.
• Reciprocal/Bracing Element: Counteracts lateral forces during insertion and removal.
• Minor Connector: Connects the clasp assembly to the major connector.
• Proximal Plate: When used, contributes to guidance and stabilization.

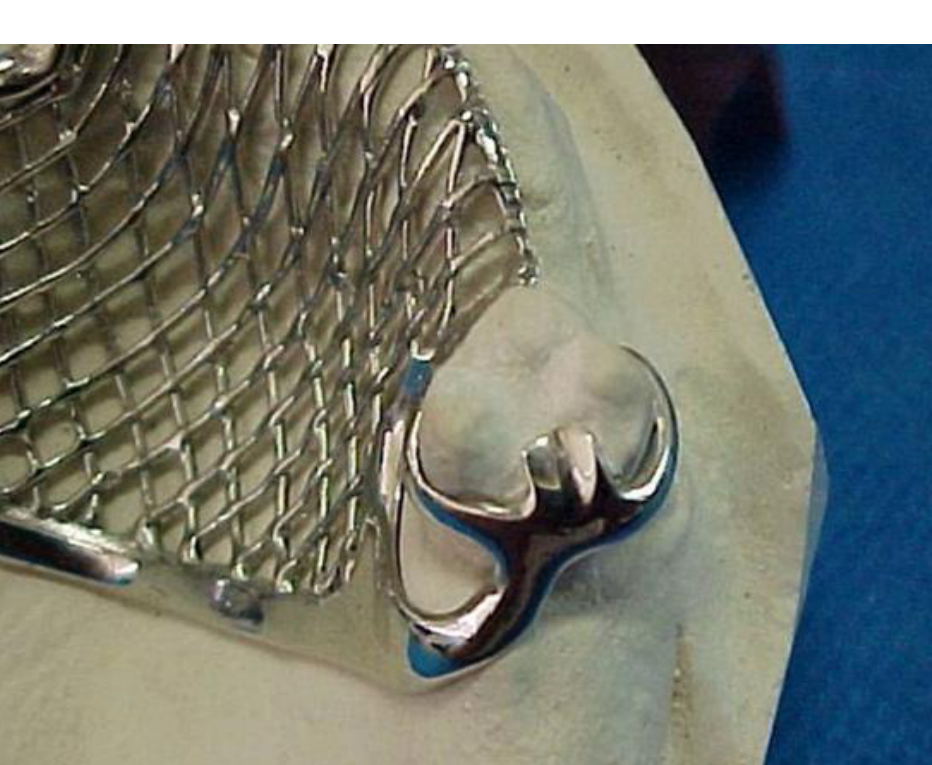

Rests and Rest Seats

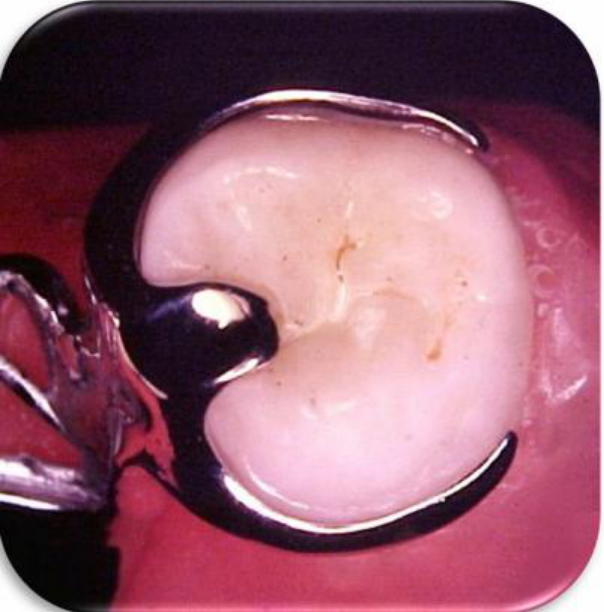

Functions of Rests²⁶

• Vertical Support: Provide vertical support and prevent tissue-ward movement of the RPD.
• Positional Maintenance: Maintain the occlusal relationship and framework position.
• Force Direction: Direct forces along the long axis of abutment teeth when properly designed.
• Stability: Contribute to stability and assist in indirect retention in distal extension cases.
• Positive Seat: Create a secure seat so the framework does not slide.

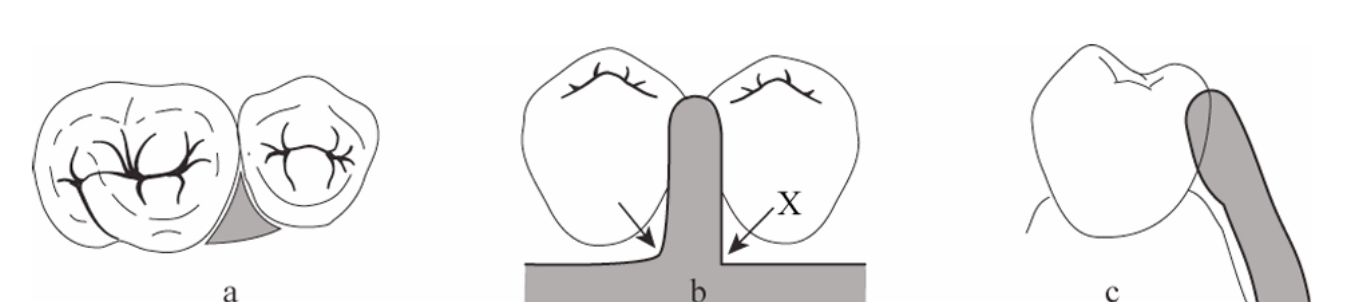

Occlusal Rest Seats Design Principles

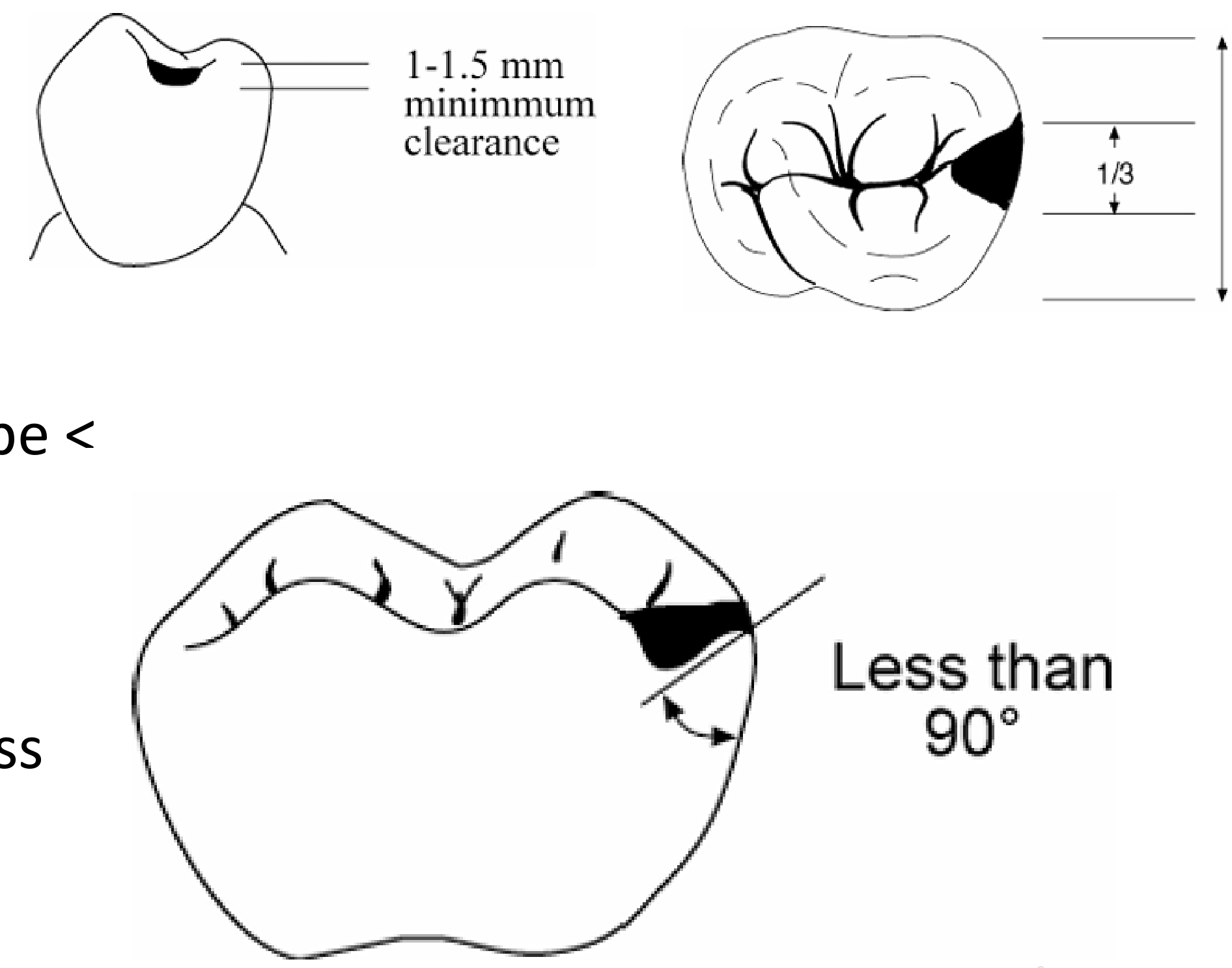

Design Principles for Occlusal Rests

• Positive Seat: The angle at the floor should be less than 90° to resist slipping.
• Metal Thickness: Ensure adequate thickness of metal at the rest for structural strength.
• Stress Reduction: Use rounded internal line angles to reduce stress concentration.
• Marginal Ridge: Maintain marginal ridge integrity while providing necessary clearance.
• Periodontal Health: Avoid creating food traps or periodontal irritants.

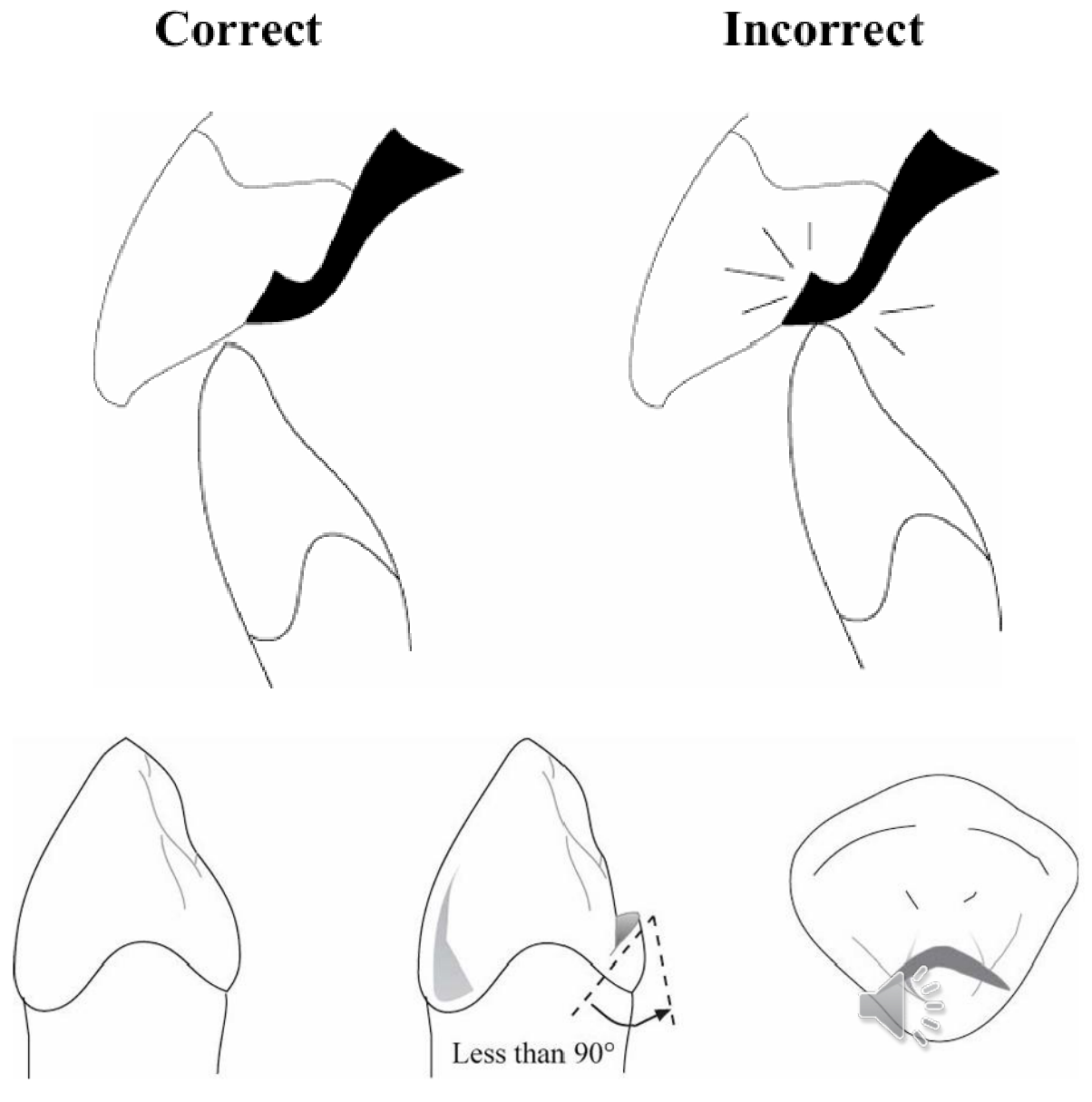

Cingulum and Incisal Rests

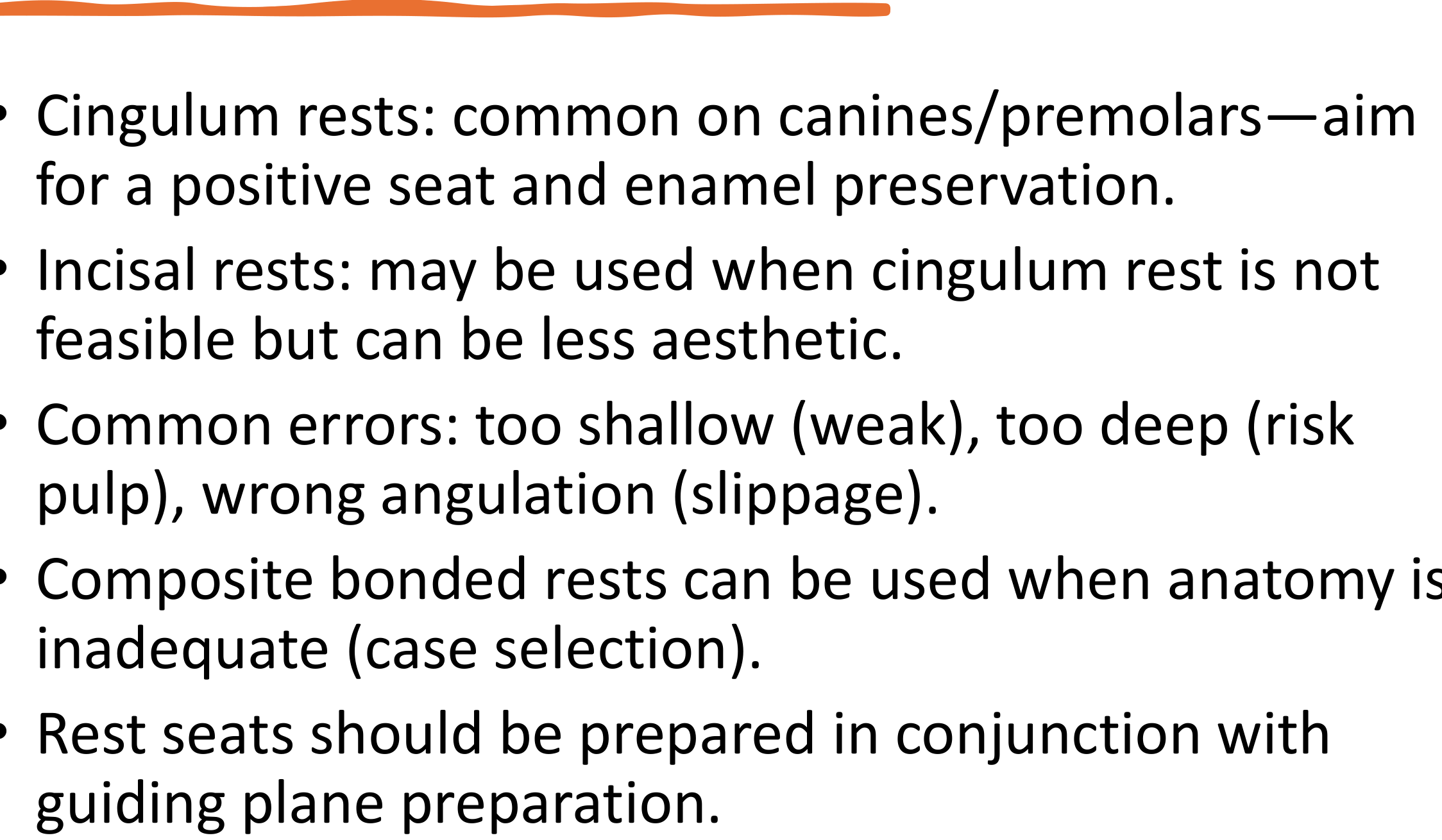

Cingulum and Incisal Rest Principles

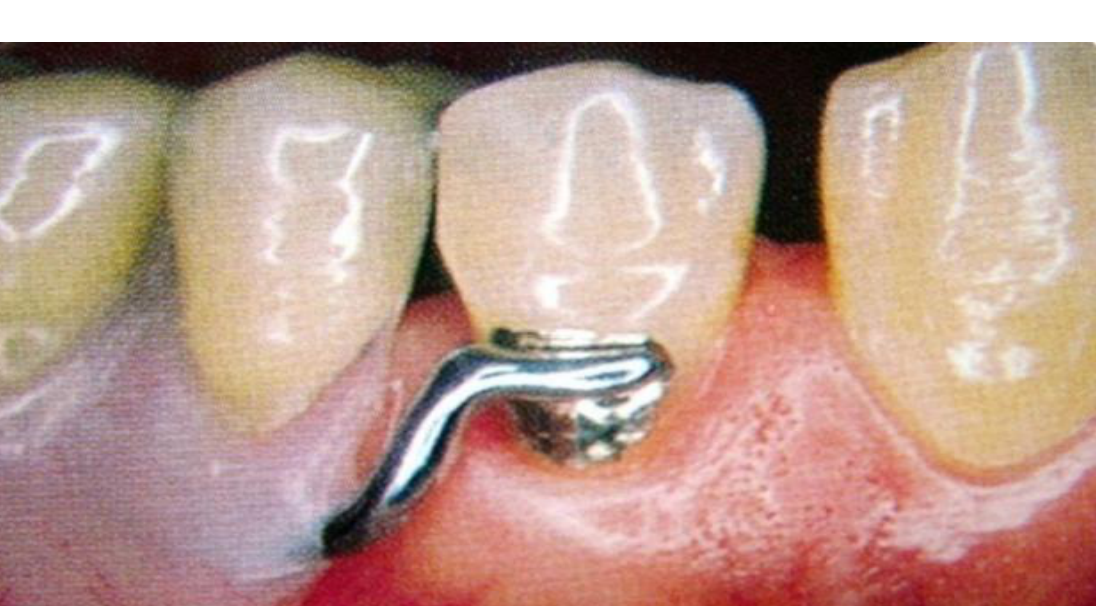

• Cingulum Rests: Common on canines and premolars; aim for a positive seat and enamel preservation. Preparation should be in the bulk of the cingulum to minimize tooth reduction. The cavosurface should be less than 90° to prevent orthodontic movement.
• Incisal Rests: Used when a cingulum rest is not feasible; however, they can be less aesthetic.
• Common Errors:
  • Too shallow (weak structure).
  • Too deep (risk to pulp).
  • Wrong angulation (leads to slippage).
• Bonded Rests: Composite bonded rests can be used when natural anatomy is inadequate.
• Preparation: Rest seats should be prepared in conjunction with guiding plane preparation.

Indirect Retention

Concepts of Indirect Retention²⁷

• Rotational Resistance: Indirect retainers resist rotation of a distal extension base away from tissues.
• Placement: Typically implemented via a rest placed anterior to the fulcrum line.
• Effectiveness: Increases with distance from the fulcrum line and the use of well-prepared guiding planes.
• Support Relationship: Complements, but does not replace, good support and base extension.
• Planning: Must be planned during the initial design stage rather than as an afterthought.

Direct Retainers

Direct Retainer Overview²⁸

• Definition: Engages an abutment tooth to resist displacement of the RPD away from basal seat tissues.
• Standard Components: Retentive arm, reciprocal (bracing) element, rest, and minor connector.
• Mechanical Types:
  • Intracoronal: Precision attachments.
  • Extracoronal: Clasps.
• Clasp Categories:
  • Suprabulge: Approach the undercut from above the height of contour.
  • Infrabulge: Approach the undercut from below the height of contour.

Abutment Approach

Comparison of Suprabulge and Infrabulge Approaches

Feature	Suprabulge	Infrabulge
Direction of Approach	From the occlusal direction	From the apical direction
Crown Contact	Continuous contact with the crown	Short contact of retentive arm with the crown
Path	From occlusal to gingival	From gingival to occlusal
Mechanical Action	Arm is pulled over the height of contour	Arm is pushed over the height of contour

Classification of Direct Retainers

Classification by Retention Location

• Direct Retainer: Located adjacent to the edentulous area.
• Indirect Retainer: Located away from the edentulous area.

Classification by Fabrication Method

• Casting: Fabricated through the lost-wax casting process.
• Wrought Wire: Fabricated using drawn wire for increased flexibility.

Biomechanical Requirements of Direct Retainers

Core Biomechanical Requirements

• Retention: Resists occlusal displacement; provided by the terminal third of the retentive arm.
• Support: Mainly provided by the rest; distributes loading through the abutment teeth to protect soft tissues and the periodontium.
• Stabilization: Bracing effect that resists horizontal forces evenly through all abutment teeth.

Requirements of Direct Retainers

Essential Retainer Requirements

• Support: Resistance to gingival displacement (via rests).
• Reciprocity: Counters forces as the retentive arm flexes over the height of contour.
• Stability: Resistance to lateral displacement (via reciprocal arms and minor connectors).
• Retention: Retentive arm engages a planned undercut.
• Encirclement: Must cover >180° of the tooth to prevent the prosthesis from moving away from the tooth.
• Passivity: When fully seated, the retainer should not exert force on the tooth.
• Clinical Selection: Select retainers to fit existing tooth form where possible; use judicious tooth preparation when needed.

Retention and Retentive Arm

Retentive Arm Function

• Undercut Engagement: The retentive arm engages an abutment tooth undercut to resist displacement of the RPD away from basal seat tissues.
• Dislodging Forces: Resistance is required against gravity (maxillary), adherent foods, and functional forces acting across a fulcrum.

Retention Principles

Principles of Retention

• Undercut Engagement: Retention is achieved by engaging a suitable undercut with a flexible retentive tip.
• Material Selection: Choose undercut depth consistent with clasp material and design.
• Passivity: A clasp should be passive when seated, providing retention only upon attempted dislodgement.
• Encirclement: The clasp assembly should surround >180° of the tooth to prevent slipping.
• Abutment Protection: Reciprocity and bracing are required to protect the abutment during insertion and removal.

Factors Affecting Clasp Retention

Retentive Arm Factors

• Angle of Convergence: The size of the angle of convergence affects retention.
• Terminal Placement: How far into the angle of convergence the clasp terminal is placed determines the retentive force.
• Design Principle: Retention should be uniform in magnitude and bilaterally opposed.

Clasp Arm Flexibility Factors

• Length: Longer or curved arms increase flexibility.
• Diameter: Smaller diameters increase flexibility. Note that non-uniform taper creates a weak point where flexure begins.

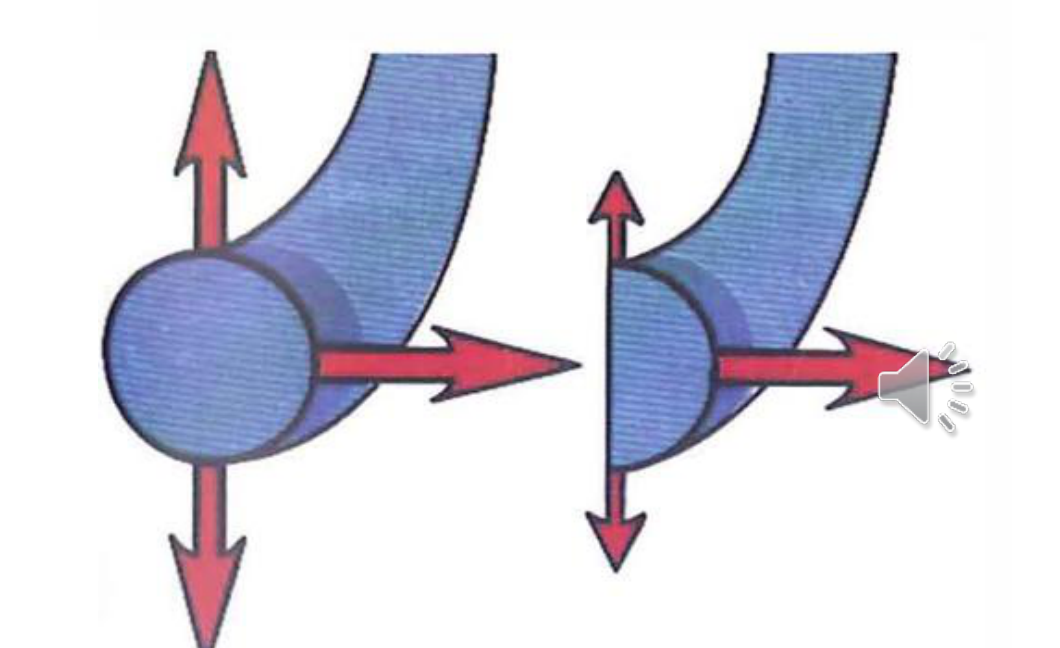

• Cross-sectional Form: Round forms offer more flexibility than half-round forms.
• Material: Wrought wire is generally more flexible and stronger than cast clasp arms.

Support via Rests

• Load Distribution: Support is mainly provided by the rest, distributing loading through the abutment teeth to protect soft tissues and the periodontium.
• Consequences of Poor Support: Without adequate support, the denture may sink into supporting tissues, causing the clasp to retreat cervically.

Stabilization

Stabilization Principles

• Horizontal Resistance: Bracing effect resists horizontal forces.
• Clinical Importance: Most critical in distal extension cases (Kennedy Class I and II).
• Components: Stabilization is achieved through the reciprocating arm, proximal plate (minor connector), and the initial third of the retentive arm.

Reciprocation

Reciprocation Requirements

• Opposing Forces: The insertion force of the retentive arm must be opposed by reciprocating arms or other RPD components.
• Primary Component: Mainly achieved through the reciprocating arm of the clasp assembly.
• Timing: Optimally, the reciprocating arm should contact the tooth at the same time the retentive arm engages.

Other Functional Requirements of Direct Retainers

Additional Functional Requirements

• Passivity: When fully seated, the clasp assembly must exert no force on the tooth.
• Engagement: Components must encircle more than 180° of the tooth to prevent movement of the abutment out of the assembly.

Indirect Retainers When and Where

Indirect Retainer Application

• Definition: Components used to reduce the tendency of the denture to rotate in an occlusal direction about the fulcrum axis.
• Indications: Most important in distal extension cases (Kennedy Class I and II).
• Placement: Position an indirect retainer anterior to the fulcrum line to resist rotational displacement.

Indirect Retainer Effectiveness

• Preparation: Use a well-prepared rest seat and guiding plane for maximum effectiveness.
• Site Selection: Select locations with good periodontal support and favorable anatomy.
• Long-Span Cases: Consider multiple indirect retainers in long-span distal extensions.
• Framework Rigidity: Indirect retention can be enhanced by the overall rigidity of the denture frame.

Types of Direct Retainers Circumferential Clasps

Simple and Reverse Circumferential Clasps

• Simple Circumferential Design:
  • Most simple and versatile clasp.
  • Assembly consists of one retentive arm opposed by a reciprocal arm originating from the rest.
  • Used for molars and premolars.
  • Limitation: Not ideal if the abutment is tilted toward the edentulous space.
• Reverse Circumferential Design:
  • Rest and body are placed opposite to the edentulous area; arms run toward the edentulous space.
  • Requires a proximal plate.
  • Indication: Abutment is tilted toward the edentulous space.
  • Limitation: Difficult to use on short clinical crowns.

Ring and Embrasure Clasp Designs

• Ring Clasp Design:
  • Features mesial and distal rests.
  • Encircles nearly the entire tooth.
  • Indication: Used with molars tipped in a mesiolingual direction.
  • Limitation: Not suitable for free-end saddles.

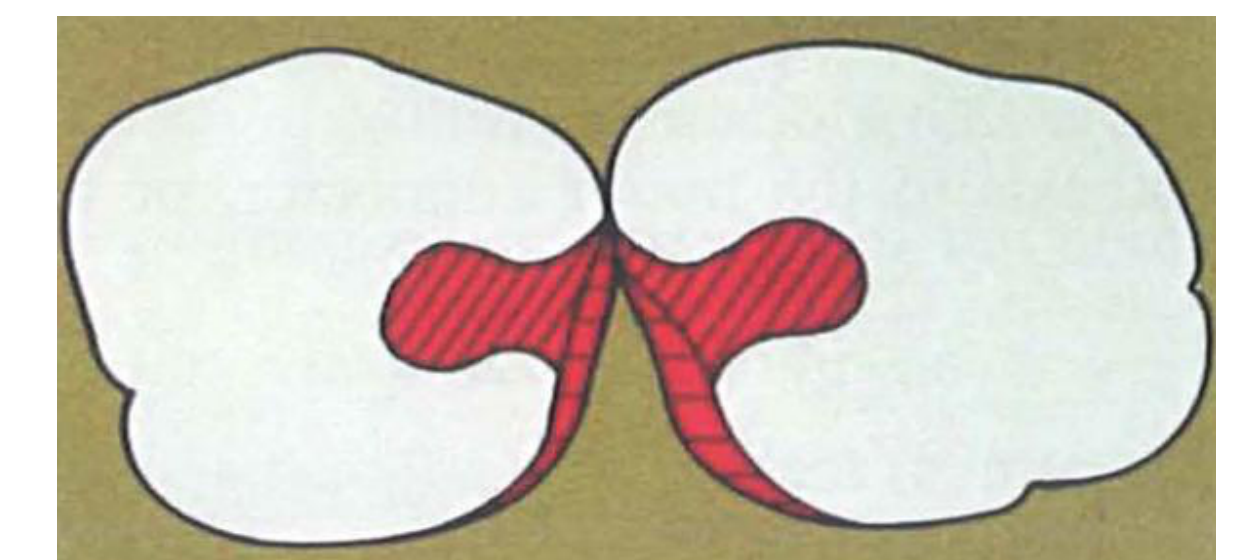

• Embrasure Clasp Design:
  • Essentially two simple circumferential clasps joined at the bodies.
  • Requires sufficient occlusal clearance.
  • Benefit: Provides indirect retention.
  • Limitation: Requires extensive tooth preparation.

Types of Direct Retainers Bar Clasps

T-Clasp and Modified T-Clasp Designs

• T-Clasp Design:
  • Approach arm originates from components in the edentulous area.
  • Retentive arm crosses the gingival margin at 90°.
  • Indication: Intercalated or free-end edentulous areas.
  • Limitations: Interference with frenulum and severe soft tissue undercuts.
• Modified T-Clasp Design:
  • Features only one horizontal projection.
  • Designed to avoid significant soft tissue undercuts.
  • Indication: Intercalated or free-end edentulous areas.
  • Limitations: Frenulum interference, severe soft tissue undercuts (risk of food entrapment/irritation), and height of contour near the occlusal surface.

I-Clasp and RPI Clasp Designs

• I-Clasp Design:
  • Crosses the gingival margin perpendicularly.
  • Should be placed mesially to the midfacial prominence of the abutment.
  • Indication: Intercalated or free-end edentulous areas.
  • Limitations: Frenulum interference, severe soft tissue undercuts, and height of contour near the occlusal surface.
• RPI Clasp Design:
  • Comprises a Rest (R), Proximal plate (P), and I-bar (I).
  • The I-bar is located in the mesio-buccal undercut.
  • Requires preparation of guiding planes.
  • Indication: Specifically for Kennedy Class I and II cases.

Surveying Path of Insertion and Guiding Planes²⁹

This section covers the fundamental principles of surveying, establishing the path of insertion, and the preparation of guiding planes for removable partial dentures.

Definitions Path of Insertion

A path of insertion (or removal) is the path along which a prosthesis is placed (or removed) intraorally. A removable partial denture is usually fabricated to have a single path of insertion or removal from the mouth.

Advantages of a Single Path of Insertion³⁰

• Facilitates evaluation of tooth alignment.
• Helps manage soft tissue undercuts.
• Identifies potential interferences to insertion and removal.
• Simplifies the patient’s ability to seat and remove the prosthesis.

Surveyors and Diagnostic Cast Analysis³¹³²

The dental surveyor is a diagnostic instrument used to select the most favorable path of insertion and aid in the preparation of guiding planes. It is an essential instrument in designing removable partial dentures. The act of using a surveyor is referred to as surveying.

Surveying a diagnostic cast is performed to achieve the following objectives:

• Identify the height of contour and usable undercuts on abutment teeth.
• Evaluate tooth alignment, soft tissue undercuts, and interferences to insertion/removal.
• Select a path of insertion that balances retention, esthetics, and minimal tooth modification.
• Guide design decisions regarding clasp type, guiding planes, and mouth preparation needs.
• Record the selected tilt (tripoding) for consistency throughout the fabrication process.

Survey Lines Height of Contour and Undercuts

Survey Line Characteristics³³

• The survey line depends entirely on the chosen path of insertion; changing the tilt of the cast changes the survey line.
• Undercuts can be located on buccal, lingual, mesial, or distal surfaces. The specific location influences the selection of the clasp assembly.

Clinical Considerations

• Select undercuts that provide adequate retention while minimizing esthetic compromise.
• Evaluate soft tissue undercuts to avoid impingement and insertion difficulties.
• Plan for enamel recontouring or the fabrication of surveyed restorations if the natural tooth anatomy is insufficient.

Determining the Path of Insertion³⁴

When determining the optimal path of insertion, the following factors must be considered:

• Interferences: Minimize interferences while maintaining effective guidance and stability.
• Esthetics: Evaluate clasp display, especially in the anterior region of the mouth.
• Biomechanics: Understand that the tilt of the cast may change undercut availability and the effectiveness of the clasp.
• Guidance: Aim for a path that is compatible with prepared guiding planes.
• Communication: Record the selected path accurately for laboratory communication.

Guiding Planes

A guiding plane is a prepared axial surface (usually 2–3 mm in height) made parallel to the path of insertion.

Benefits of Guiding Planes³⁵

• Improved stability of the prosthesis.
• Reduced food trapping between the denture and abutment teeth.
• Controlled and predictable insertion and removal.
• Enhanced effectiveness of proximal plates and indirect retainers.
• Creates a more definite path of insertion for patient ease.

Implementation

Guiding planes should be planned on diagnostic casts during the design phase and created during the mouth preparation appointment.

Guiding Plane Preparation Practical Guidelines

Preparation Techniques

• Prepare on proximal surfaces adjacent to edentulous areas where indicated.
• Maintain enamel integrity by creating smooth, parallel surfaces without creating new undercuts.
• Avoid over-reduction that could compromise tooth structure or lead to tooth sensitivity.
• Check parallelism relative to the selected path of insertion using the surveyor.

Common Pitfalls to Avoid

• Creating planes that are too short to be effective.
• Divergence of prepared surfaces.
• Creating new, unintended undercuts during the preparation process.

Tripoding and Recording the Cast Position

Purpose of Tripoding³⁶

• Tripoding marks preserve the specific orientation of the cast on the surveyor.
• Allows for consistent re-surveying after mouth preparation or if design changes are required.
• Supports accurate framework fabrication and precise clasp placement.

Clinical Workflow

• Re-survey the master cast after altering tooth contours or preparing guiding planes and rest seats.
• Document all planned modifications and the established path of insertion clearly on the laboratory prescription.

Principles of Partial Denture Design³⁷

The principles of partial denture design focus on creating a prosthesis that is functional, stable, and preserves the remaining oral structures. Effective design requires a systematic approach to support, retention, and stability while minimizing stress on abutment teeth and soft tissues.

Design Sequence

Recommended Workflow³⁸

1. Diagnose and Define the Problem

   • Assess missing teeth, periodontal status, and occlusion.

2. Classify the Arch

   • Determine the Kennedy classification and identify the support type (tooth-supported vs. tooth–tissue supported).

3. Survey Diagnostic Casts

   • Select a path of insertion and identify necessary undercuts.

4. Plan Mouth Preparation

   • Design guiding planes, rest seats, necessary contours, and required restorations.

5. Component Selection

   • Select major and minor connectors, rests, clasp assemblies, and indirect retainers.

6. Impression and Base Planning

   • Plan impressions and base extensions appropriate to the specific support needs of the case.

Support and Stability Principles

Core Principles³⁹

• Maximize Support: Utilize rests on suitable abutments and extend denture bases within functional limits to distribute loads effectively.
• Rigidity: Major connectors must be rigid to provide necessary cross-arch stabilization.
• Bracing: Incorporate reciprocal elements and guiding planes to resist horizontal and lateral forces.
• Stability: Enhance stability through broad, well-adapted bases and a controlled path of insertion.
• Stress Distribution: Avoid designs that concentrate stress on a single abutment or a small area of soft tissue.

Stress Control in Distal Extension Cases

Managing Rotation and Load⁴⁰

• Control Rotation: Distal extension bases rotate under load; design must control this rotation to protect abutments.
• Tissue Support: Use broad base extension and appropriate impression techniques to improve support from the residual ridge.
• Indirect Retention: Use indirect retainers to resist the lifting of the base away from the tissues.
• Abutment Protection: Consider clasp designs that reduce torque on abutments, tailored to the specific case requirements.
• Force Distribution: Aim for balanced force distribution across teeth, tissues, and the entire arch via cross-arch stabilization.

Retention and Reciprocity Clasp Design Rules

Clasp Assembly Requirements⁴¹

• Retention: A flexible retentive tip must engage a planned undercut. The clasp must remain passive when the denture is fully seated.
• Reciprocity: A reciprocal element must maintain contact with the tooth as the retentive arm flexes over the height of contour.
• Encirclement: The clasp assembly should surround more than 180° of the tooth circumference to ensure stability.
• Support: Every assembly must include a rest to direct occlusal forces along the long axis of the tooth and stabilize the component.
• Simplicity and Hygiene: Minimize tooth and tissue coverage to maintain oral health while meeting functional requirements.

Hygiene Esthetics and Maintenance

Design for Long-Term Success⁴²

• Gingival Health: Minimize gingival coverage and avoid plaque-retentive contours or food traps.
• Connector Selection: Choose designs that balance the need for rigidity with patient comfort and ease of cleaning.
• Esthetic Considerations: Place clasps to minimize metal display where possible without compromising mechanical function.
• Maintenance Planning: Design the prosthesis to allow for future relines, repairs, and periodic clinical reviews.
• Patient Education: Success depends on patient instruction regarding cleaning, proper insertion/removal techniques, and the importance of regular recall appointments.

Kennedy Class I Design Implications

Bilateral Distal Extension Considerations⁴³

• Support Dynamics: Relies on tooth–tissue support, which creates a greater potential for rotation during function.
• Base Extension: Maximize denture base extension to provide optimal tissue support.
• Stabilization: Utilize rigid major connectors to provide essential cross-arch stabilization.
• Rotation Control: Indirect retainers are usually critical for controlling the rotational movement of the bases.
• Clasping: Clasp selection should focus on minimizing torque and stress applied to the primary abutment teeth.

Kennedy Class II Design Implications

Unilateral Distal Extension Considerations⁴⁴

• Loading Challenges: Unilateral extension leads to asymmetrical loading and complex rotational forces.
• Cross-Arch Stabilization: This is essential to balance the forces from the edentulous side to the dentate side.
• Indirect Retention: Commonly required to counteract the rotational leverage of the distal extension base.
• Support Factors: Denture base extension and the specific impression technique used significantly influence the quality of support.
• Abutment Safety: The design must balance the need for retention with the necessity of protecting the abutment tooth from excessive stress.

Kennedy Class III Design Implications

Bounded Saddle Considerations⁴⁵

• Predictable Support: Primarily tooth-supported, resulting in more predictable stability and support.
• Movement: Exhibits significantly less rotation compared to distal extension (Class I and II) cases.
• Indirect Retention: Indirect retainers may be less critical, depending on the specific span and configuration of the case.
• Clasping and Esthetics: Clasping is often straightforward; the primary focus should remain on hygiene and esthetic outcomes.
• Connectors: Major connectors must still be rigid and designed to facilitate easy hygiene.

Kennedy Class IV Design Implications

Anterior Edentulous Considerations⁴⁶

• Midline Involvement: Involves a single anterior edentulous area that crosses the midline.
• Primary Goals: Esthetics and support are the most critical considerations for this classification.
• Functional Factors: Canine guidance, lip support requirements, and phonetics heavily influence the final tooth position.
• Classification Rules: Under Applegate’s rules, no modification spaces are allowed for a Class IV designation.
• Visual Impact: Clasp display should be minimized as much as possible to maintain a natural appearance.

Footnotes

1. Original PDF page 2: L11 RPD Lecture Recap pdf, p.2 ↩

2. Original PDF page 1: L11 RPD Lecture Recap pdf, p.1 ↩

3. Original PDF page 3: L11 RPD Lecture Recap pdf, p.3 ↩

4. Original PDF page 4: L11 RPD Lecture Recap pdf, p.4 ↩

5. Original PDF page 5: L11 RPD Lecture Recap pdf, p.5 ↩

6. Original PDF page 6: L11 RPD Lecture Recap pdf, p.6 ↩

7. Original PDF page 7: L11 RPD Lecture Recap pdf, p.7 ↩

8. Original PDF page 8: L11 RPD Lecture Recap pdf, p.8 ↩

9. Original PDF page 9: L11 RPD Lecture Recap pdf, p.9 ↩

10. Original PDF page 11: L11 RPD Lecture Recap pdf, p.11 ↩

11. Original PDF page 12: L11 RPD Lecture Recap pdf, p.12 ↩

12. Original PDF page 13: L11 RPD Lecture Recap pdf, p.13 ↩

13. Original PDF page 14: L11 RPD Lecture Recap pdf, p.14 ↩

14. Original PDF page 15: L11 RPD Lecture Recap pdf, p.15 ↩

15. Original PDF page 16: L11 RPD Lecture Recap pdf, p.16 ↩

16. Original PDF page 17: L11 RPD Lecture Recap pdf, p.17 ↩

17. Original PDF page 18: L11 RPD Lecture Recap pdf, p.18 ↩

18. Original PDF page 19: L11 RPD Lecture Recap pdf, p.19 ↩

19. Original PDF page 20: L11 RPD Lecture Recap pdf, p.20 ↩

20. Original PDF page 21: L11 RPD Lecture Recap pdf, p.21 ↩

21. Original PDF page 22: L11 RPD Lecture Recap pdf, p.22 ↩

22. Original PDF page 23: L11 RPD Lecture Recap pdf, p.23 ↩

23. Original PDF page 24: L11 RPD Lecture Recap pdf, p.24 ↩

24. Original PDF page 27: L11 RPD Lecture Recap pdf, p.27 ↩

25. Original PDF page 29: L11 RPD Lecture Recap pdf, p.29 ↩

26. Original PDF page 31: L11 RPD Lecture Recap pdf, p.31 ↩

27. Original PDF page 34: L11 RPD Lecture Recap pdf, p.34 ↩

28. Original PDF page 35: L11 RPD Lecture Recap pdf, p.35 ↩

29. Original PDF page 55: L11 RPD Lecture Recap pdf, p.55 ↩

30. Original PDF page 56: L11 RPD Lecture Recap pdf, p.56 ↩

31. Original PDF page 57: L11 RPD Lecture Recap pdf, p.57 ↩

32. Original PDF page 58: L11 RPD Lecture Recap pdf, p.58 ↩

33. Original PDF page 59: L11 RPD Lecture Recap pdf, p.59 ↩

34. Original PDF page 60: L11 RPD Lecture Recap pdf, p.60 ↩

35. Original PDF page 61: L11 RPD Lecture Recap pdf, p.61 ↩

36. Original PDF page 63: L11 RPD Lecture Recap pdf, p.63 ↩

37. Original PDF page 64: L11 RPD Lecture Recap pdf, p.64 ↩

38. Original PDF page 65: L11 RPD Lecture Recap pdf, p.65 ↩

39. Original PDF page 66: L11 RPD Lecture Recap pdf, p.66 ↩

40. Original PDF page 67: L11 RPD Lecture Recap pdf, p.67 ↩

41. Original PDF page 68: L11 RPD Lecture Recap pdf, p.68 ↩

42. Original PDF page 69: L11 RPD Lecture Recap pdf, p.69 ↩

43. Original PDF page 70: L11 RPD Lecture Recap pdf, p.70 ↩

44. Original PDF page 71: L11 RPD Lecture Recap pdf, p.71 ↩

45. Original PDF page 72: L11 RPD Lecture Recap pdf, p.72 ↩

46. Original PDF page 73: L11 RPD Lecture Recap pdf, p.73 ↩
