Directions For Use

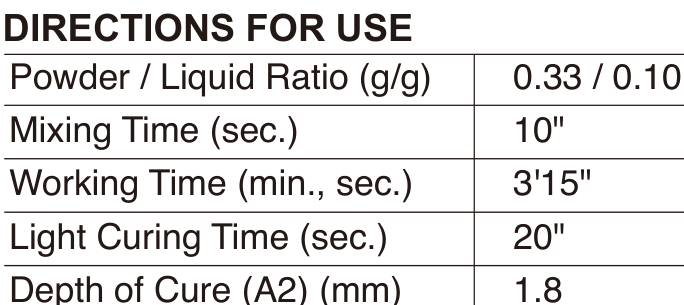

Technical Specifications and Timing1

  • Powder / Liquid Ratio (g/g): 0.33 / 0.10
  • Mixing Time: 10 seconds
  • Working Time: 3 minutes 15 seconds
  • Light Curing Time: 20 seconds
  • Depth of Cure (A2): 1.8 mm

Material Specifications And Ratios

Standard Testing Conditions

Measurements and timings are established based on the following environmental parameters:

  • Temperature: 23 +/- 1°C
  • Relative Humidity: 50 +/- 10%
  • Classification: ISO 9917-2 : 1998 (E) (Light-activated cements) (Type I)

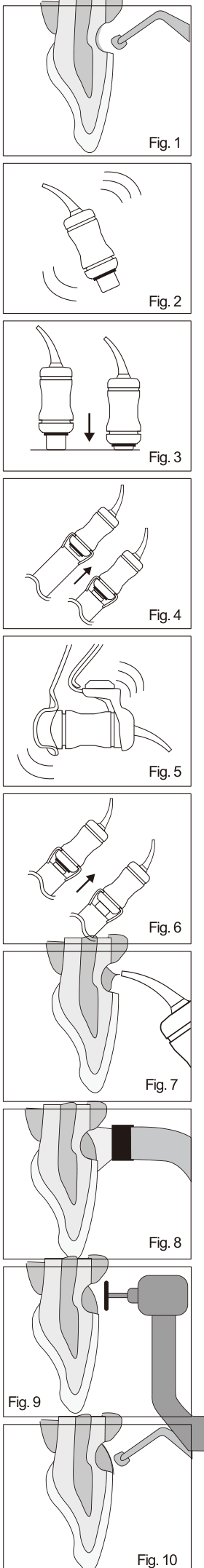

1. Cavity Preparation

a. Prepare Tooth using standard techniques. Extensive mechanical retention is not necessary. For pulp capping, use calcium hydroxide. b. Wash and dry but DO NOT DESICCATE GC CAVITY CONDITIONER OR GC DENTIN CONDITIONER is recommended to remove the smear layer

2. Capsule activation and Mixing

a. Before activation, shake the capsule or tap its side on a hard surface to loosen the power b. To activate the capsula push the plunger until it is flush with main body c. immediately place the capsule into a metal GC Capsule applier and click the lever once d. Immediately remove the capsule and set it into a mixer (an amalgamator) and mix for 10 seconds at high speed (~4000 rpm)

3. Restorative Technique

a. Immediately remove the mixed capsule from the mixer and load it into the GC Capsule Applier b. Make Two clicks to prime the capsule then Syringe . **The working time is 3:15 from start of mixing **

To adjust the direction of the nozzle, hold the applier with the capsule towards you and turn the capsule body **To remove the used capsule, push the applier release button. Twist the capsule and pull upwards

c. Remove surface moisture and DO NOT DESICCATE d. Extrude cement directly into preparation Avoid air bubbles e. Form the contour and place a matrix if required f. Light-cure for 20 seconds using a suitable visible light curing device (470 nm wavelength) place light source as closely as possible to the cement surface NOTE: For cavities deeper than 1.8mm , use a layering technique

4. Finishing

Finish under water spray using superfine diamond bur, silicone point and polishing strips Note: Apply a final coat of GC Fuji Varnish (blow dry) or GC Fuji Coat LC (light cure for 10 sec) or G-Coat Plus (light cure for 20 sec)

Shade

A1, A2, A3, A3.5, A4,B2, B3, B4, C2, C4, D2
