Clinical Guide: The Wall and Lobe Technique for Large Composite Restorations
The “Wall and Lobe” technique is a systematic approach designed to simplify complex Class II composite restorations by converting them into simpler Class I restorations. This method emphasizes additive sculpting to minimize the need for rotary finishing and to ensure anatomically correct contours.

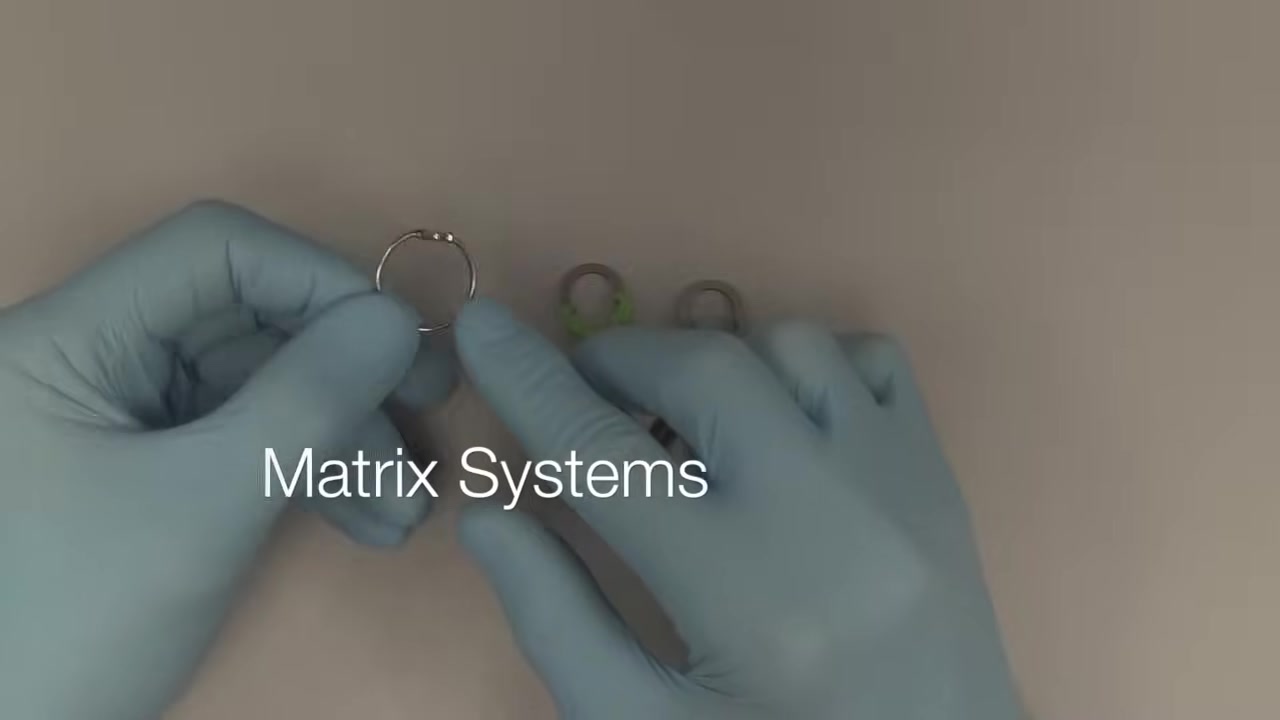

1. Matrix Systems and Armamentarium
Selecting the appropriate matrix system is critical for achieving proper interproximal contact and contour.

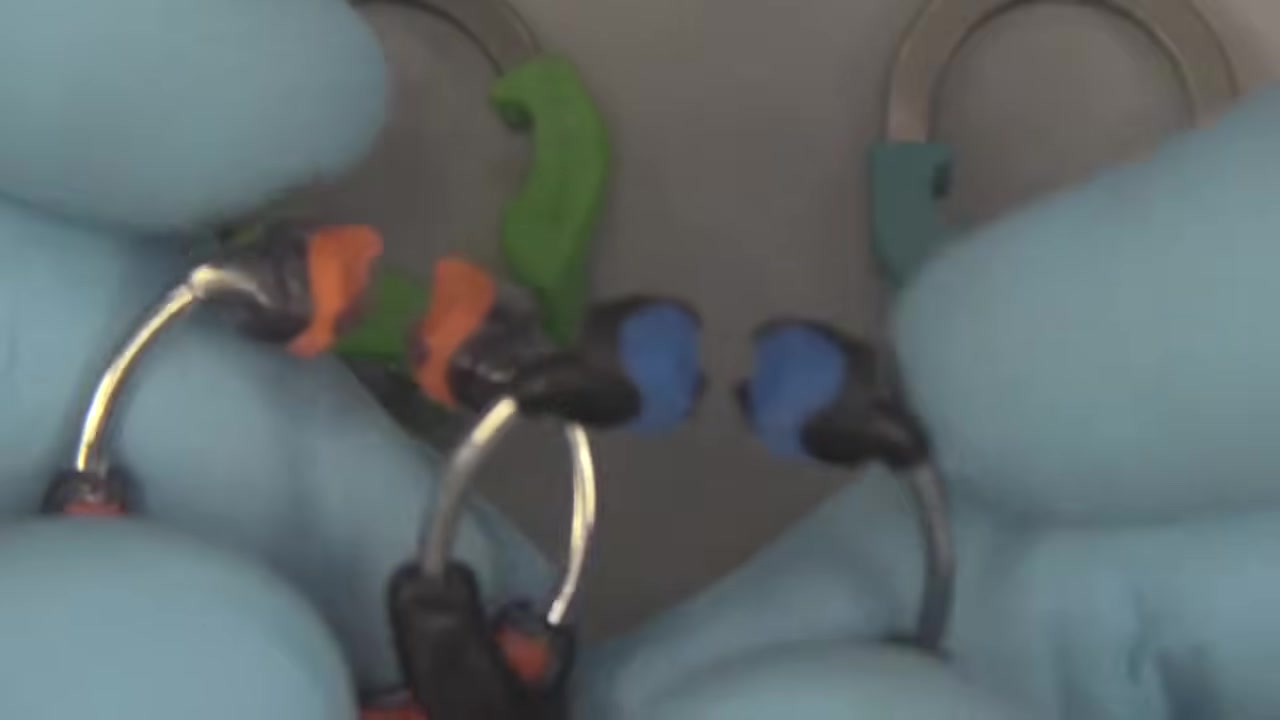

Sectional Matrix Rings

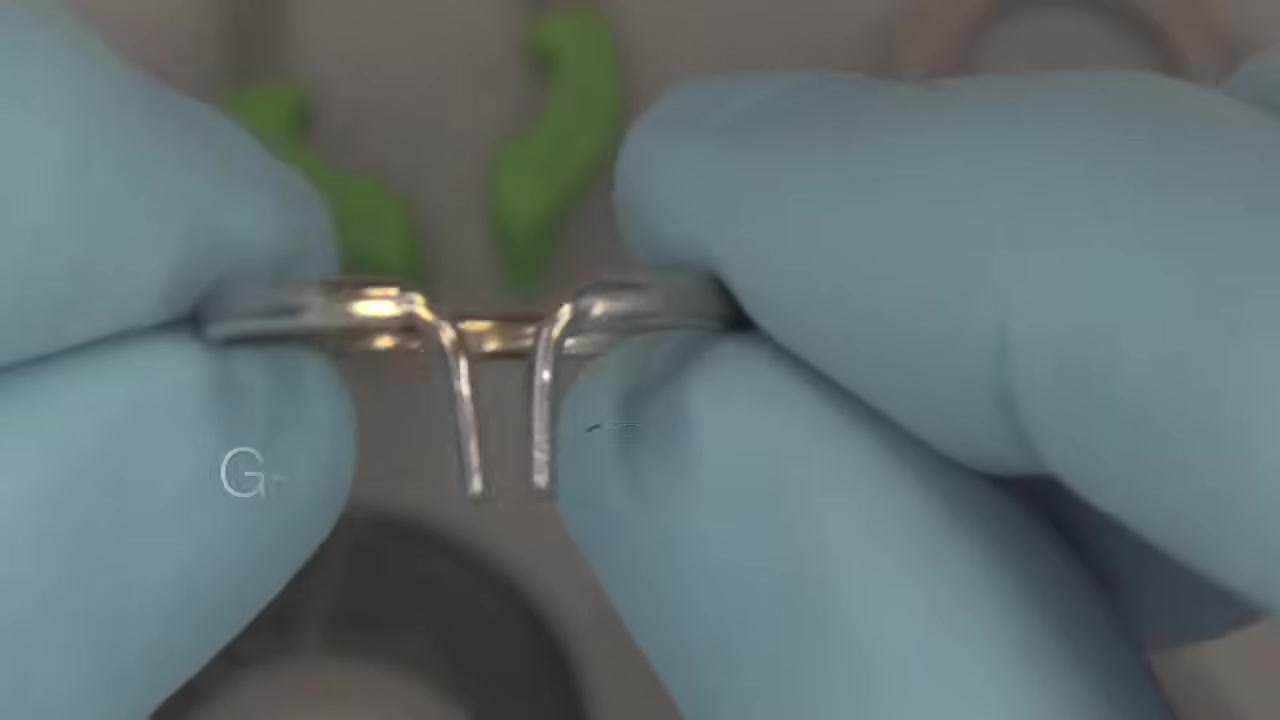

- **Garrison Dental (G-Ring):
** Features tines with small bevels/barbs for a secure grip.
Older versions may require the wedge to be placed adjacent to the ring, which can be cumbersome.
- Garrison (Newer Versions): Feature a U-shaped base that allows the ring to sit directly over the wedge.

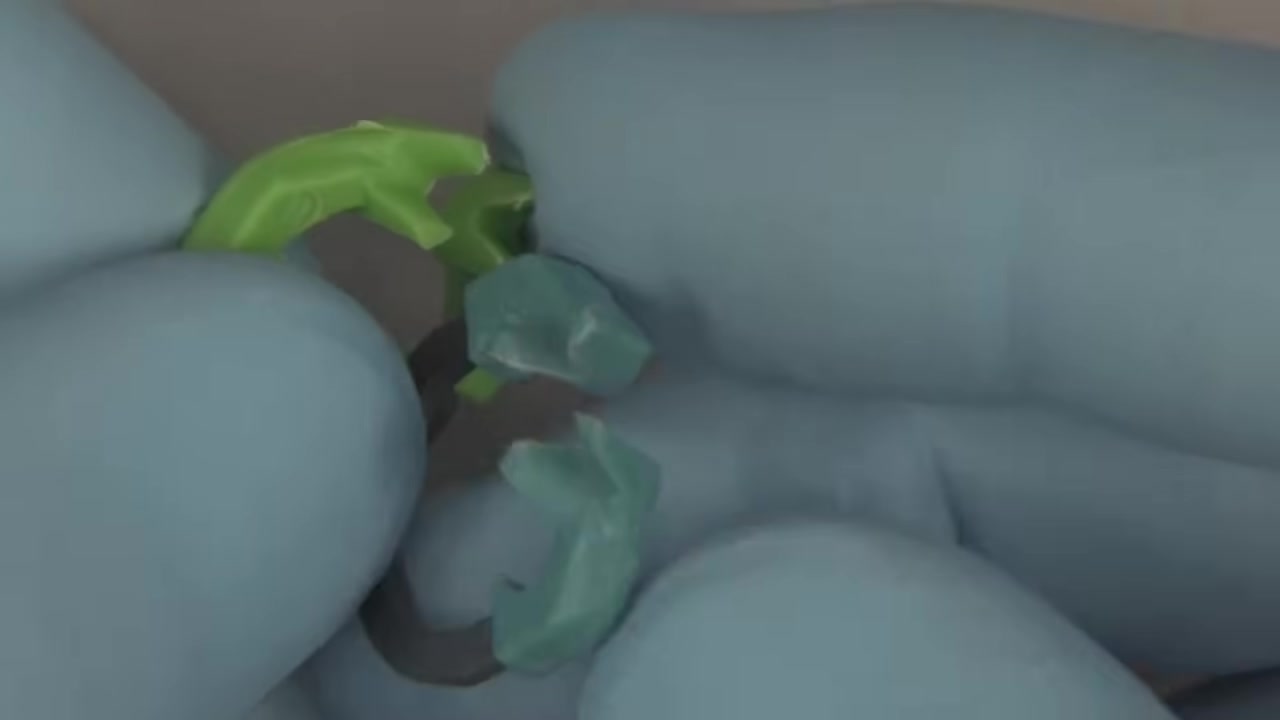

- **Palodent/Triodent (V-Rings):
** Similar to the Garrison system; these are highly effective and chosen based on personal preference.
Bands and Wedges
- Matrix Bands: Use ultra-thin, pre-contoured sectional bands to ensure a tight contact
and natural S-curve emergence profile.
- Wedges: While plastic V-shaped wedges are available, wooden wedges are often preferred
. They can be compressed against the matrix band to adapt more closely to irregular tooth contours.

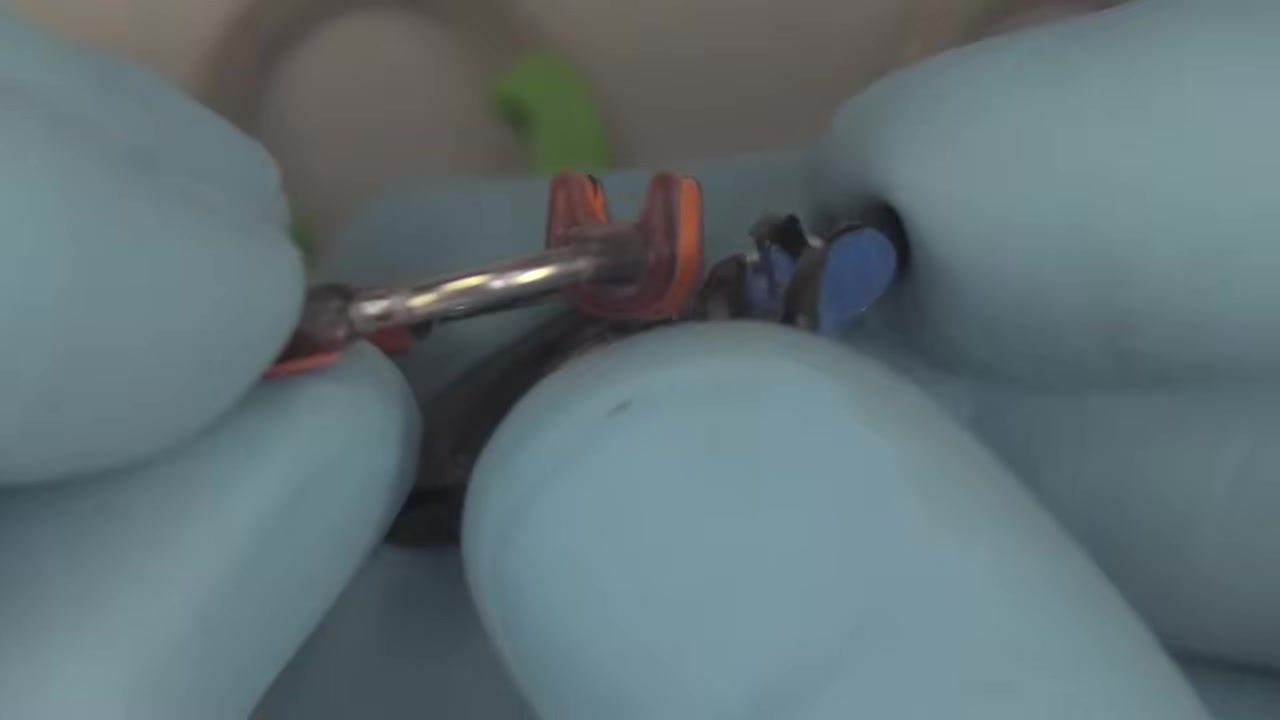

- Pin Pliers: Specialized forceps (e.g., Palodent/Triodent) utilize small pins to grip holes in the bands, facilitating easy insertion and removal.
2. Step 1: Establishing the Proximal Wall
The goal of this phase is to convert the Class II preparation into a Class I “well.”
- Bonding: Apply a thin layer of bonding resin to improve flow. Blow it thin to avoid pooling.
- Initial Increment: Place a packable composite (not flowable) into the proximal box, filling it up to the level of the pulpal floor.
- Developing the Wall: Use an Interproximal Carver (IPC) to push the composite against the matrix band.
- **The S-Curve:
** Angle the IPC to tease the composite into a natural V-shape (rising toward the buccal and lingual cusps). * Refinement: Use a micro-brush or nano-brush with a tiny amount of resin to smooth the texture.
- Cure and Remove: Light-cure the newly formed wall. **Completely remove the ring, wedge, and band.
** This provides unobstructed access for the remaining occlusal anatomy.
3. Step 2: Internal Filling and Dentin Lobes
With the proximal wall established, the restoration is treated as a Class I.
- Internal Base: Fill the internal box area. Since the “C-factor” is now reduced by the established wall, flowable or packable composite can be used here.
- Dentin Layering: Use an opaque, high-chroma dentin shade to build the internal “lobes.”
- Keep these increments sub-contoured (below the final occlusal surface).
- Focus on one cusp at a time to maintain control.
4. Step 3: Enamel Sculpting (Lobe Technique)
Rather than carving grooves into a large mass of composite, grooves are created by the intersection of positive, convex shapes.
Sculpting Principles
| Feature | Technique |
|---|---|
| Groove Creation | Push a new increment of composite against a previously cured lobe. The intersection naturally forms a realistic groove. |
| Cusp Shape | Aim for a pyramid shape where the base is wider than the top. |
| Manipulation | Use a “tapping” or “nudging” motion rather than scraping to slightly liquefy the surface for better adaptation. |
| Secondary Anatomy | Add small nuances, such as supplemental grooves or a “mini-cusp” on the mesial, to mimic natural tooth variability. |
Curing Protocol
- Incremental Cure: 20 seconds per lobe/increment.
- Final Cure: 40 seconds for the final occlusal layer to ensure maximum polymerization.
5. Finishing and Polishing
Because the additive technique prioritizes precision, the use of high-speed burs should be unnecessary.
- Interproximal Refinement: Use a Gold Knife or sharp scalpel to shave away any minor gingival or proximal overhangs.
- Contouring Disks: Use ultra-thin, metal-free center disks (e.g., Kerr system).
- Run at 5,000–10,000 RPM.
- Rotate from composite toward the tooth to ensure a seamless margin.
- Final Polish: Use a multi-step polishing system (e.g., Featherlight by Brasseler) to reach into the sculpted grooves and pits.
Conclusion
The Wall and Lobe technique allows for highly predictable, aesthetic results. By spending more time on the additive phase (sculpting), the clinician saves significant time in the subtractive phase (grinding and finishing), resulting in a restoration that follows the natural morphology of the tooth.
