Procedure Overview: Replacing a Broken Silver Filling
This document outlines the clinical procedure for replacing a compromised silver amalgam filling with a white composite restoration on a molar. The demonstration is performed on an extracted tooth to illustrate the techniques involved in removal, preparation, bonding, and artistic restoration.
Preparation and Removal of Existing Restoration

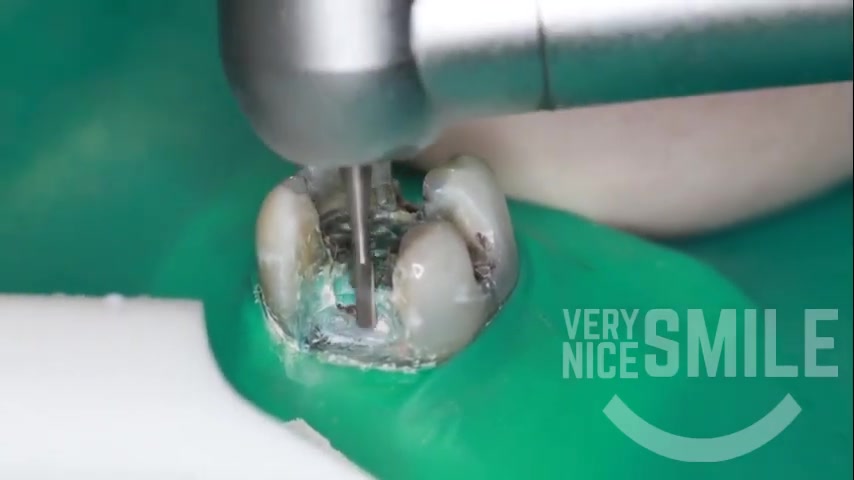

The procedure begins with the removal of the existing broken-down silver filling. A high-speed handpiece equipped with a 245 burr is utilized for this step. The burr is used to cut the filling in half and then into smaller pieces. Once the pieces are sufficiently small and no longer locked into the tooth structure, they are removed. Large chunks often pop out once the structural integrity of the filling is compromised.

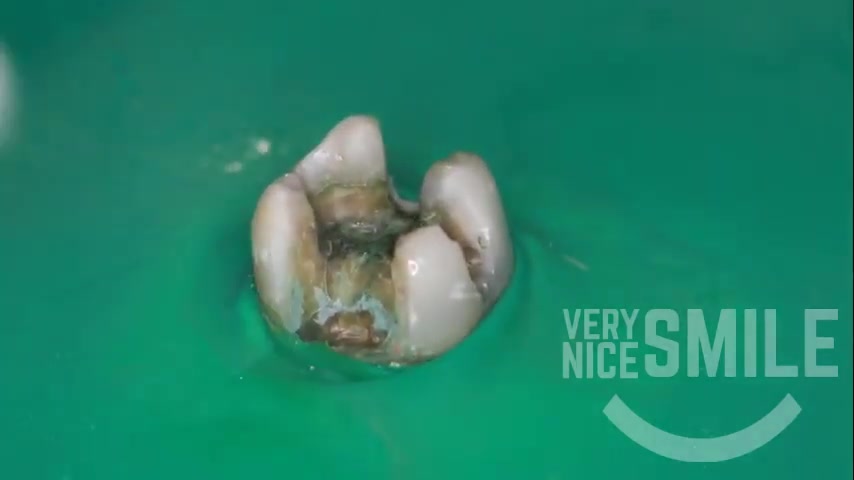

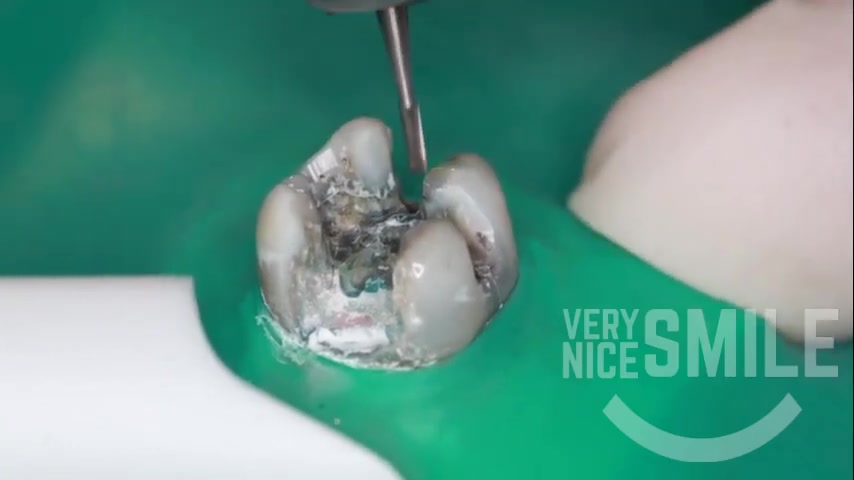

Following the removal of the bulk material, the tooth structure is cleaned to eliminate any remaining decay. It is essential to remove any base material that may be present underneath the old filling. The edges of the cavity preparation are beveled to ensure the new filling blends seamlessly with the natural tooth structure. During this process, the tooth may appear discolored (e.g., green) if it has been soaked in a solution like Listerine post-extraction for demonstration purposes.
Cavity Inspection and Treatment Planning
Unlike silver fillings, which rely on mechanical undercuts to lock the material in place, white composite fillings rely on bonding agents (adhesive glue) for retention. Therefore, the preparation does not require specific undercuts. The dentist continues to clean the cavity, specifically targeting areas where decay is likely to persist, such as spots where pieces of the old filling were missing.

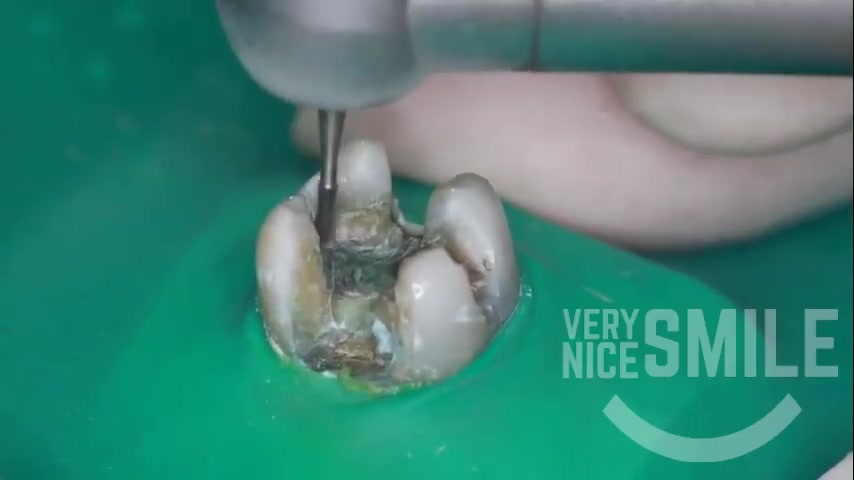

The preparation involves using both high-speed and slow-speed handpieces. The high-speed handpiece operates at approximately 100,000 RPM, while the slow-speed handpiece operates at around 20,000 RPM. The slow-speed handpiece provides greater tactile feedback and is less efficient at cutting, making it ideal for removing soft decay without removing excessive healthy tooth structure. A round burr is typically used for this精细化 cleaning.
Identification of Structural Complications
During the cleaning process, the tooth is inspected for cracks. In this specific demonstration, a crack is identified extending around a cusp. In a clinical setting with a live patient, this finding would typically contraindicate a large filling, as the cusp would be prone to chipping under biting forces. The standard treatment would be to switch to a crown to protect the tooth. However, since this is an extracted tooth used for demonstration, the procedure continues with a composite restoration to showcase the technique.
Bonding and Material Selection
Matrix System Placement
To restore the missing walls of the tooth, a matrix system is required. A greater curve matrix band held in a Tofflemire retainer is used in this instance. This type of band flares out more than a traditional matrix band, which helps in creating proper contours for large multi-surface restorations.
Surface Conditioning and Bonding Protocol
Before placing the restorative material, the tooth surface must be conditioned. A cleaning agent gel (e.g., Clean and Boost) is scrubbed into the cavity. This step removes any remaining debris and preconditions the enamel by lightly etching it, which enhances the bond strength.
The bonding system used is a three-bottle system (etchant, primer, and bonding agent), similar to the fourth-generation gold standard. The protocol involves:

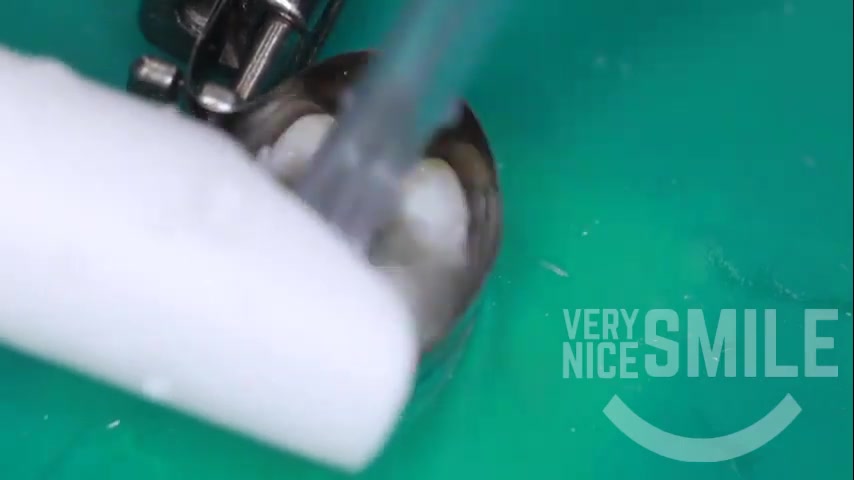

- Etching: Applying etchant gel to enamel and dentin, then rinsing.
- Priming: Applying the primer.
- Bonding: Applying the bonding agent and drying thoroughly.
This system is noted for being foolproof regarding moisture control compared to other systems.
Restorative Material Choices
For a standard filling, composite material is used. However, if a crown were planned, a dedicated build-up material (e.g., Anchor) would be preferred. Build-up materials are often dual-cure (light-cure and self-cure), allowing the dentist to fill the entire tooth and let it set before prepping for a crown. In this demonstration, light-cure composite is used to build up the tooth structure.
Composite Placement Technique
Layering and Shade Selection
The restoration process involves layering composite materials to mimic natural tooth anatomy.
- Dentin Layer: A darker composite shade is used internally to replicate dentin.
- Enamel Layer: A translucent shade (e.g., Pearl Frost) is used on the outside to replicate enamel.
Incremental Build-Up Strategy
This restoration is classified as a four-surface filling (mesial, occlusal, distal, and buccal). To manage polymerization shrinkage and ensure proper contour, the technique involves converting the multi-surface problem into a one-surface build-up.
- Wall Construction: The walls of the tooth are built up first, incrementally adding and curing composite.
- Instrument Lubrication: A lubricant and wetting agent (e.g., Plac Seam Free) is used on the instrument to prevent the composite from sticking and to help feather the material smoothly.
- Curing: Each increment is cured with a high-intensity LED light (e.g., Valo Grand) for approximately 10 seconds.
Building in small increments prevents the material from pulling away from the cavity walls as it shrinks during curing. It also ensures adequate light penetration for proper setting.
Artistry in Dentistry
Restoring a large portion of a tooth requires sculpting skills. Unlike silver amalgam, which is packed and carved (a subtractive method), composite restoration is an additive process. The dentist sculpts the material to recreate natural grooves, cusp tips, and planes. This approach is generally more conservative as it relies on bonding rather than mechanical retention.
Finishing and Polishing
Once the composite placement is complete, the restoration often has overhangs due to the matrix band flaring. These must be refined to ensure proper fit and hygiene.
Contouring
A finishing burr, specifically a 12-fluted carbide burr, is used to trim back excess material and refine the contours. A football-shaped burr may be used to round the occlusal surface, ensuring proper bite alignment with the opposing tooth. Grooves are added to the occlusal surface to replicate natural anatomy, as teeth are not flat smooth surfaces.
Polishing

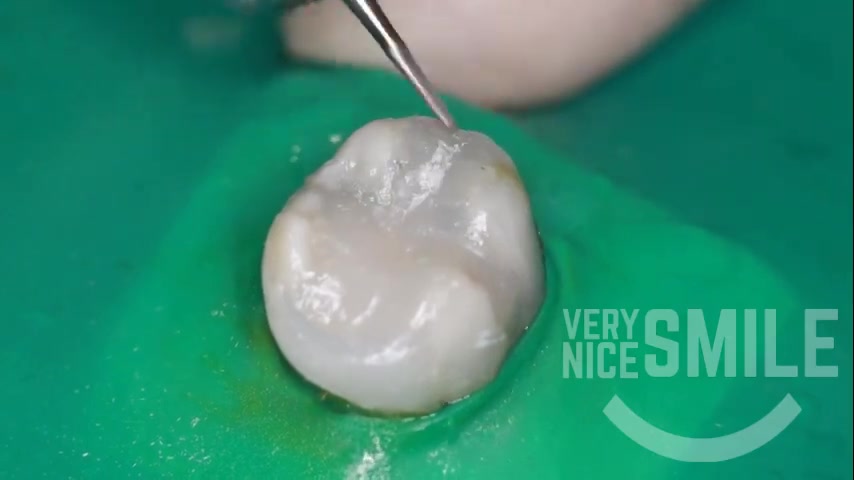

The final step involves polishing the restoration to a high shine using a rubber brush tip with abrasive material (e.g., Jiffy polisher). This smooths the surface, reduces plaque accumulation, and enhances aesthetics.
Conclusion
This procedure demonstrates the transition from traditional silver fillings to modern white composite restorations. While amalgam is still used in specific situations where moisture control is difficult or access is limited, composite fillings are preferred for their aesthetics and conservative preparation requirements. The process highlights the combination of technical precision and artistic skill required in modern restorative dentistry.
