Comprehensive Guide to Rubber Dam Isolation in Restorative Dentistry
Introduction
While many dental professionals view the rubber dam as a burdensome requirement from dental school, it is a foundational tool for high-quality, predictable dentistry. Beyond simple infection and moisture control, the primary benefit of rubber dam isolation is the creation of a controlled, stress-free environment that allows the clinician to focus entirely on the procedure without interference from the patient’s tongue, cheeks, or saliva.
Core Advantages of Rubber Dam Use
1. Clinical Excellence and Predictability
- Technique Sensitivity: Modern composite resins are highly sensitive to moisture. Contamination leads to resin degradation, premature fracture, and micro-leakage.
- Time Management: Although placement takes 2–5 minutes, it saves time by eliminating the need to stop for patient rinsing, swallowing, or tongue retraction.
- “Mannequin-Like” Environment: It isolates the tooth to a degree that mimics working on a model, allowing for “textbook” dentistry.
2. Patient Comfort and Safety
- Anxiety Reduction: Prevents water and debris from going down the throat.
- Tongue Management: Provides a physical barrier so the patient does not have to worry about tongue placement.
- Aspiration Prevention: Eliminates the risk of small instruments, wedges, or materials being swallowed or aspirated.
3. Ergonomics and Productivity
- Retraction: Naturally retracts soft tissues, providing a clear field of vision.
- Assistant Efficiency: Frees the dental assistant from constant retraction and suctioning duties, allowing them to focus on material preparation
.
Material Selection

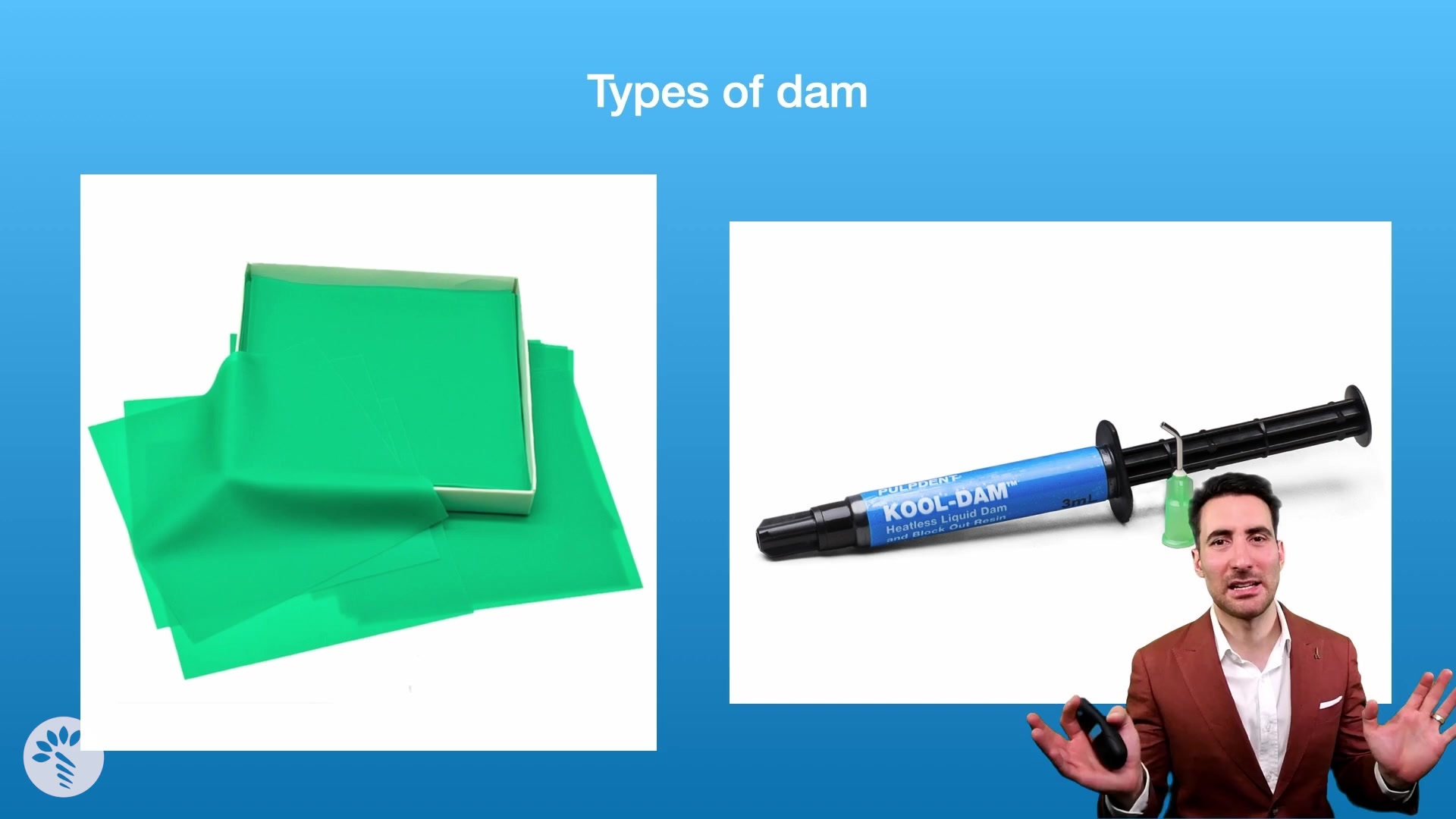

Rubber Dam Sheets

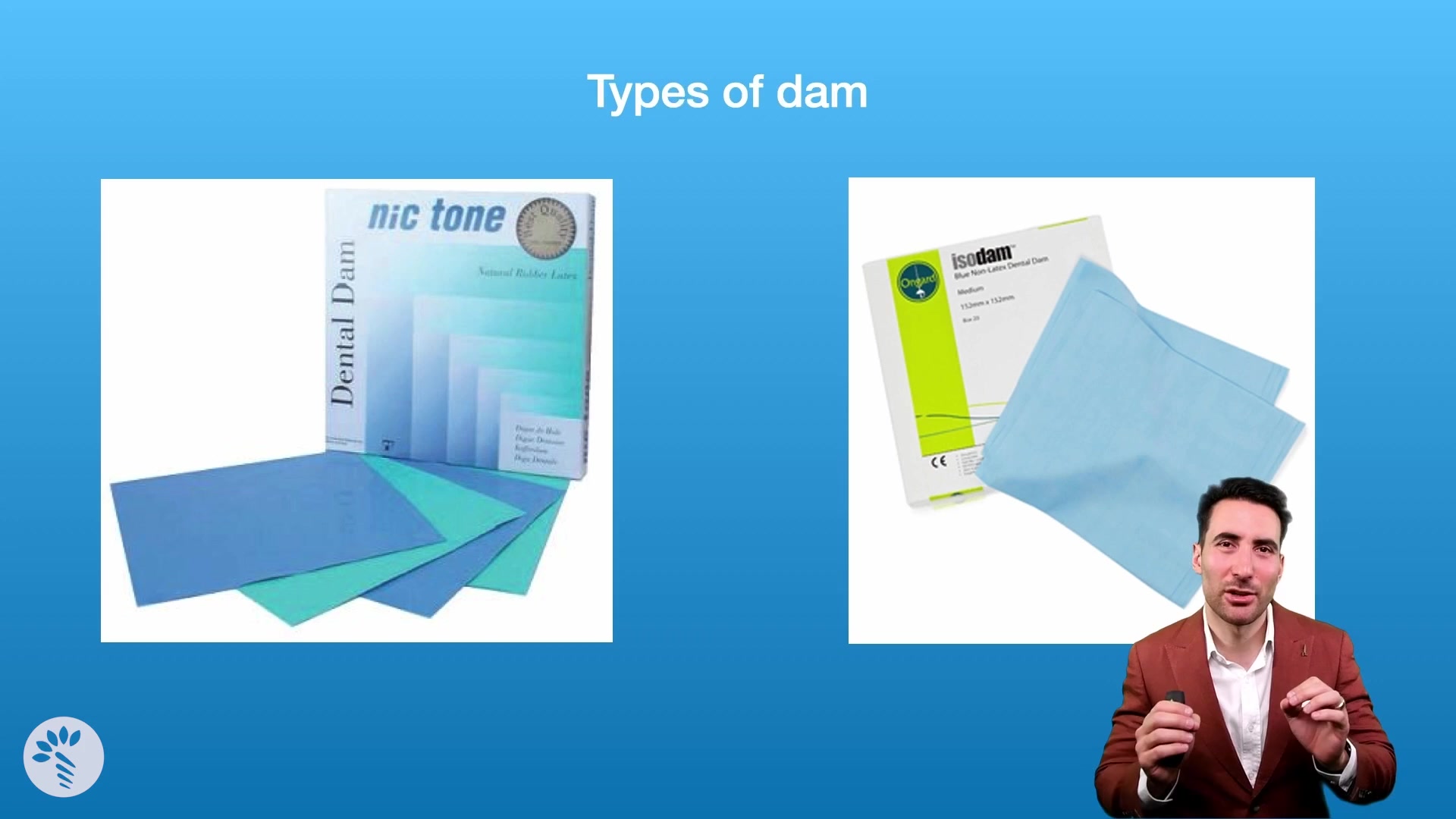

| Type | Recommended Brands | Notes |
|---|---|---|
| Latex | NicTone | Excellent elasticity and tear resistance. |
| Non-Latex | Isodam | Best “all-rounder” to avoid allergy issues. |
| Thickness | Medium | Recommended for 99% of cases. Provides good retraction without being too difficult to floss through contacts. |
- *Note: Avoid the standard “cheap green” dams often found in general practice; they tear easily and provide poor isolation for quadrant work.
*
Essential Accessories
- Lubricants: Water-based lubricants or glycerin can be used on the underside of the dam to ease passage through tight contacts.

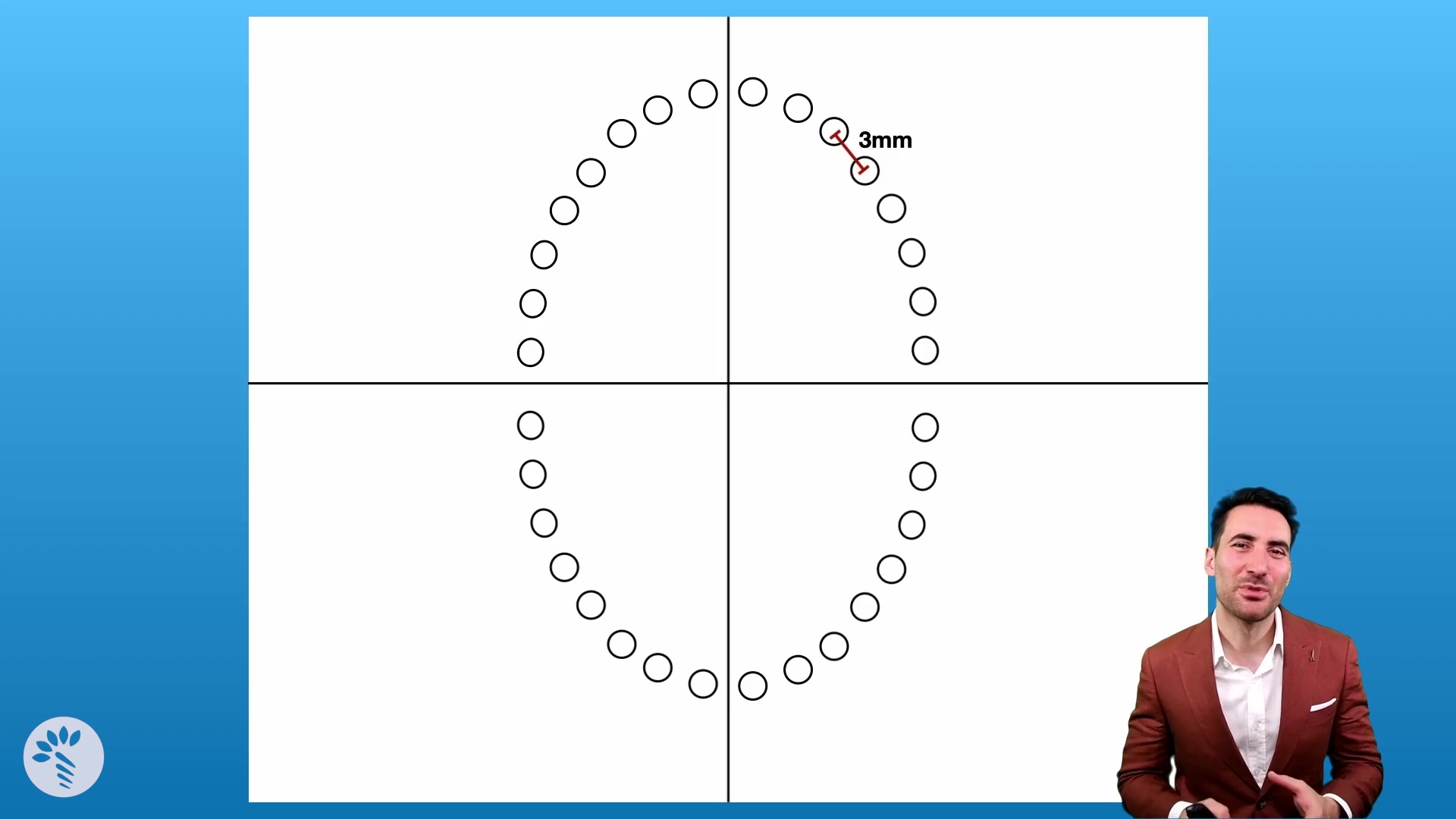

- Templates: Use a “Pac Dam” or a 3D-printed guide to ensure consistent 3mm spacing between holes.

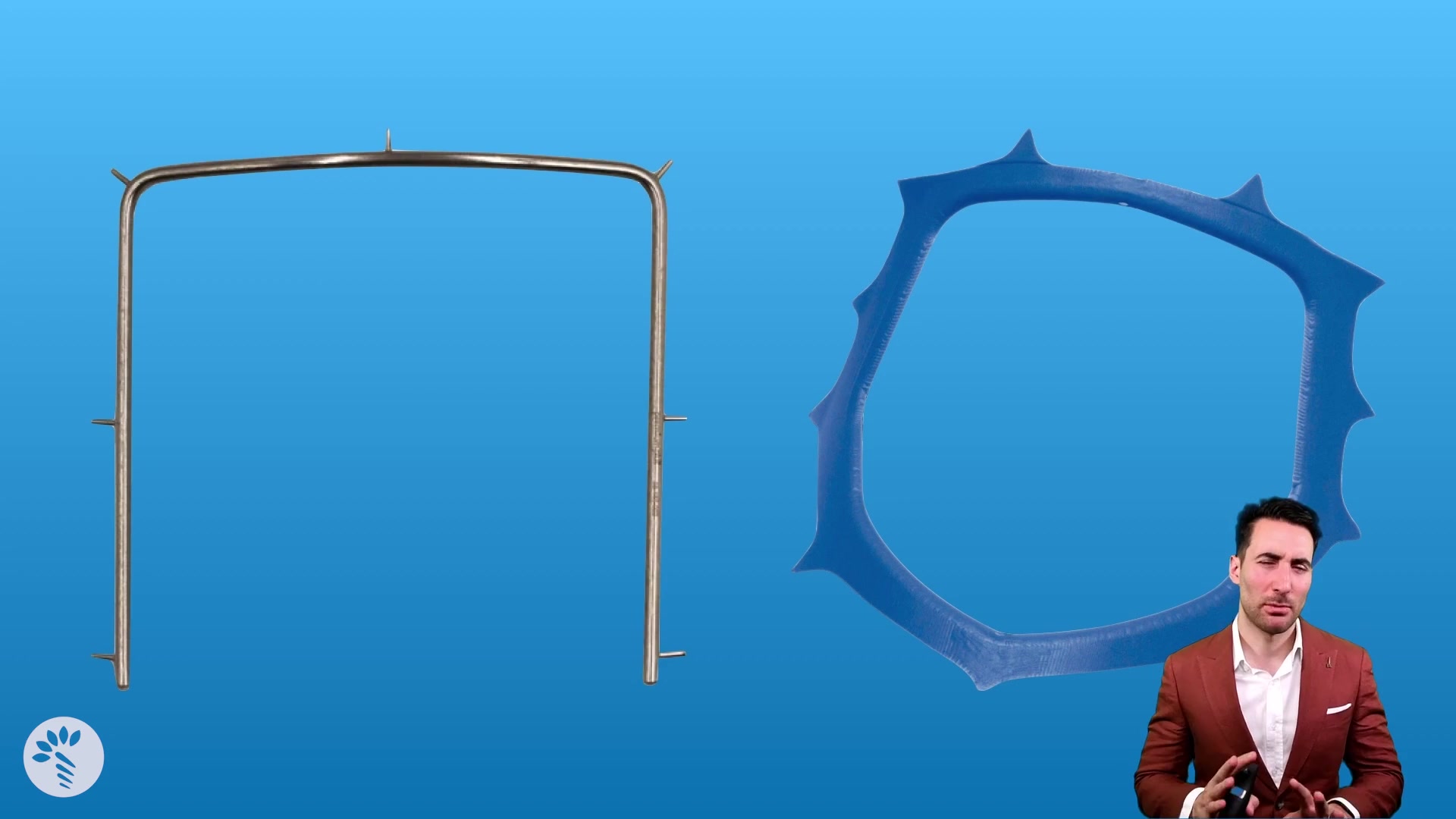

- Frames: Metal frames are preferred over plastic for durability and better retraction. They should always be placed underneath the dam for better aesthetics and stability.
Clamp Selection and Principles
The Four-Point Contact Rule
A stable clamp must have four points of contact on the tooth structure (two on the buccal beak, two on the lingual).
- Too Large: Rocks back and forth; may crush the root or snap off a weak crown.
- Too Small: Will not seat securely and is prone to “pinging” off.
Key Clamps for the Armamentarium

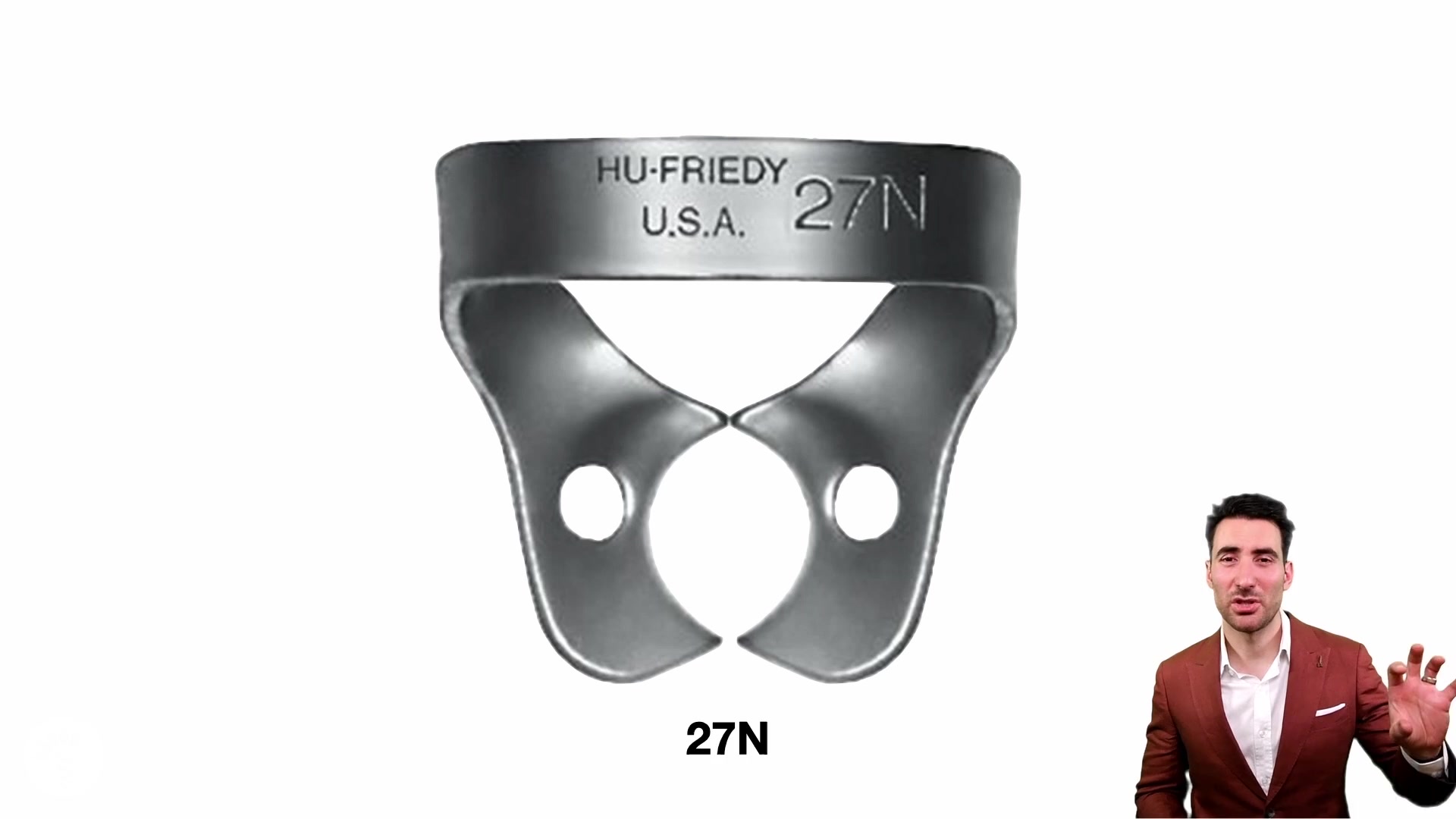

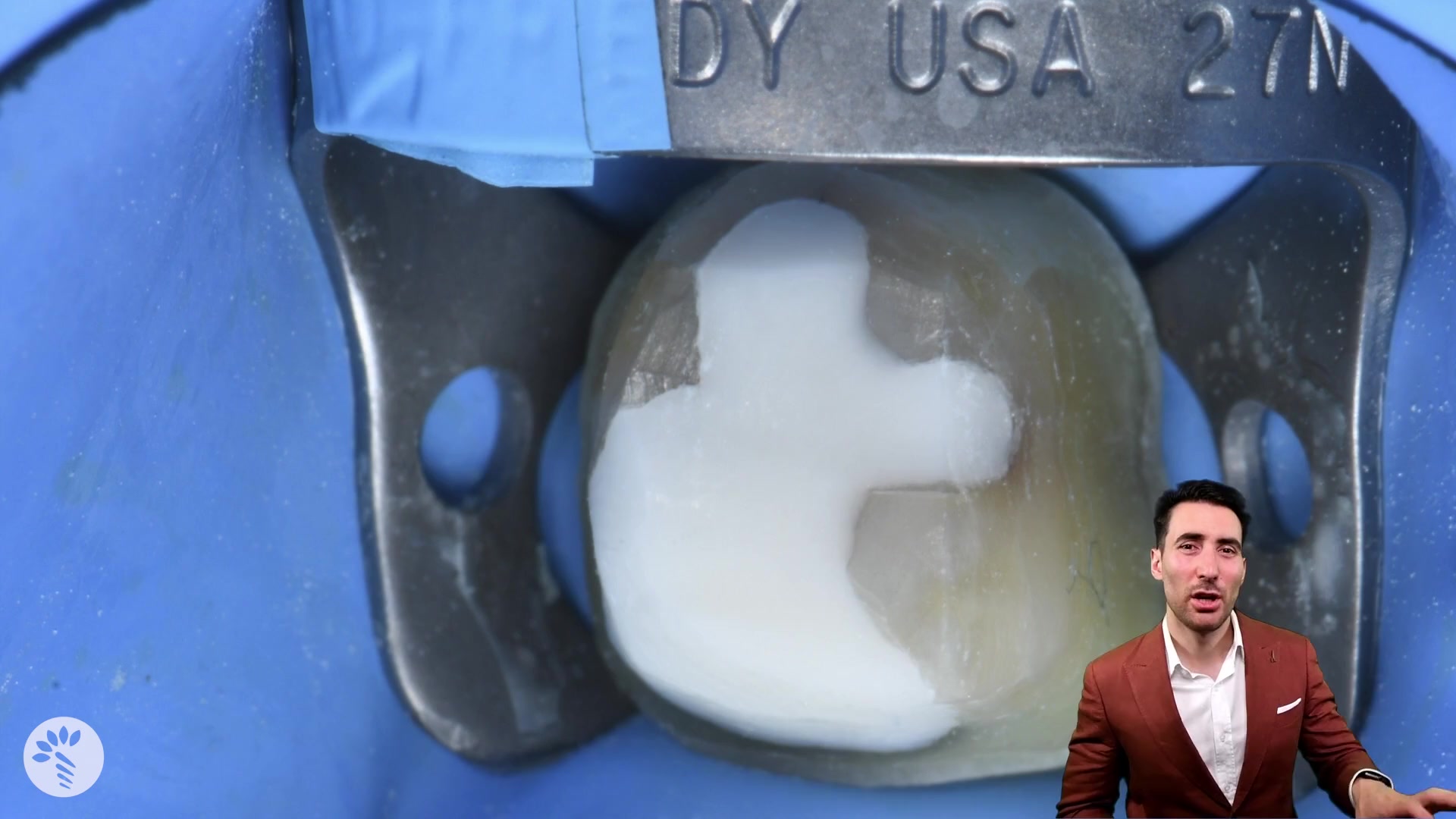

- 27N: The “workhorse” for quadrant isolation. It is wingless, narrow, and fits most molars (including wisdom teeth).

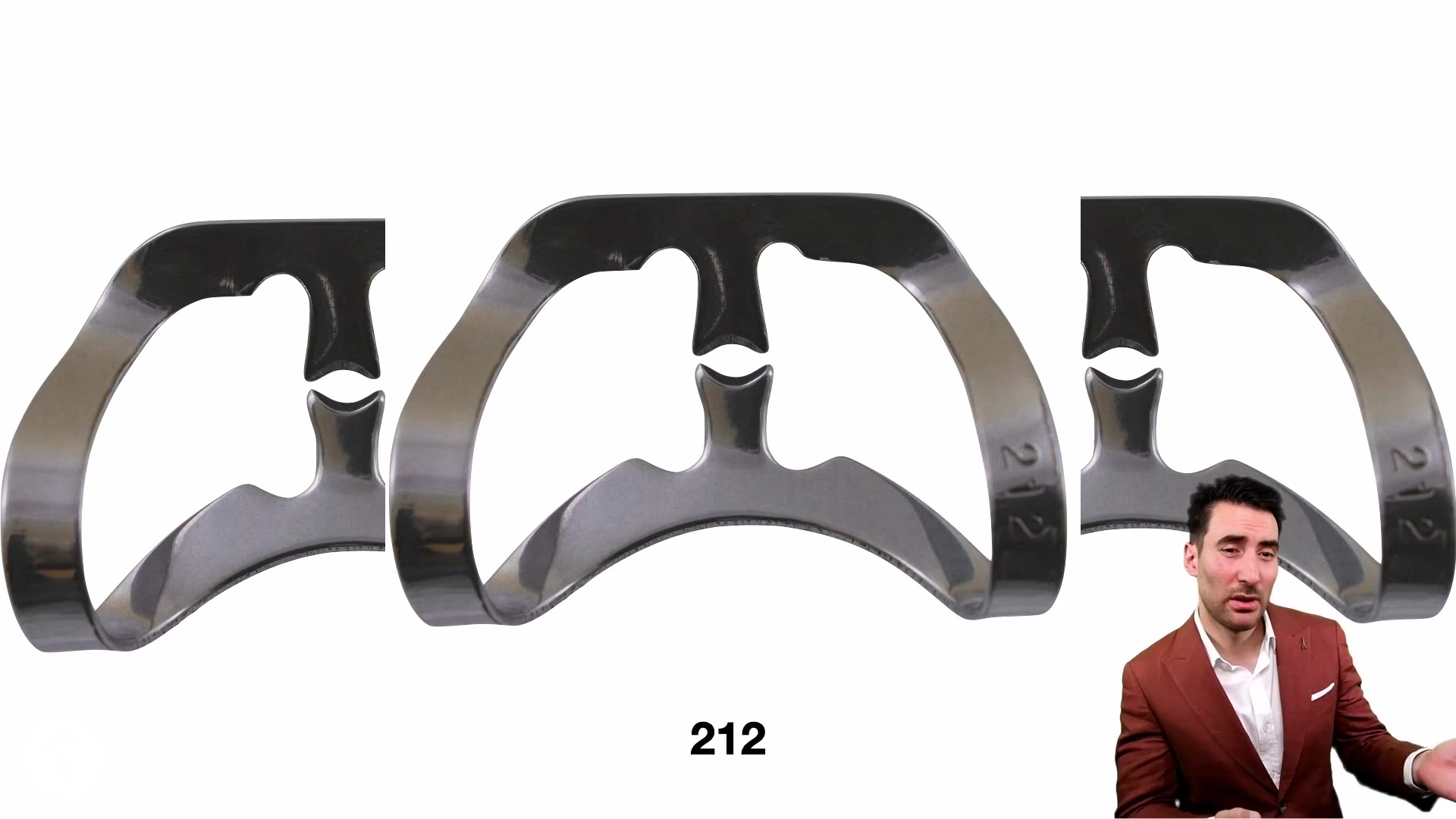

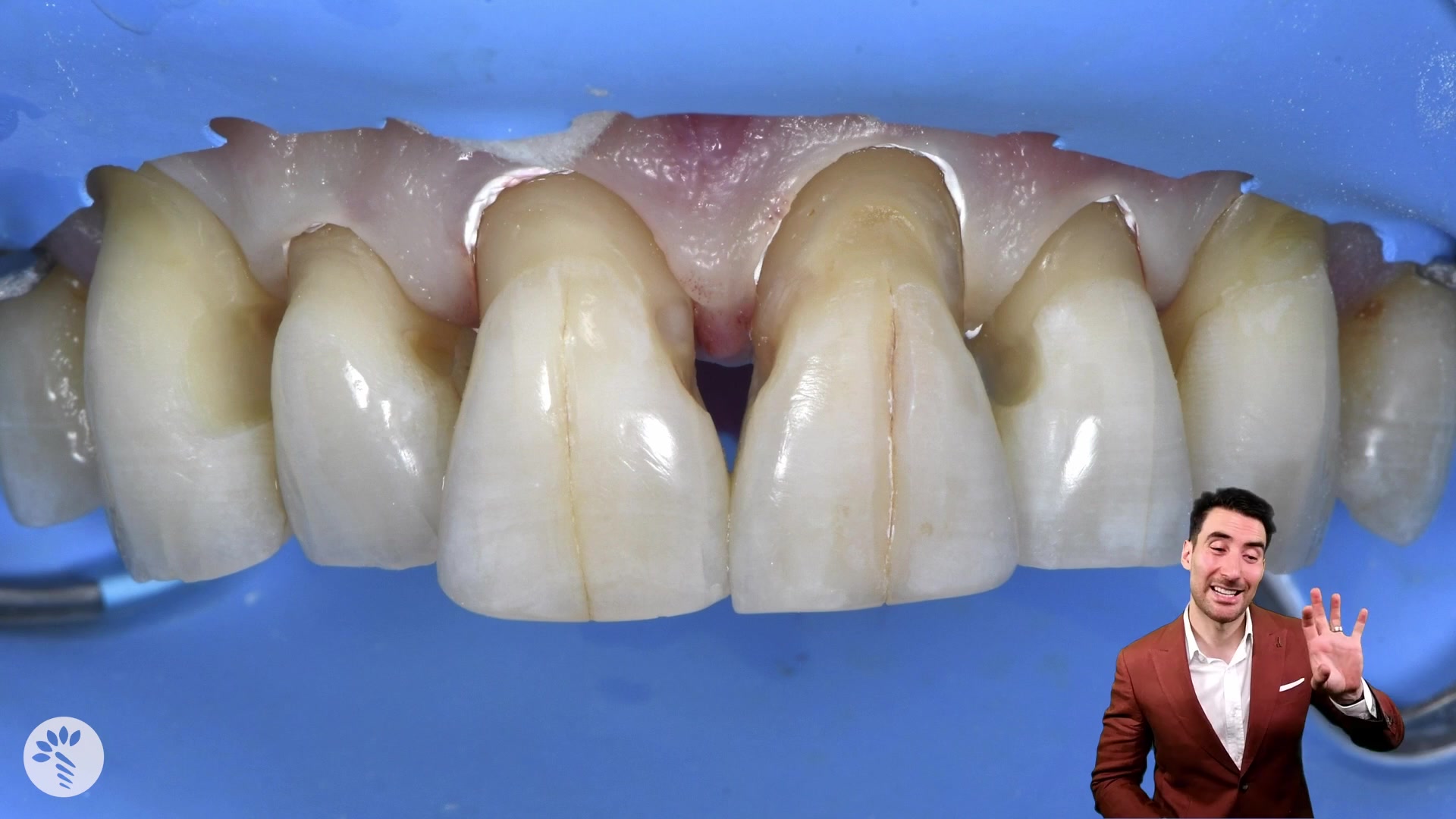

- 212 Clamp: Ideal for anterior teeth and cervical (Class V) restorations. Can be modified (cutting one wing) for better retraction.

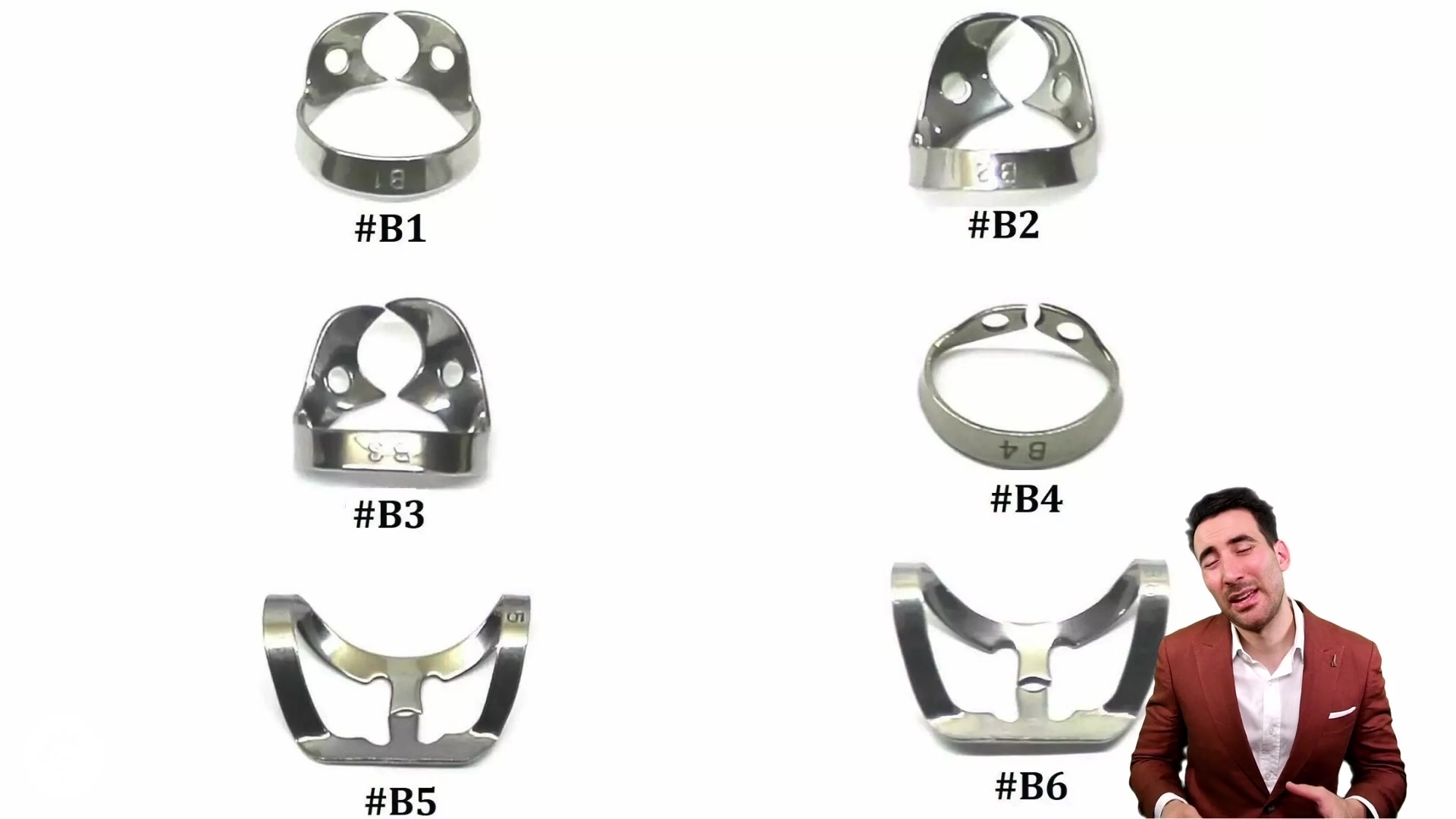

- Brinker Clamps (B1–B6): Specifically designed for tissue and dam retraction rather than primary retention.

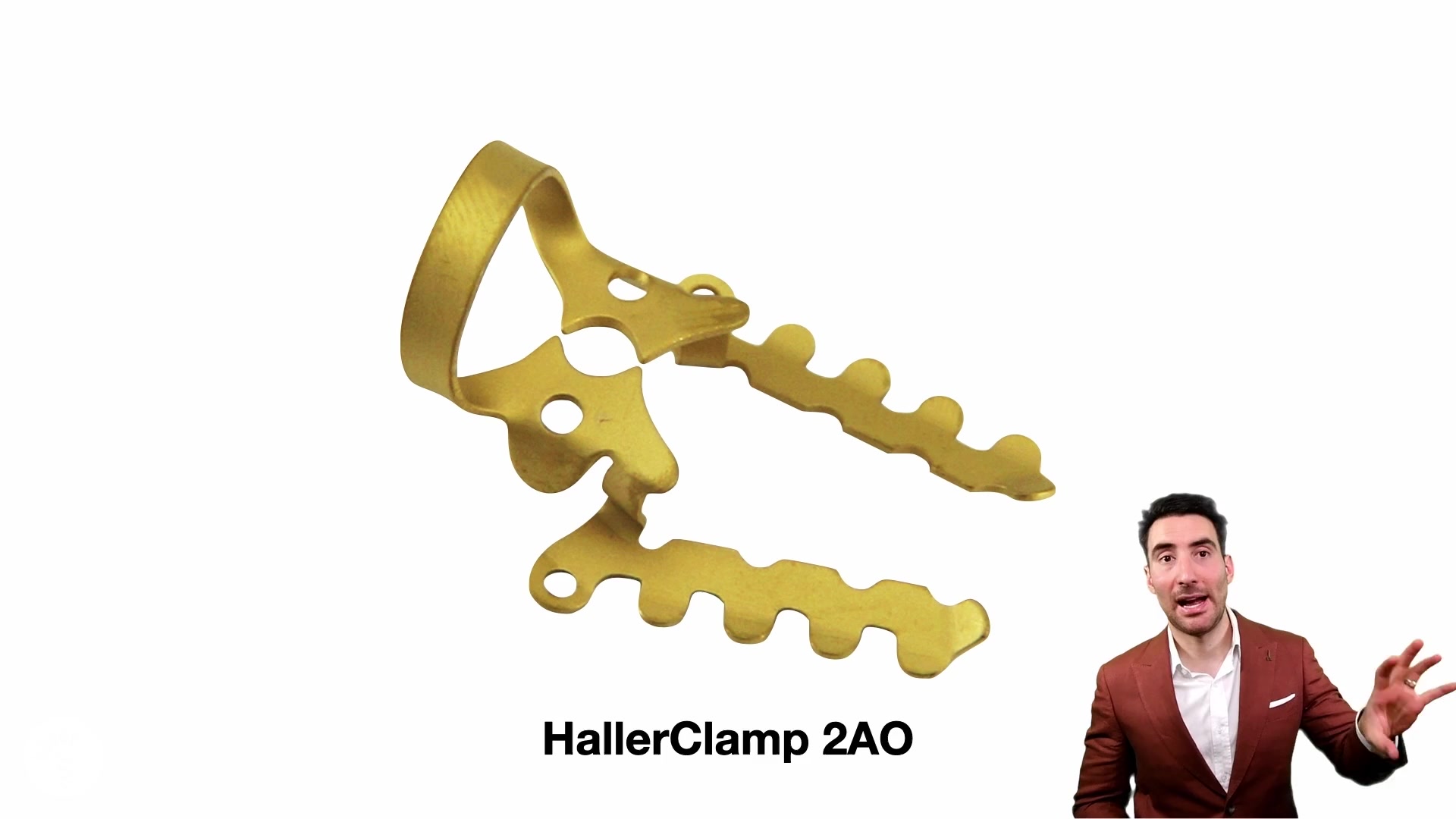

- Hala Clamp (AO): A rear-facing clamp that allows for distal retraction on the most posterior tooth in the arch.
Clinical Techniques for Success

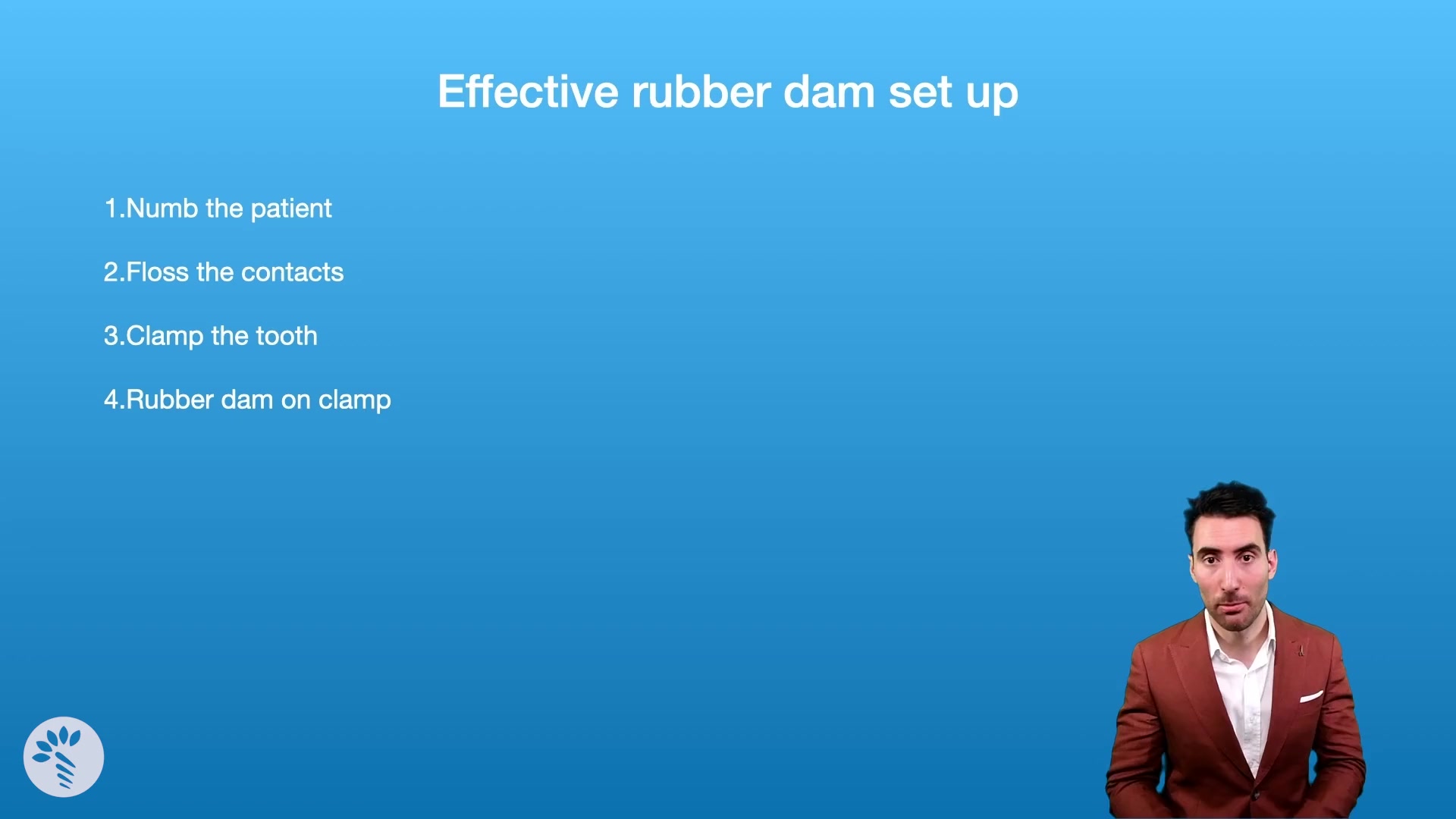

1. Preparation
- Anesthesia: Ensure profound buccal and lingual/palatal anesthesia. For upper molars, palatal infiltration is mandatory to ensure the clamp does not cause pain.
- Flossing: Pre-floss all contacts to check for tightness or sharp edges that might tear the dam.
2. Placement Strategies
- Clamp First, Dam Over: Place the clamp on the tooth to ensure stability, then stretch the dam over the bow.
- Rocking the Clamp: Once the dam is over the clamp, use forceps to slightly lift one side of the clamp at a time. This allows the rubber to slide underneath the beaks for a true seal.
- Inversion: Use a flat plastic instrument and air-dry the tooth. Tuck the edges of the dam into the sulcus.
An inverted dam acts as a one-way valve against moisture.

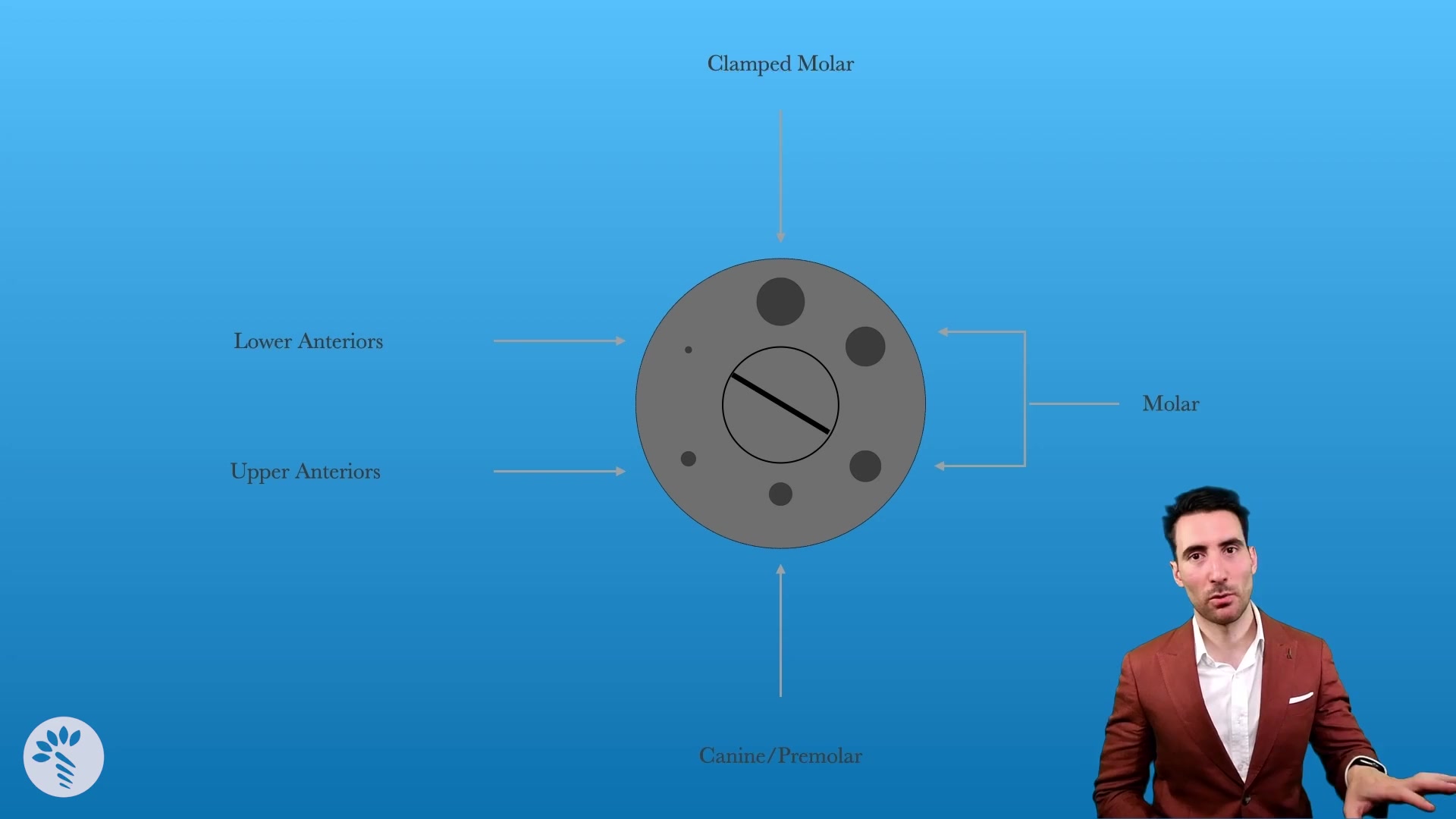

3. Hole Punching Guide
| Hole Size | Target Teeth |
|---|---|
| Largest | Clamped Molar |
| Large | Other Molars |
| Medium | Premolars and Canines |
| Small | Upper Incisors |
| Smallest | Lower Incisors / Peg Laterals |
Advanced Troubleshooting

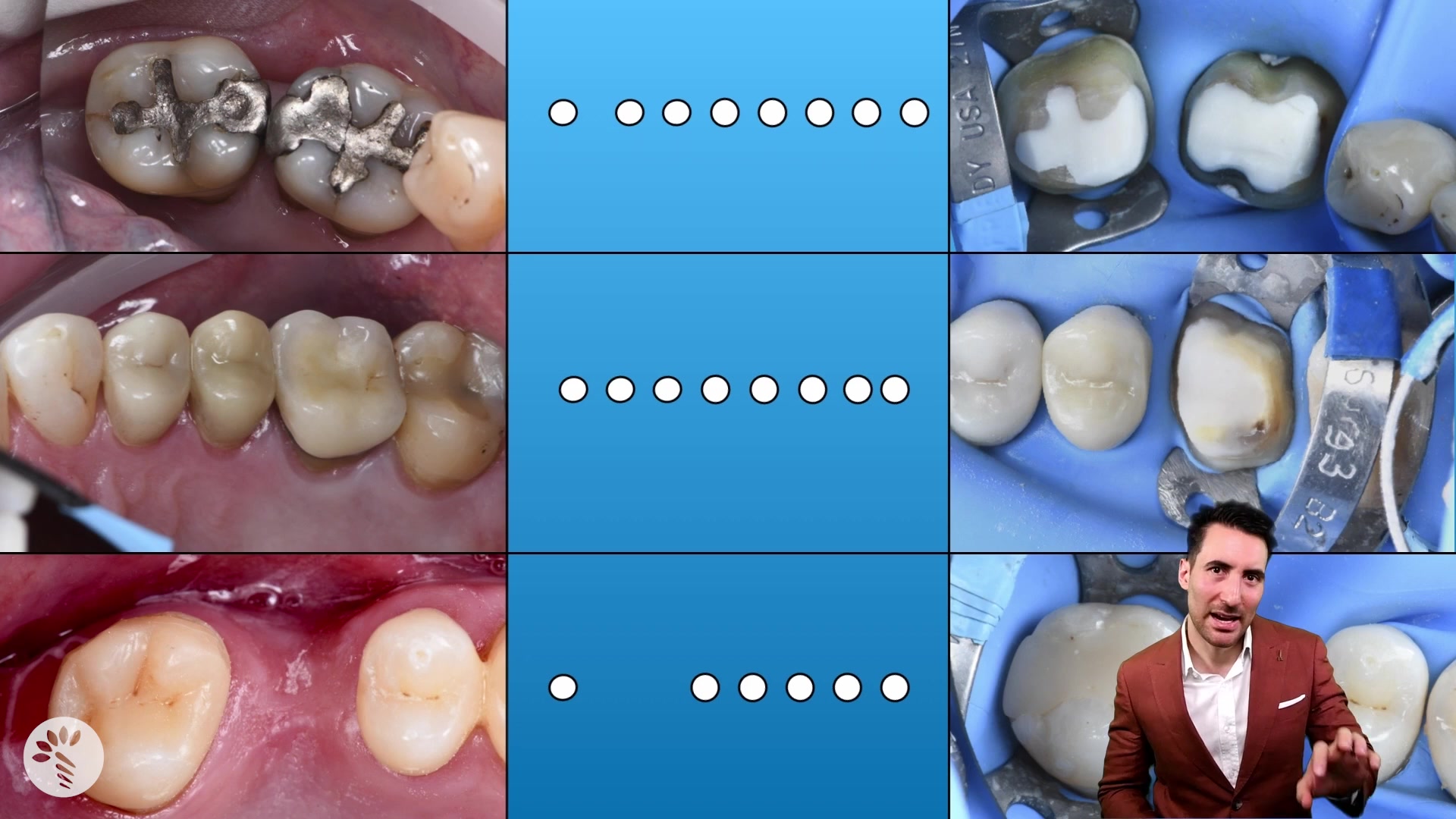

- Missing Teeth: Skip two holes in the dam for every one missing tooth to account for the extra surface area needed to span the gap.

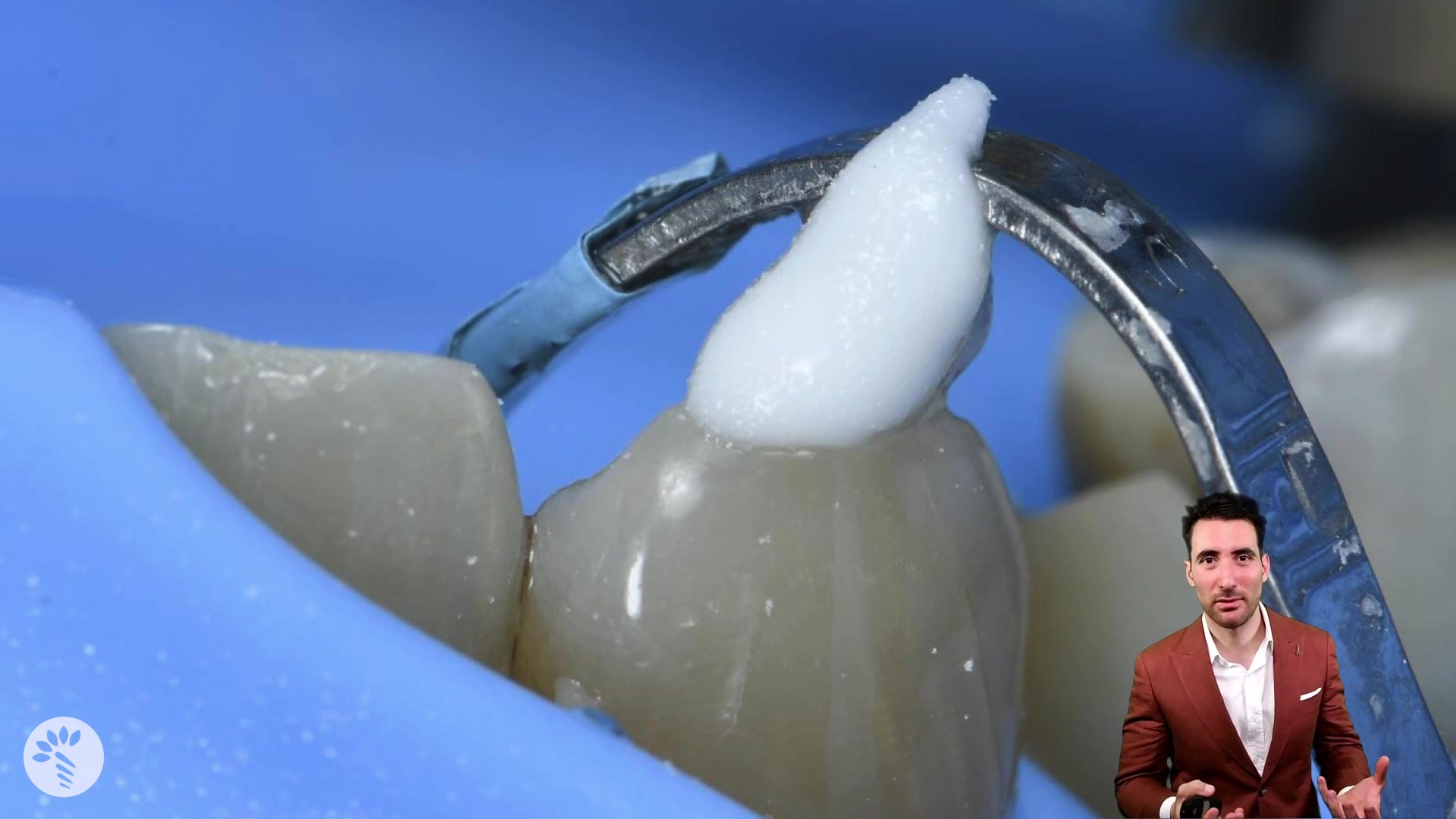

- Deep Margins: Use Teflon tape (PTFE) to pack the sulcus and provide a dry field where the dam cannot reach.
- The “Cuff” Technique: For bridges or teeth with minimal structure, cut a slit between holes to create a “cuff” of rubber around the area rather than individual isolations.
- Unstable Clamps: Use a small amount of flowable composite or “liquid dam” to bond the clamp to the tooth temporarily to prevent movement during the procedure.
Conclusion
The goal of rubber dam isolation is to move the patient “out of the way” so the clinician can perform textbook dentistry. By investing in quality materials (Isodam, 27N clamps) and mastering the “rocking” and “inversion” techniques, practitioners can significantly reduce their clinical stress and improve the longevity of their restorations.
