Imaging of Infection and Inflammatory Lesions of the Jaws1
Dr Dayea Oh Oral & Maxillofacial Radiologist
Contents2
- Inflammatory lesions of the Jaws
- Imaging Modalities & Features of:
- Periapical inflammatory lesions
- Osteomyelitis
- Jaw Infection involving Soft Tissues
Inflammatory Lesions of the Jaws3
- Most common disease
- Disruption of bone metabolism
- Imbalance of osteoblastic (bone production) and osteoclastic (bone resorption) activities
- Altered by the pathogenicity of bacterial microorganisms, the host immune response, tissue vascularity, and time.
Lecturer — Infection Pathogenesis
Infections of the jaws are common and are most often odontogenic in origin. Odontogenic infection commonly begins with bacterial invasion of the dental pulp through caries or trauma, followed by pulp necrosis and inflammation in the periapical periodontal ligament and surrounding bone.
- Histopathologically, the acute phase is characterised predominantly by neutrophils.
- More chronic stages contain monocytes, macrophages and lymphocytes.
- The inflammatory response ranges from periapical abscess and granuloma formation to cyst development.
Periapical Inflammatory Lesions
Progression pathway:
- Caries
- Trauma
- Necrotic pulp
- Periapical inflammatory disease
- Osteomyelitis

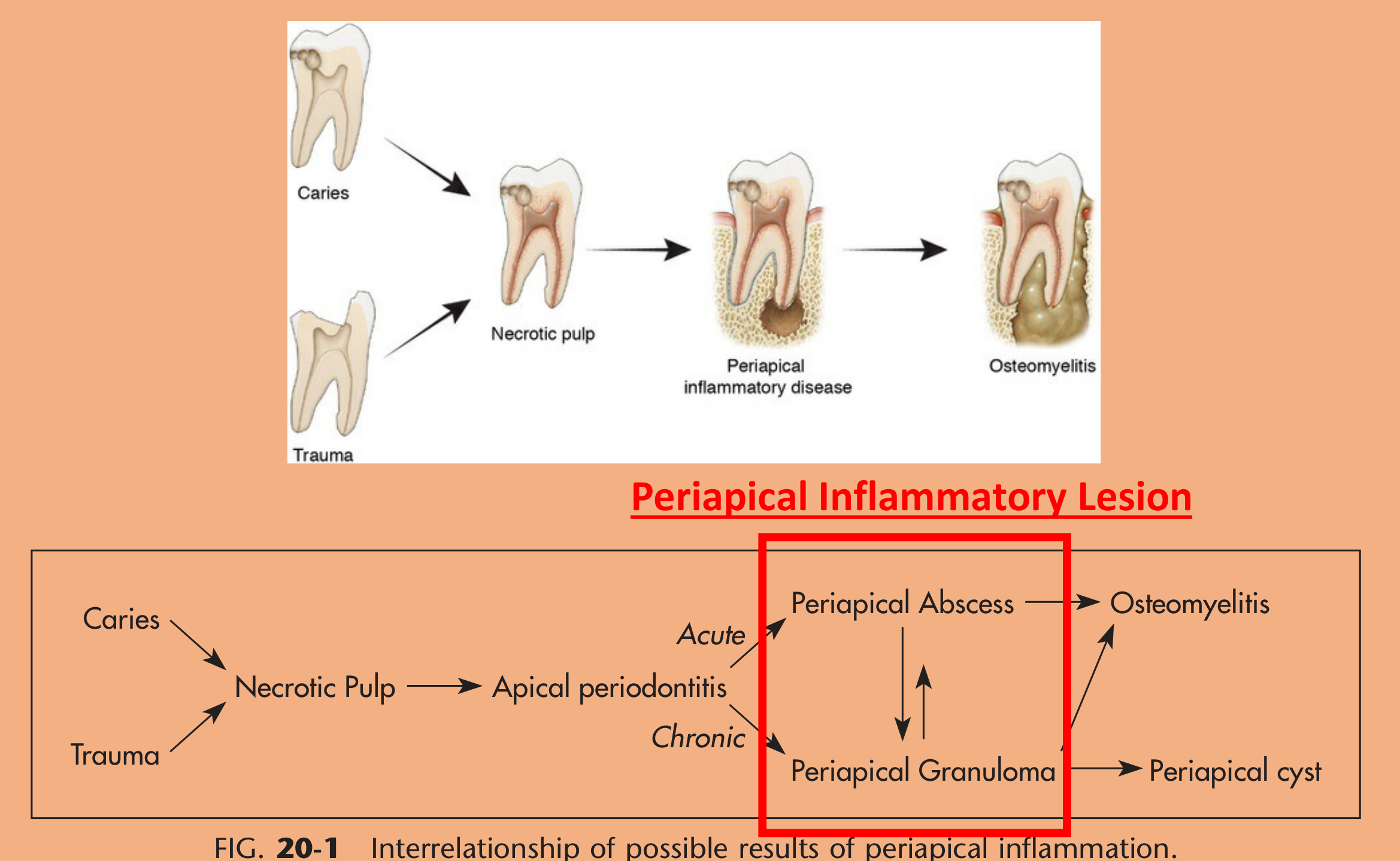

Classification of Periapical Inflammatory Lesions4
- Caries
- Trauma
- Necrotic pulp
- Apical periodontitis
- Acute
- Periapical abscess
- Chronic
- Periapical granuloma
- Periapical cyst
- Acute
- Osteomyelitis
Lecturer — Periapical Spectrum
The spectrum of periapical inflammatory disease includes periapical abscess, periapical granuloma and radicular cyst, which is the more correct term for a periapical cyst. When a periapical radiolucency is associated with an infected tooth, it most commonly represents an abscess or granuloma; a radicular cyst has cystic appearances and was noted as a subject for another lecture.

Imaging Modalities and General Features
Imaging Modalities5
- Periapical radiographs
- Panoramic radiographs (OPG)
- CT
- Both cone beam CT and multislice CT are more sensitive for periapical lesions than intraoral and panoramic radiographs.
Lecturer — Imaging Selection
Periapical radiographs are the first-line imaging modality for odontogenic infection. OPGs are useful for an overview of multiple lesions, larger lesions and multiple compromised teeth, while CT is useful for evaluating both bone and soft-tissue involvement when infection is extensive.
- Cone beam CT is particularly useful when periapical radiographs, OPGs or other two-dimensional imaging is inconclusive.
- Cone beam CT provides three-dimensional imaging and is less affected by the projection angle of the beam.
![]() | ![]() |
General Imaging Features
- Radiolucent → can be well-defined or ill-defined
- Centred at the apical foramen
- Effacement of apical lamina dura
- Surrounding reactive sclerosis
- +/- apical root resorption
- +/- cortical effacement
- +/- periostitis of antral floor, with or without effacement
Lecturer — Lesion Location
Inflammatory lesions do not always centre on the apical foramen. They may instead relate to a lateral canal, a furcation, a root crack or undisplaced vertical root fracture, or another periradicular region.
- Adjacent structures may be affected, including the maxillary sinus and mandibular canal.
- Changes in the maxillary sinus floor may include elevation, sclerosis, disruption or perforation, with reactive mucosal thickening within the antrum.
Case Examples and Differential Diagnosis67891011121314151617
Ref. White and Pharoah’s Oral Radiology: Principles and Interpretation, 8th Edition.
Case courtesy of Dr Bernard Koong.

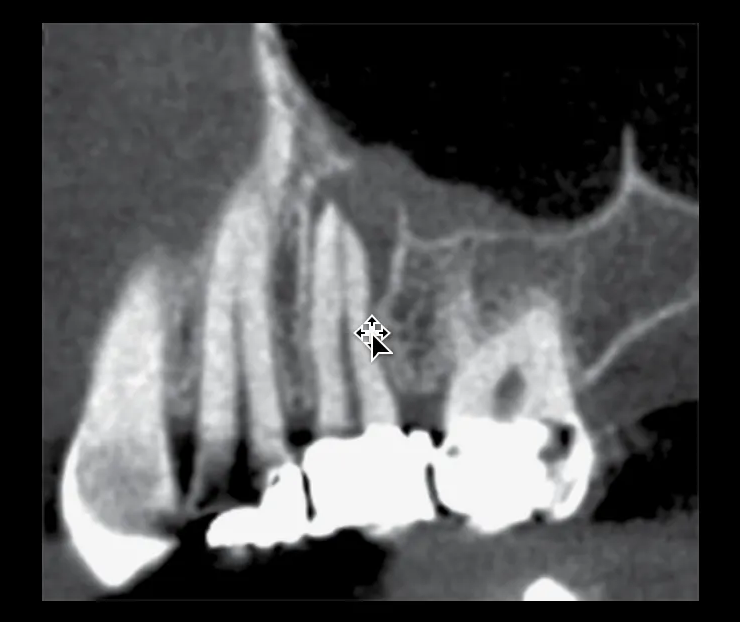

- Take CBCT when PA is unclear

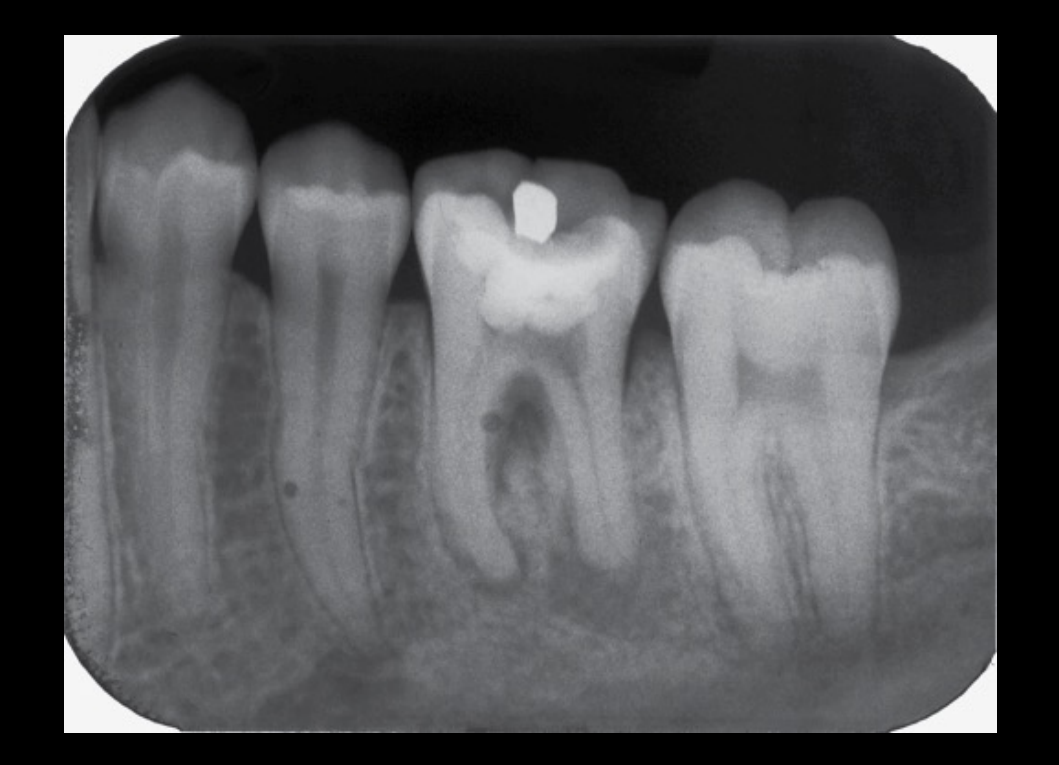

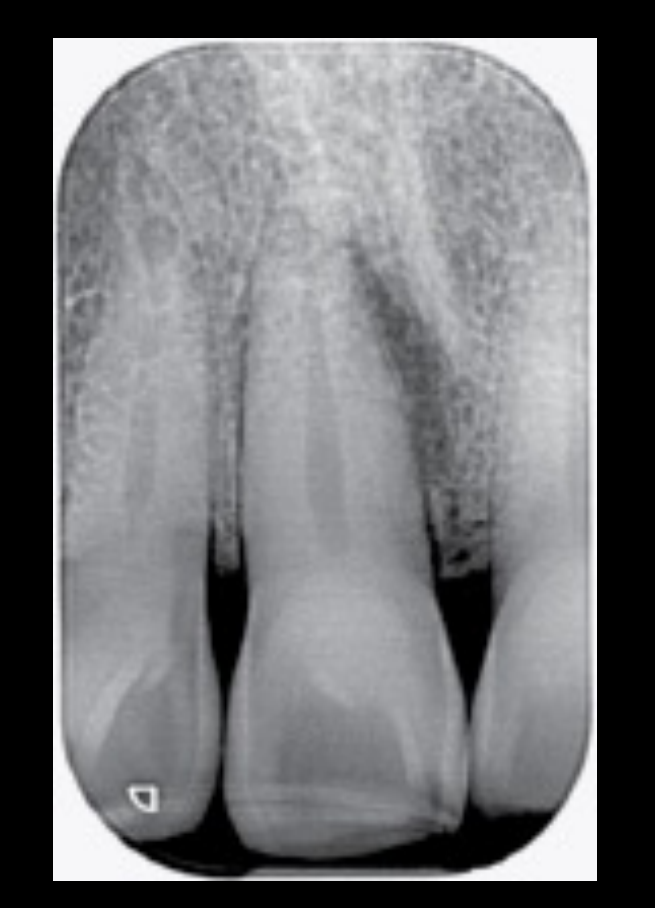

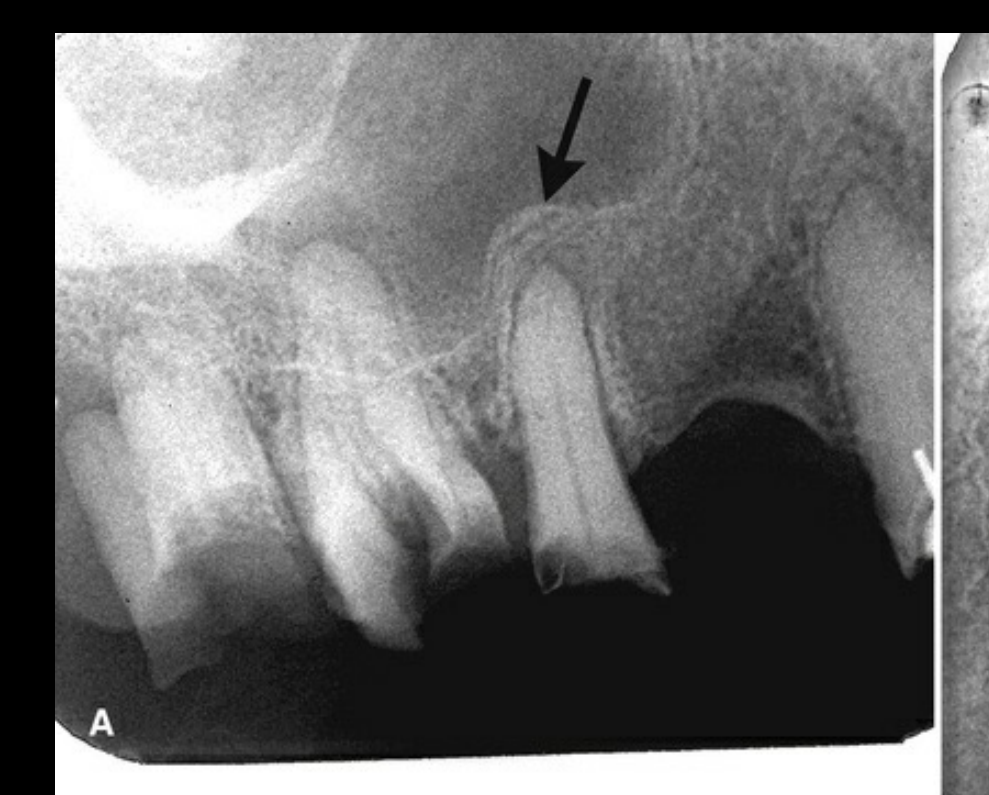

- PA of 11

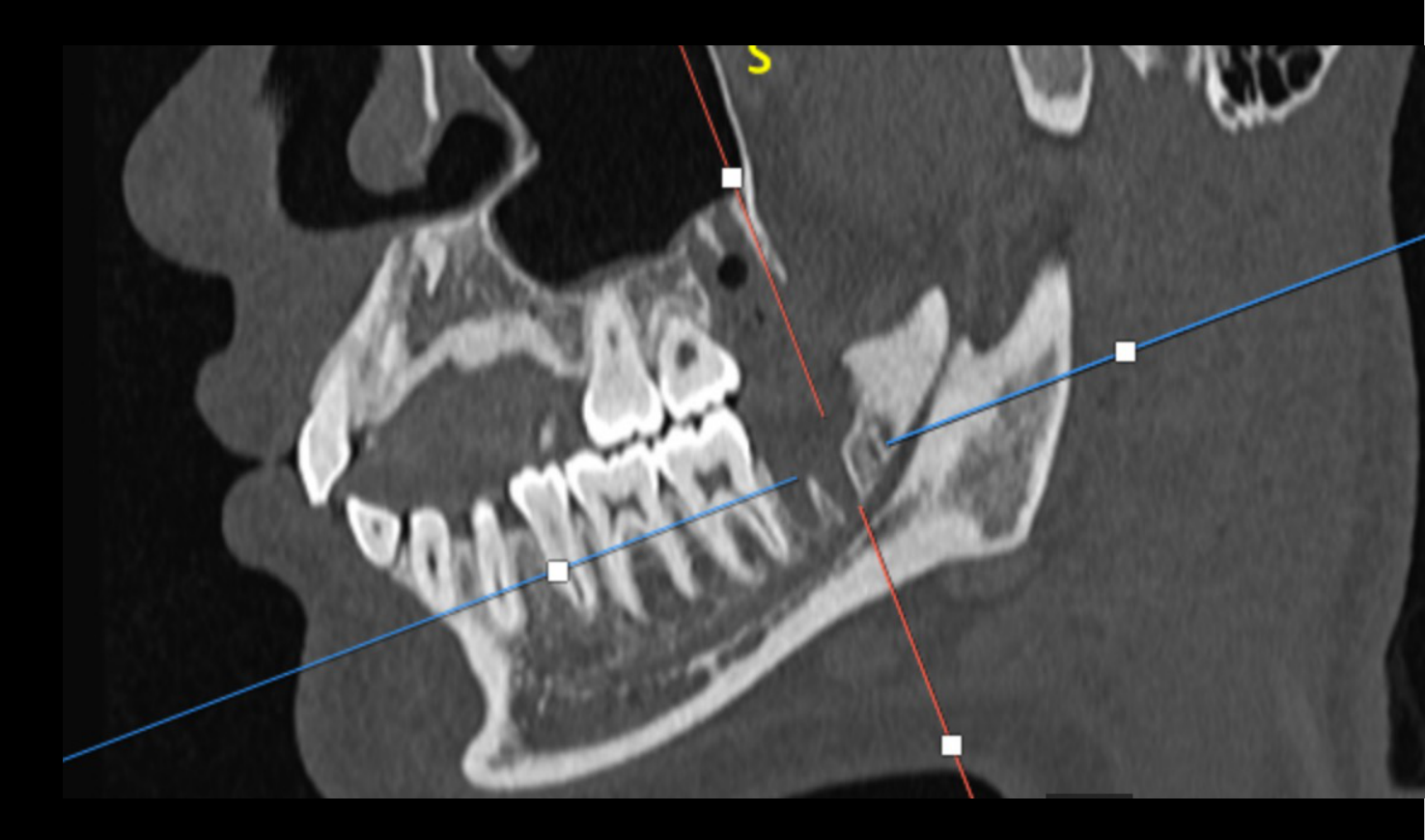

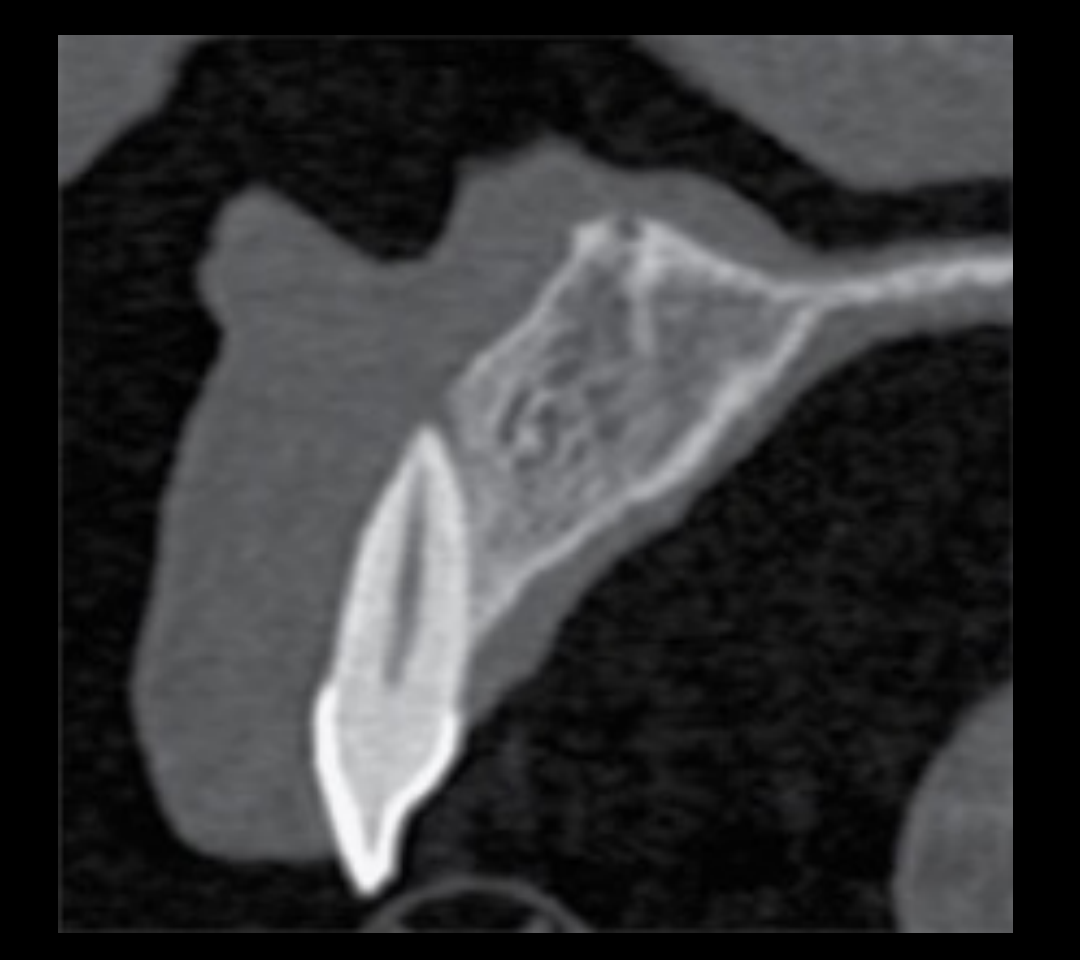

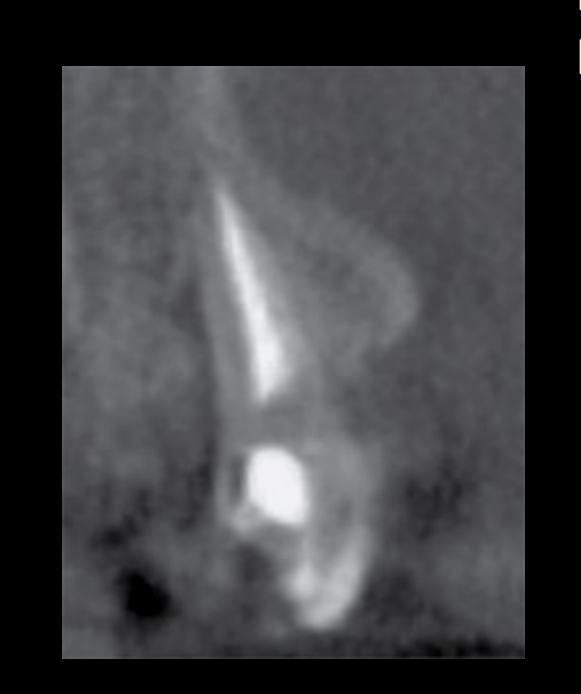

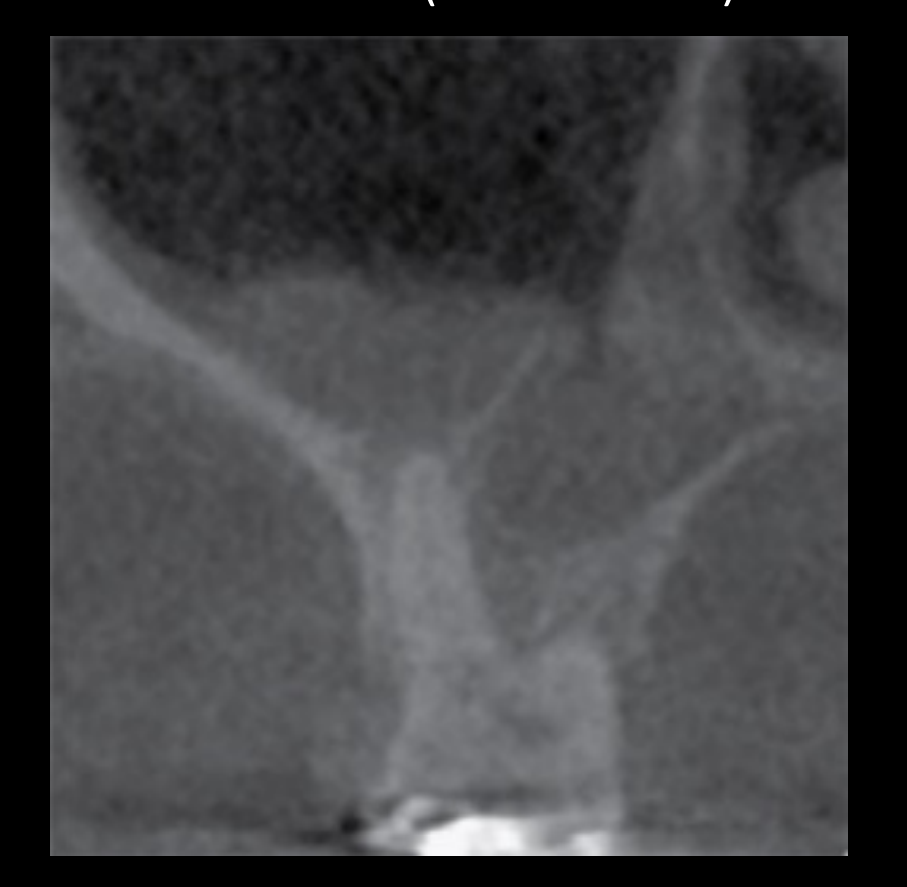

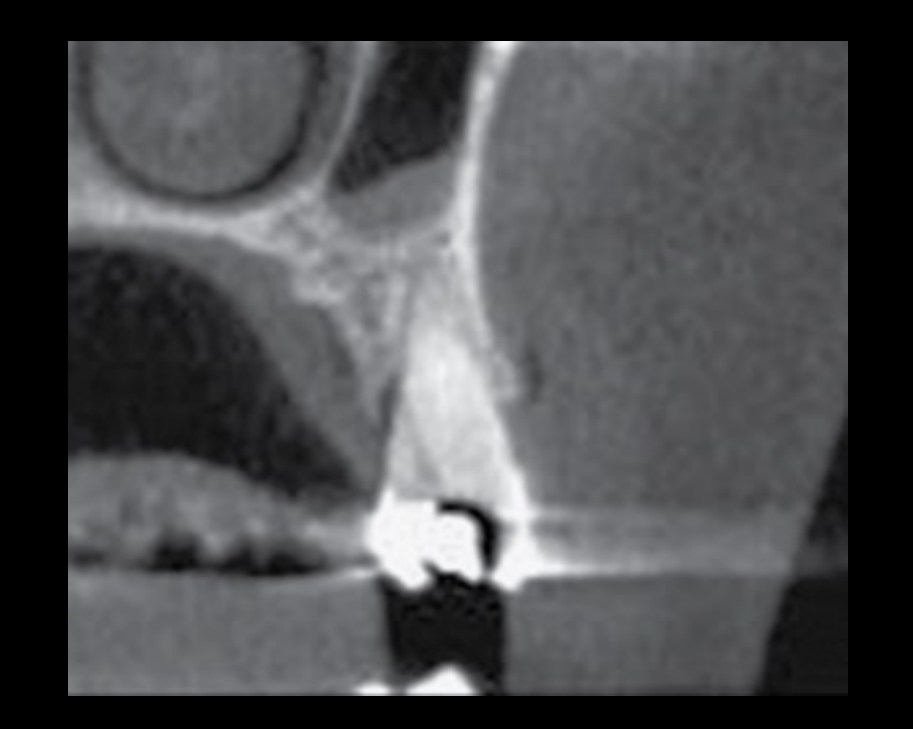

- 11 on CBCT (sagittal view)
Case courtesy of Dr Bernard Koong.
Periodontal
Case courtesy of Dr Bernard Koong.

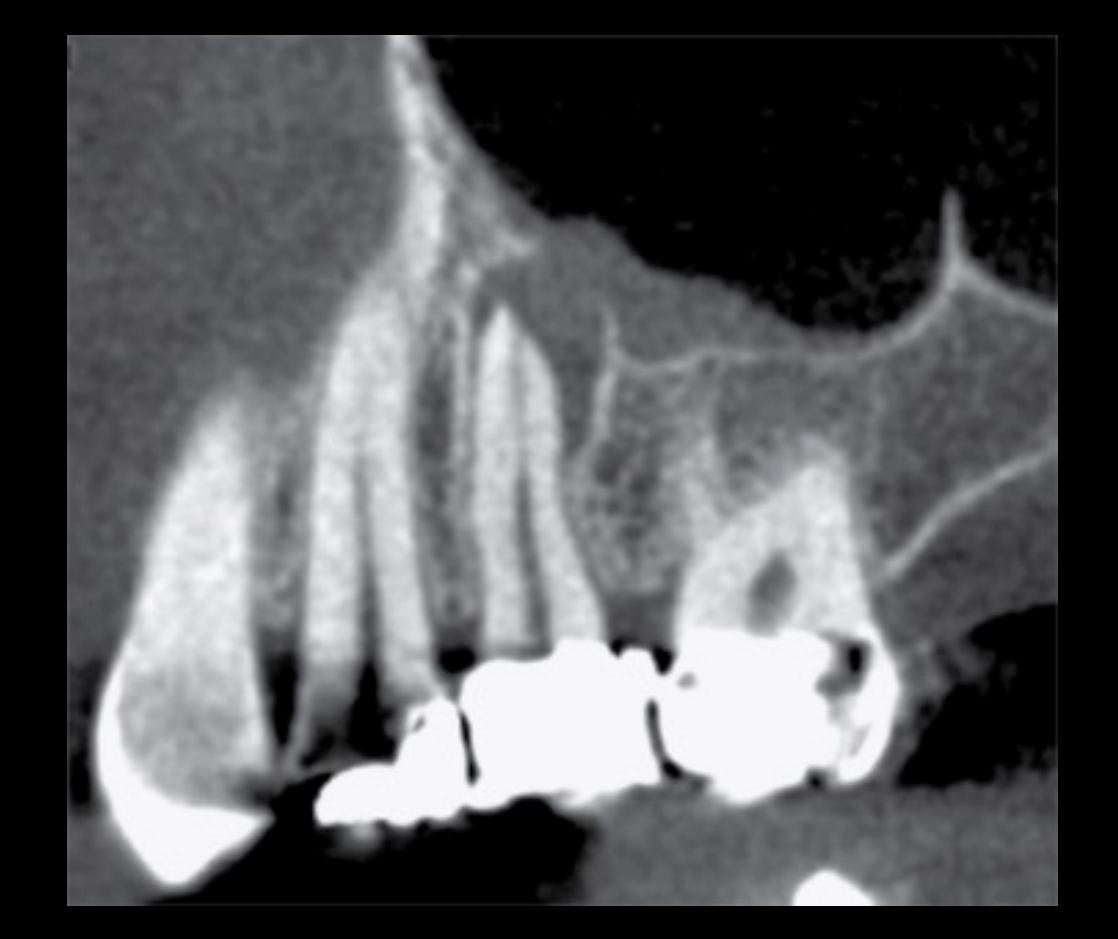

- Reactive mucosal thickening
- Effacement of sinus floor
Case courtesy of Dr Bernard Koong.

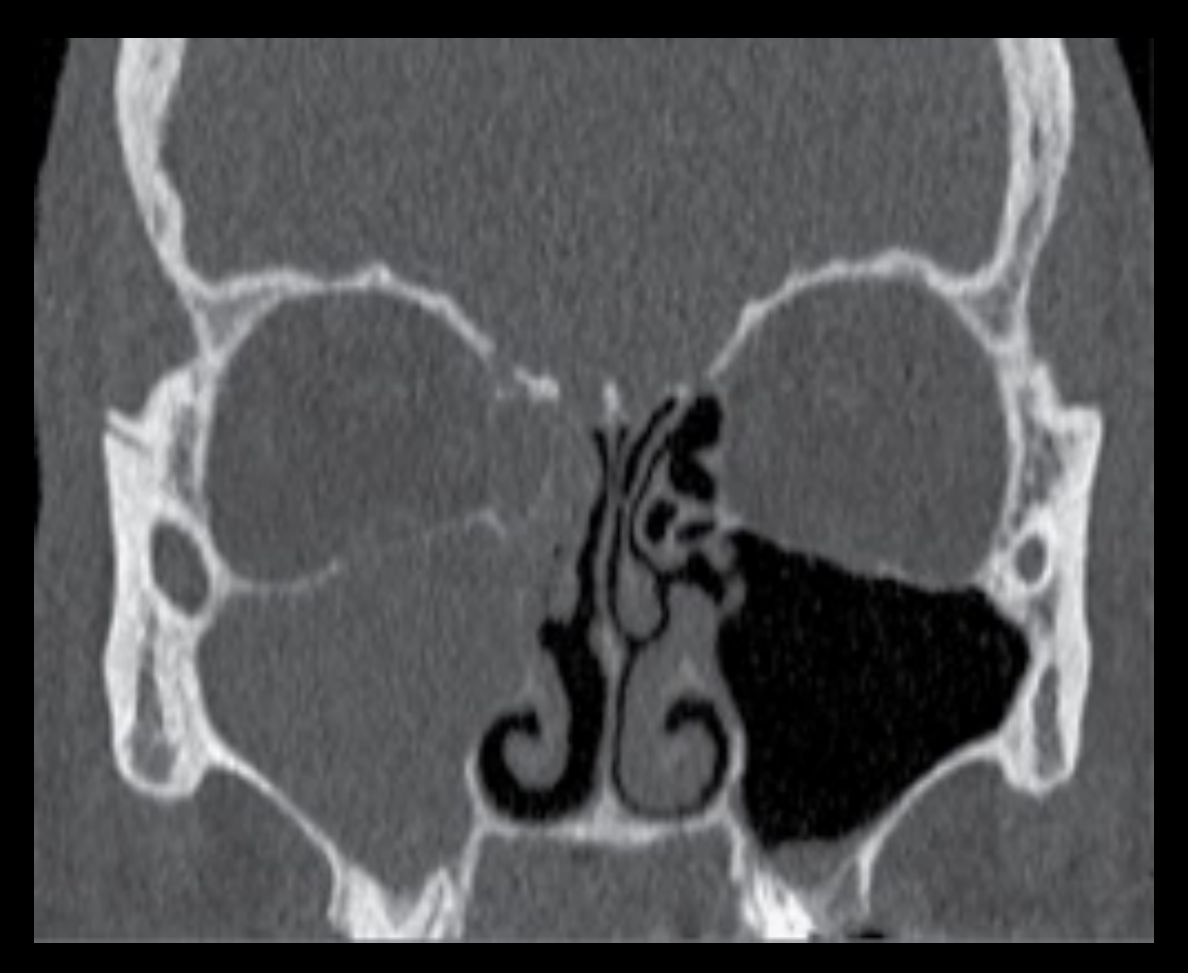

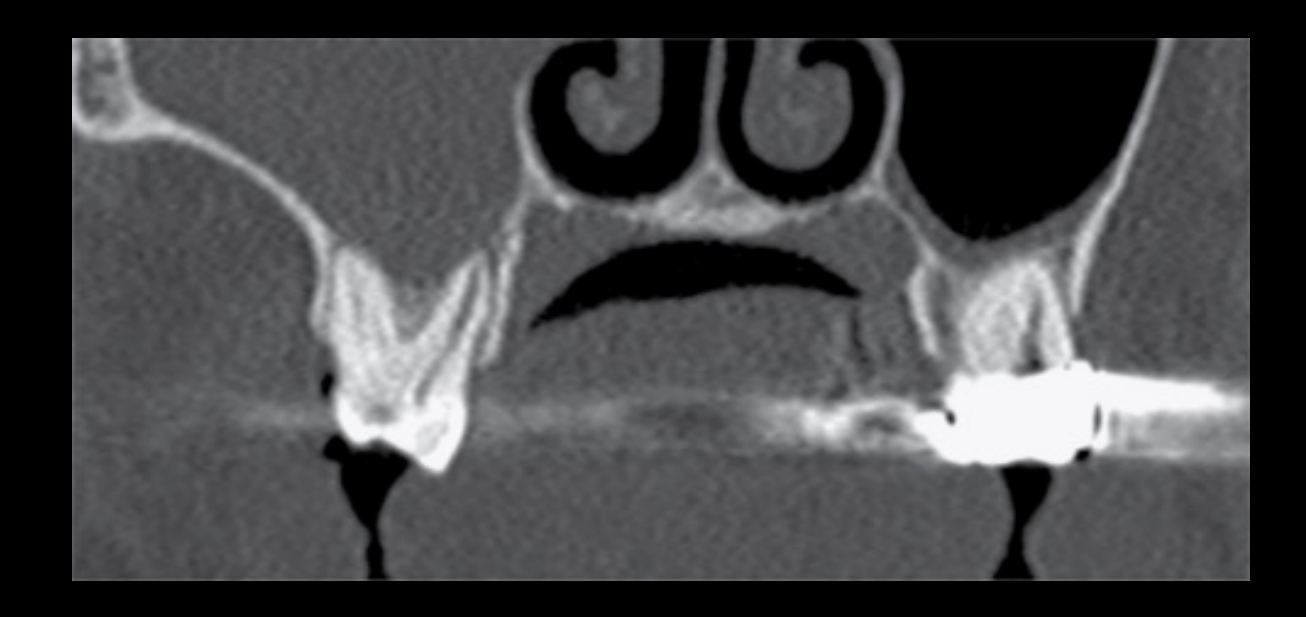

Inflammatory change in right paranasal sinuses secondary to odontogenic infection — severe, completely obstructed.
Case courtesy of Dr Bernard Koong.
Find the inflammatory lesions.
Hint: not periapical.

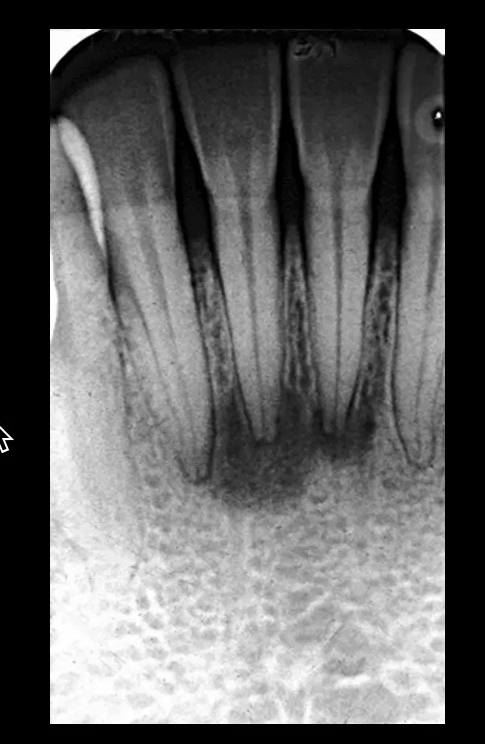

- Isolated vertical bone loss = fracture
Non-Apical Inflammatory Lesions
Inflammatory lesions associated with teeth may be located away from the apical foramen. Examples included a lateral-canal lesion, a palatally running fracture with localised palatal periodontal ligament space thickening, and periradicular lesions associated with endodontically treated teeth.
- The finding represented periradicular periodontitis rather than apical periodontitis.
- Buccal and lingual periradicular inflammatory lesions were associated with another endodontically treated tooth.
- Isolated vertical bone loss adjacent to a root was mainly related to a root fracture.
- The lecturer emphasised that inflammatory lesions related to teeth can occur anywhere around the tooth and are not necessarily centred at the apex.

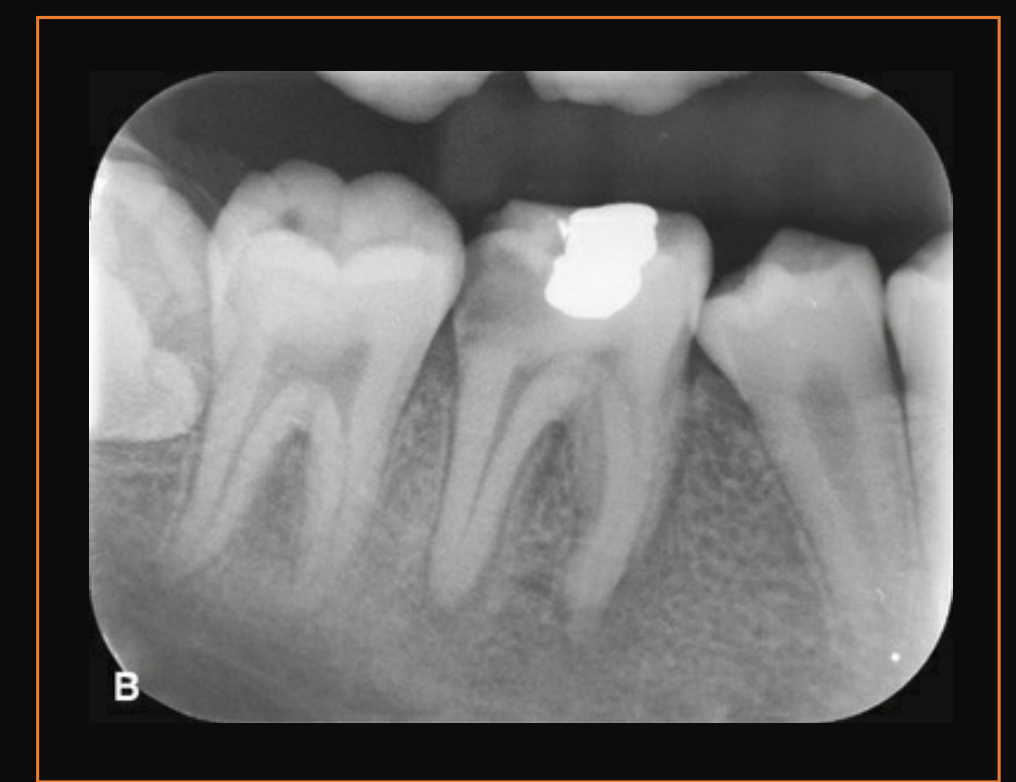

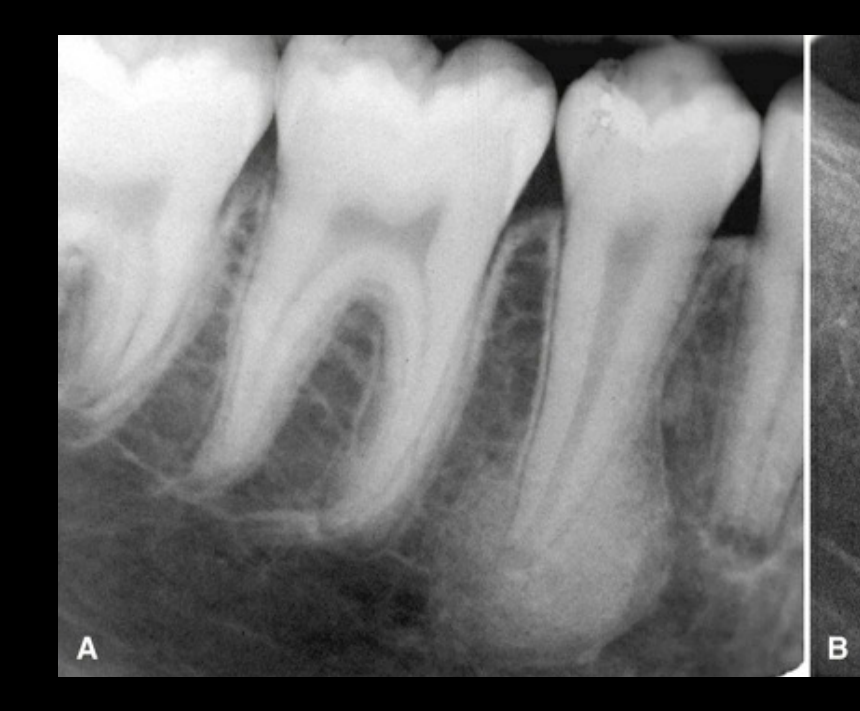

- Lamina dura: intact
- PDL space: intact → luminosity = contrast of image
- Bone island (A, B)
Bone Islands Mimicking Lucency

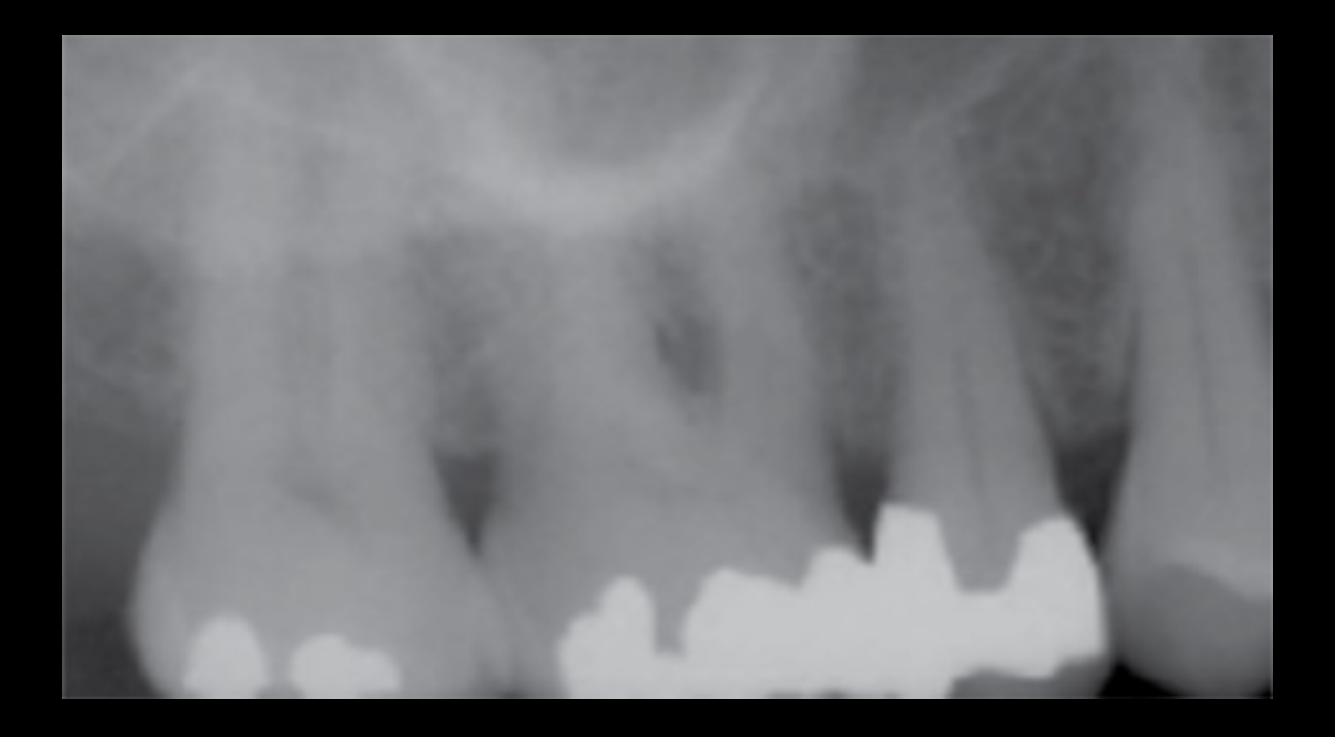

Cropped OPGs may contain considerable artefact. An adjacent opacity altered the contrast, making the bone next to it appear relatively lucent even though the lamina dura and periodontal ligament spaces were intact.
- The opacity represented a bone island.
- A dense or large bone island may cause resorption of an adjacent tooth.
- The submandibular fossa in the posterior mandible may also contribute to a relatively lucent appearance because of its lingual concavity.
Ref. White and Pharoah’s Oral Radiology: Principles and Interpretation, 8th Edition.

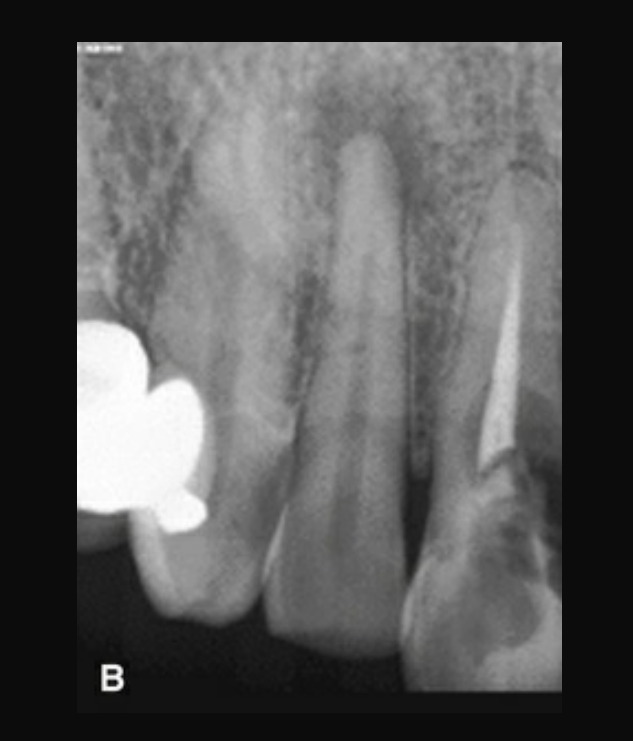

- PDL intact
- Lamina dura: partially intact
Is this inflammatory? No — cemento-osseous dysplasia, a benign periapical lesion.
Cemento-Osseous Dysplasia
Some lesions appeared to be periapical lucencies but had intact periodontal ligament spaces, partly or fully visible lamina dura and bone remaining within the apparent lucencies. These findings were consistent with cemento-osseous dysplasia, a fibro-osseous lesion not caused by infection or pulp necrosis.
- These benign lesions commonly appear in the periapical regions of anterior teeth.
- They mature over time and become more opacified.
- Unless secondarily infected, they do not require management or treatment.
Ref. White and Pharoah’s Oral Radiology: Principles and Interpretation, 8th Edition.
Small ameloblastoma — 1st tooth responds to tx by → no need to start tx.
Ameloblastoma Mimicking Inflammation
Small ameloblastomas may mimic periapical inflammatory lesions, and previous endodontic treatment may have been performed when the lesion was smaller and appeared inflammatory. If a tooth responds to vitality testing, including cold testing, and is not necrotic, endodontic treatment should not be started solely because an apical lucency is present.
Case courtesy of Dr Bernard Koong.

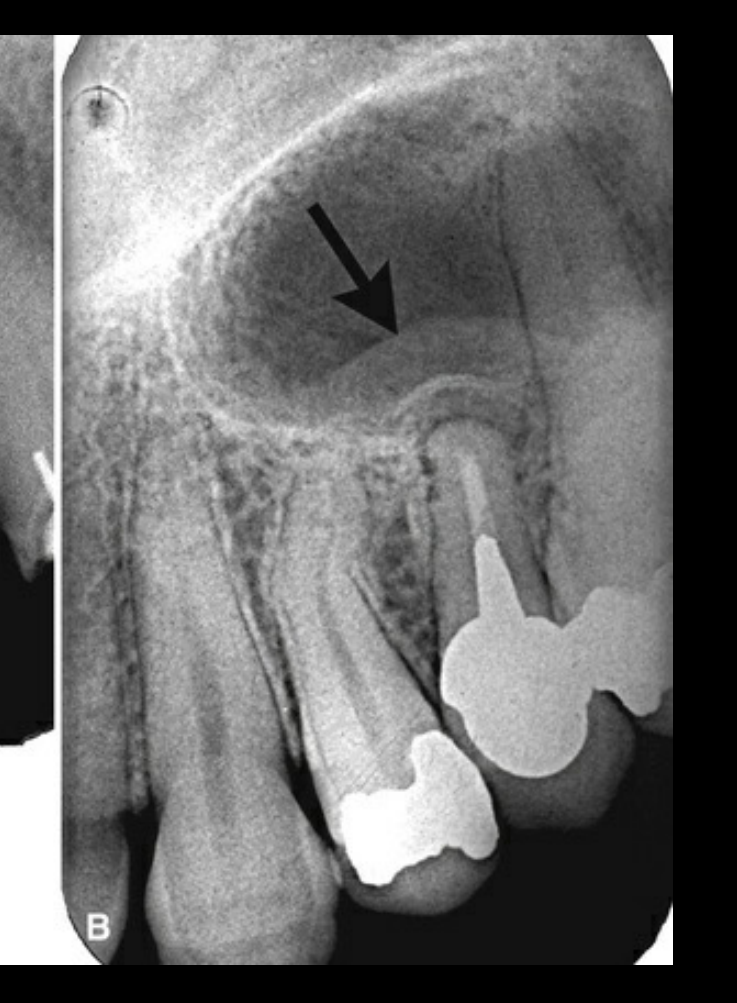

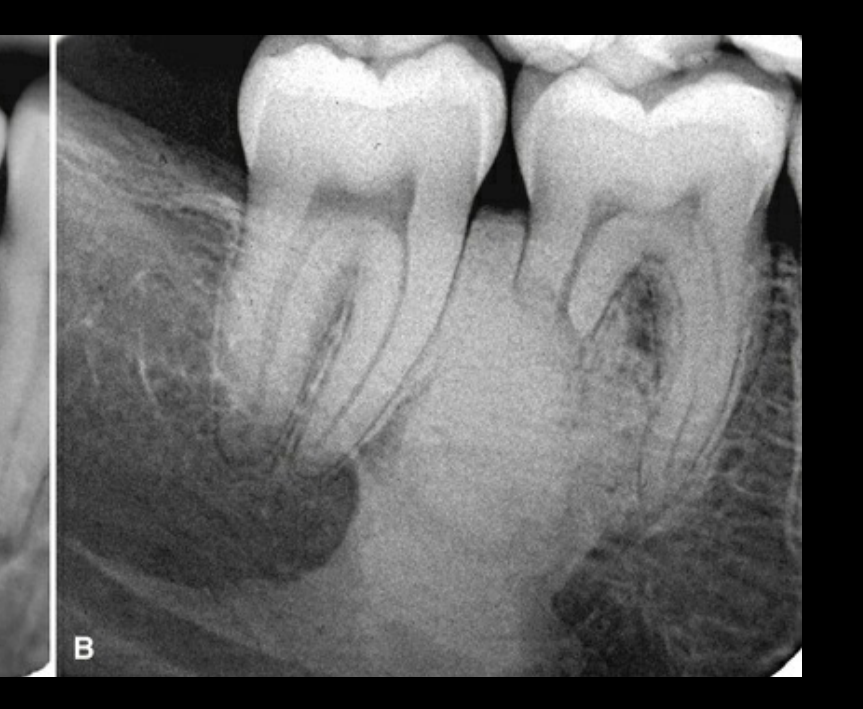

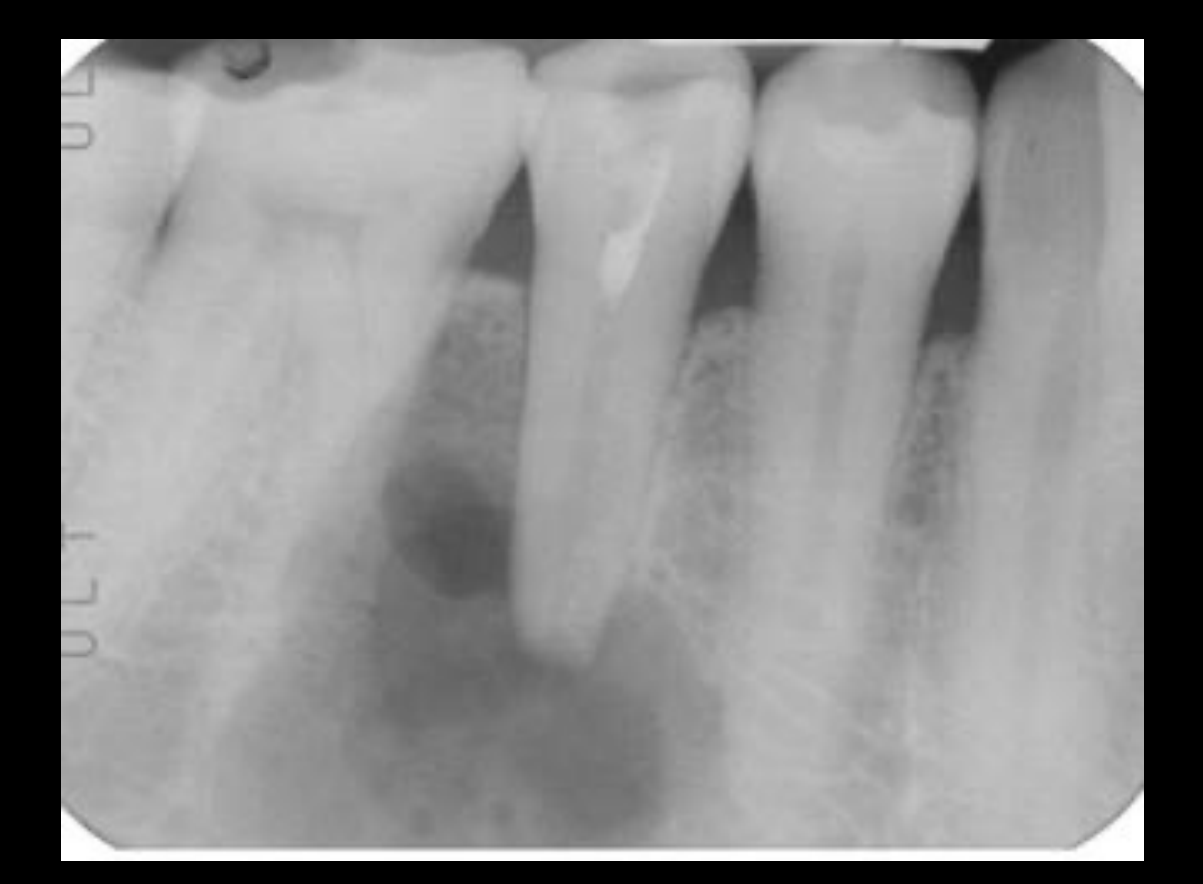

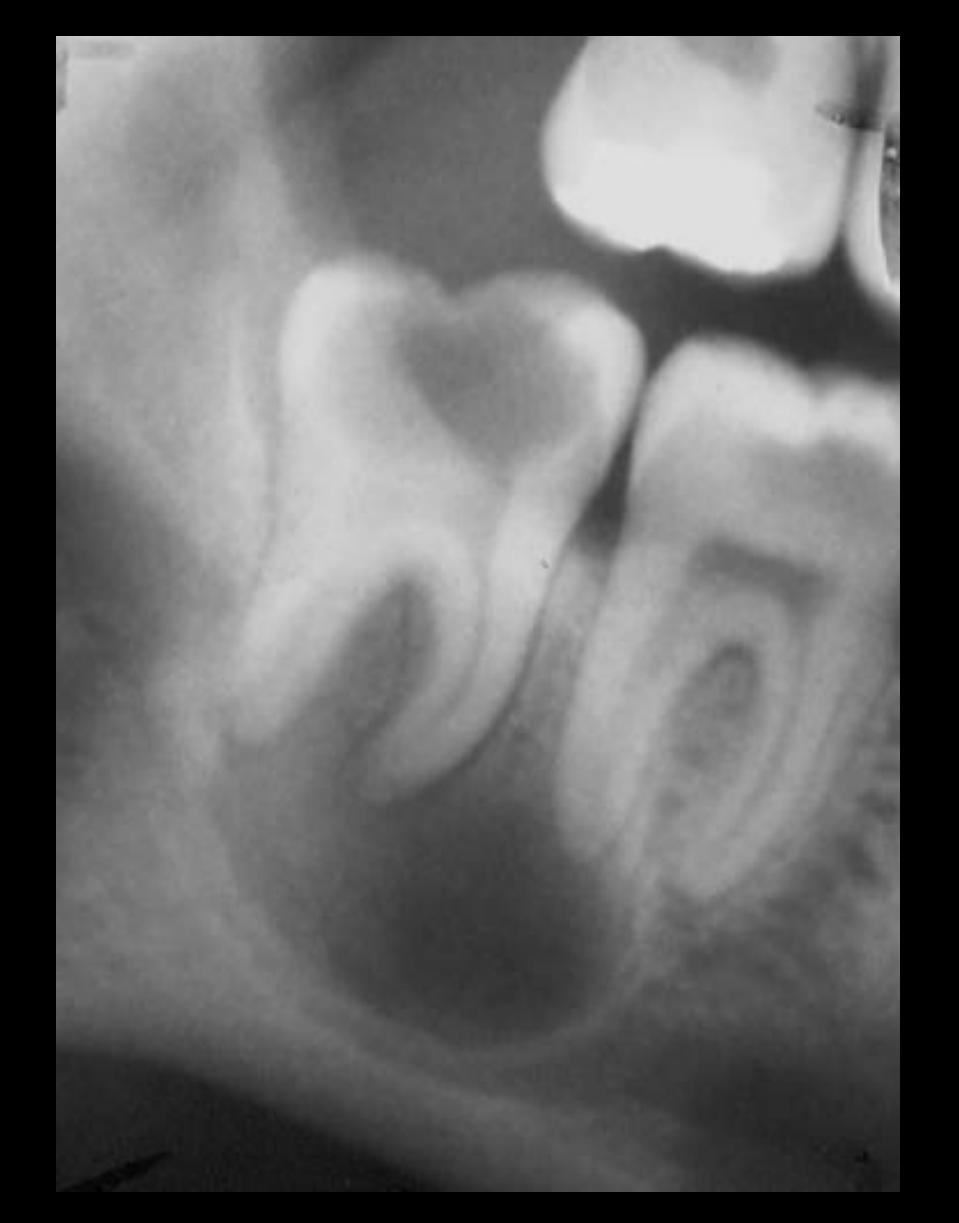

Radicular cyst — circumscribed (arrow pointing to the radiolucency).
Radicular Cyst Features
The well-defined periapical lucency was associated with a heavily carious tooth, a widened periodontal ligament space and an indistinct lamina dura. The mandibular canal was markedly displaced and compressed, considered a classic sign of cystic activity.
- Cysts grow with hydraulic pressure and displace adjacent structures.
- Inflammatory lesions generally do not displace and compress canals in this manner.
- The cyst developed from an inflammatory response but had progressed beyond the abscess or granuloma phase.
Case courtesy of Dr Bernard Koong.
Multiple Root Remnants and Sinus Changes
Multiple decoronated teeth and root remnants showed associated periapical inflammatory lesions. The maxillary sinus floor was well corticated in one region but became elevated and sclerosed adjacent to an inflammatory lesion; elsewhere, mild elevation and sclerosis occurred with reactive change within the antrum.
- An OPG demonstrated multiple root remnants with associated inflammatory lesions around the roots.
- Areas of sclerosis indicated a chronic inflammatory response.
- On the right, disruption of the sinus floor and mucosal changes were consistent with periostitis secondary to an inflammatory lesion associated with the maxillary teeth.
- On the left, the sinus floor remained intact but reactive mucosal thickening was present within the sinus, also indicating periostitis.




![]()












Osteomyelitis18
- Widespread inflammation of bone
- Most are associated with odontogenic infections, i.e. periapical inflammatory lesions
- Others: trauma (esp. compound fractures) and radiation therapy
- Numerous classifications… 2 broad groups:
- ACUTE
- Suppurative and rarefying
- CHRONIC (> 4 weeks)
- Non-suppurative and sclerosing
- ACUTE
- Most common in the posterior mandible
Pathogenesis and Periosteal Reaction

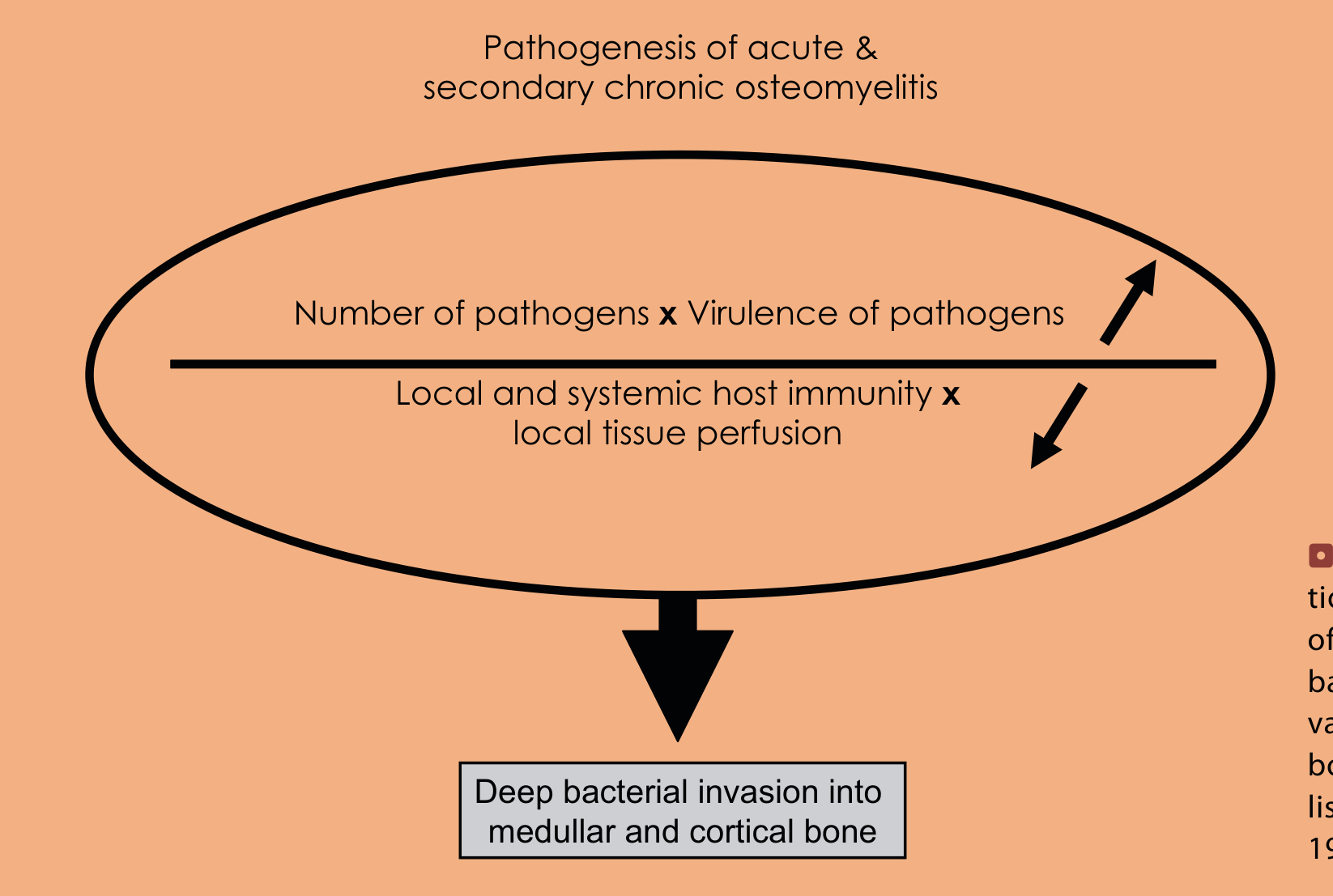

Pathogenesis of Acute and Secondary Chronic Osteomyelitis19
- Number of pathogens × virulence of pathogens
- Local and systemic host immunity × local tissue perfusion
- Deep bacterial invasion into medullary and cortical bone
Lecturer — Osteomyelitis Pathogenesis
Osteomyelitis typically begins with infection, followed by inflammation, vascular compromise and bone necrosis.
- Infection commonly starts in a necrotic pulp and spreads from the apex into cancellous or medullary bone.
- Spread may occur through marrow spaces, Haversian canals and Volkmann canals, allowing rapid intraosseous spread, particularly in the mandible.
- Inflammatory exudate or pus increases intraosseous pressure and compresses blood vessels; the mandible is especially vulnerable because of its limited collateral circulation.
- Ischaemia causes bone necrosis and separation of non-viable bone from healthy bone. The resulting sequestrum persists as a focus of infection because antibiotics cannot effectively penetrate it.
- New bone may form around the sequestrum, while chronic inflammation can produce fibrosis, sclerosis and sinus tract formation.
Fig. 2.5 Schematic illustration showing the interaction of host and pathogens. If the balance is shifted to the advantage of the aggressor, deep bone infection will be established (Modified after Marx 1999 and Mercuri 1999).

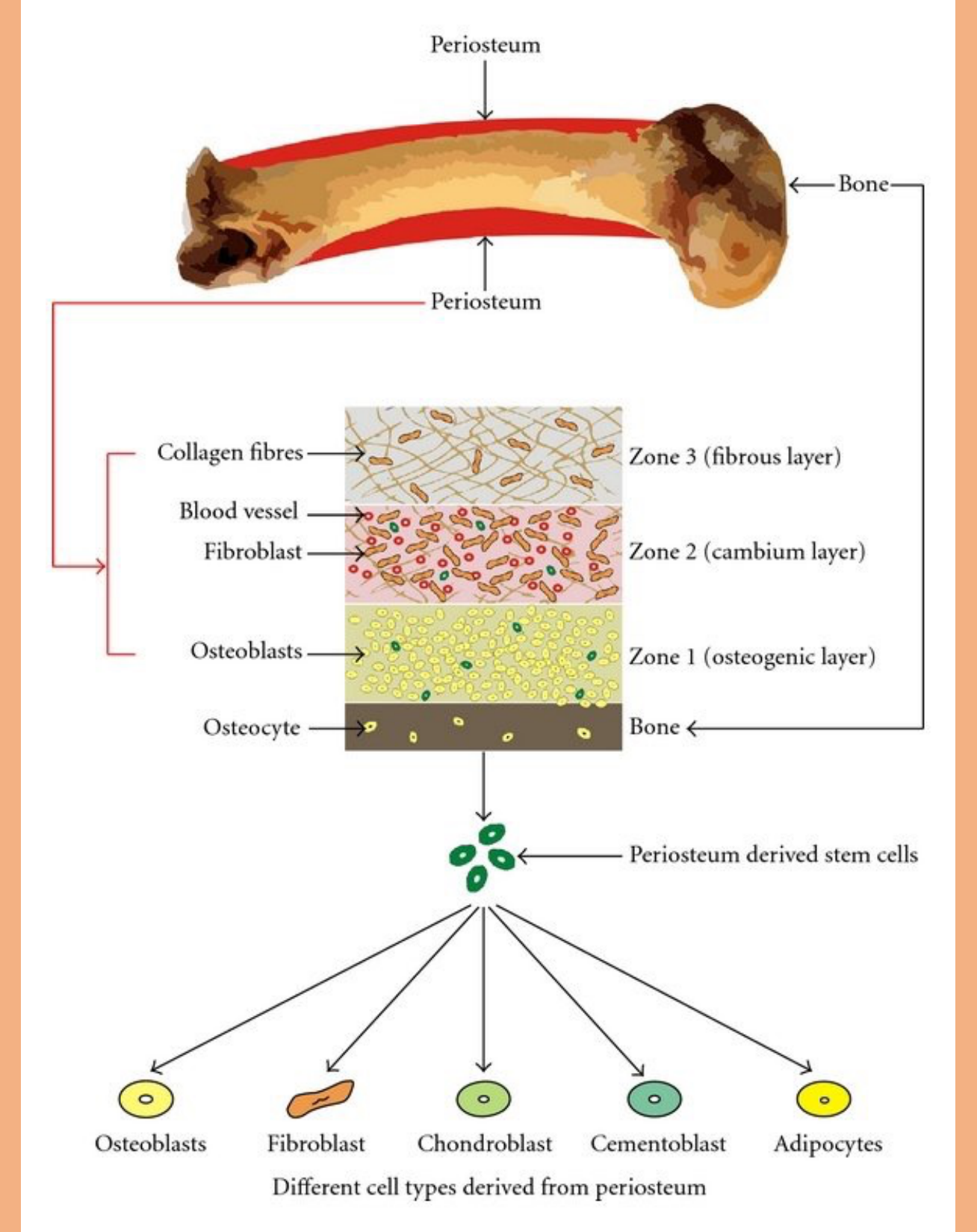

Periosteum Structure20
Periosteum overlying bone, comprising:
- Zone 1 (osteogenic layer): osteoblasts, osteocyte
- Zone 2 (cambium layer): fibroblast, blood vessel
- Zone 3 (fibrous layer): collagen fibres
- Periosteum-derived stem cells → osteoblasts, fibroblast, chondroblast, cementoblast, adipocytes
![]() | ![]() |

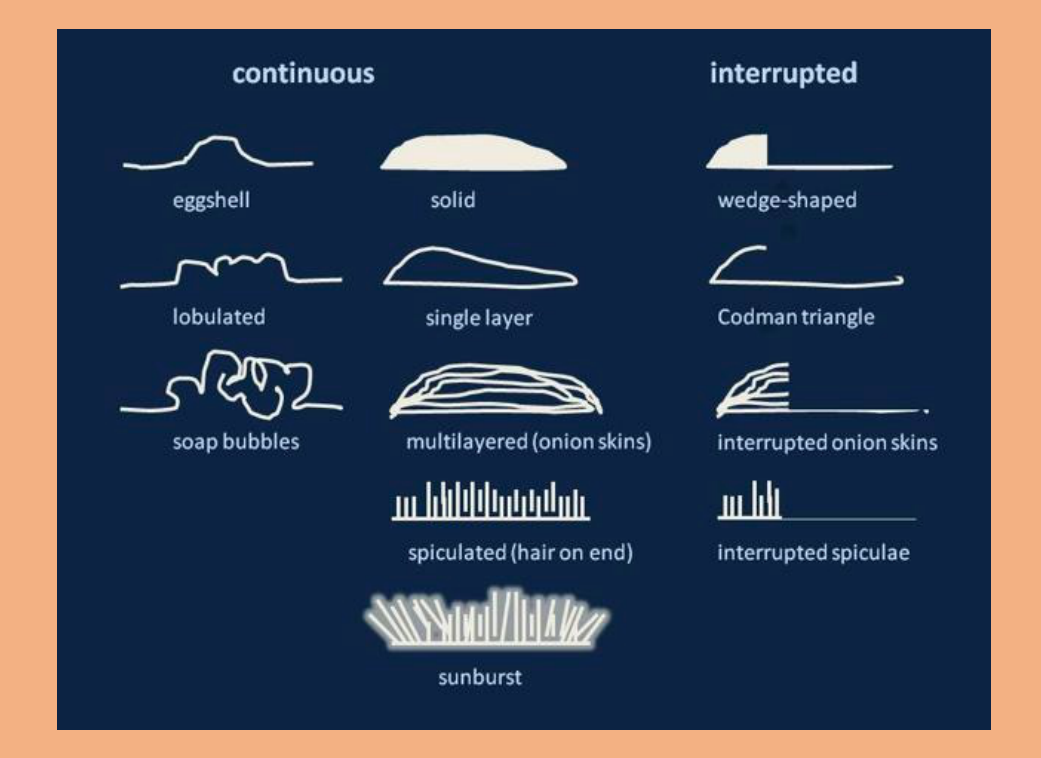

Pattern of Periosteal Reaction
- Single layer
- Solid
- Multilayered (lamellated / onion skin)
- Spiculated
- Perpendicular “hair-on-end”
- Divergent “sunburst”
- Sloping “velvet”
- Complex
- Codman’s triangle
Descriptive terms: continuous, interrupted, eggshell, solid, wedge-shaped, lobulated, single layer, Codman triangle, soap bubbles, multilayered (onion skins), interrupted onion skins, spiculated (hair on end), interrupted spiculae, sunburst.
Lecturer — Periosteal Reaction
Spiculated and sunburst patterns were described as more strongly associated with malignant tumours.
- In adults, osteomyelitis may produce thin or thick single-layer periosteal reactions.
- In children, the more active periosteum may form multiple layers with an onion-skin appearance and more extensive periosteal change.
- Some cases may show minimal periosteal reaction.
Imaging Features212223






Imaging Modalities24
- 2D imaging is insufficient
- Cone Beam CT
- Multislice CT
- MRI
- Nuclear Medicine Imaging (Gallium Scan)
Lecturer — Imaging Modality Selection

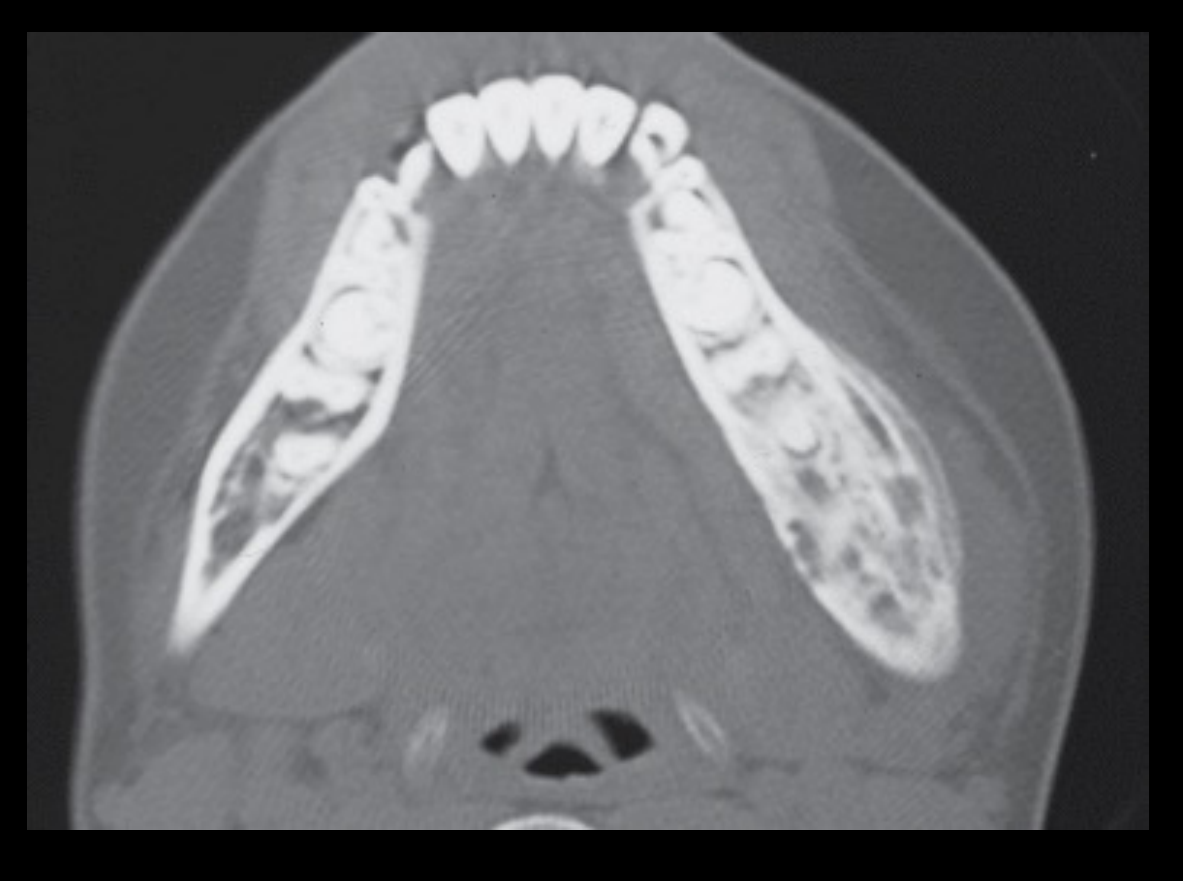

CT was described as the gold-standard imaging modality for osteomyelitis, while MRI is the most sensitive modality for very early disease.
- Multislice CT demonstrates both hard-tissue and soft-tissue abnormalities.
- MRI is particularly useful when infection is confined to the marrow without significant bone destruction.
- If CT demonstrates little abnormality but early osteomyelitis is suspected, MRI may be appropriate.
Imaging Features
- Ill-defined lucencies (lytic / destruction of bone) in ACUTE phase, becoming more well-defined in CHRONIC phase
- Loss of normal trabecular pattern
- Cortical destruction is common
- Extensive adjacent sclerosis, depending on chronicity
- Periosteal reaction (periosteal new bone formation)
- Sequestra formation → key feature

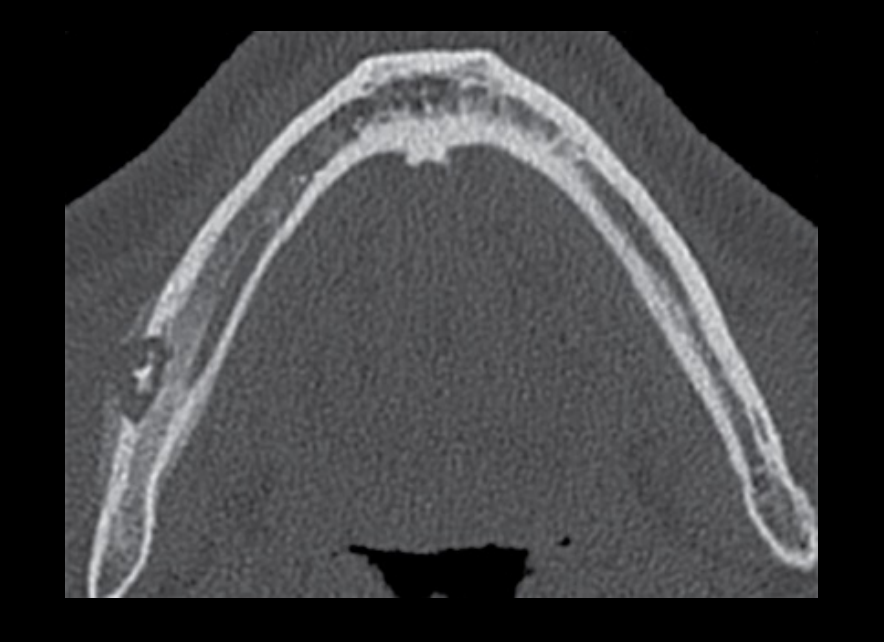

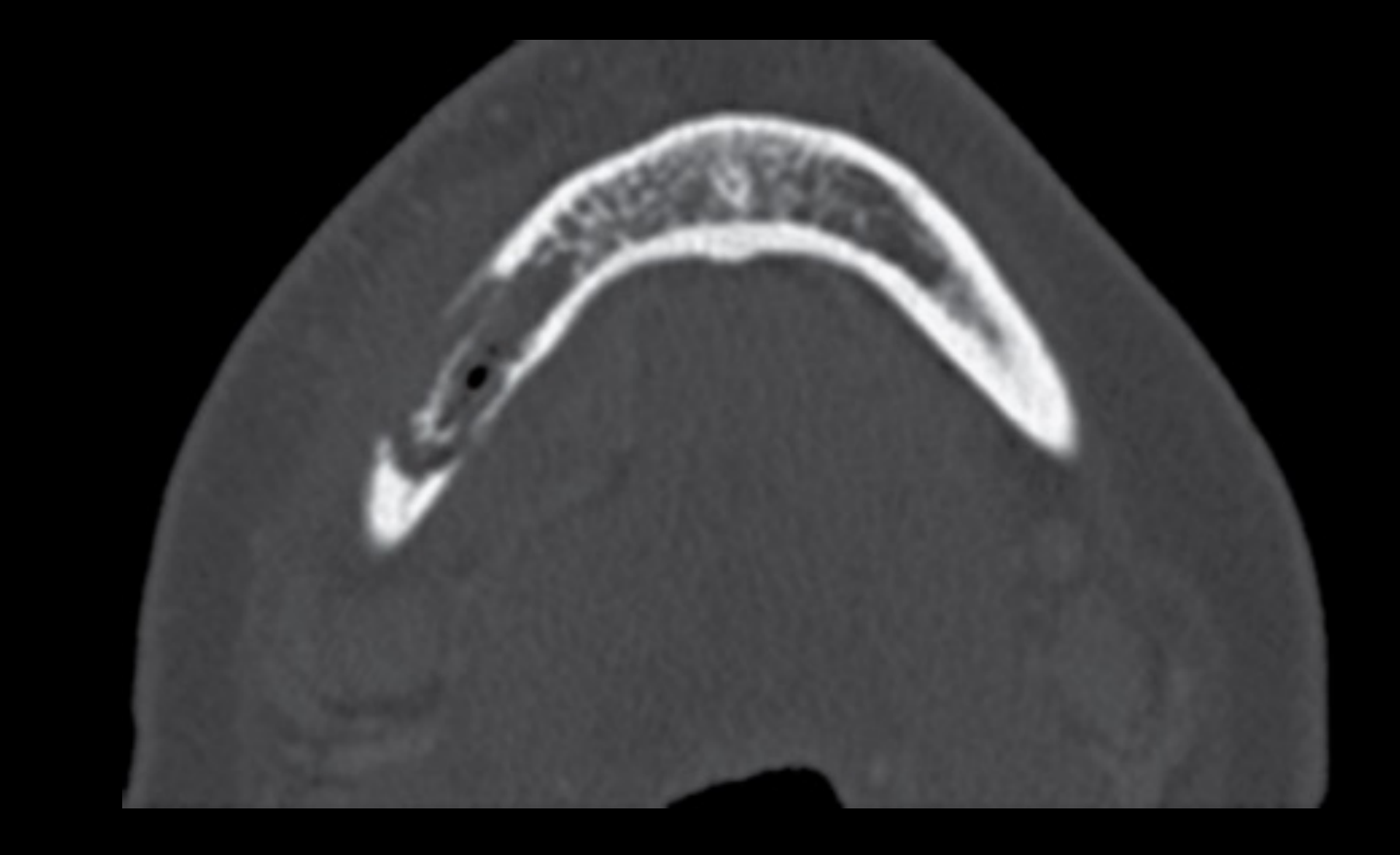

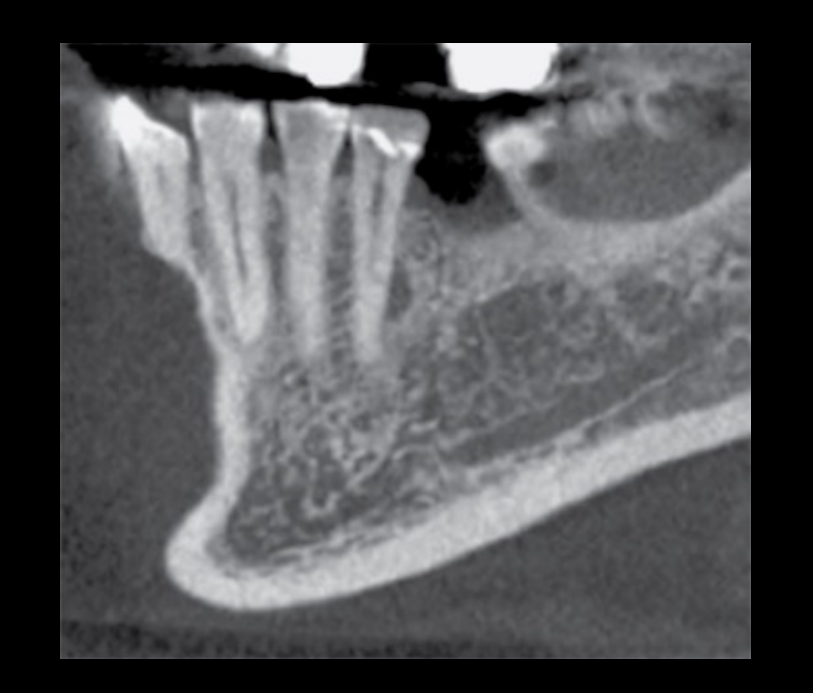

Osteomyelitis with Pathological Fracture

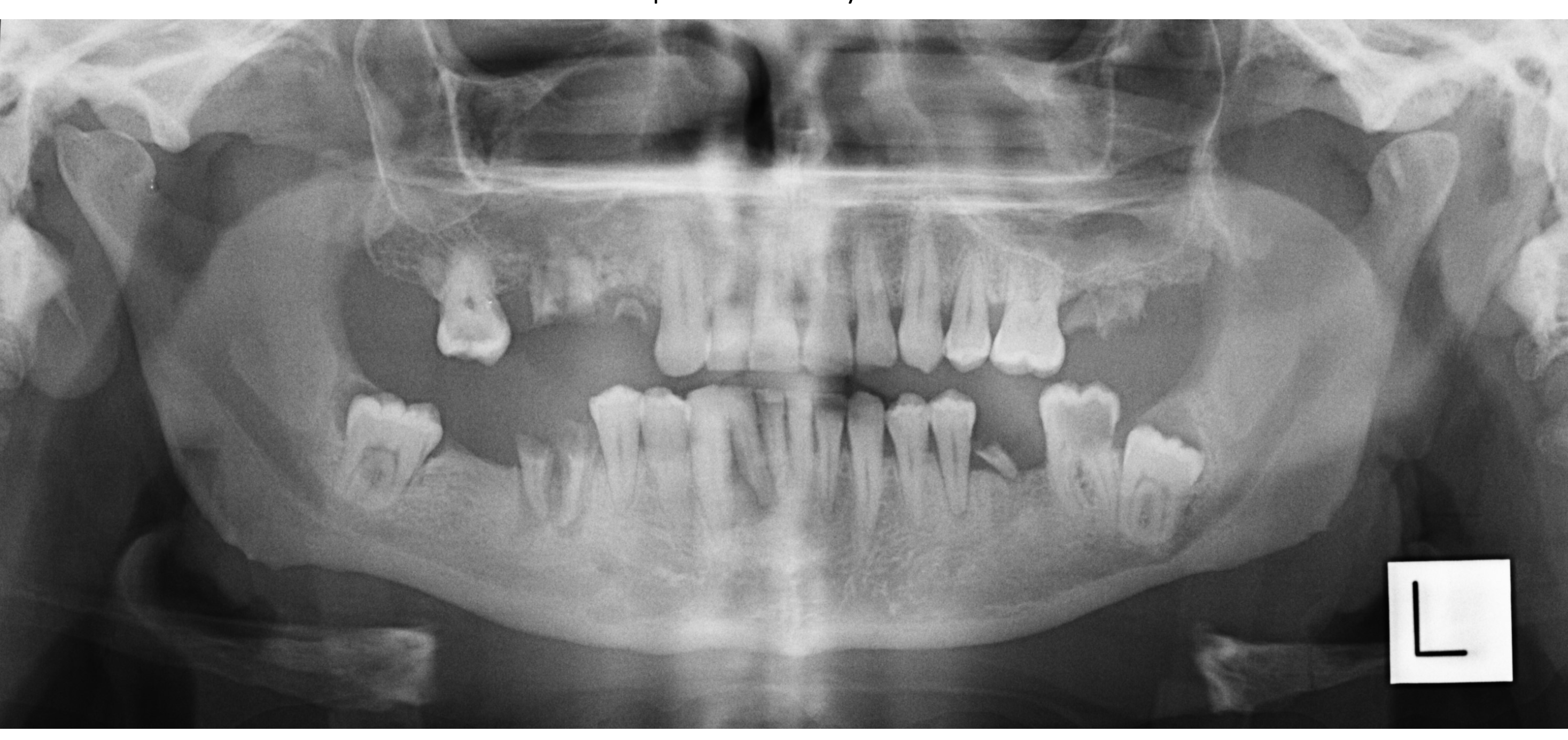

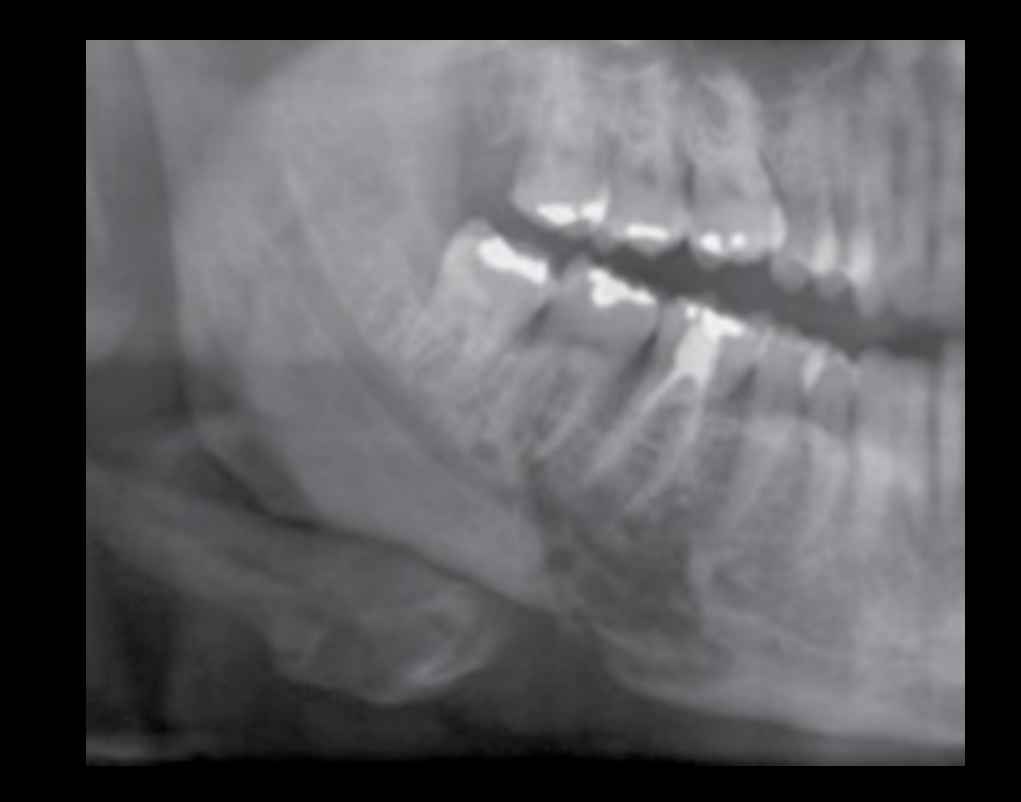

A pathological fracture was associated with osteomyelitis, with lytic and mixed lucent-sclerotic changes surrounding the fracture defect.
- CT demonstrated more extensive disease than the OPG, including soft-tissue thickening, air consistent with gas-producing bacteria, lytic changes throughout the medullary bone and periosteal reaction in some areas.
- The OPG primarily showed the fracture and mixed-density changes.
- Periosteal reaction may be absent in some patients, leaving a cortical bone defect as the only finding.
The structure of periosteum varies with age. In children it is thicker, more vascular, active, and loosely attached as compared to adults where it is thinner, less active, and firmly adherent.
Jaw Infection Involving Soft Tissues
- Failed to drain into oral cavity
- May involve various spaces, including the submandibular, sublingual, masticator, parapharyngeal and parotid spaces.
- Cellulitis and abscess collection can be life threatening.
- Other potential complications include airway compromise, cavernous sinus thrombosis, cerebral abscess, orbital infections and mediastinitis.
Lecturer — Soft-Tissue Spread
When osteomyelitis becomes extensive or is not treated early, infection may break through the cortex and produce soft-tissue infection or cellulitis. Initially, the infection may remain localised around the source before spreading rapidly through the deep spaces.
Imaging Modalities25
-
Multislice CT with intravenous contrast is the first modality of choice
-
MRI is also useful
-
Cone beam CT may demonstrate bone detail but does not demonstrate soft-tissue changes adequately.
-
Contrast allows more accurate assessment of the extent of infection.
Imaging Features on Post-Contrast CT

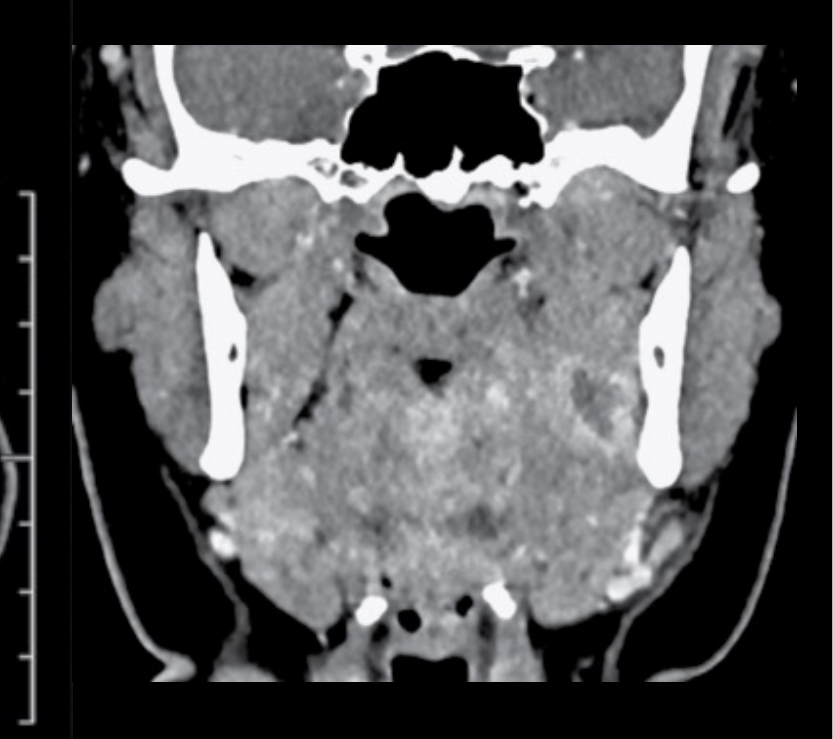

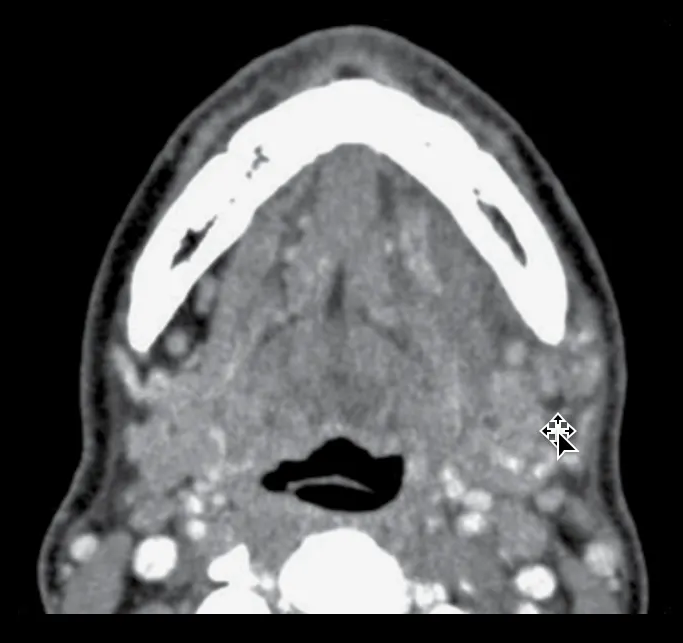

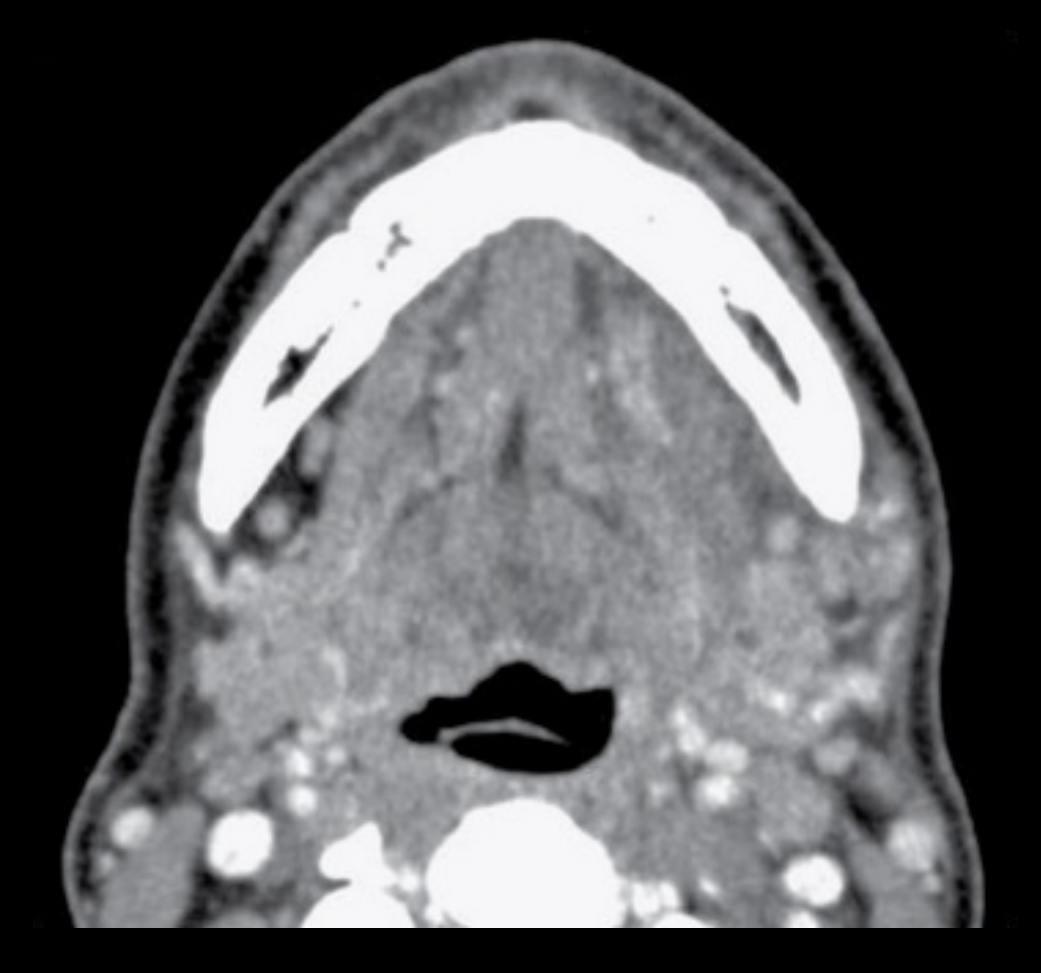

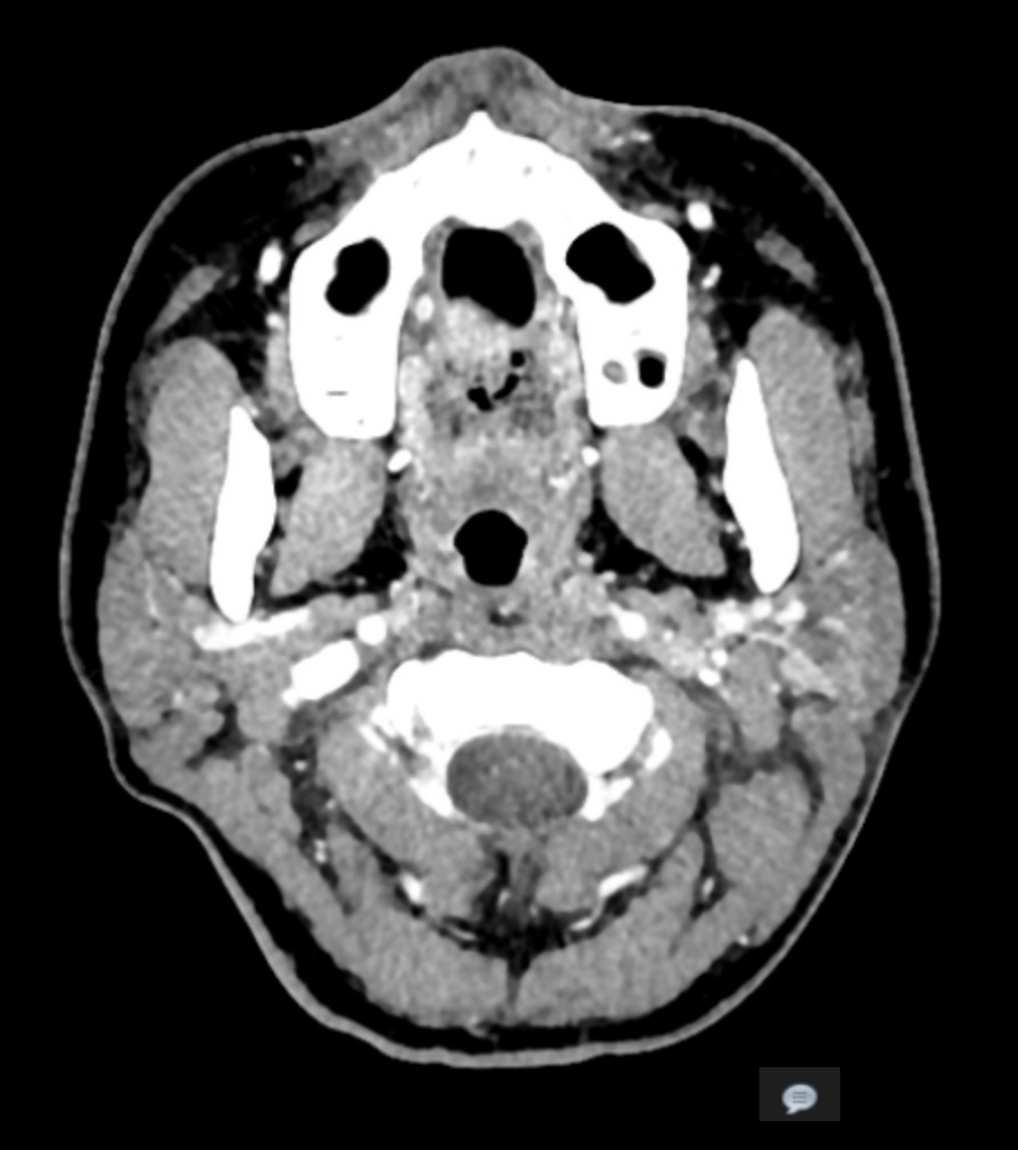

Post-Contrast Multislice CT26272829303132
-
Thickening of the skin and subcutaneous fat stranding
-
Fat planes often demonstrate increased density ‘dirty’ from oedema
-
Involved muscles are swollen and enhanced
-
Abscess collection presents as a spherical or lobulated fluid density focus with rim enhancement.
-
Air related to gas-producing bacteria may be present.
-
The airway may be narrowed or displaced by inflammatory swelling.

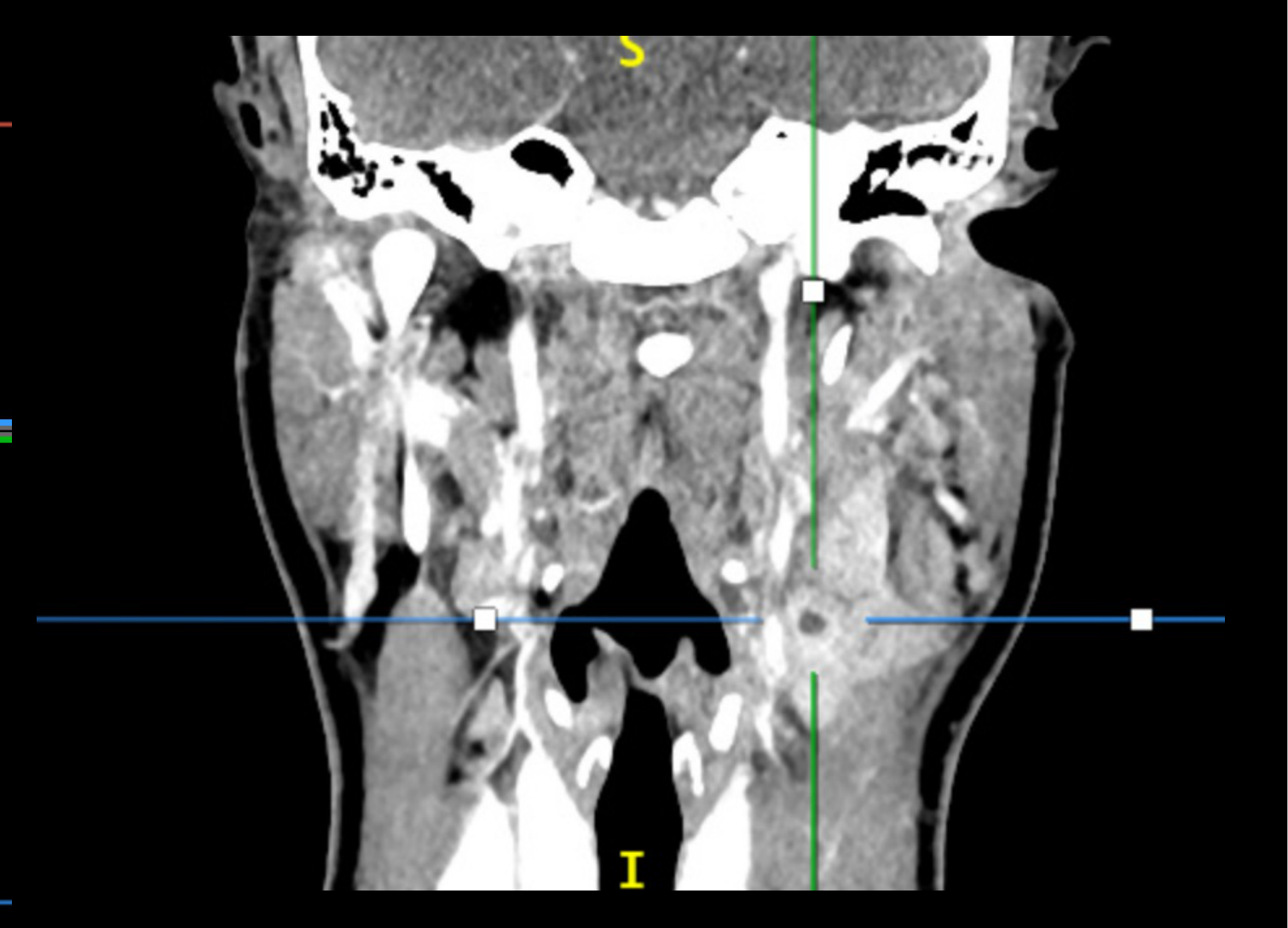

Mandibular Molar Infection with Airway Displacement

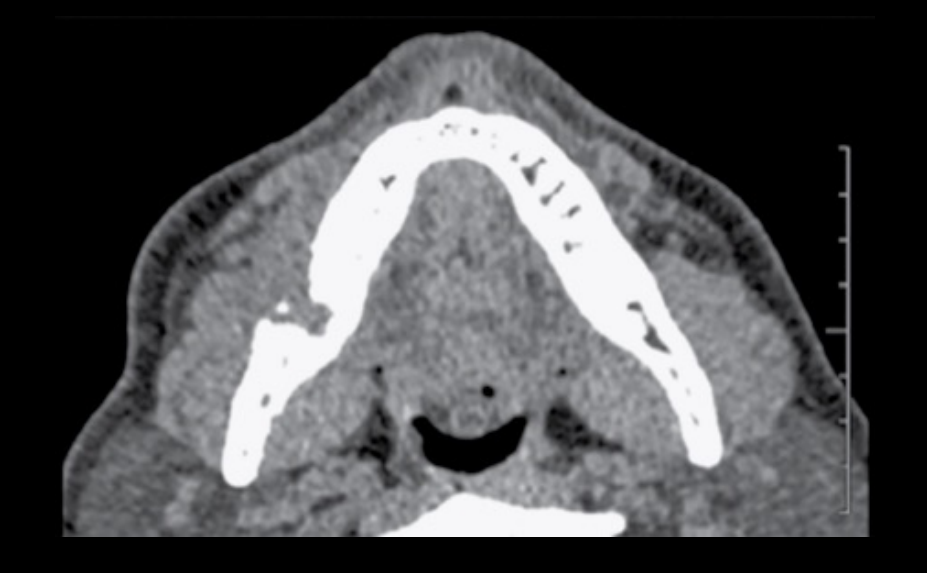

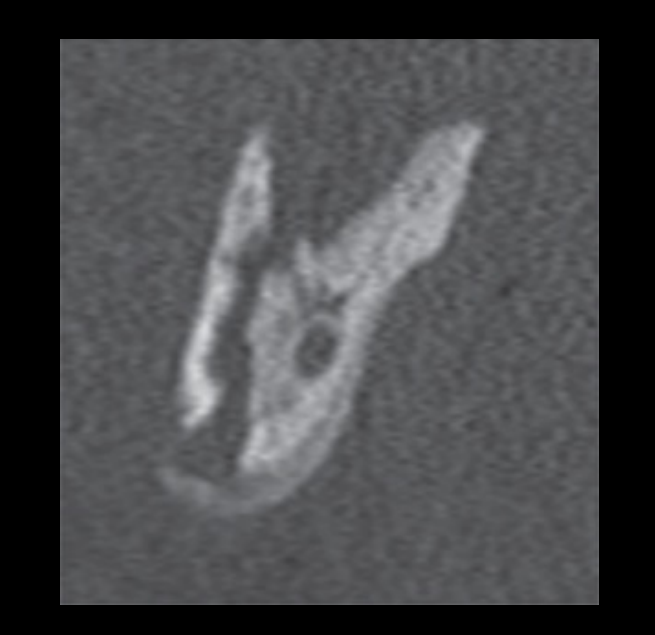

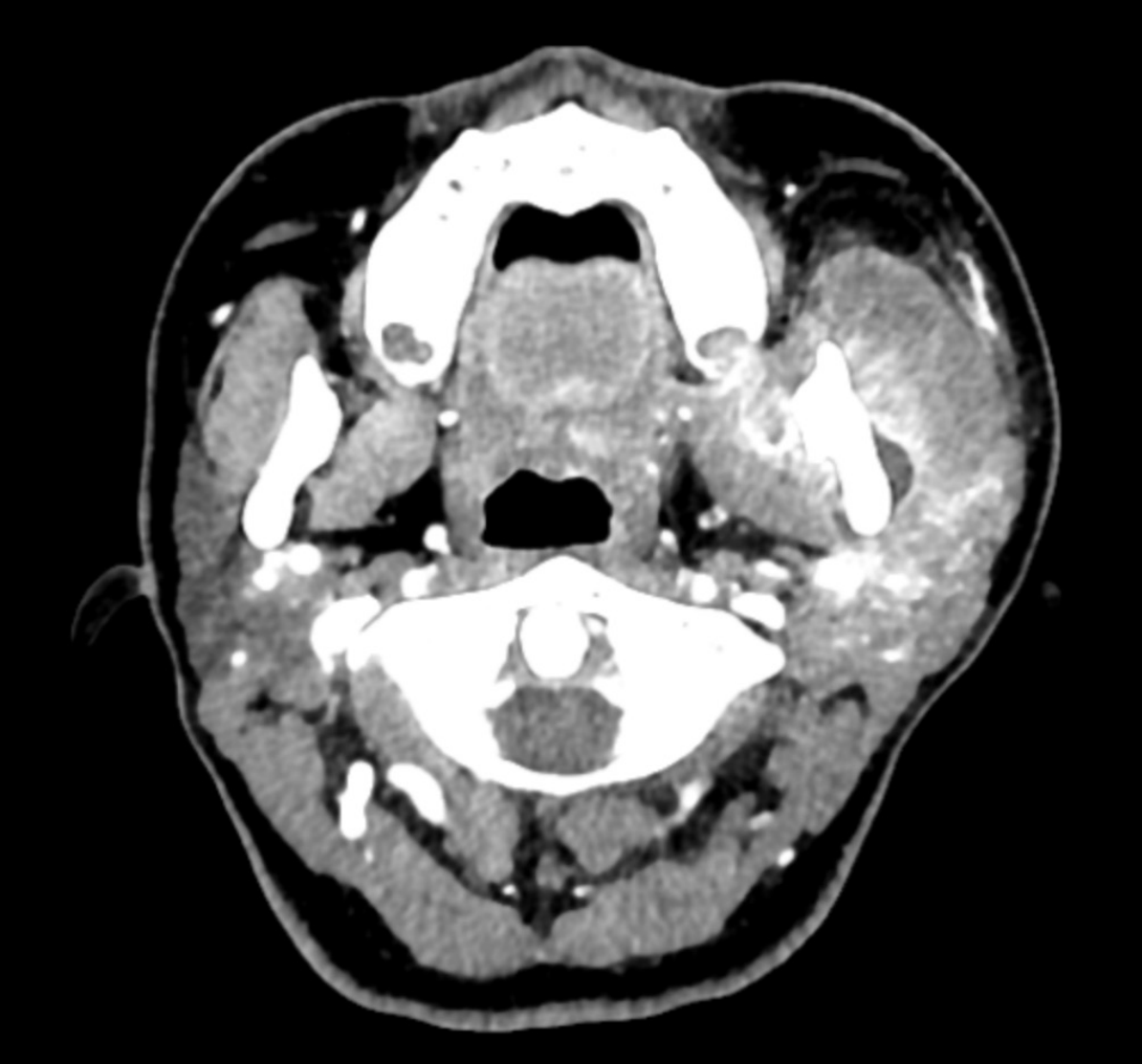

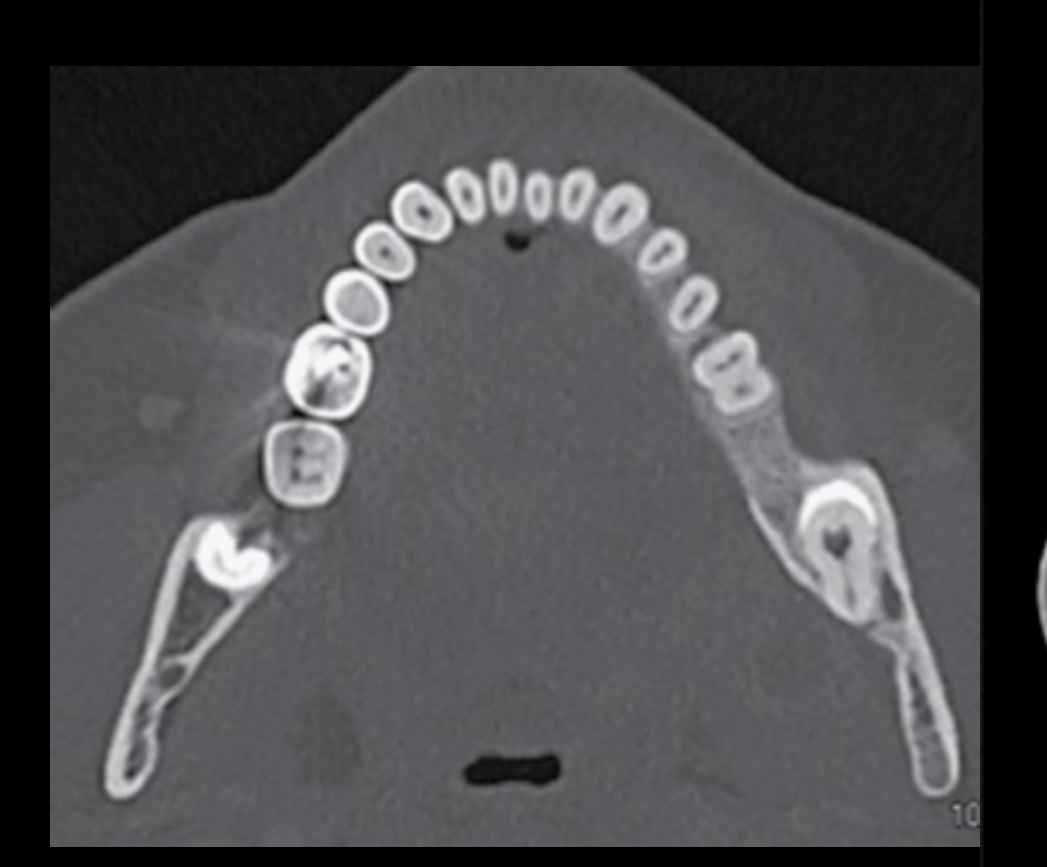

An axial CT showed widening of the periodontal ligament space associated with the mandibular second molar and a breach of the lingual cortex.

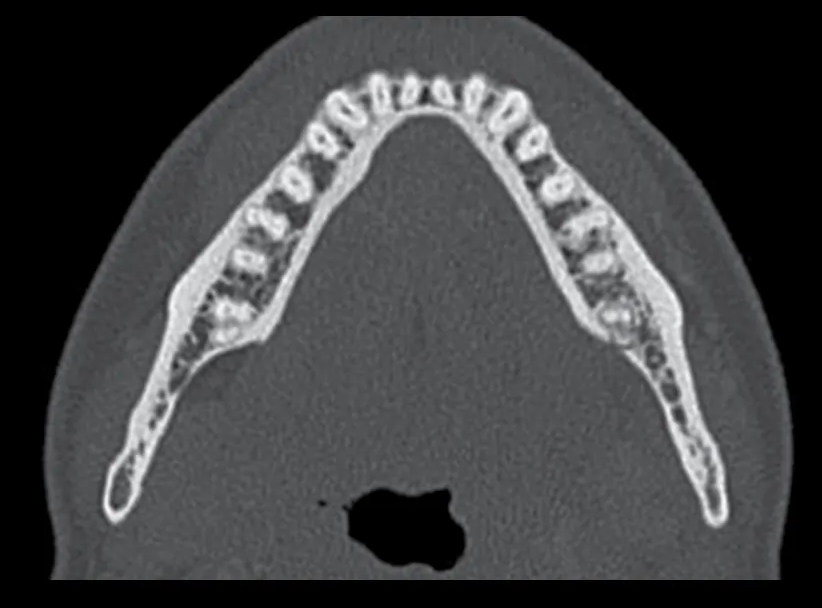

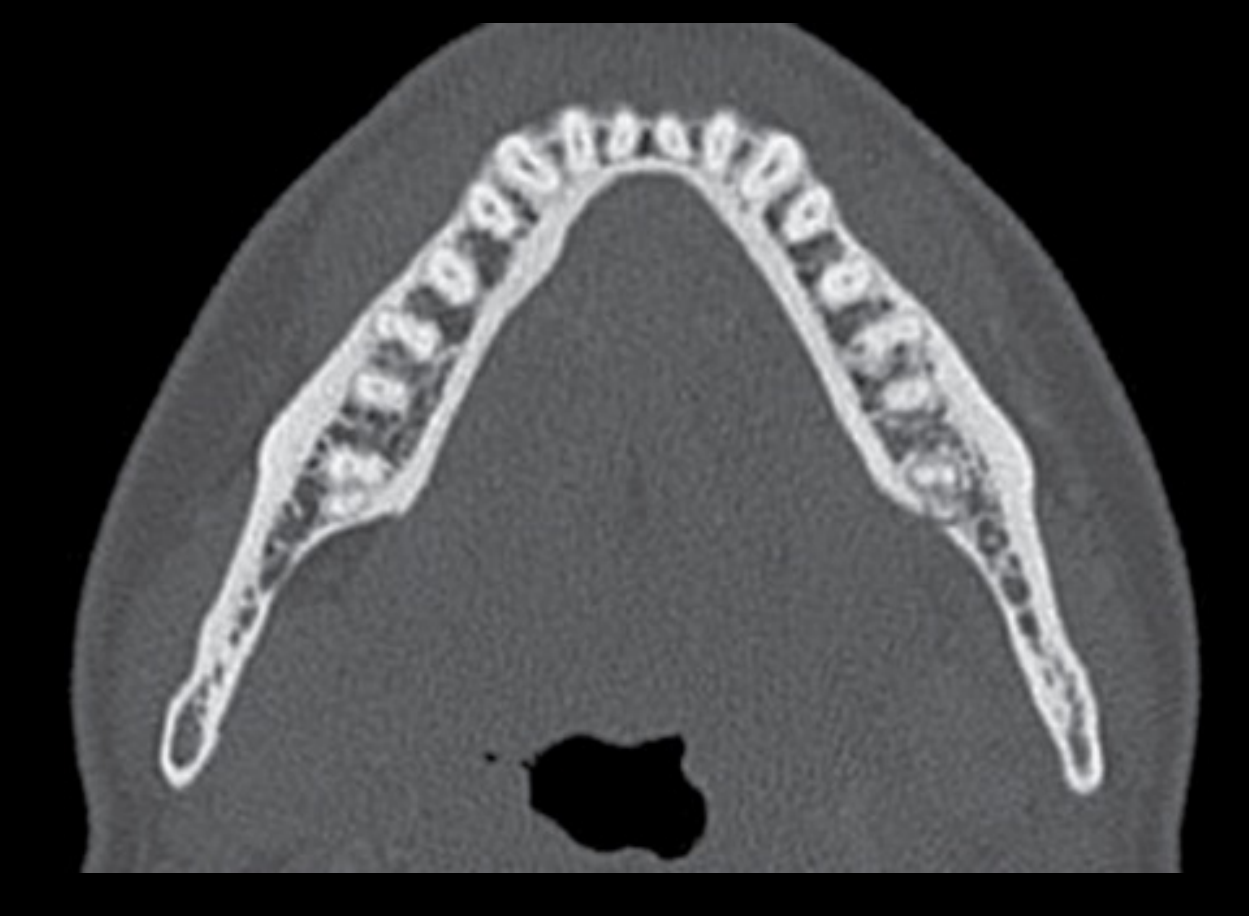

- On the bone window, the bony abnormality was limited.
- On the soft-tissue window, extensive swelling and inflammatory oedema were visible.
- The swelling caused medial displacement of the airway and narrowing in that region.

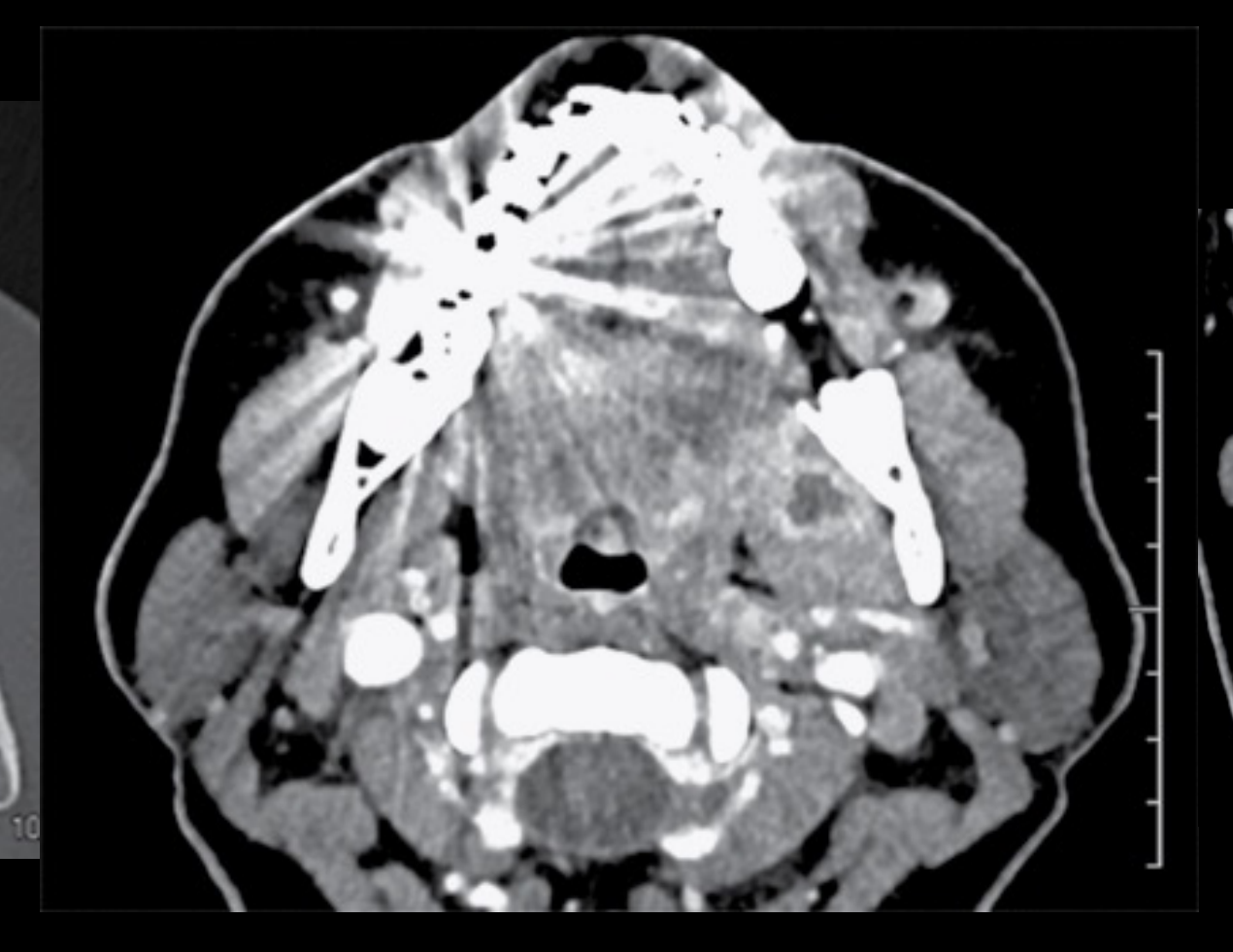

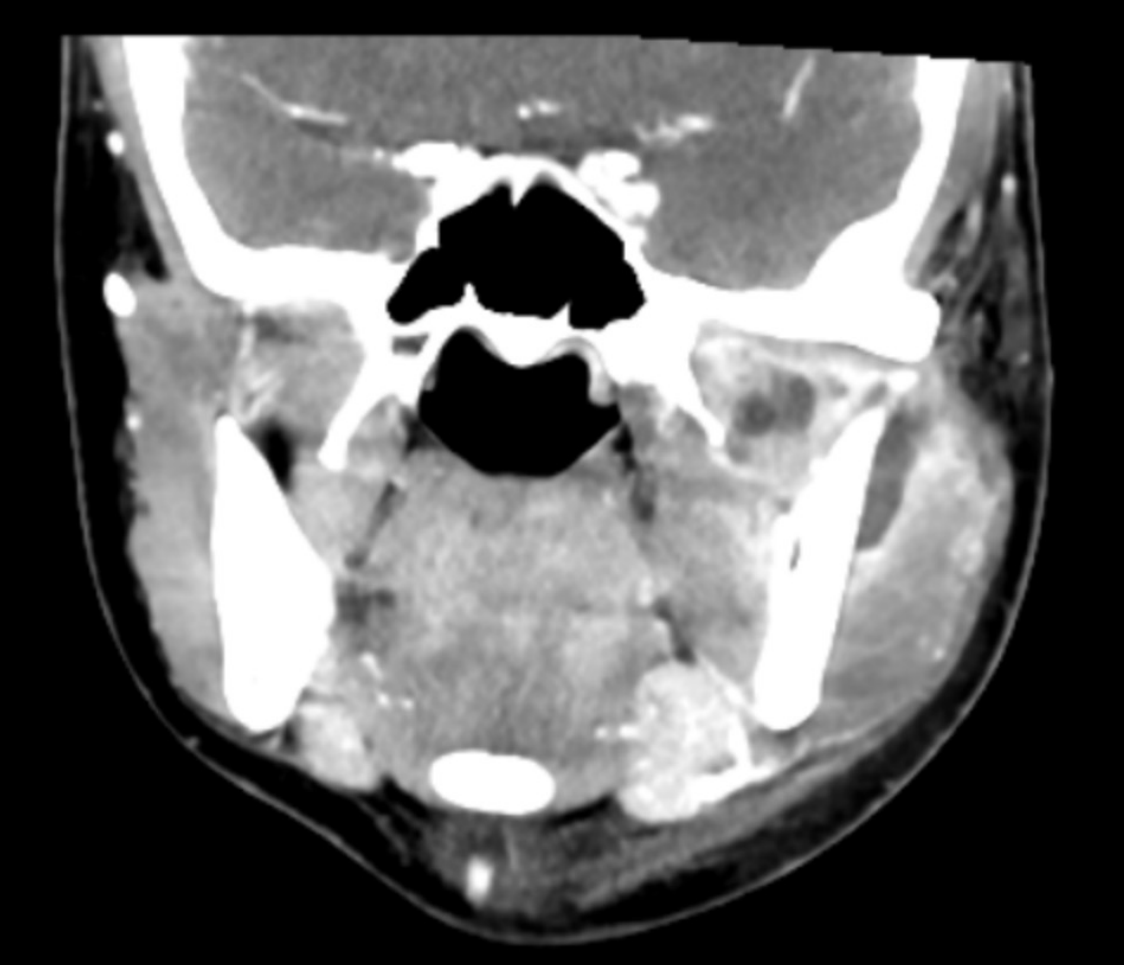

Abscess + rim contrast; thickened medial pterygoid
Post 28 & 38 Exo — Infection
Maxillary Molar Infection with Abscess Formation
An initial OPG showed a periapical lucency associated with the upper first molar, while the sinus floor appeared relatively intact and the antrum relatively clear. CT soft-tissue windows then demonstrated marked cheek thickening and dirty fat caused by inflammatory oedema.
- Contrast-enhanced CT showed an abscess collection with rim enhancement.
- The medial pterygoid muscle was markedly thickened because of inflammatory swelling.

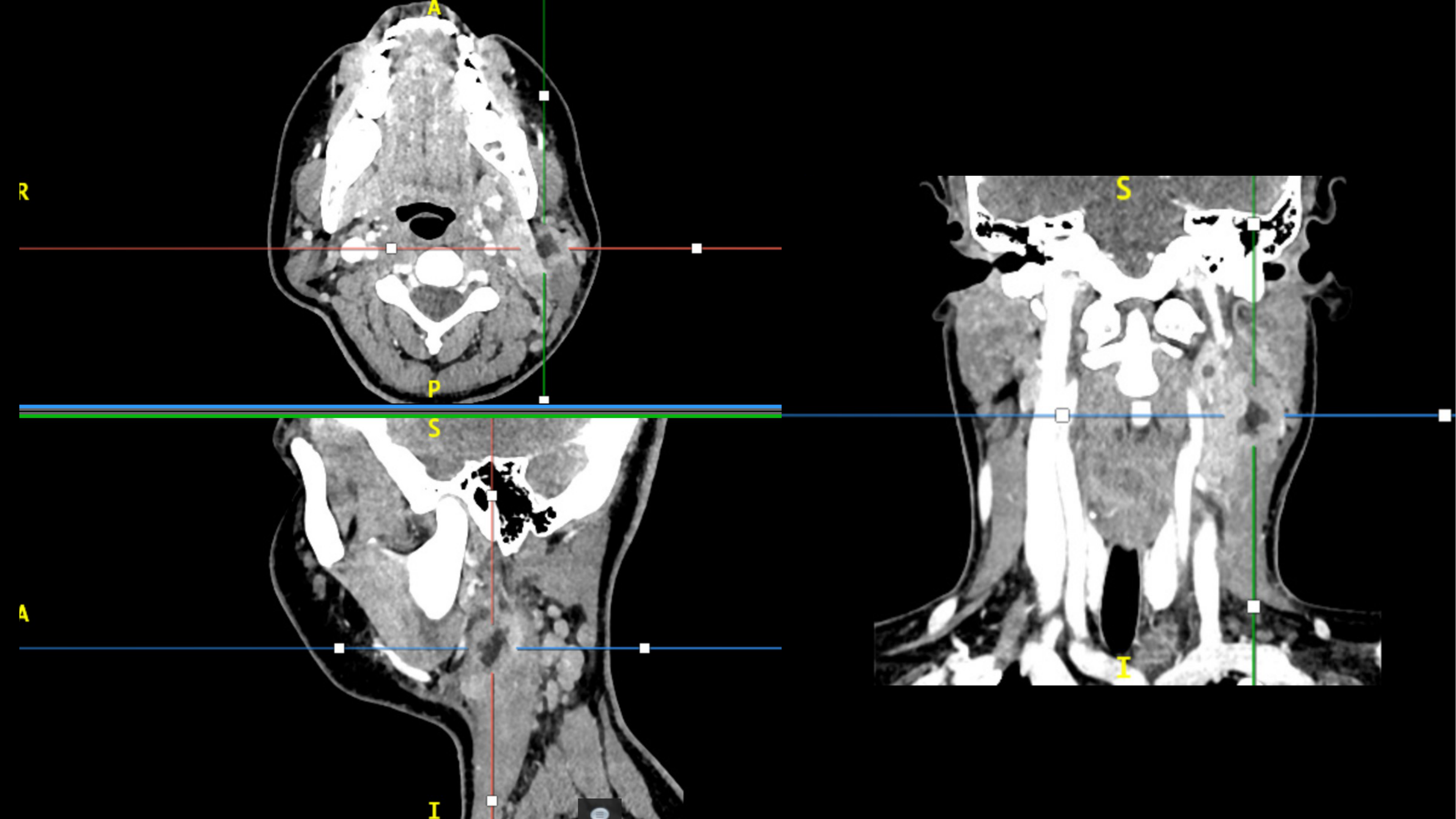

Deep Cervical Spaces33

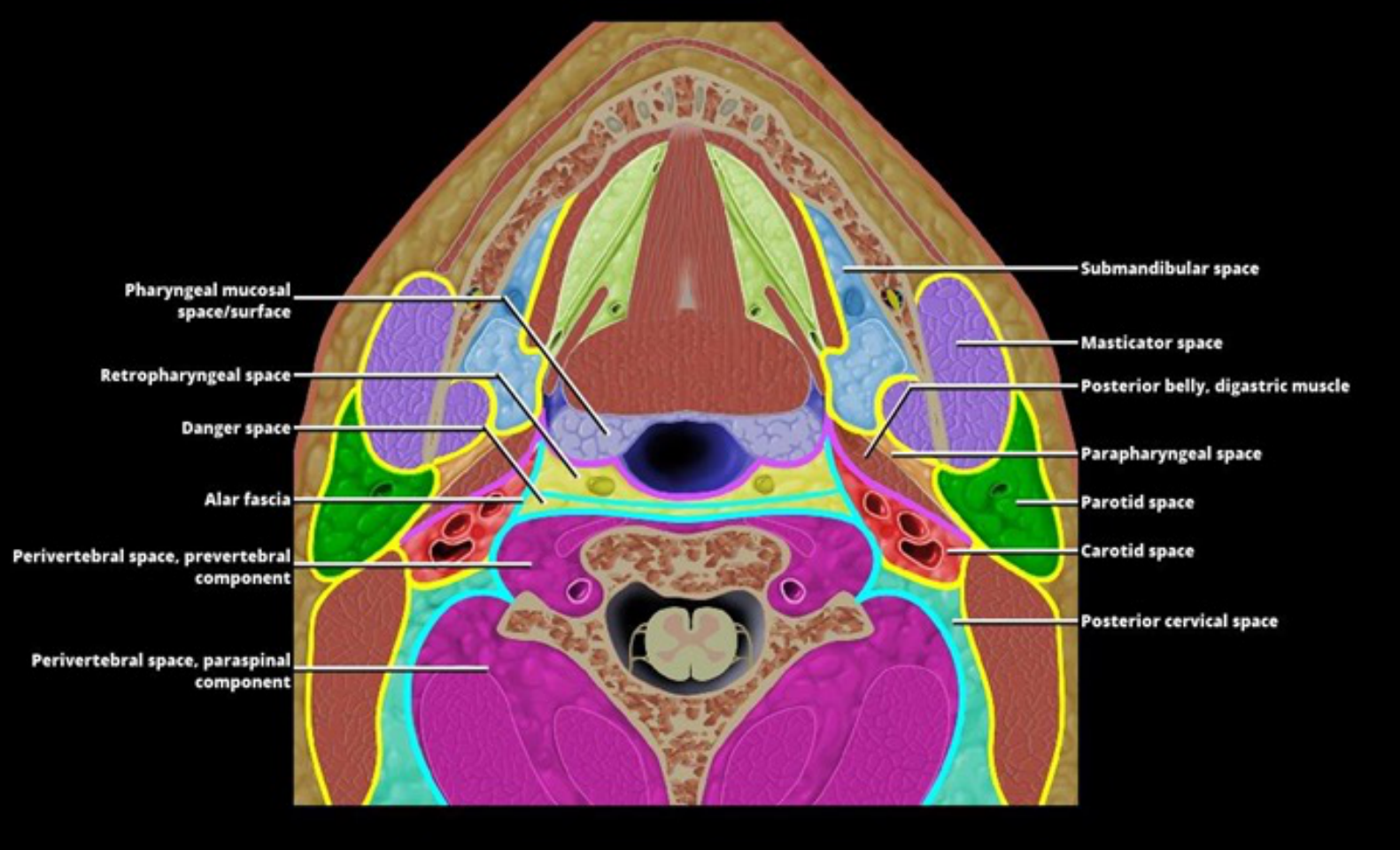

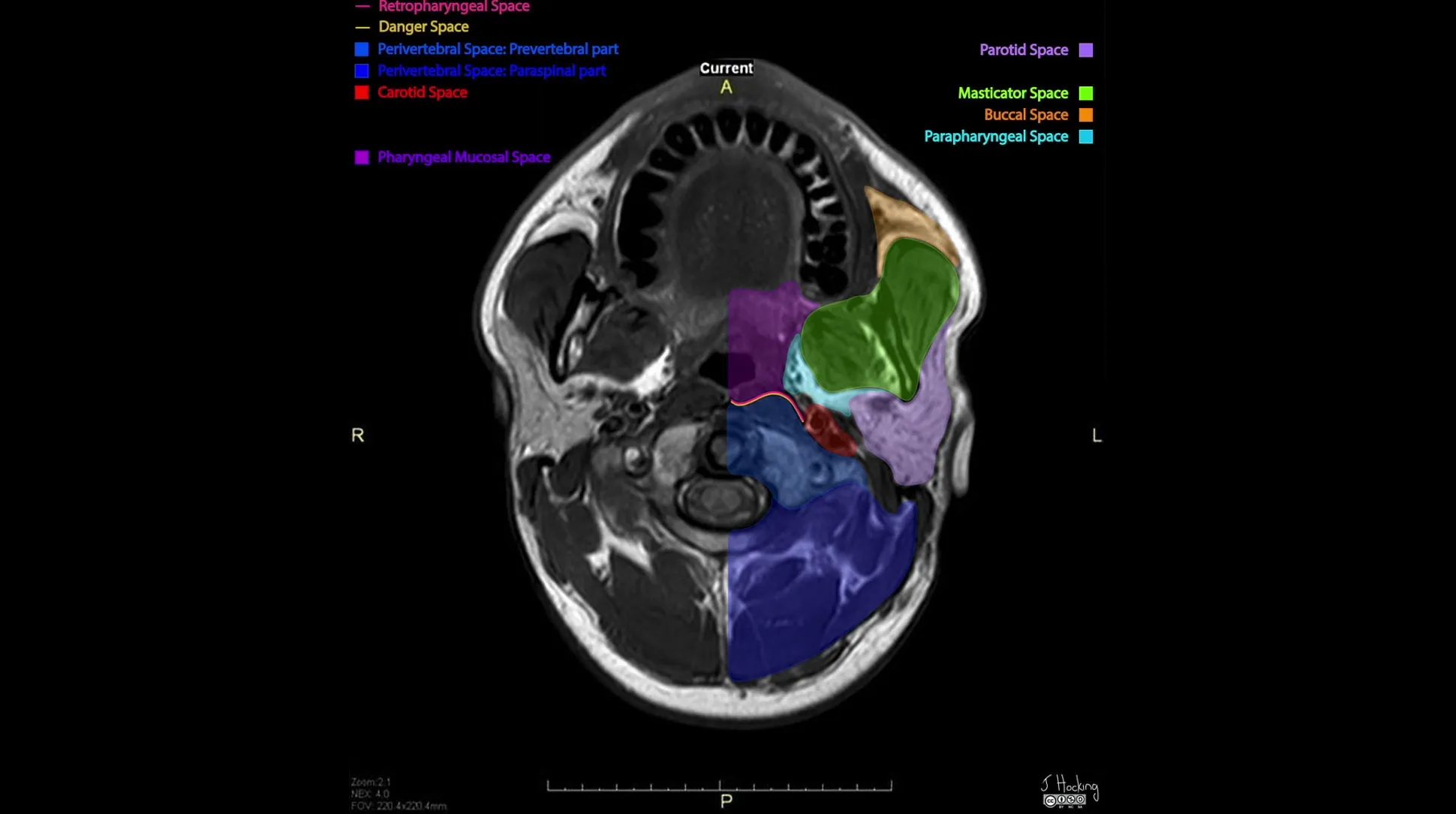

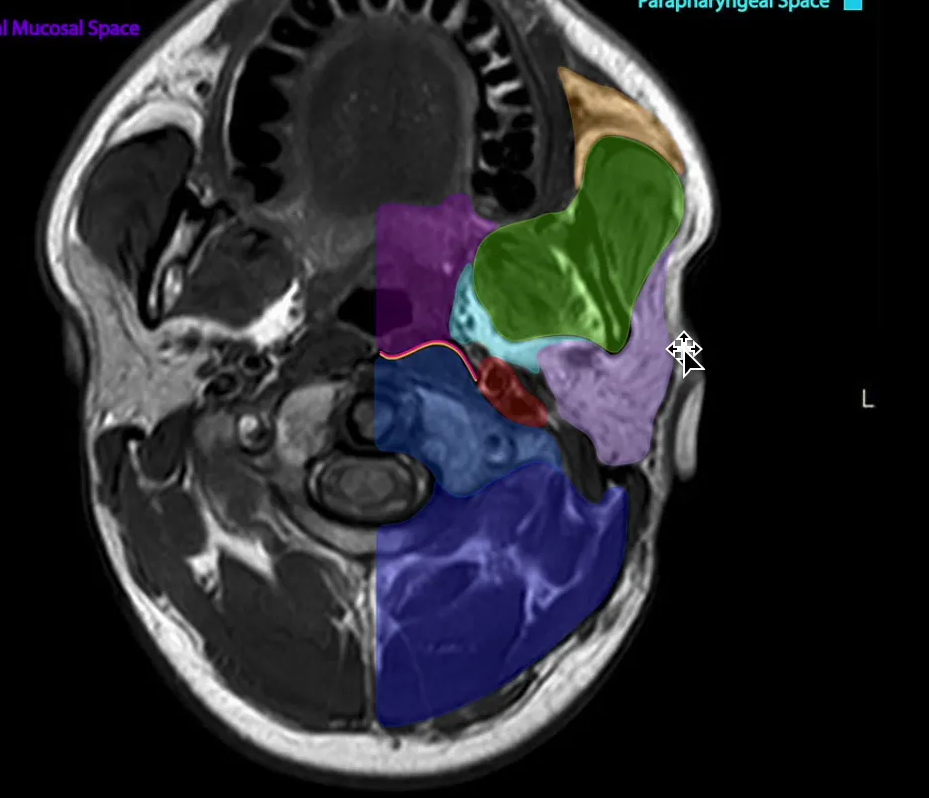

Anatomical Spaces and Fascia34
-
Pharyngeal mucosal space/surface
-
Retropharyngeal space
-
Danger space
-
Alar fascia
-
Perivertebral space, prevertebral component
-
Perivertebral space, paraspinal component
-
Submandibular space
-
Masticator space
-
Posterior belly, digastric muscle
-
Parapharyngeal space
-
Parotid space
-
Carotid space
-
Posterior cervical space
-
Buccal space
-
Cervical chain region
![]() | ![]() |
Nodal Levels
- Ia — Submental
- Ib — Submandibular
- IIa — Upper jugular (anterior)
- IIb — Upper jugular (posterior)
- III — Mid jugular
- IVa — Lower jugular
- IVb — Medial supraclavicular
- Va — Upper posterior triangle
- Vb — Lower posterior triangle
- Vc — Lateral supraclavicular
- VIa — Anterior jugular
- VIb — Para-tracheal
- VIIa — Retropharyngeal
- VIIb — Retro-styloid
- VIII — Parotid
- IX — Bucco-facial
- Xa — Retro-auricular
- Xb — Occipital

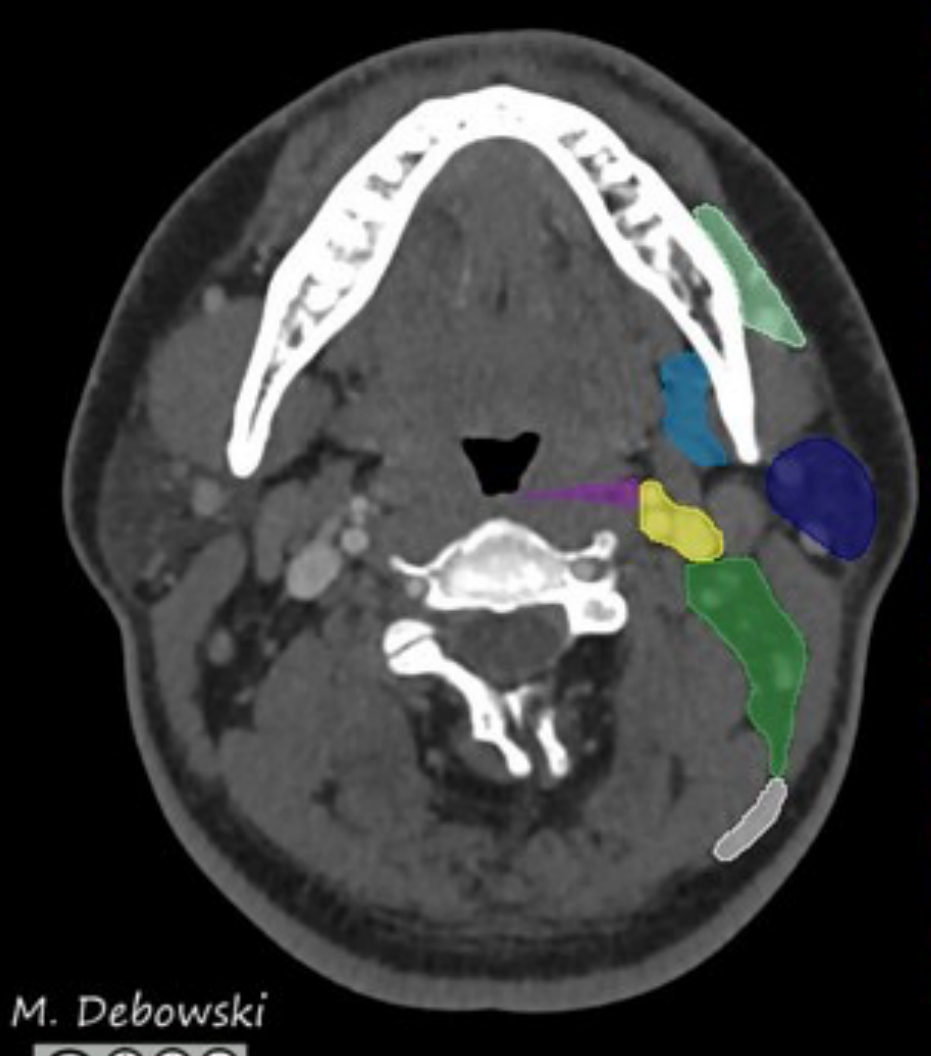

M. Debowski — STAT

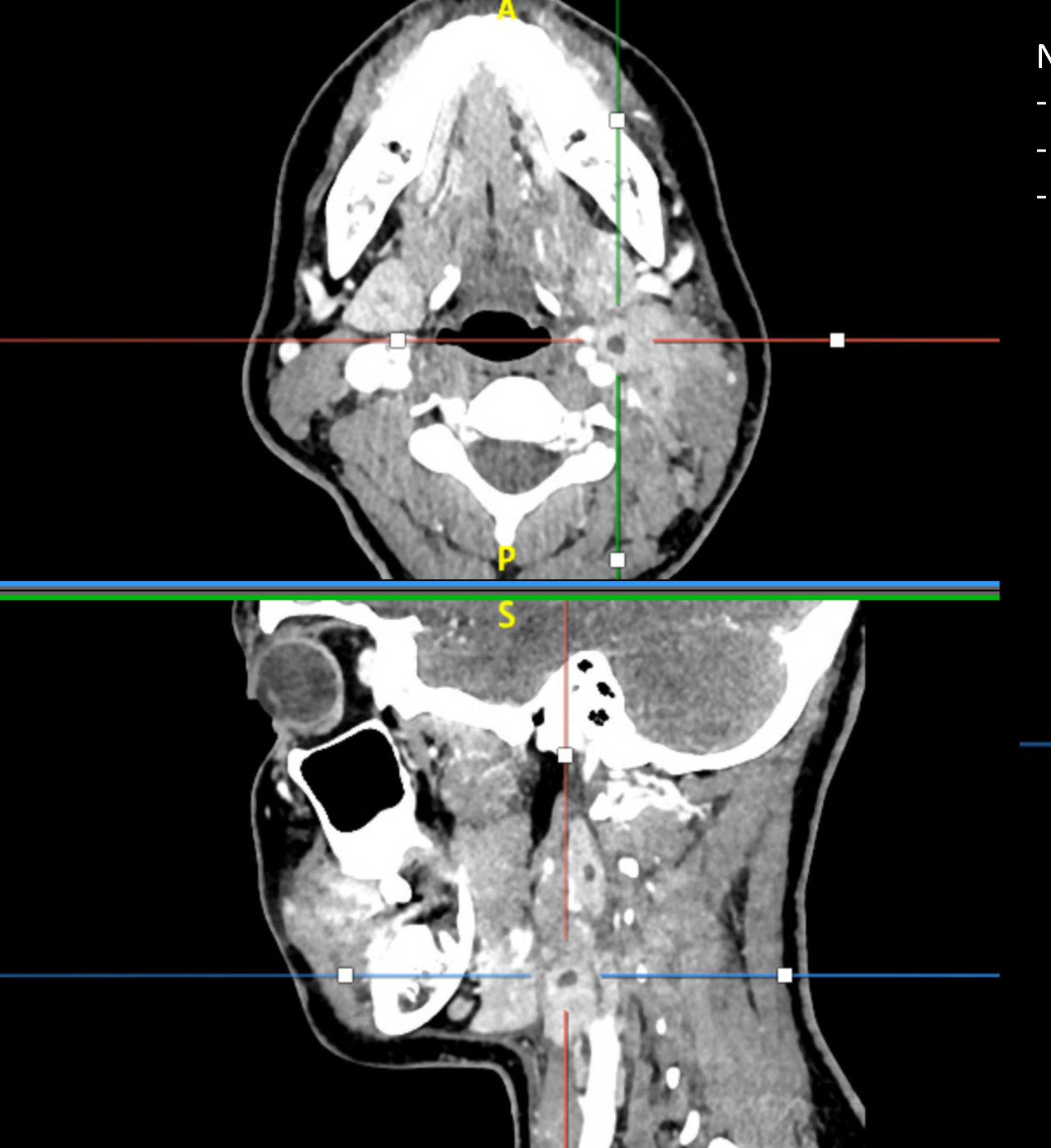

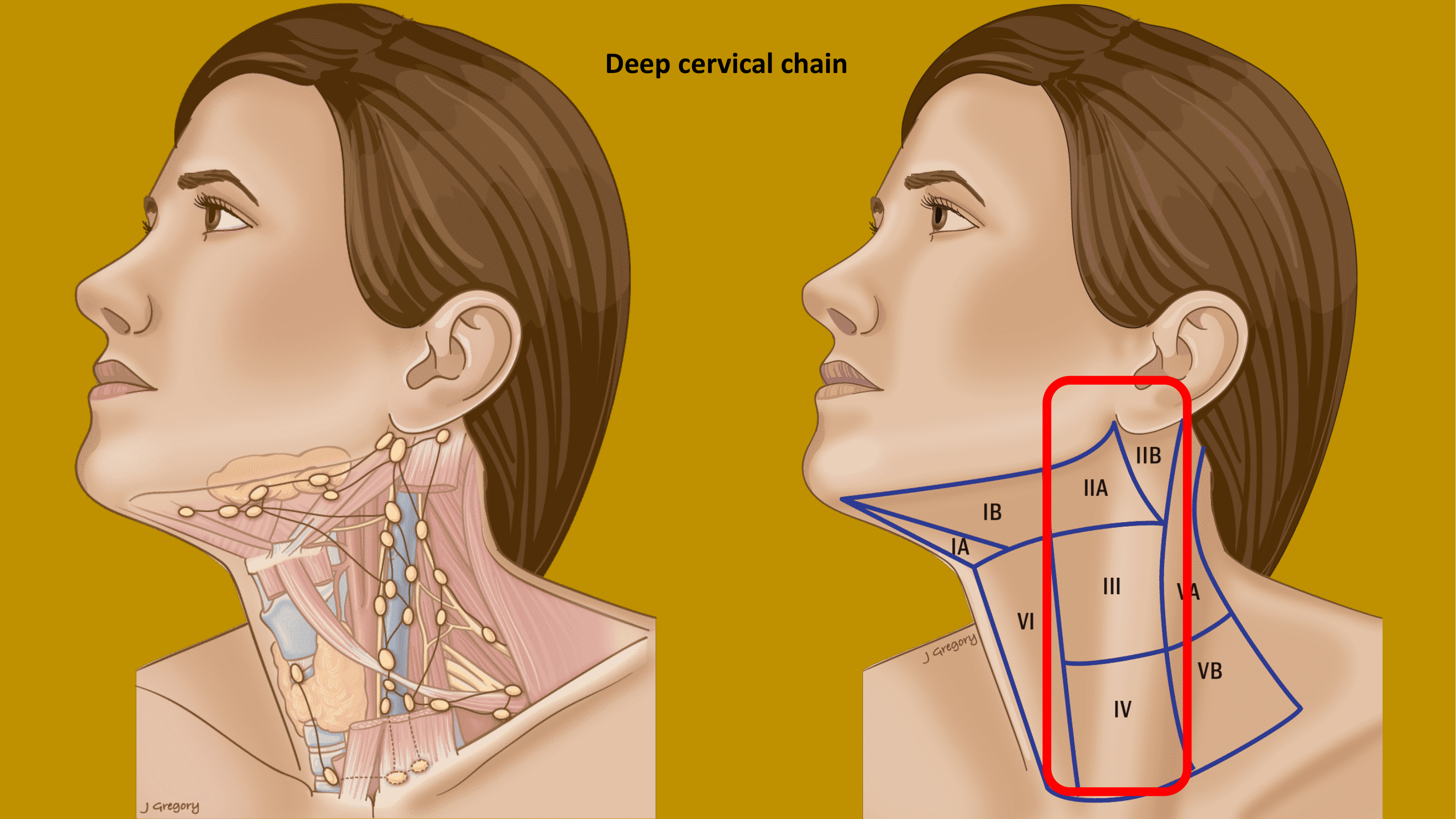

Deep cervical chain35
Lecturer — Cervical Chain Infection
Infection in the deep cervical chain may show fluid collection, abscess formation, thickening of adjacent tissues and extensive oedema. It may also involve the sternocleidomastoid muscle and produce inflammatory change related to a dental extraction socket.

Case Examples3637383940
Necrotic mass with multiple foci of fluid collection:
-
posterior to the submandibular gland
-
superficial to the carotid sheath
-
anterior to the sternocleidomastoid muscle
-
Medial to the lateral pterygoid muscle
-
Lateral to the masseter
-
Deep to the masseter
-
Extending into the temporomandibular joint
Post-Extraction Infection Involving the Cervical Chain
The patient developed pain and neck swelling after third molar extraction. Imaging showed open upper and lower third-molar sockets without significant lytic bone change or resorption; air within the sockets was attributed to the recent extractions.
- Soft-tissue windows demonstrated marked thickening and a fluid collection in the neck involving the sternocleidomastoid muscle and cervical chain.
- The necrotic mass contained multiple foci of fluid representing pus and was associated with the lower third-molar socket.
- A separate buccal-space abscess was present in relation to the upper third-molar socket, producing two sites of soft-tissue infection.






Cellulitis41
Post 8’s Exo Infection Pt 2.
- Multiple foci of collection in the left masticator space — medial pterygoid, lateral pterygoid and deep portion of the masseter — and direct extension into the left temporomandibular joint
- Oedema of affected muscles of mastication
- Thickening of platysma muscle
- Subcutaneous fat stranding / oedema
- Fat stranding in left submandibular space. Reactive nodes (1B)
- Parapharyngeal & pharyngeal mucosal spaces are normal
Lecturer — Facial Cellulitis Outcome
In this case, the extensive facial swelling and abscess formation did not compromise the airway. The example demonstrated that jaw infections may extend beyond bone into multiple facial and cervical spaces, making accurate imaging selection and a thorough understanding of CT anatomy important.
End.
Clinical Cases
Case: Multiple root remnants with periapical lesions and maxillary sinus periostitis
Question
Scenario: An exhibit showing multiple decoronated teeth or root remnants with associated periapical inflammatory lesions.
What’s shown: Periapical radiographs showing root remnants with periapical lucencies. The maxillary sinus floor is well corticated in one area but lifted and sclerosed in relation to the inflammatory lesion, with reactive change within the antrum.
Consider: Identify the changes in the maxillary sinus floor related to the adjacent periapical inflammatory lesions.

Answer
Observations:
- Multiple decoronated teeth or root remnants with associated periapical inflammatory lesions.
- The maxillary sinus floor is lifted and sclerosed in relation to the inflammatory lesion.
- Reactive change within the antrum.
Reasoning: The lifting and mild sclerosis of the maxillary sinus floor related to adjacent periapical inflammatory lesions represents a periosteal reaction, also known as periostitis.
Takeaway: Changes in the maxillary sinus floor related to adjacent periapical inflammatory lesions are called periosteal reaction or periostitis.
Case: Heavily restored molar with periapical and furcation lucencies
Question
Scenario: A periapical radiograph of a heavily restored mandibular molar (tooth 36) showing evidence of commenced endodontic therapy.
What’s shown: A well-defined periapical lucency related to the distal root with surrounding sclerosis. The mesial root shows widening of the apical periodontal ligament space. There is another lucency centered upon the furcation region, not the apical foramen.
Consider: Determine the cause of the localized bone loss centered on the furcation region in this infected molar.


Answer
Observations:
- Well-defined periapical lucency related to the distal root with surrounding sclerosis.
- Widening of the apical periodontal ligament space on the mesial root.
- Localized bone loss (lucency) centered on the furcation region.
- Evidence of commenced endodontic therapy.
Reasoning: While furcation bone loss in a periodontally diseased case would suggest a periodontal defect, this localized bone loss centered on the furcation of an infected molar with commenced endodontic therapy is often an inflammatory lesion associated with an undisplaced vertical root fracture or a root crack.
Takeaway: Localized furcation bone loss in an infected, endodontically treated molar is often associated with an undisplaced vertical root fracture or root crack rather than periodontal disease.
Case: OPG showing multiple root remnants, inflammatory lesions, and sinus periostitis
Question
Scenario: An OPG providing an overview of multiple heavily compromised teeth.
What’s shown: Multiple root remnants with associated inflammatory lesions and sclerotic changes indicating a chronic response. On the right, there is disruption of the sinus floor with mucosal changes. On the left, the sinus floor is intact but shows reactive mucosal thickening.
Consider: Identify the inflammatory changes and their effects on the surrounding structures, including the maxillary sinus.

Answer
Observations:
- Multiple root remnants with associated periapical inflammatory lesions.
- Sclerotic changes indicating a chronic inflammatory response.
- Disruption of the right maxillary sinus floor with mucosal changes.
- Reactive mucosal thickening within the left maxillary sinus with an intact floor.
Reasoning: The sclerotic changes represent a chronic response to the inflammatory lesions around the root remnants. The mucosal changes and disruption of the sinus floor on the right, along with reactive mucosal thickening on the left, indicate periostitis secondary to the inflammatory lesions related to the maxillary teeth.
Takeaway: OPGs are useful for providing an overview of multiple inflammatory lesions and their secondary effects, such as sinus periostitis.
Case: Painful upper central incisor with PA and CBCT findings
Question
Scenario: A patient with a painful upper central incisor (tooth 11). Initial 2D imaging was inconclusive.
What’s shown: A periapical radiograph showing apparent widening of the distal PDL space, which is actually a lucency related to the projection of the incisive canal. A CBCT scan reveals a tiny apical lucency and perforation of the overlying labial cortex.
Consider: Explain the discrepancy between the 2D periapical radiograph and the CBCT findings for this painful tooth.
Answer
Observations:
- PA radiograph shows apparent widening of the distal PDL space, which is an artifact of the incisive canal projection.
- CBCT reveals a tiny apical lucency not visible on the 2D image due to projection angle.
- CBCT shows perforation of the overlying labial cortex.
Reasoning: 2D imaging like PAs can be inconclusive or misleading due to the angle of beam projection (e.g., superimposition of the incisive canal). CBCT provides 3D imaging not governed by projection angles, revealing hidden apical lucencies and cortical perforations.
Takeaway: CBCT is indicated when 2D imaging is inconclusive, as it can reveal hidden apical lucencies and cortical perforations obscured by projection angles on periapical radiographs.
Case: Heavily restored upper posterior teeth, OPG and CBCT
Question
Scenario: Heavily restored upper posterior teeth (15, 16, 17) evaluated on OPG and CBCT due to inconclusive 2D imaging.
What’s shown: OPG shows opaque superimposition of structures. CBCT coronal view shows the sinus floor and adjacent bone.
Consider: Identify the cause of the sinus changes and the nature of the lesion on the CBCT.




Answer
Observations:
- OPG shows heavy restorations and opaque superimposition, obscuring apical details.
- CBCT reveals an apical lucency, effacement and perforation of the sinus floor, and reactive mucosal thickening within the sinus.
- Sclerotic change around the lucency and root resorption are also present.
Reasoning: The lesion has perforated the sinus floor, causing perisinusitis. The presence of sclerotic change and root resorption indicates that this is a chronic stage of an inflammatory lesion.
Outcome: Chronic inflammatory lesion with sinus floor perforation and perisinusitis.
Takeaway: CBCT is indicated when 2D imaging is inconclusive, as it can reveal hidden apical lucencies, sinus floor perforation, and chronic inflammatory changes obscured by superimposition.
Case: MSCT of paranasal sinuses showing severe sinusitis
Question
Scenario: MSCT scan of the paranasal sinuses evaluated for sinus inflammation.
What’s shown: Coronal MSCT showing the maxillary sinus and its draining pathway.
Consider: Identify the severity and origin of the sinus condition.

Answer
Observations:
- The maxillary sinus is completely opacified with reactive mucosal thickening.
- The draining pathway is completely obstructed.
Reasoning: The complete opacification and obstruction of the draining pathway, arising from dental infection via sinus floor perforation, indicate severe unilateral odontogenic sinusitis.
Outcome: Severe unilateral odontogenic sinusitis.
Takeaway: Odontogenic sinusitis can cause complete opacification of the maxillary sinus and obstruction of the draining pathway.
Case: CBCT showing distally positioned lucency
Question
Scenario: CBCT of the anterior mandible evaluated for a non-apical radiolucency.
What’s shown: Sagittal CBCT showing a lucency positioned distally to the tooth apex.
Consider: Identify the source of this non-apical inflammatory lesion.
Answer
Observations:
- The lucency is distally positioned, not centered on the apical foramen.
Reasoning: The location of the lucency indicates it is related to a lateral canal rather than the main apical foramen.
Outcome: Periradicular inflammatory lesion originating from a lateral canal.
Takeaway: Not all odontogenic infections are centered at the apex; they can originate from lateral canals.

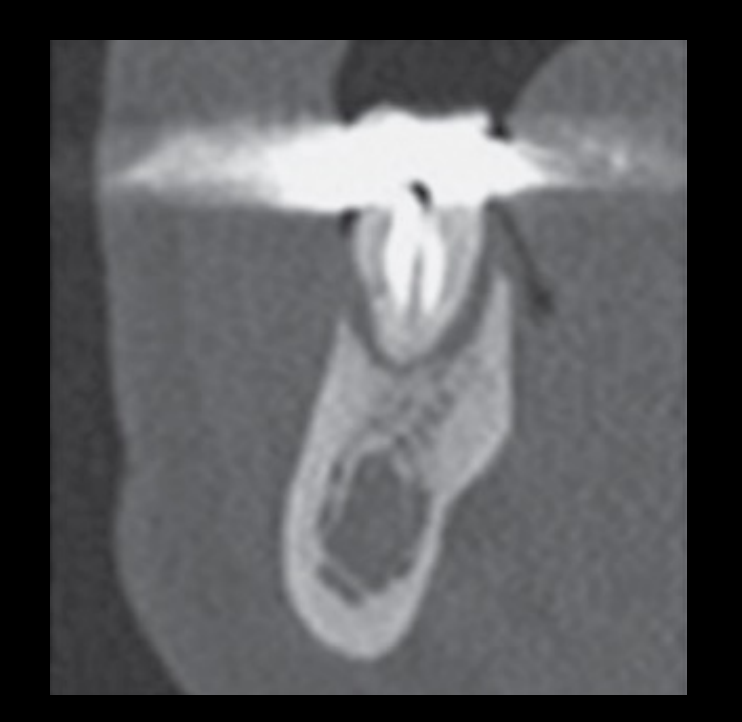

Case: CBCT showing palatally running tooth fracture
Question
Scenario: CBCT of a tooth evaluated for localized palatal periodontal changes.
What’s shown: Coronal CBCT showing a radiolucent line extending towards the palatal vault.
Consider: Identify the cause of the localized palatal PDL space thickening.
Answer
Observations:
- A radiolucent line runs all the way to the palatal vault.
- Localized palatal PDL space thickening is present.
Reasoning: The line represents a palatally running tooth fracture, which is causing localized periradicular periodontitis rather than apical periodontitis.
Outcome: Periradicular periodontitis due to a palatally running tooth fracture.
Takeaway: Tooth fractures can cause localized periradicular inflammatory lesions that are not centered at the apex.
Case: CBCT of endodontically treated tooth with palatal lucency
Question
Scenario: CBCT of an endodontically treated tooth evaluated for a persistent palatal lesion.
What’s shown: Coronal CBCT showing a tiny lucency on the palatal aspect of the tooth.
Consider: Identify the source of the palatal periradicular inflammatory lesion.
Answer
Observations:
- A tiny lucency is present on the palatal side of an endodontically treated tooth.
Reasoning: The persistent palatal lesion is presumably related to a very small, unseen lateral canal on the palatal aspect.
Outcome: Palatal periradicular inflammatory lesion.
Takeaway: Persistent palatal lesions in endodontically treated teeth may be due to small, unseen lateral canals.
Case: CBCT showing vertical bone loss from root fracture
Question
Scenario: CBCT of an endodontically treated tooth evaluated for buccal and lingual bone loss.
What’s shown: CBCT showing buccal and lingual periradicular lesions and isolated vertical bone loss.
Consider: Identify the cause of the isolated vertical bone loss adjacent to the root.



Answer
Observations:
- Buccal and lingual periradicular inflammatory lesions are present.
- Isolated vertical bone loss is seen adjacent to the root.
Reasoning: Isolated vertical bone loss adjacent to a root is a classic sign of a root fracture.
Outcome: Periradicular inflammatory lesions due to a root fracture.
Takeaway: Isolated vertical bone loss adjacent to a root is highly indicative of a root fracture.
Case: OPG showing lucencies adjacent to bone islands
Question
Scenario: Cropped OPG of the posterior mandible showing apparent periapical lucencies.
What’s shown: OPG showing lucencies adjacent to opaque structures, with intact lamina dura and PDL spaces.
Consider: Determine if the lucencies represent inflammatory lesions or artifacts.
Answer
Observations:
- Lucencies are seen adjacent to opacities.
- Lamina dura and PDL spaces are intact.
- Dense bone islands and the lingual concavity of the submandibular fossa are present.
Reasoning: Intact lamina dura and PDL spaces rule out inflammatory lesions. The lucencies are artifactual, caused by the contrast of adjacent dense bone islands and the anatomical concavity of the submandibular fossa.
Outcome: Bone islands and anatomical concavities causing artifactual lucencies.
Takeaway: Always check the lamina dura and PDL space; intact structures suggest artifactual lucencies from adjacent dense bone or anatomical concavities rather than inflammatory lesions.

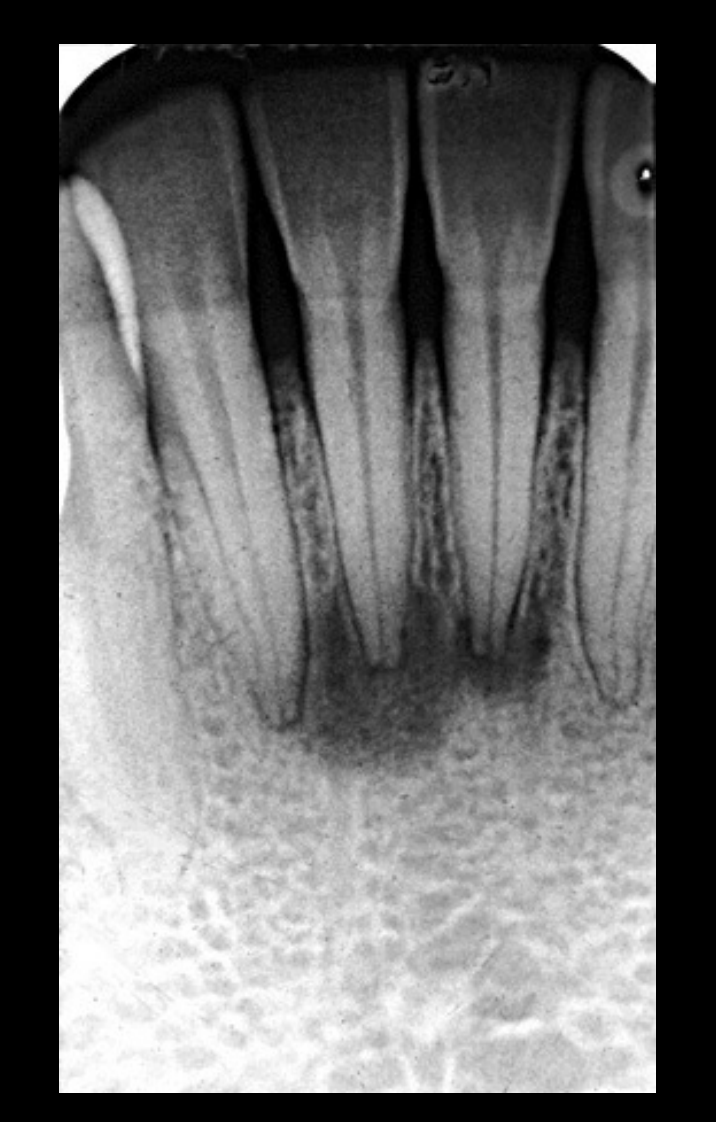

Case: Periapical radiograph of lower anterior teeth with cemento-osseous dysplasia
Question
Scenario: Periapical radiograph of lower anterior teeth showing periapical lucencies.
What’s shown: Radiograph showing periapical lucencies with some remaining bone density, and intact PDL spaces and lamina dura.
Consider: Determine if the periapical lucencies are inflammatory lesions.


Answer
Observations:
- Periapical lucencies are present with some bone remaining inside.
- PDL spaces are intact, and lamina dura is partially intact.
Reasoning: The presence of bone within the lucency and intact PDL/lamina dura indicate they are not inflammatory lesions. They are fibro-osseous lesions (cemento-osseous dysplasia) that mimic periapical inflammatory lesions but are benign and not related to pulp necrosis.
Outcome: Cemento-osseous dysplasia (benign fibro-osseous lesion).
Takeaway: Not all periapical lucencies are inflammatory; cemento-osseous dysplasia mimics them but requires no treatment unless secondarily infected.
Case: Dental radiograph showing ameloblastoma mimicking periapical lesion
Question
Scenario: Dental radiograph showing a periapical lucency with multiple densities.
What’s shown: Radiograph showing multiple lucencies combined with different densities, and evidence of previous endodontic therapy.
Consider: Determine if the lesion is a periapical inflammatory lesion or something else.

Answer
Observations:
- Multiple lucencies with different densities are present.
- Evidence of previous endodontic therapy is visible.
Reasoning: The mixed densities and multiple lucencies indicate a tumor (ameloblastoma) rather than a simple inflammatory lesion. The previous endodontic therapy was likely done when it was smaller and mimicked an inflammatory lesion.
Outcome: Ameloblastoma (odontogenic tumor).
Takeaway: Small ameloblastomas can mimic periapical inflammatory lesions, leading to unnecessary endodontic treatment; always check vitality and look for mixed densities.

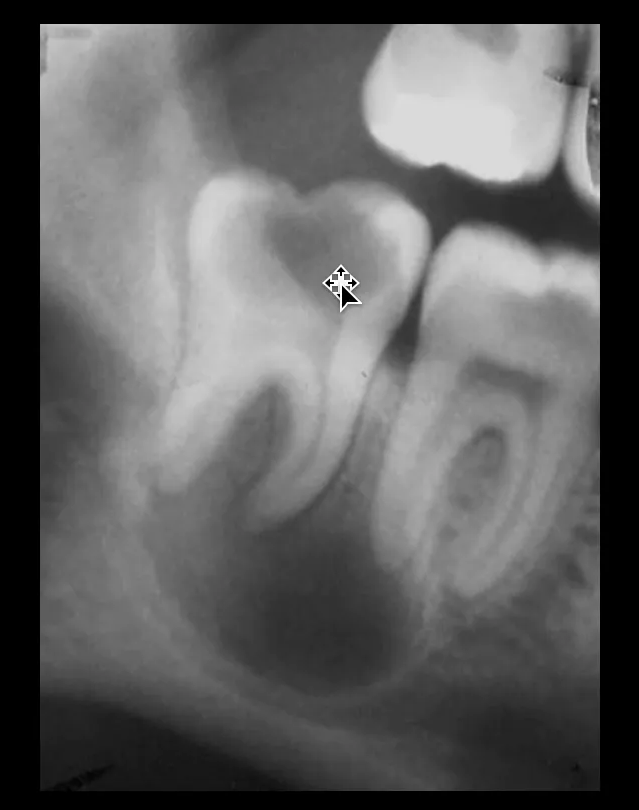

Case: Dental radiograph showing radicular cyst displacing mandibular canal
Question
Scenario: Dental radiograph showing a well-defined periapical lucency associated with a carious tooth.
What’s shown: Radiograph showing a well-defined periapical lucency, widened PDL space, missing lamina dura, and displacement of the mandibular canal.
Consider: Determine if the lesion is an inflammatory lesion or a cyst.

Answer
Observations:
- A well-defined periapical lucency is associated with a heavily carious tooth.
- The mandibular canal is heavily displaced and compressed.
Reasoning: While derived from an inflammatory response, the heavy displacement and compression of the mandibular canal indicate cystic activity (hydraulic pressure), distinguishing it from a simple abscess or granuloma.
Outcome: Radicular cyst.
Takeaway: Displacement and compression of adjacent structures like the mandibular canal is a classic sign of cystic activity due to hydraulic pressure, distinguishing cysts from simple inflammatory lesions.
Case: Pediatric osteomyelitis, CT scan showing periosteal reaction
Question
Scenario: An axial CT scan of a child with osteomyelitis is presented to evaluate periosteal changes.
What’s shown: An axial CT scan slice demonstrating periosteal reaction in a pediatric patient.
Consider: Identify the characteristics of the periosteal reaction in children compared to adults.
Answer
Observations:
- The periosteal reaction is much thicker than in adults.
- It appears multilayered, resembling an “onion skin” pattern.
Reasoning: In children, the periosteum is thicker, more vascular, more active, and loosely attached due to growth. This leads to a more vigorous and multilayered (onion skin) periosteal response to infection.
Takeaway: Pediatric osteomyelitis often presents with a thick, multilayered “onion skin” periosteal reaction due to the highly active periosteum in growing children.
Case: Adult osteomyelitis, CT scans showing periosteal reaction and soft tissue swelling
Question
Scenario: CT scans of an adult patient with osteomyelitis are presented to evaluate periosteal and soft tissue changes.
What’s shown: Axial CT scans demonstrating periosteal reactions and overlying soft tissue.
Consider: Identify the type of periosteal reaction and the soft tissue findings associated with adult osteomyelitis.
Answer
Observations:
- Periosteal reaction is single-layered and solid, appearing very thin in some areas and thick in others.
- Normal soft tissue detail covering the bones, muscles, and subcutaneous fat is lost.
- The soft tissue appears as a single lump due to active swelling.
Reasoning: In adults, the periosteum is thinner, less active, and firmly attached to the bone, resulting in single-layer and solid types of periosteal reactions. The loss of normal soft tissue planes and the lump-like appearance indicate active soft tissue swelling secondary to the infection.
Takeaway: Adult osteomyelitis typically presents with single-layer, solid periosteal reactions and active overlying soft tissue swelling on CT.
Case: Pathologic fracture secondary to osteomyelitis, CT and OPG
Question
Scenario: A patient presents with a pathologic fracture secondary to osteomyelitis. Lateral cephalometric radiograph and axial CT scans are reviewed.
What’s shown: A lateral cephalometric radiograph and an axial CT scan showing a mandibular defect, mixed radiolucent and radiopaque changes, soft tissue thickening, and small radiolucent dots.
Consider: Identify the bony and soft tissue features of osteomyelitis on CT compared to the OPG, and note any specific signs of bacterial activity.




Answer
Observations:
- A defect indicating a pathologic fracture is visible.
- Lytic and mixed lucent-sclerotic changes are present throughout the medullary bone.
- Soft tissue thickening is present, with a “dirty” appearance indicating soft tissue changes related to infection.
- Small black dots (air) are visible, indicating gas-producing bacteria.
- Minimal or no periosteal reaction is seen.
Reasoning: The CT scan provides more detail than the OPG, revealing not just the fracture and mixed density, but also the extent of medullary lytic changes, soft tissue involvement, and the presence of gas from bacteria. The lack of periosteal reaction highlights the variability of host response, which can be minimal or absent in elderly patients or depending on the individual.
Takeaway: CT imaging in osteomyelitis with pathologic fracture reveals medullary lytic changes, soft tissue swelling, and gas from bacteria, while periosteal reactions may be minimal or absent depending on the patient’s age and host response.
Case: Axial CT of mandibular infection, bone and soft tissue windows
Question
Scenario: A patient with a suspected mandibular infection is evaluated using an axial CT scan.
What’s shown: Bone window and soft tissue window of the same axial CT scan.
Consider: Identify the bony findings and the additional soft tissue changes revealed by altering the scan windowing.

Answer
Observations:
- Bone window: Widened PDL space related to tooth 37, breach of the lingual cortical bone, and some medial movement of the soft tissue.
- Soft tissue window: Loss of normal fat density, replaced by inflammation and edema within the space, causing significant swelling and medial displacement with narrowing of the airway.
Reasoning: The bony changes indicate the source of infection at tooth 37 with a cortical breach. Changing the window to soft tissue reveals the extent of the infection spreading into the deep spaces, causing significant edema and airway compromise, which was not apparent on the bone window.
Outcome: None stated.
Takeaway: Soft tissue windowing on a CT scan is essential to evaluate the extent of soft tissue infection, edema, and potential airway compromise, which are not visible on bone windows.
Case: Periapical lucency of tooth 16 on OPG and CT
Question
Scenario: A patient with a periapical lucency related to tooth 16 is evaluated with an initial OPG and a subsequent CT scan.
What’s shown: Initial OPG and CT soft tissue window.
Consider: Compare the findings on the OPG with those on the CT soft tissue window to determine the extent of the infection.



Answer
Observations:
- OPG: Periapical lucency related to tooth 16, intact sinus floor, and relatively clean antrum.
- CT soft tissue window: Significant thickening of the right cheek, with normal fat density altered to “dirty fat” due to edema and swelling.
Reasoning: The OPG and CT bone window only show bony details and miss the soft tissue involvement. The CT soft tissue window reveals extensive swelling and edema in the cheek that was completely missed on the initial OPG, highlighting the limitation of 2D imaging for soft tissue evaluation.
Outcome: None stated.
Takeaway: Multislice CT with soft tissue windowing is necessary to accurately evaluate soft tissue swelling and edema associated with dental infections, as these changes are not visible on OPGs or cone beam CTs.
Case: Soft tissue infection following 28 and 38 extractions
Question
Scenario: A patient presents with pain and swelling of the neck following the extraction of teeth 28 and 38.
What’s shown: Corrected sagittal, multiplanar (coronal, axial, and altered sagittal), and soft tissue window CT scans of the head and neck, focusing on the extraction sockets and surrounding soft tissues.
Consider: Evaluate the bone and soft tissue windows to identify the presence and extent of any post-extraction complications.

Answer
Observations:
- Bone window: The 28 and 38 sockets are visible with no bone resorption or lytic changes; air is present in the sockets due to the recency of the extractions.
- Soft tissue window: Significant thickening and lucency indicating abscess formation in the left neck muscles, specifically involving the sternocleidomastoid muscle and the cervical chain.
- CT report: A necrotic mass with multiple foci of fluid collection (pus) located posterior to the submandibular gland, superficial to the carotid sheath, and anterior to the sternocleidomastoid muscle.
- An additional abscess is identified in the buccal space.
Reasoning: While the bone window shows no significant lytic changes related to the sockets, the soft tissue window reveals extensive inflammatory change and abscess formation. The anatomical location of the fluid collections confirms a deep cervical infection associated with the 38 socket and a separate buccal space infection associated with the 28 socket.
Outcome: The patient developed two distinct sites of soft tissue infection (deep cervical chain and buccal space) following the third molar extractions.
Takeaway: Third molar extractions can lead to extensive soft tissue infections and abscesses in deep fascial spaces that are not visible on bone window imaging; evaluating the soft tissue window is essential for identifying the full extent of the infection.
Case: Severe left facial swelling after third molar extraction
Question
Scenario: A patient presents with severe left-sided facial swelling following a third molar extraction.
What’s shown: Axial and coronal contrast-enhanced CT scans of the head and neck.
Consider: Identify the specific anatomical spaces involved and the extent of the soft tissue infection.




Answer
Observations:
- Multiple foci of fluid collection (multiple abscesses) in the left masticator space, medially associated with the lateral pterygoid and laterally with the deep masseter.
- Extension of the infection into the left temporomandibular joint (TMJ).
- Swelling and enlargement of the muscles of mastication and the platysma muscle.
- Subcutaneous fat stranding and edema.
- Large reactive lymph nodes in the submandibular space.
- The airway is not compromised.
Reasoning: The contrast-enhanced CT demonstrates extensive abscess formation and inflammatory changes within the masticator space and surrounding tissues. The involvement of multiple muscles and extension into the TMJ highlight the severe and multi-space nature of the infection following the extraction.
Outcome: The patient developed extensive abscesses in the masticator space extending to the TMJ, with reactive lymphadenopathy, but the airway remained uncompromised.
Takeaway: Infections following third molar extractions can become extensive, involving multiple fascial spaces and muscles of mastication, requiring thorough cross-sectional imaging to identify the full extent of the disease and guide management.
Footnotes
-
Original PDF page 1: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.1 ↩
-
Original PDF page 2: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.2 ↩
-
Original PDF page 3: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.3 ↩
-
Original PDF page 4: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.4 ↩
-
Original PDF page 5: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.5 ↩
-
Original PDF page 6: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.6 ↩
-
Original PDF page 7: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.7 ↩
-
Original PDF page 8: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.8 ↩
-
Original PDF page 9: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.9 ↩
-
Original PDF page 10: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.10 ↩
-
Original PDF page 11: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.11 ↩
-
Original PDF page 12: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.12 ↩
-
Original PDF page 13: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.13 ↩
-
Original PDF page 14: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.14 ↩
-
Original PDF page 15: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.15 ↩
-
Original PDF page 16: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.16 ↩
-
Original PDF page 17: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.17 ↩
-
Original PDF page 18: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.18 ↩
-
Original PDF page 19: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.19 ↩
-
Original PDF page 20: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.20 ↩
-
Original PDF page 22: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.22 ↩
-
Original PDF page 23: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.23 ↩
-
Original PDF page 24: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.24 ↩
-
Original PDF page 21: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.21 ↩
-
Original PDF page 25: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.25 ↩
-
Original PDF page 26: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.26 ↩
-
Original PDF page 27: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.27 ↩
-
Original PDF page 28: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.28 ↩
-
Original PDF page 29: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.29 ↩
-
Original PDF page 30: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.30 ↩
-
Original PDF page 31: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.31 ↩
-
Original PDF page 32: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.32 ↩
-
Original PDF page 35: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.35 ↩
-
Original PDF page 33: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.33 ↩
-
Original PDF page 34: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.34 ↩
-
Original PDF page 36: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.36 ↩
-
Original PDF page 37: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.37 ↩
-
Original PDF page 38: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.38 ↩
-
Original PDF page 40: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.40 ↩
-
Original PDF page 41: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.41 ↩
-
Original PDF page 39: L1 - Imaging for Infection and Inflammatory Lesions of the Jaws, p.39 ↩
