L6 Intraoral Radiograph Interpretation

Intraoral Radiograph Interpretation¹

Dr Dayea Oh OMF Radiologist

Table Of Contents²

• Normal vs Abnormal findings
• Systematic approach
• Assessment of:
  • Caries
  • Periodontal disease
  • Periapical lesions

Systematic Approach To Interpretation

Radiographic Checklist And Viewing Conditions

Checklist³

• Reason for x-ray
• Previous x-rays
• Optimal Viewing Conditions
• Patient ID
• Orientation →

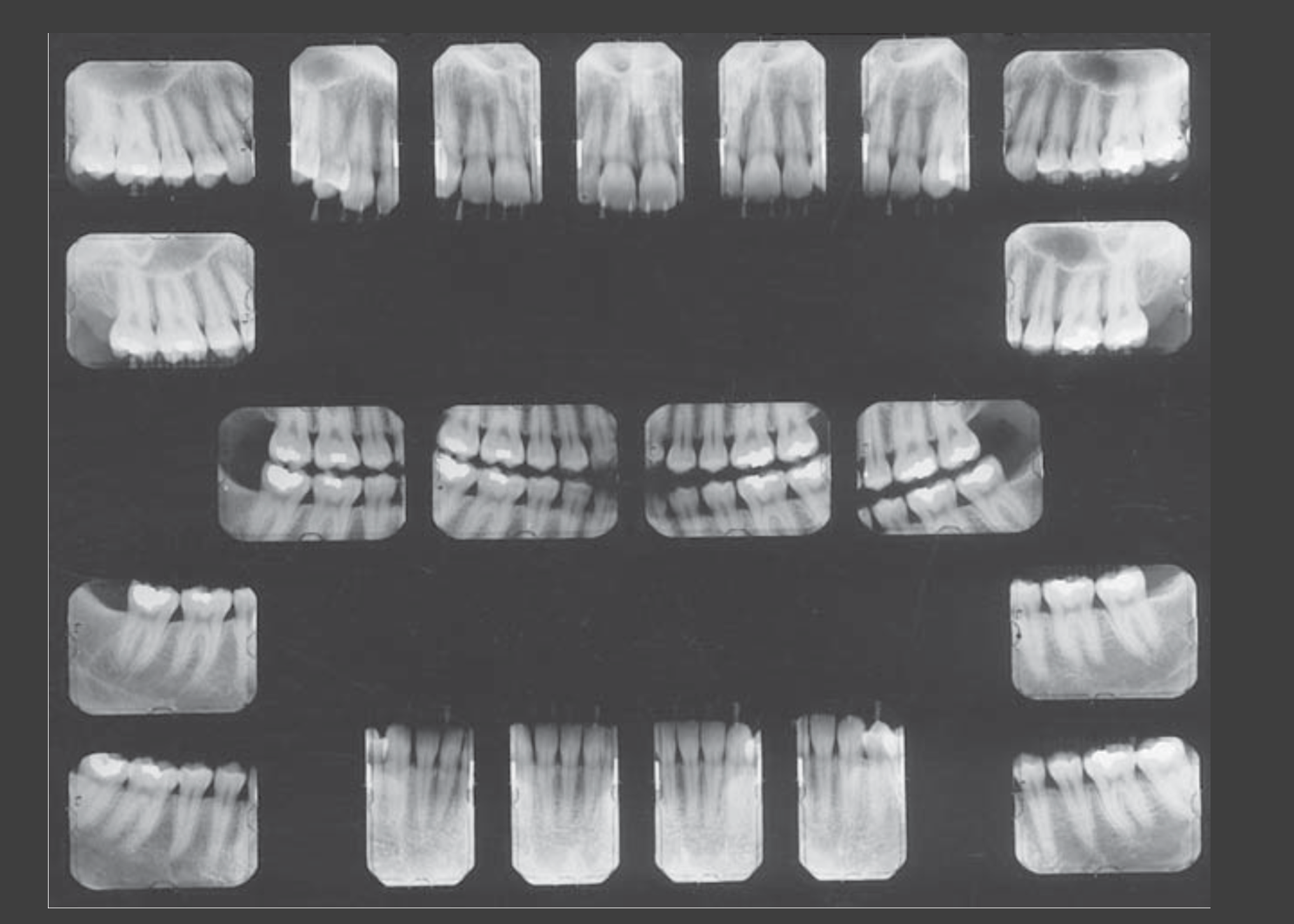

• Identify the type of x-ray
• Image Quality

Differentiating Normal And Abnormal Findings

Normal vs Abnormal⁴

• Normal
  • Anatomical

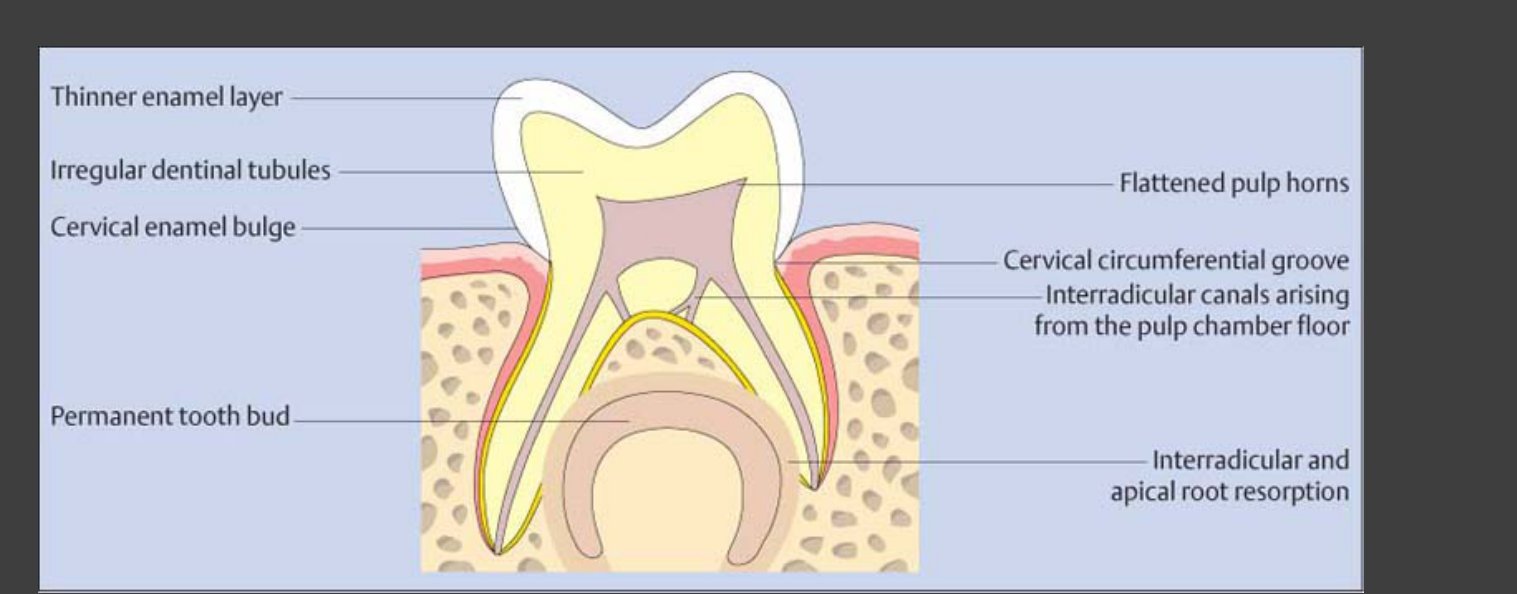

    • Review tooth morphology
    • Bilateral & symmetrical (extra-oral imaging)
• Abnormal
  • Pathological
  • Artefactual
  • Superimpositions

Description!!!

Stepwise Review Of Teeth And Restorations

Systematic Approach⁵

1. Step 1. Teeth & Surrounding Structures
   • Count teeth

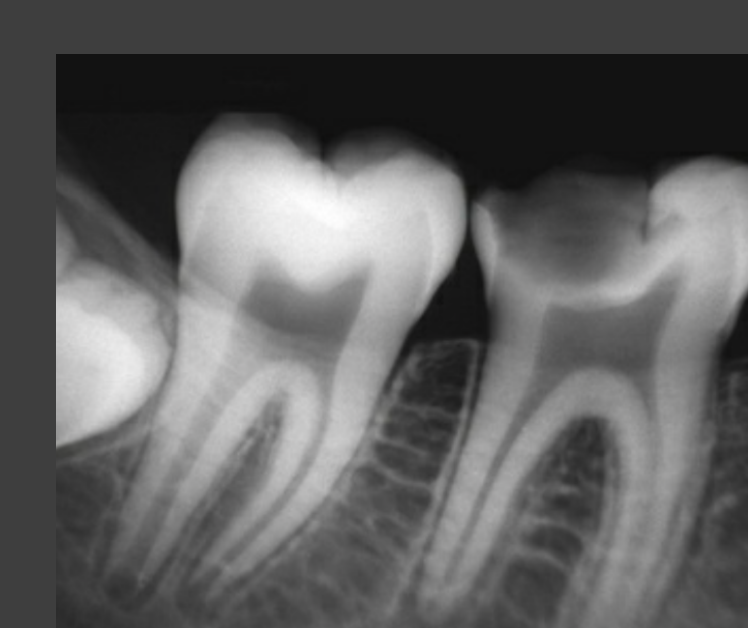

   • Tooth morphology
     • Crown – enamel, dentine, pulp chamber, etc.
     • Roots – PDL space, lamina dura, # of roots, root morphology
   • Periodontal bone
   • Other
2. Step 2. Identify existing restorative therapy, endodontic therapy & orthodontic therapy
   • Assess restorative margins – presence of overhangs? Insufficient margins?
   • Presence of voids?
3. Step 3. Identify & describe abnormal radiolucencies & radiopacities
   • Location
   • Size & Extent
   • Morphology & Borders
   • Effects on surrounding structures
   • Internal architecture
4. Step 4. Differential diagnosis

Caries Assessment

Classification Of Caries Lesions⁶

• triangular
• Dentinal caries is larger

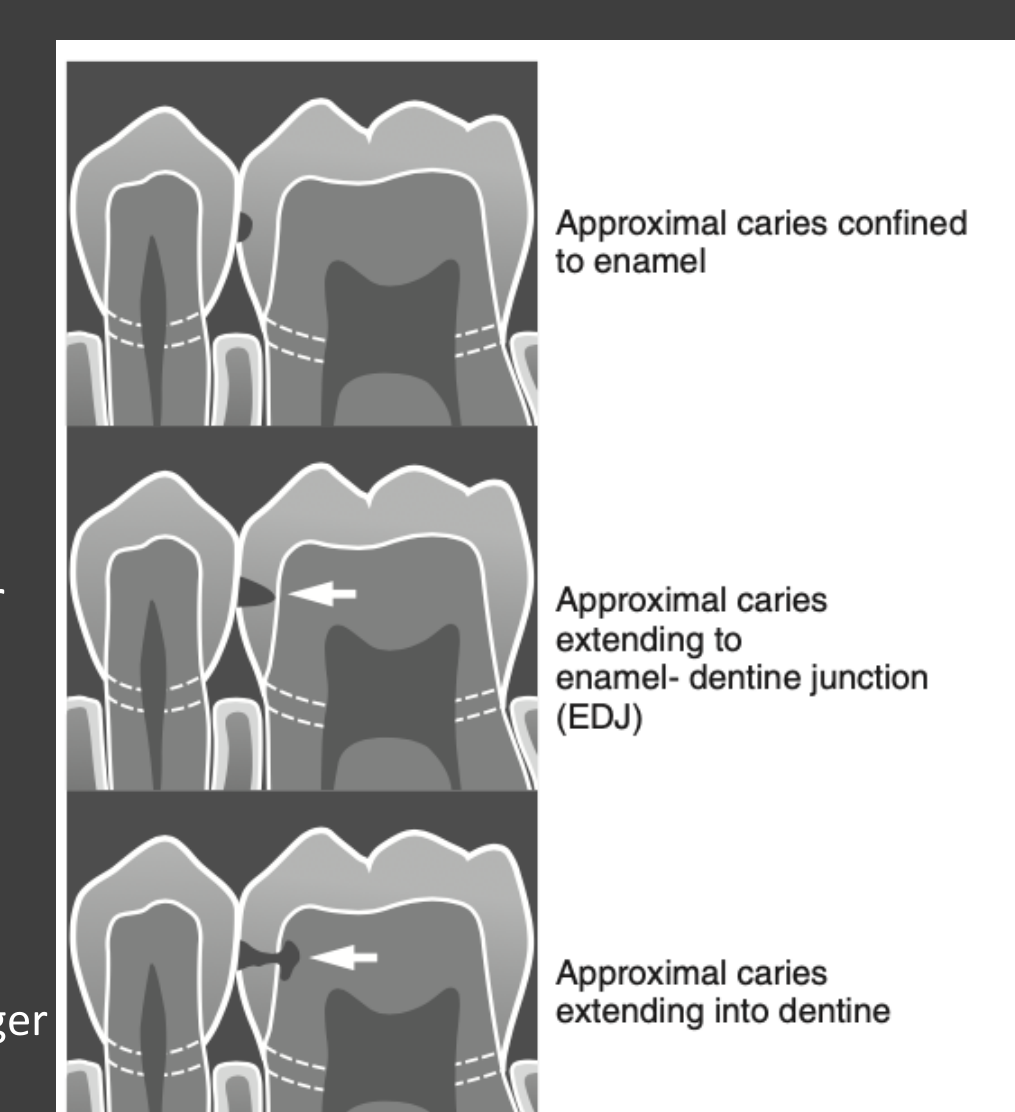

• Approximal caries confined to enamel:
• Approximal caries extending to enamel-dentine junction (EDJ):
• Approximal caries extending into dentine:

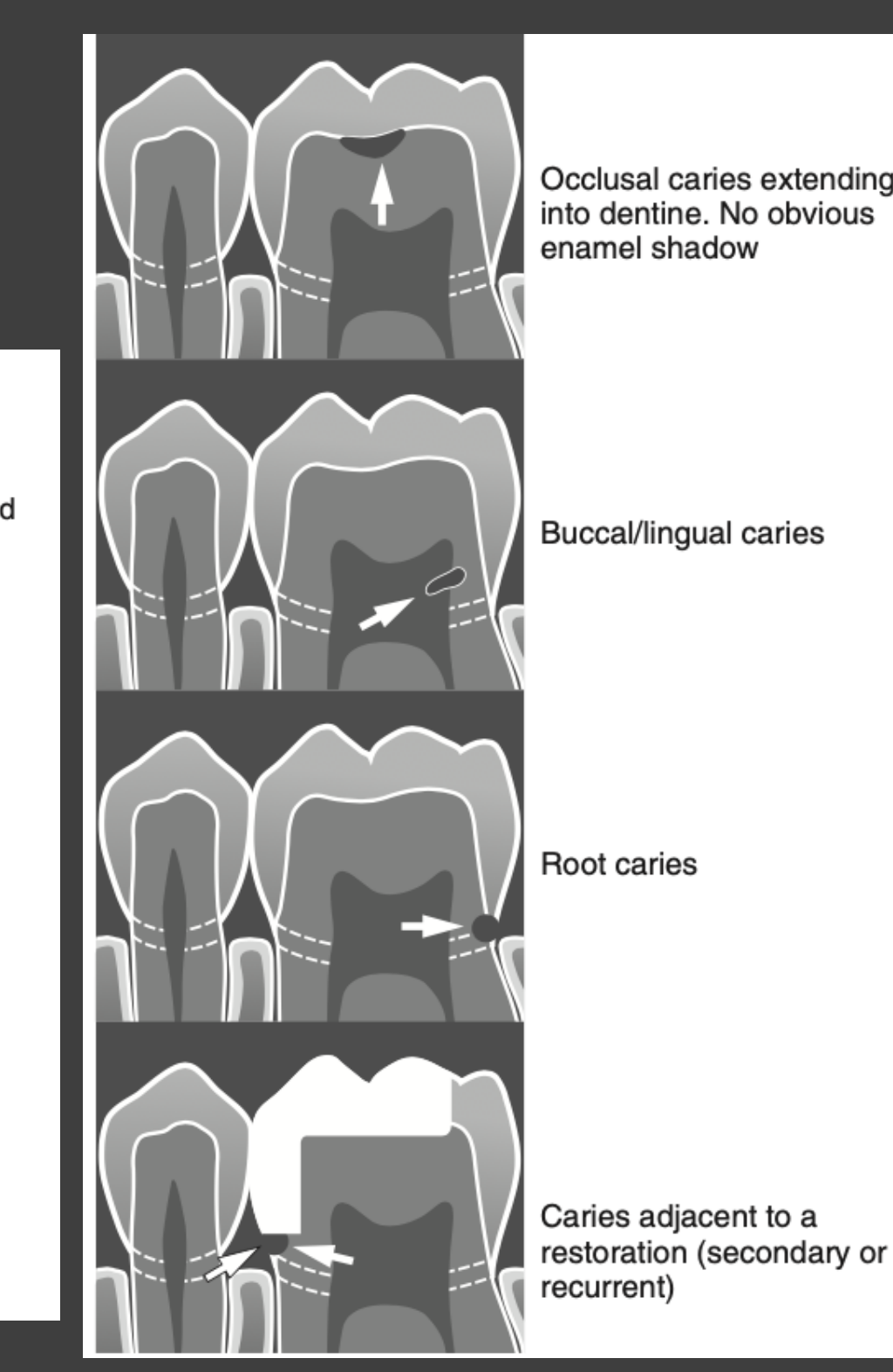

• Occlusal caries extending into dentine. No obvious enamel shadow:
• Buccal/lingual caries:
• Root caries:
• Caries adjacent to a restoration (secondary or recurrent):

Recurrent Caries And Radiographic Limitations⁷

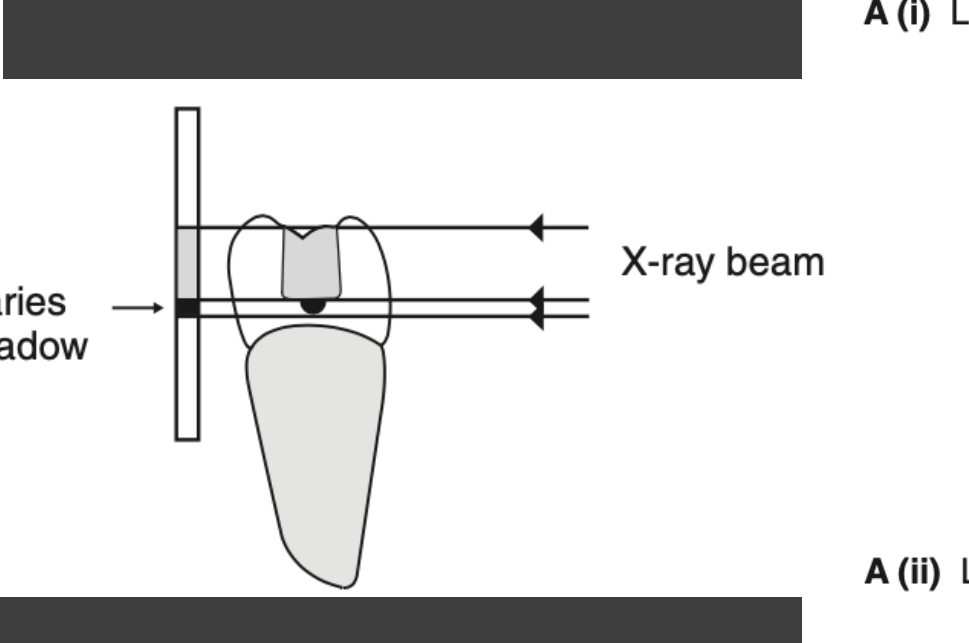

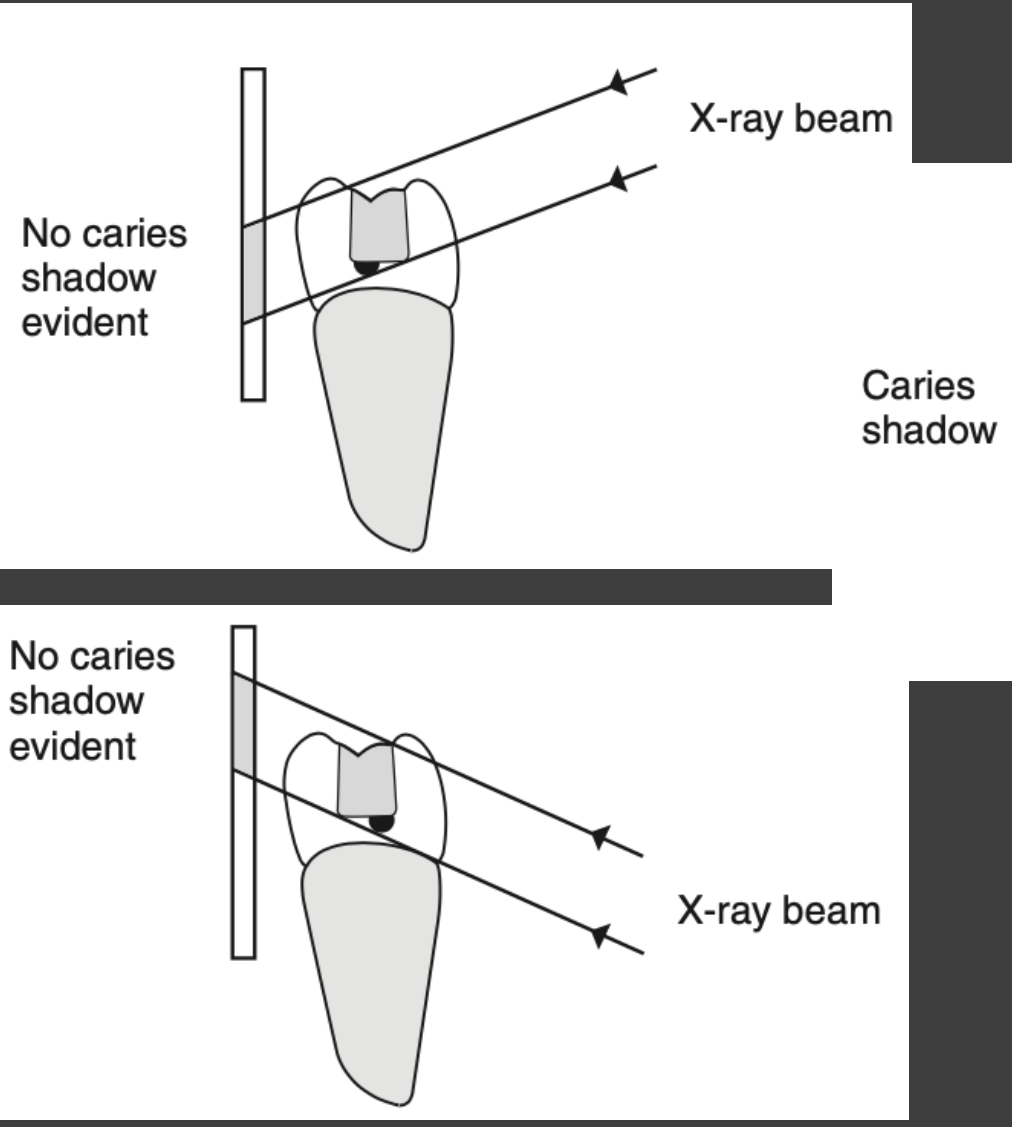

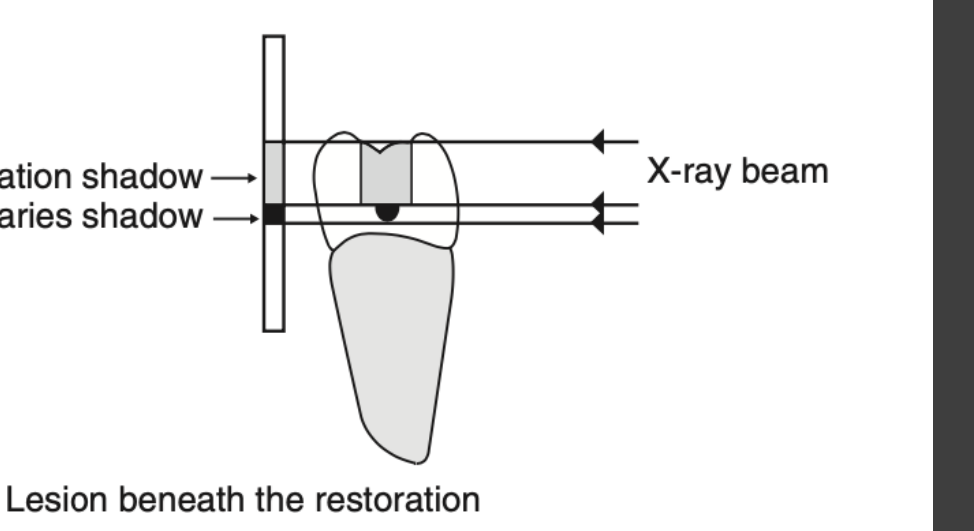

• A (i) Lesion beneath the restoration
  • Left side (Top): No caries shadow evident due to X-ray beam angle.
  • Center: Caries shadow evident.
  • Right side: Restoration shadow and Caries shadow identified; X-ray beam parallel.

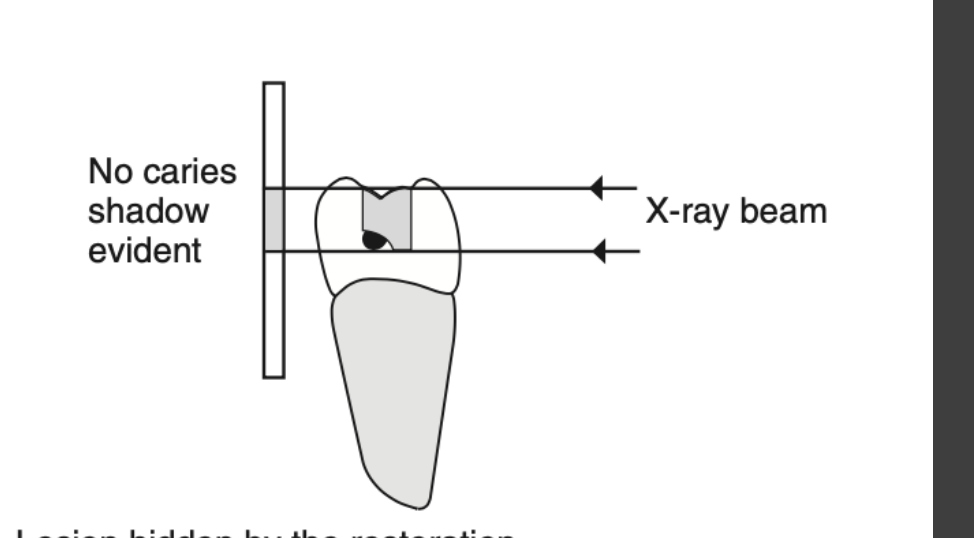

• A (ii) Lesion hidden by the restoration
  • Left side (Bottom): No caries shadow evident due to X-ray beam angle.
  • Right side: No caries shadow evident as lesion is obscured by the restoration.

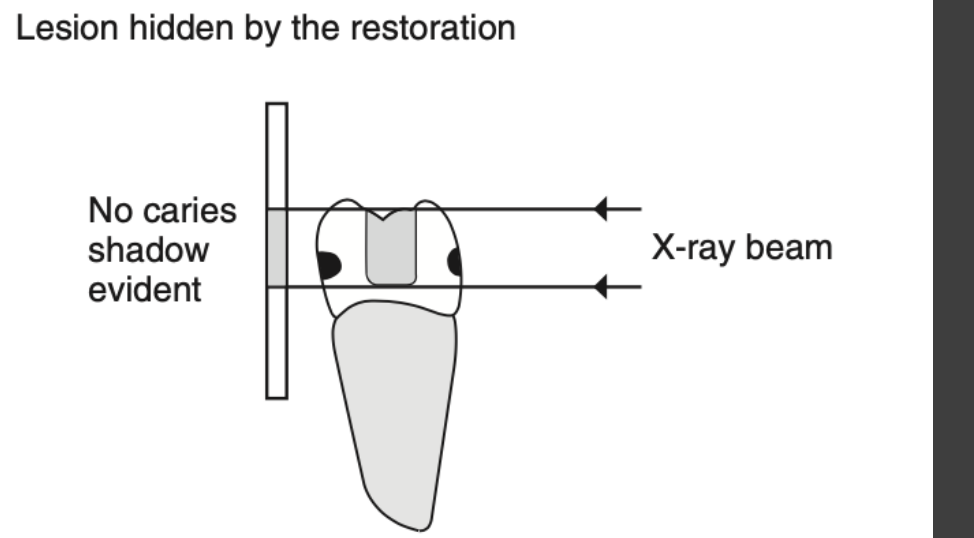

• B Buccal and lingual lesions hidden by the restoration
  • No caries shadow evident.

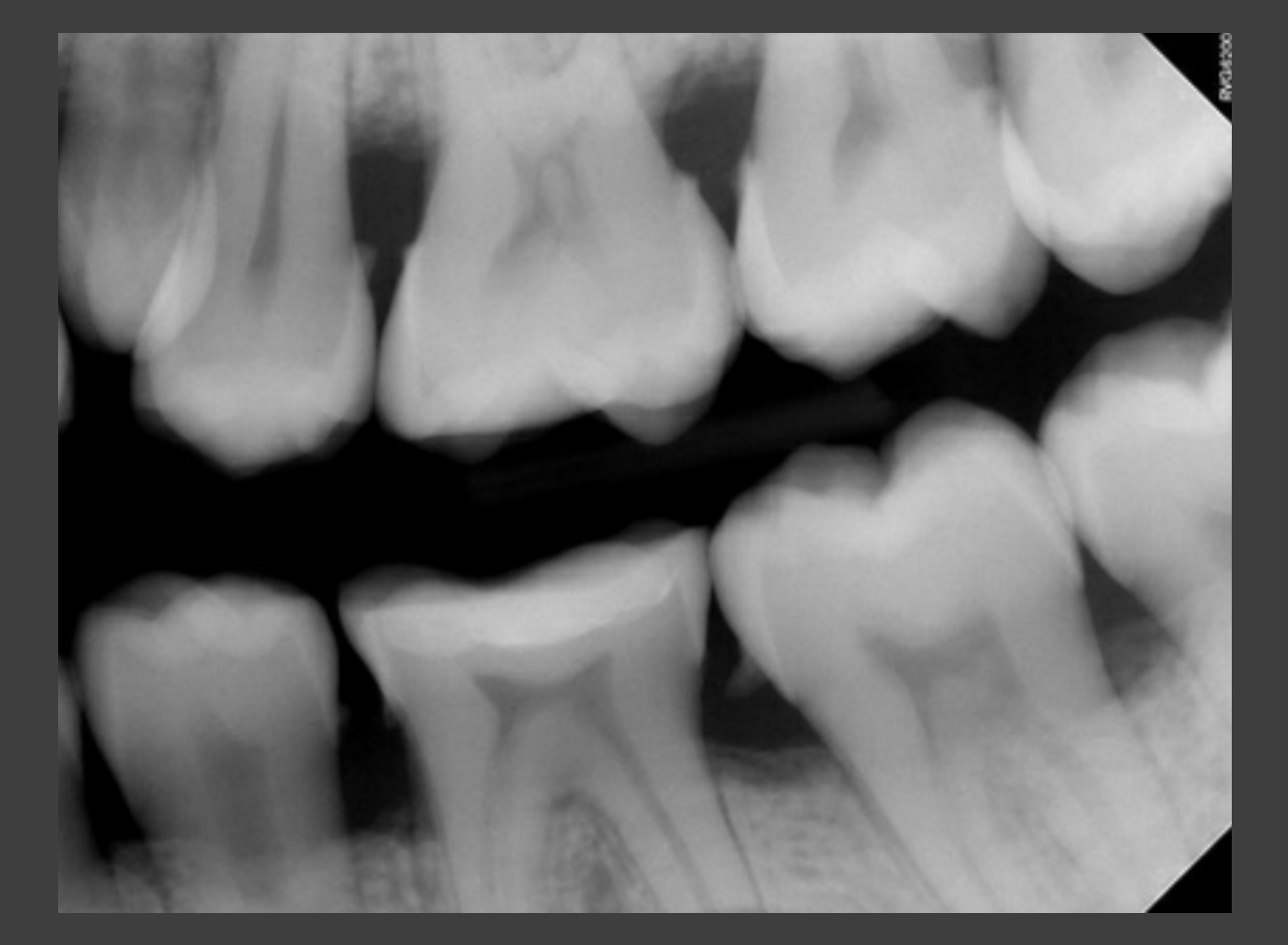

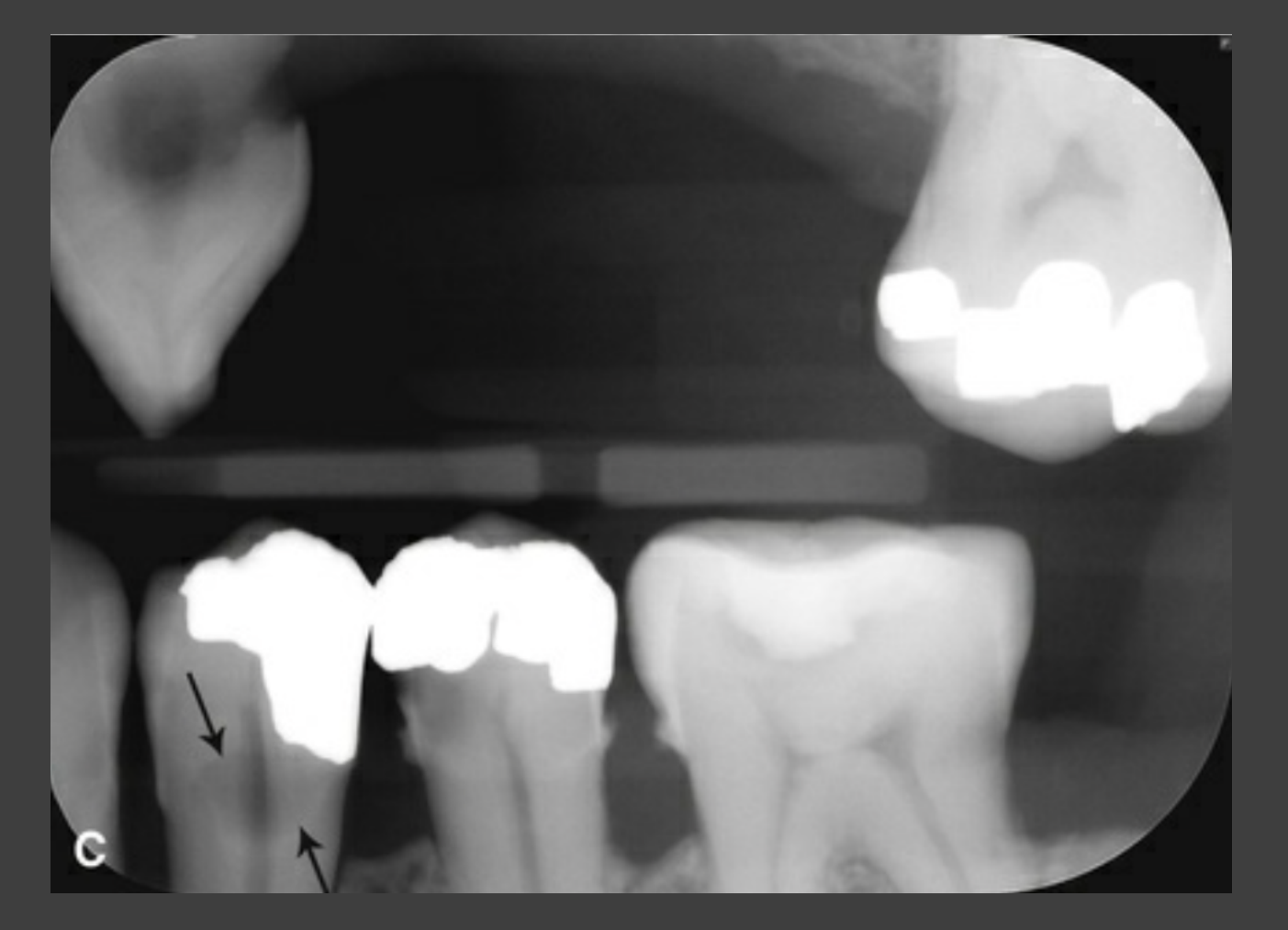

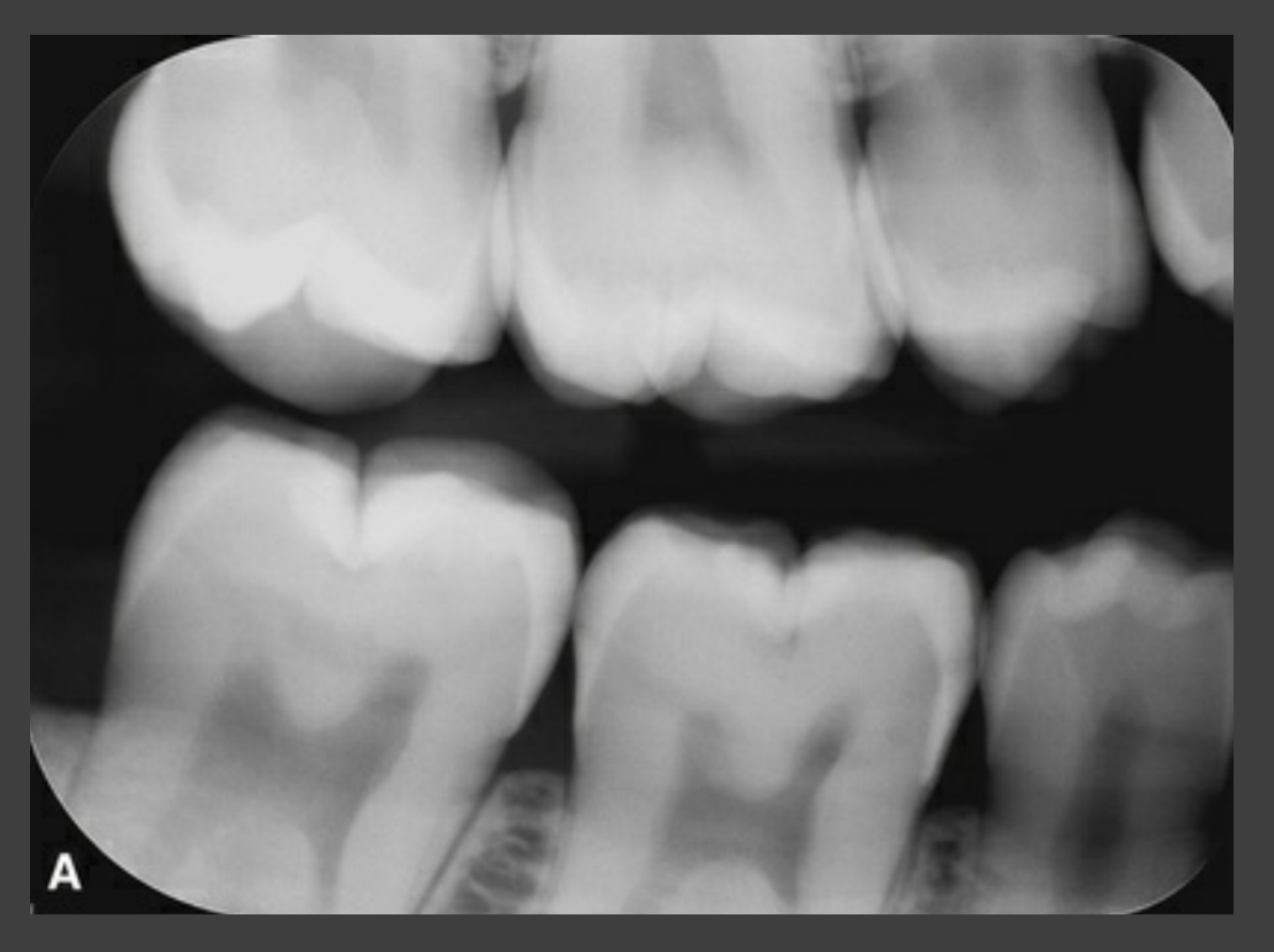

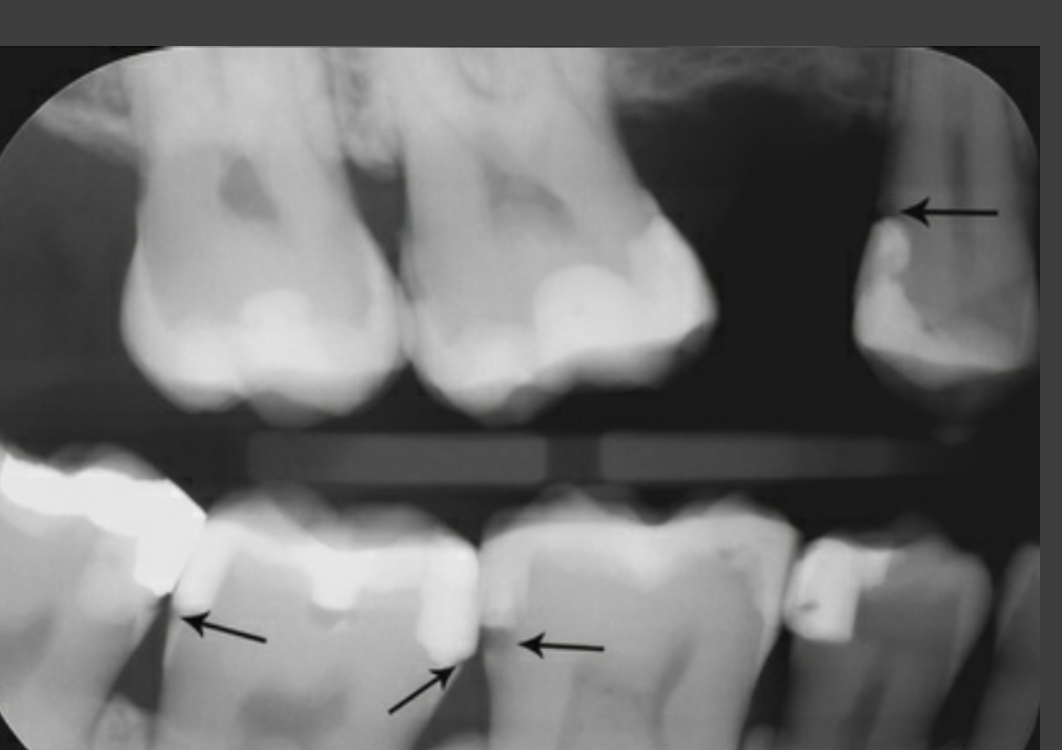

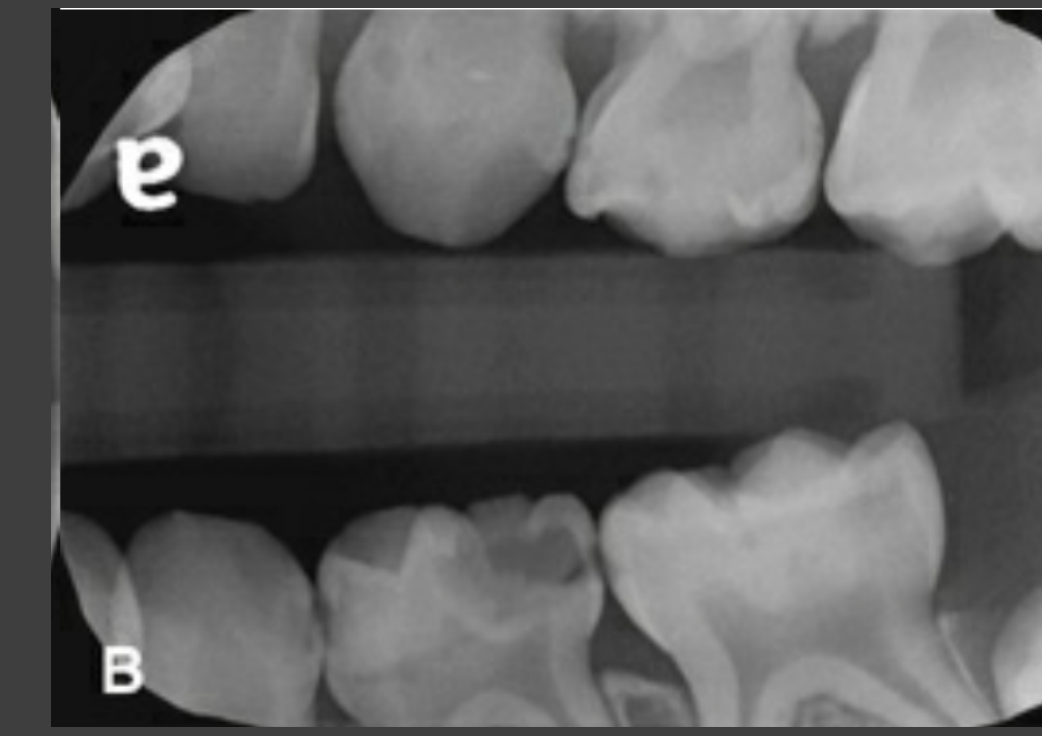

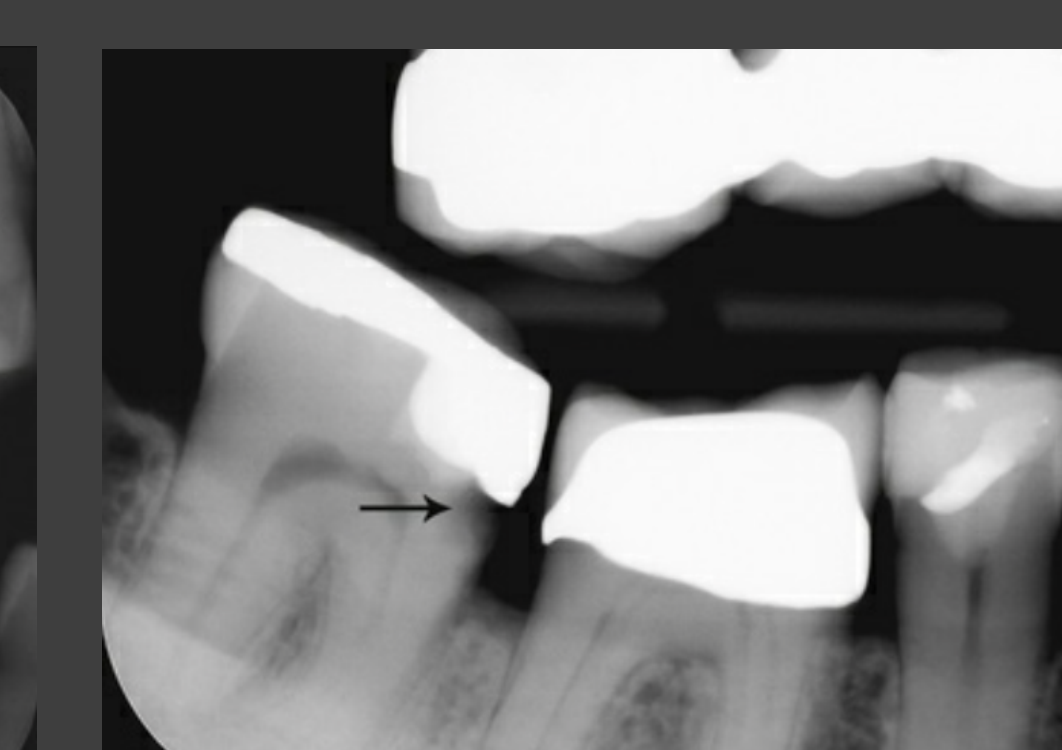

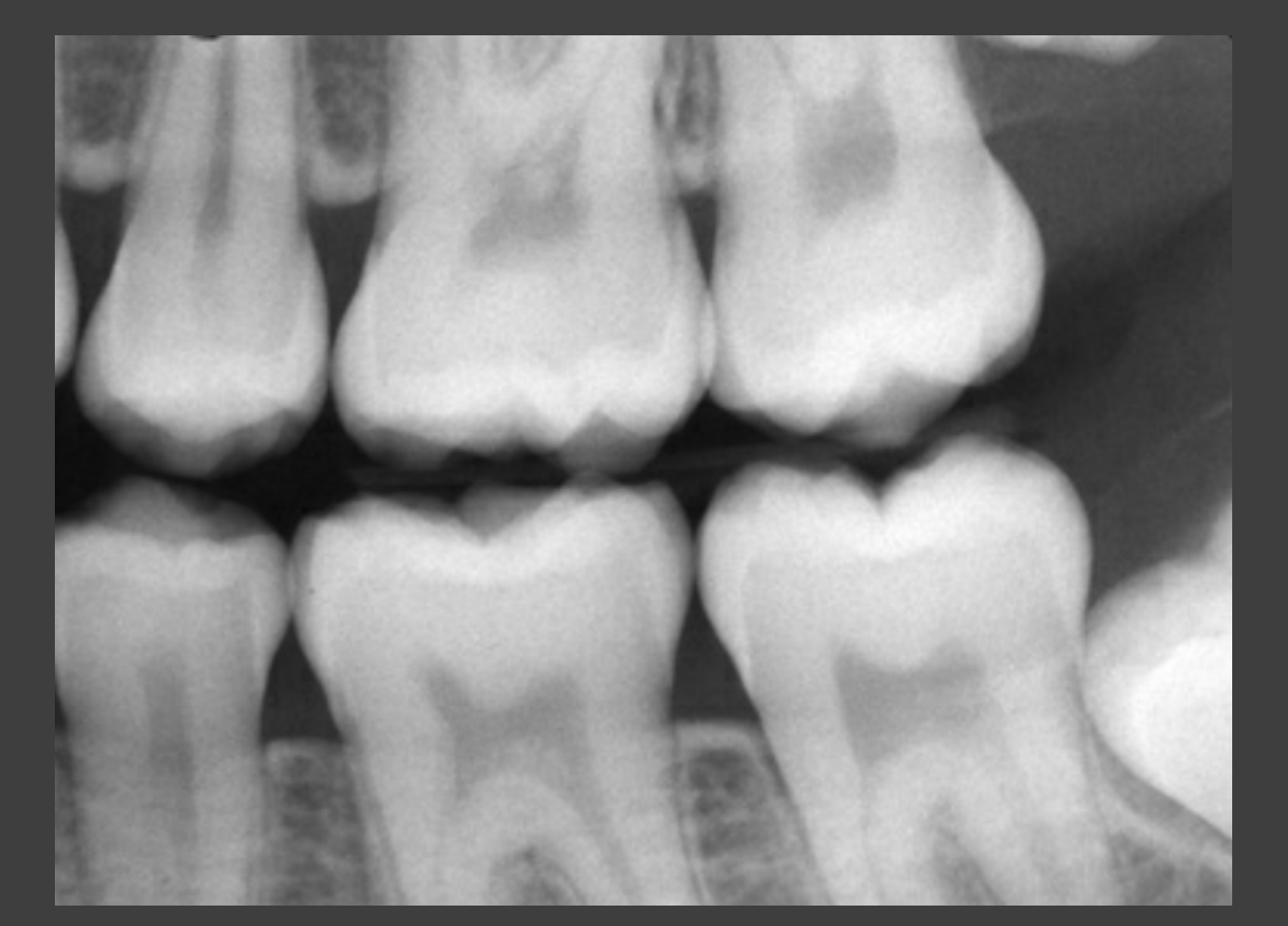

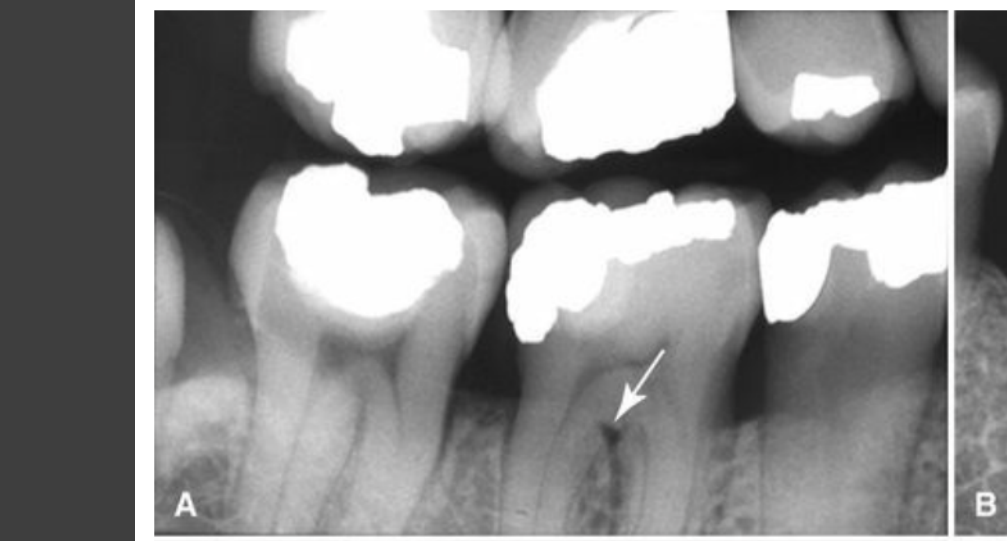

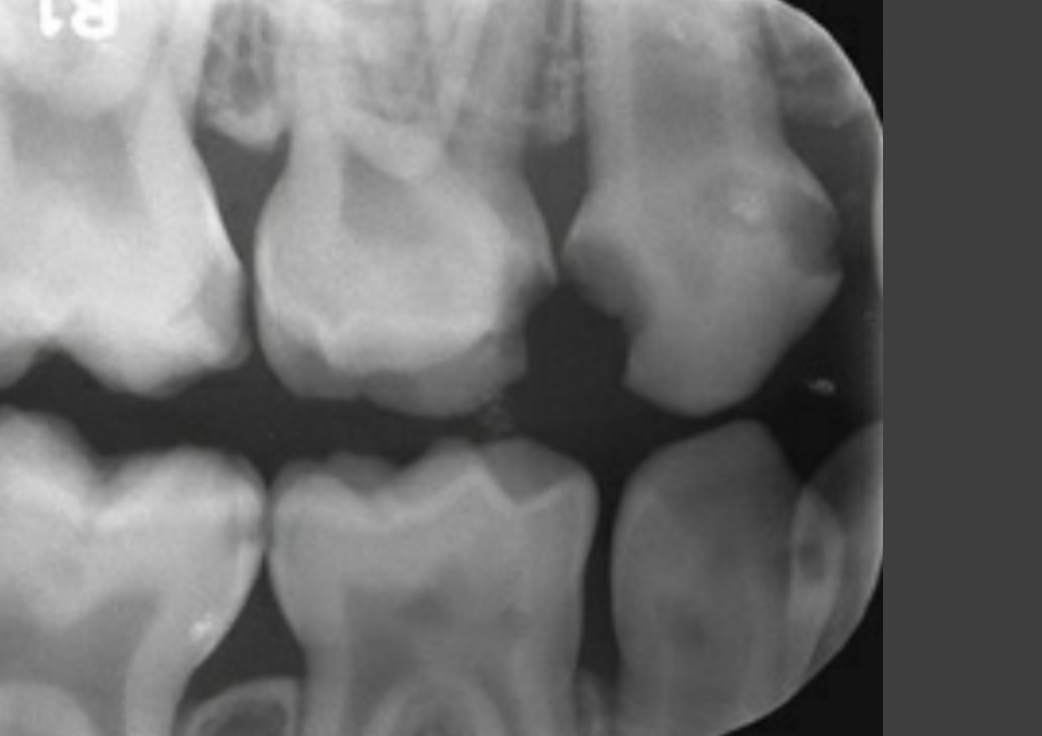

Clinical Radiographic Examples Of Caries⁸⁹¹⁰¹¹

A B

Periodontal Disease Assessment

Bone Loss Patterns And Calculus

Periodontal Disease¹²

• Periodontal bone loss
  • Horizontal
  • Vertical / angular bone defect
  • Furcation involvement
  • Alveolar crest → cortical?
• Calculus
• Periodontal ligament space widening
• Anatomic considerations
  • Enamel pearl

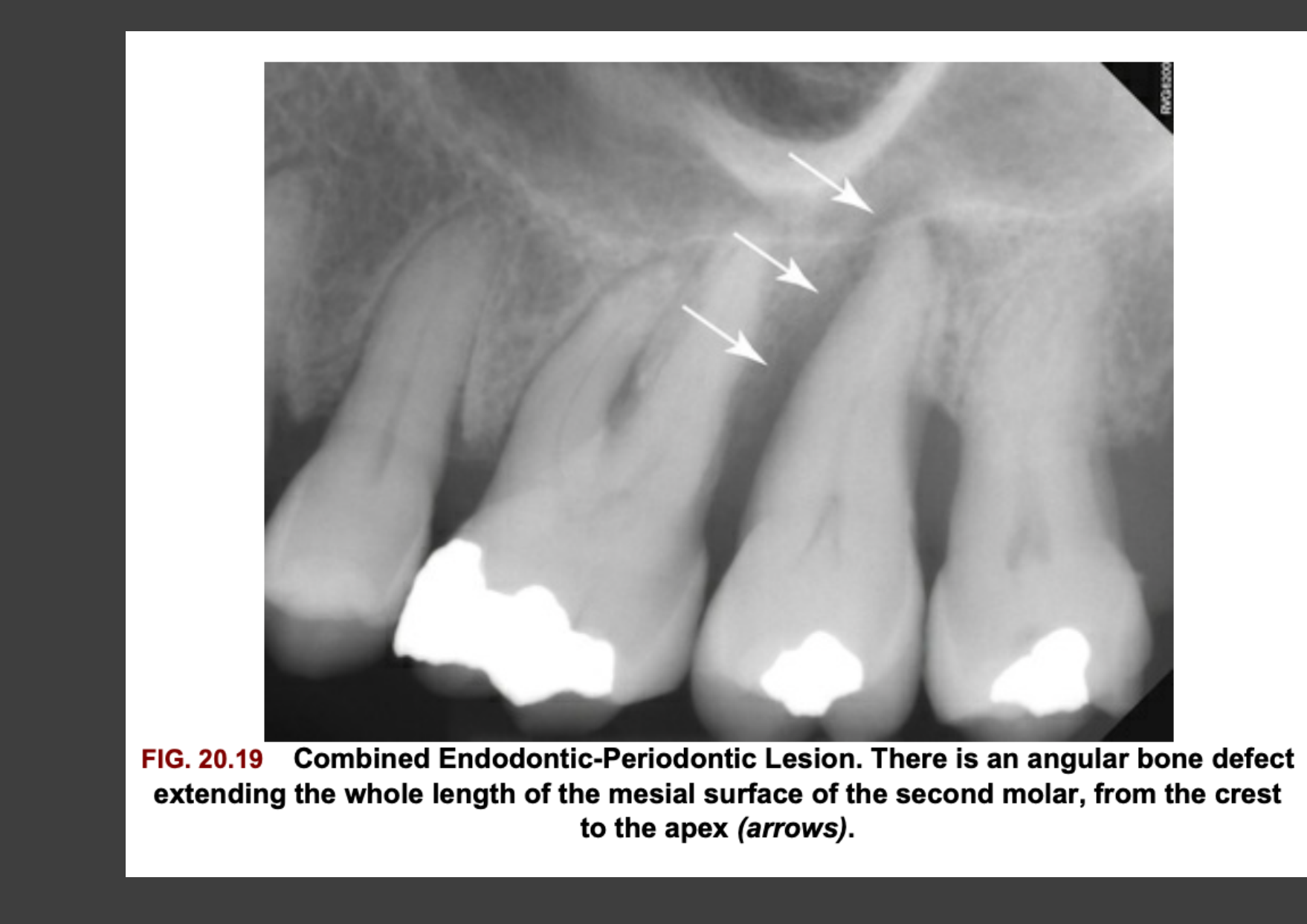

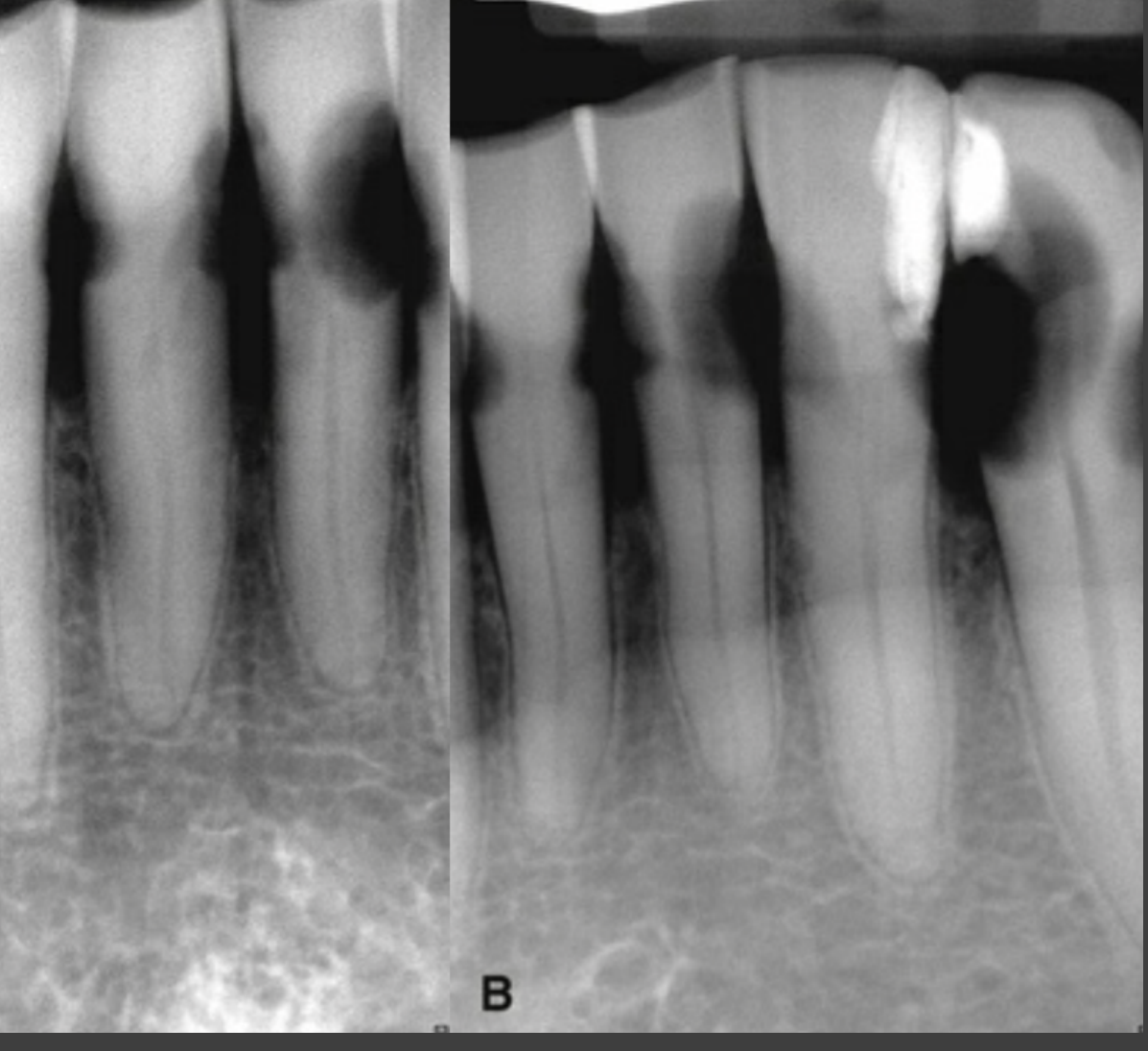

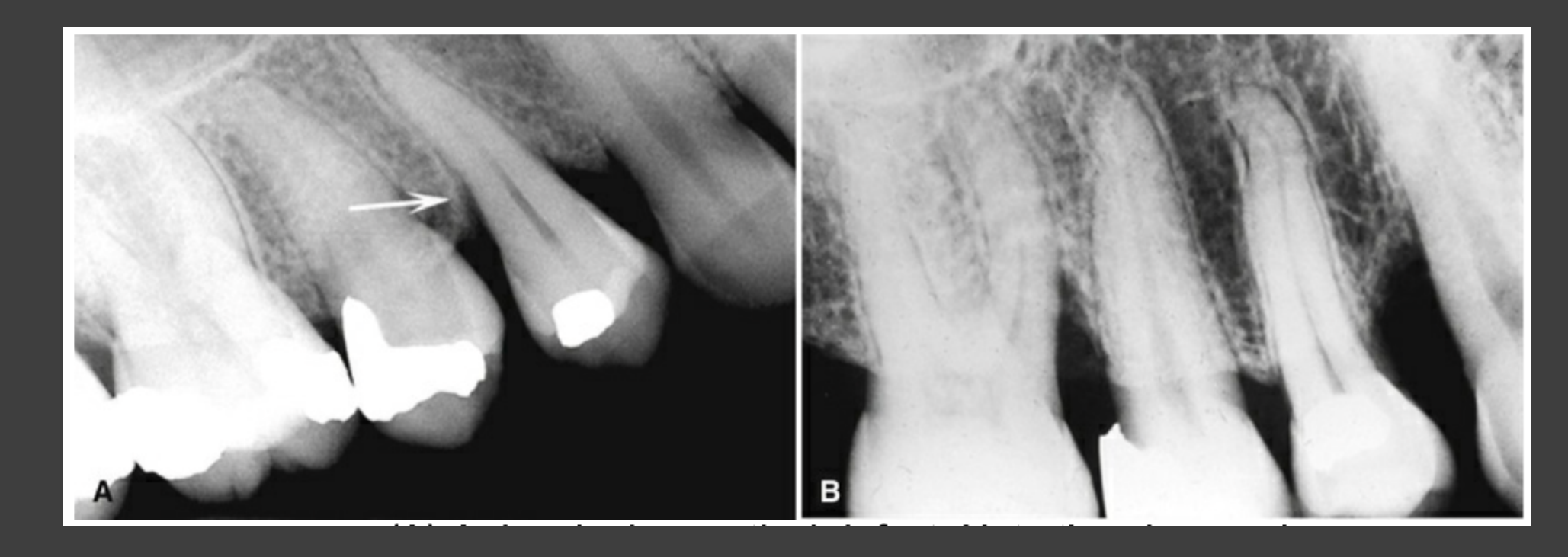

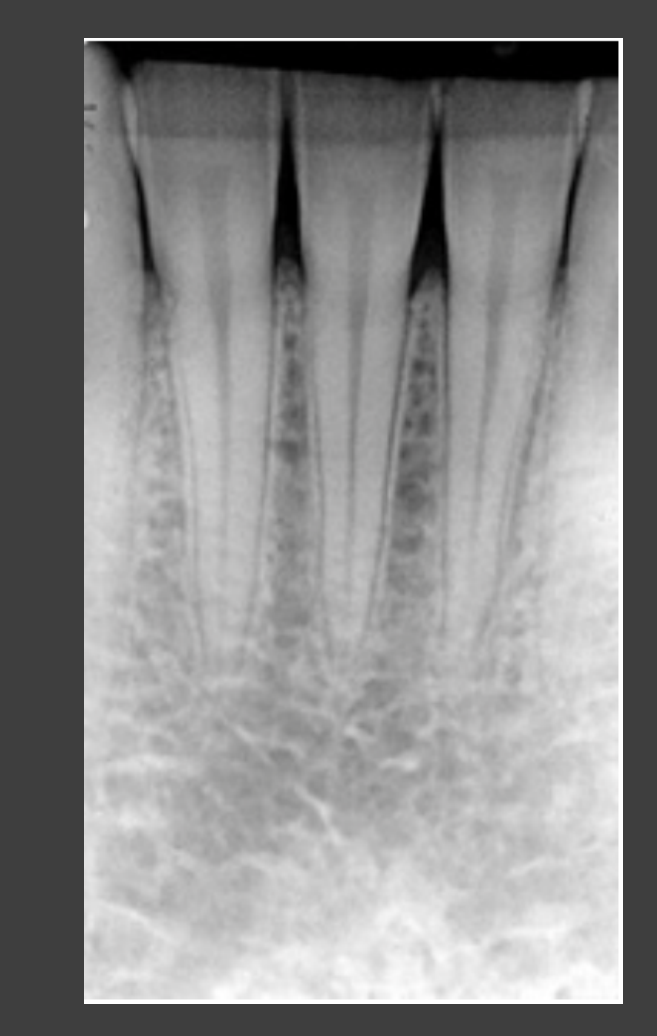

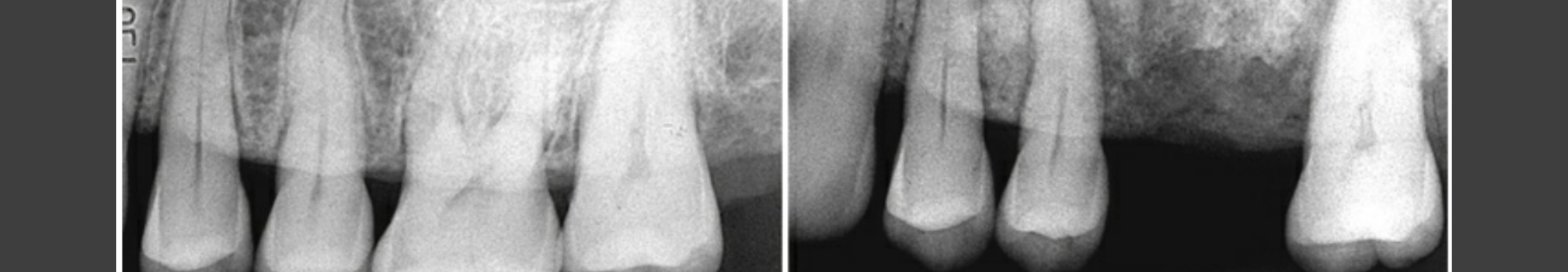

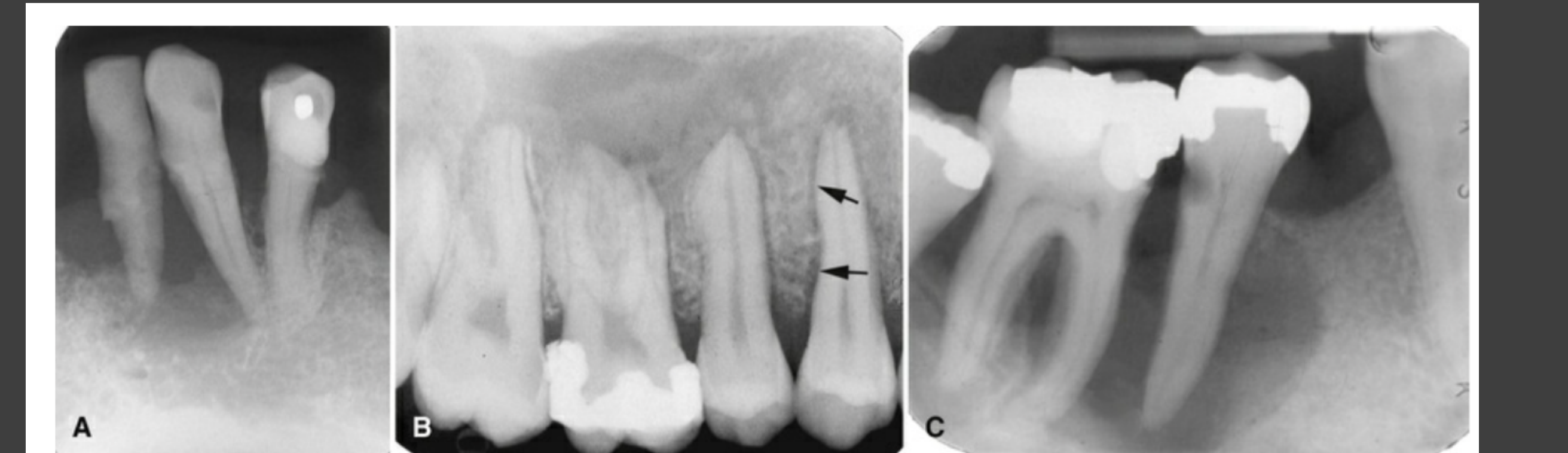

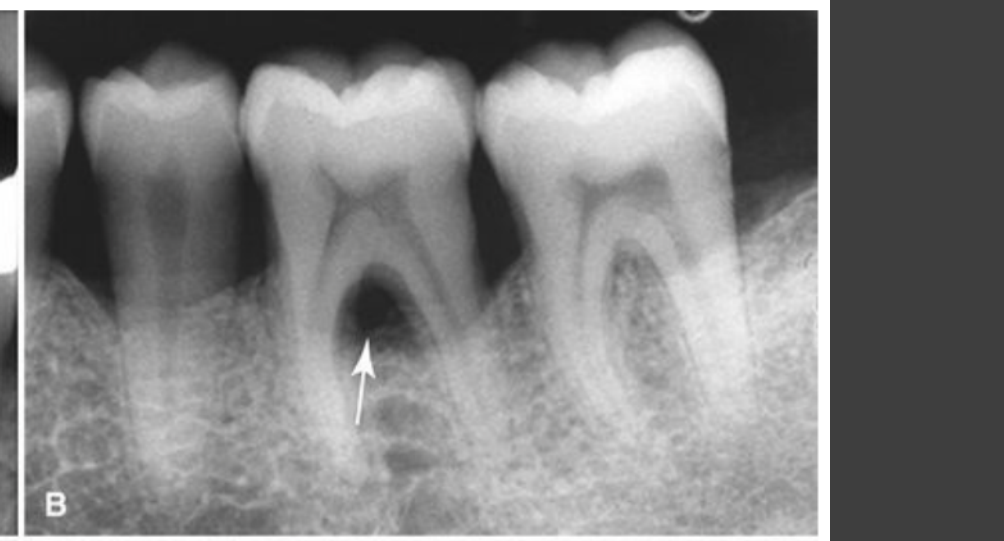

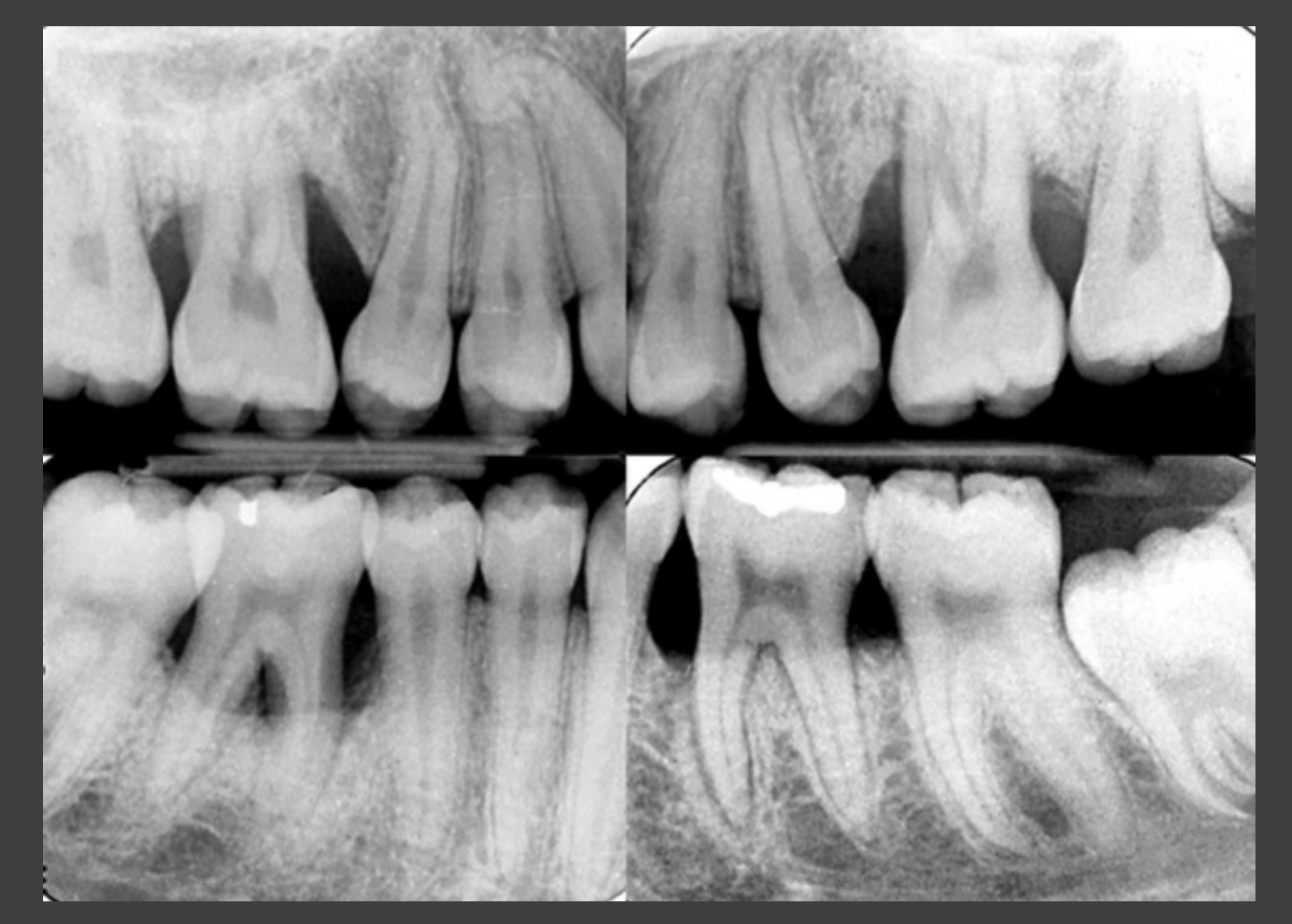

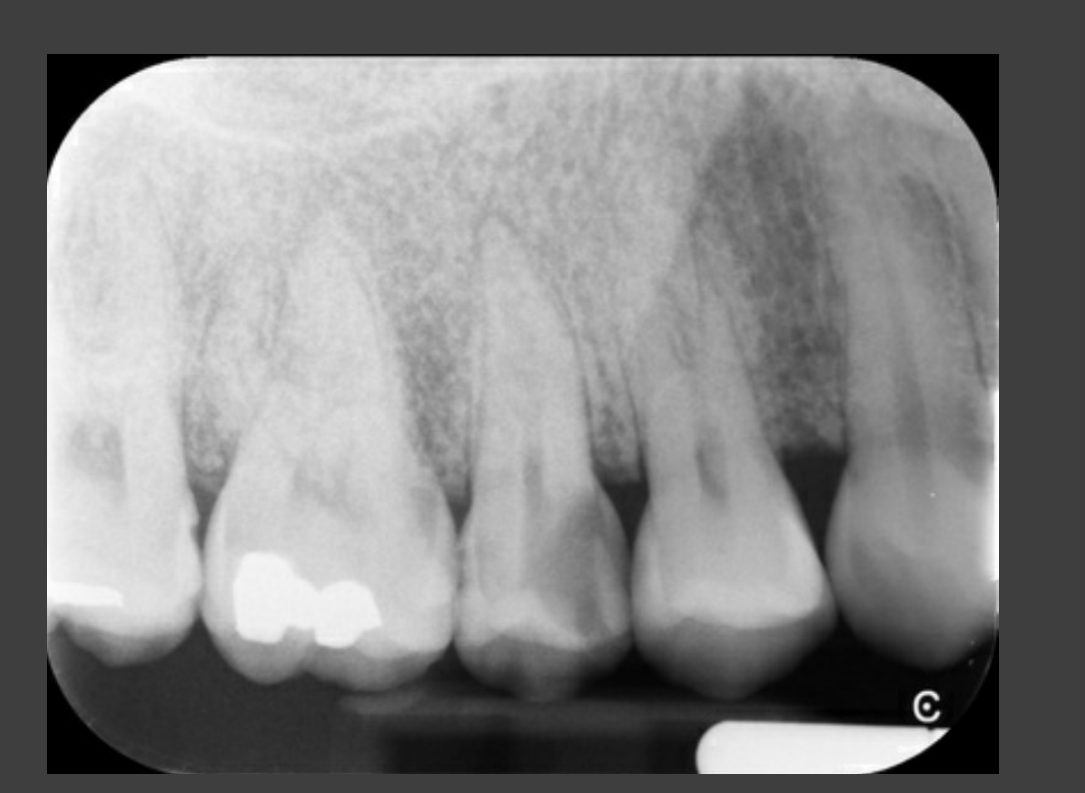

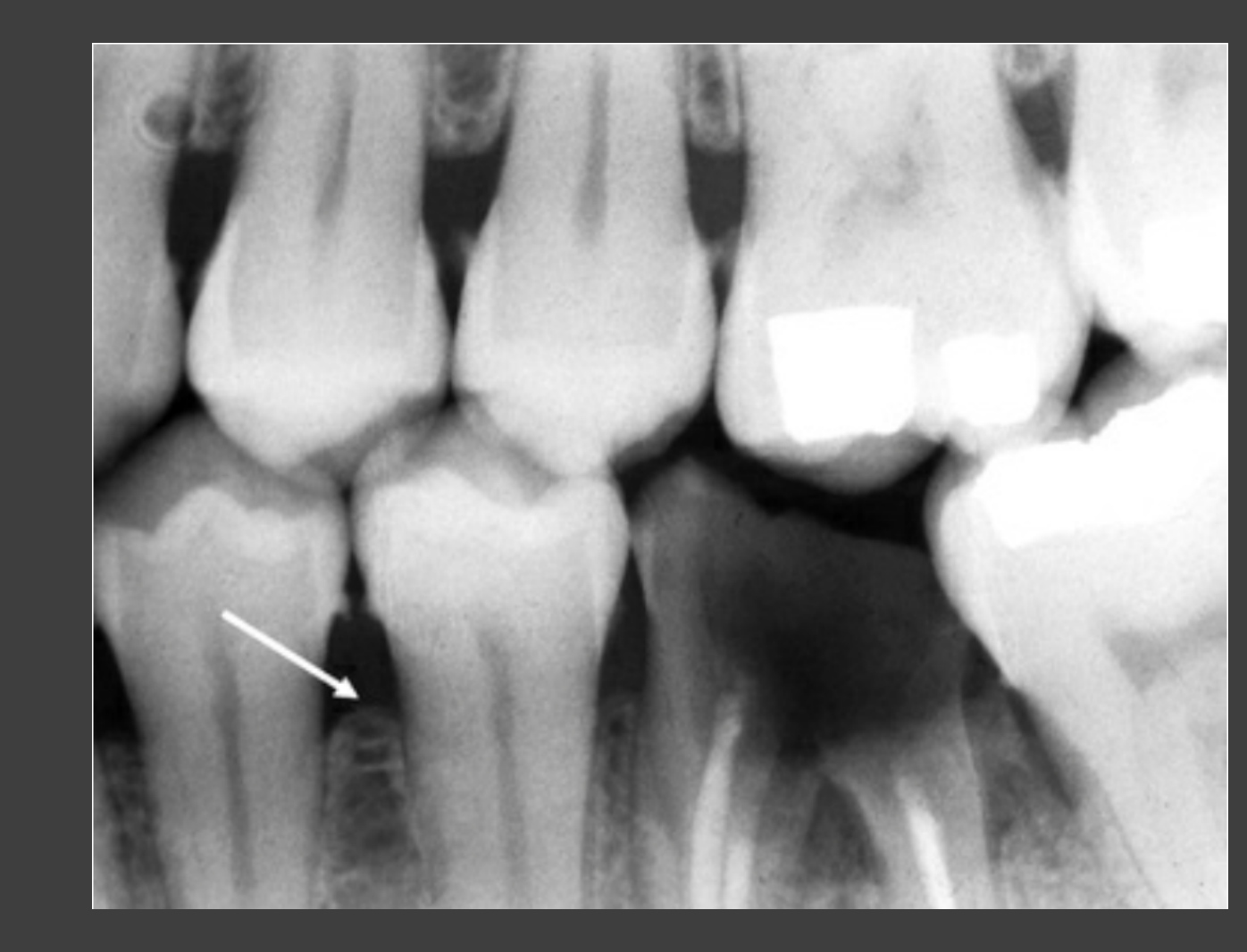

Clinical Radiographic Examples Of Periodontal Disease^1314151617

Cortical Bone And Alveolar Crest Evaluation¹⁸¹⁹²⁰

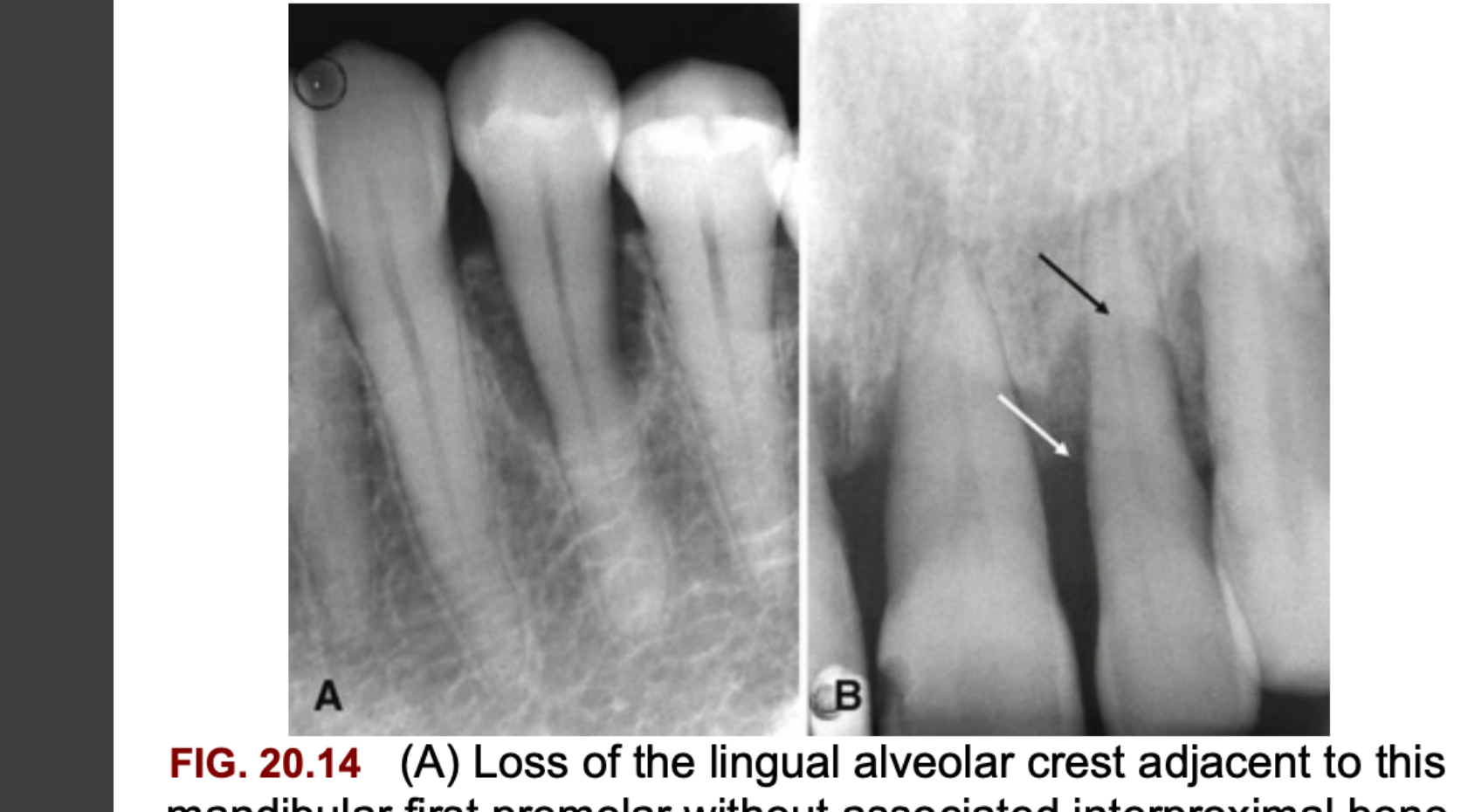

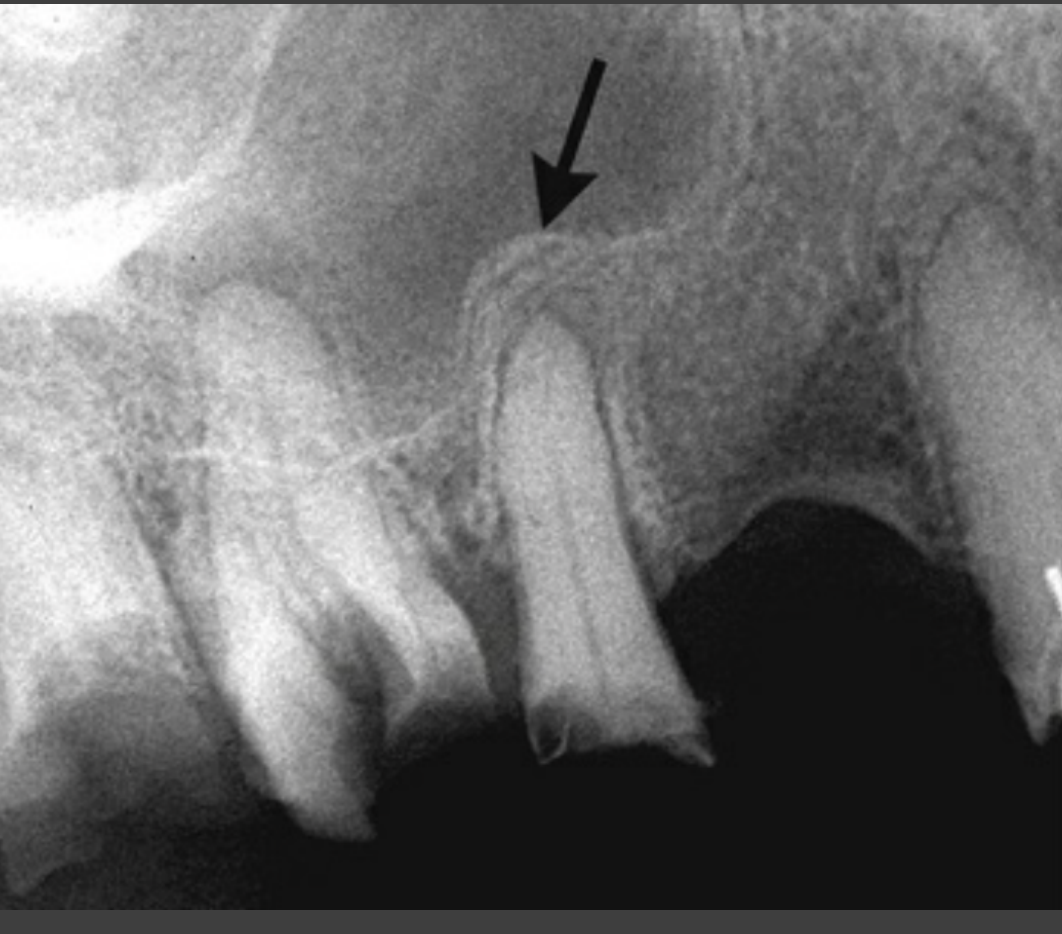

FIG. 20.14 (A) Loss of the lingual alveolar crest adjacent to this mandibular first premolar without associated interproximal bone loss. (B) Loss of the buccal cortical bone adjacent to the maxillary central and lateral incisors. The black arrow indicates the level of the buccal alveolar crest, which demonstrates more profound loss relative to the lingual alveolar crest (white arrow).

Periapical Lesions Assessment

Pathogenesis Of Periapical Inflammatory Disease²¹

Periapical Inflammatory Lesions

• Abscess
• Granuloma
• Cyst

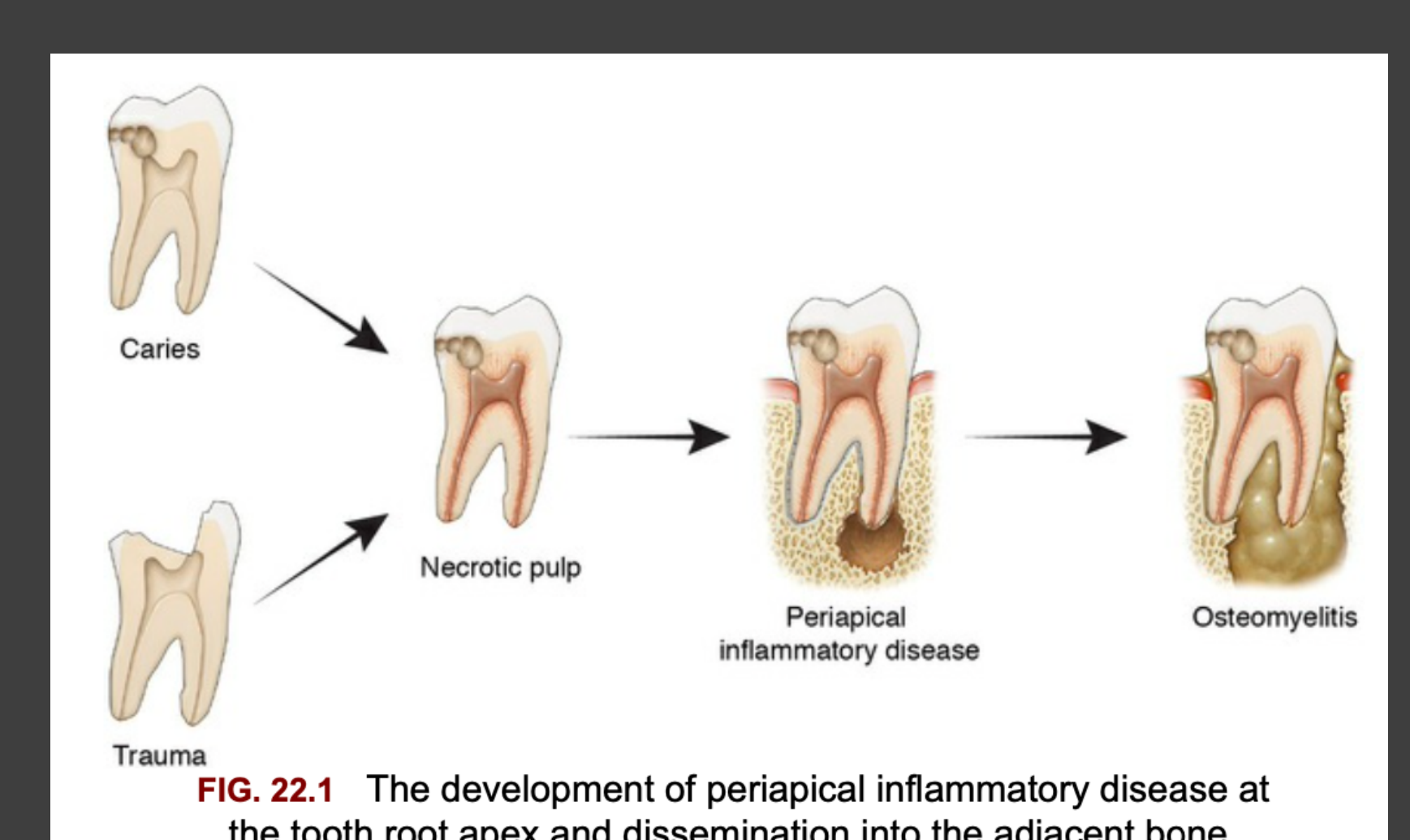

FIG. 22.1 The development of periapical inflammatory disease at the tooth root apex and dissemination into the adjacent bone.

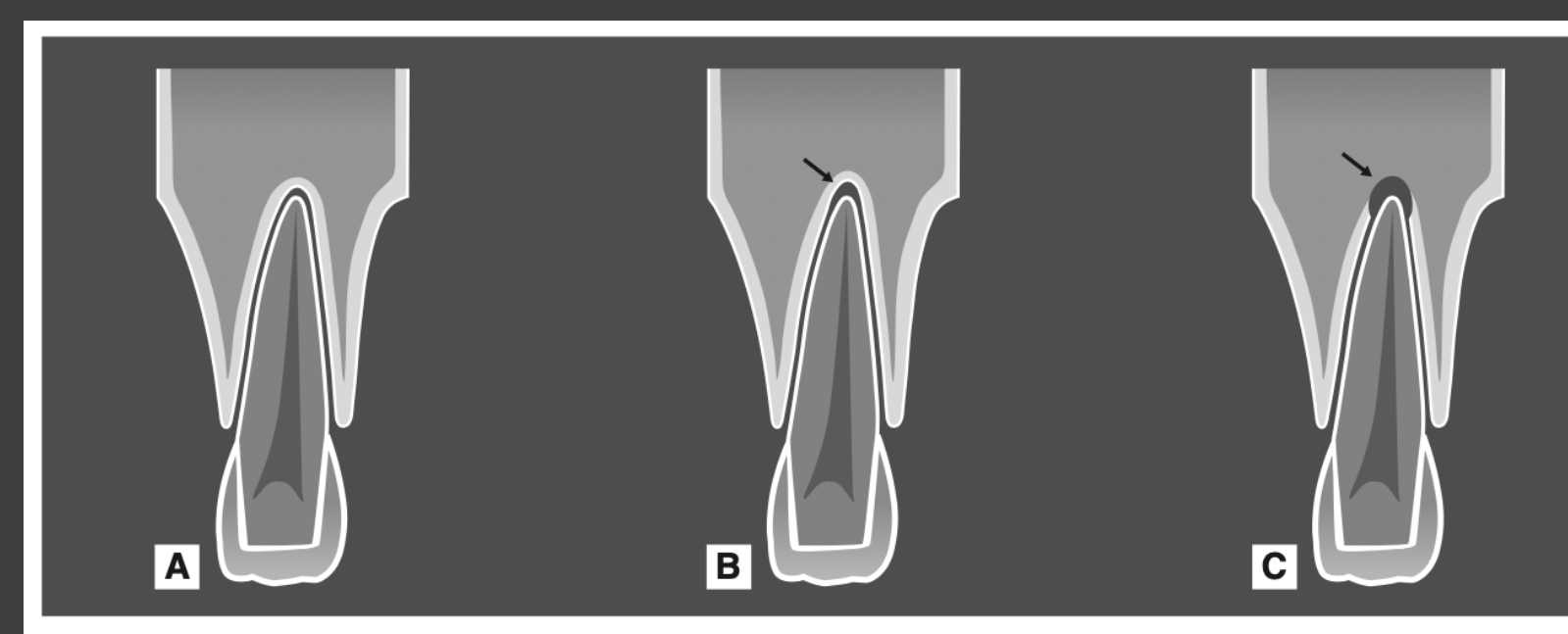

• Caries → Necrotic pulp
• Trauma → Necrotic pulp
• Necrotic pulp → Periapical inflammatory disease → Osteomyelitis

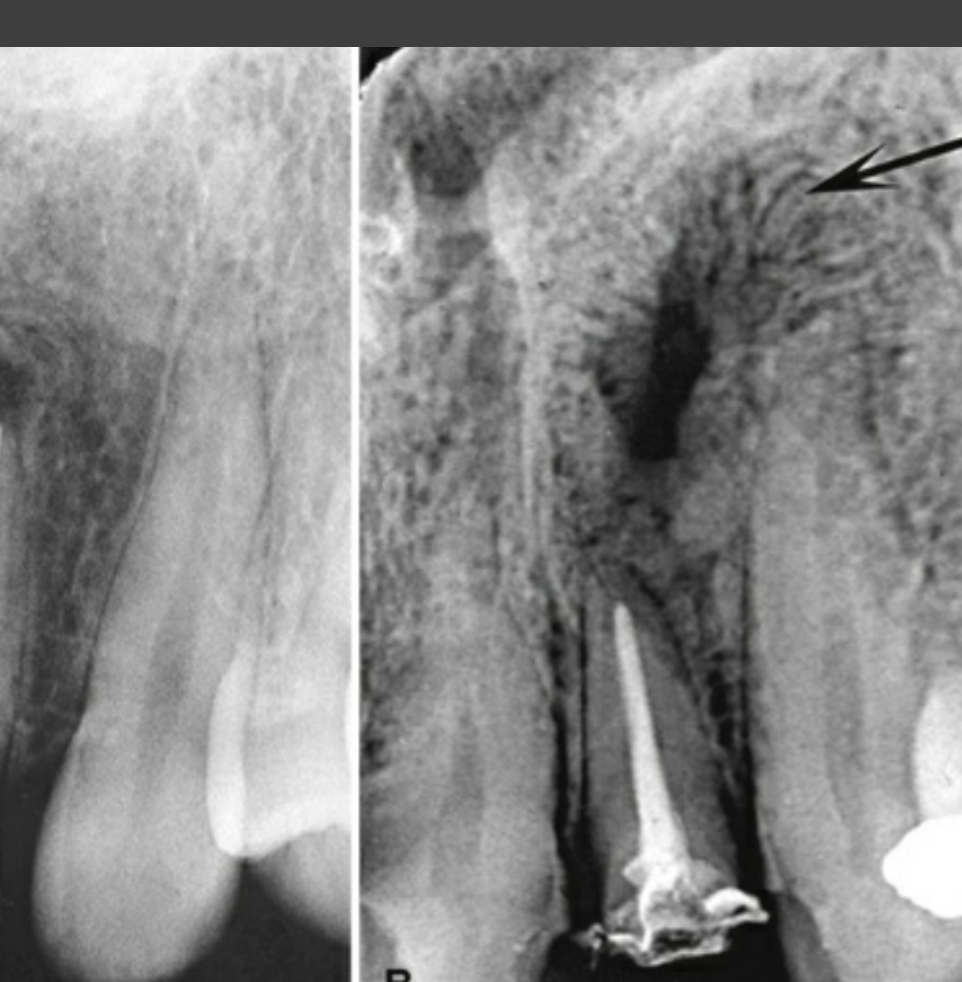

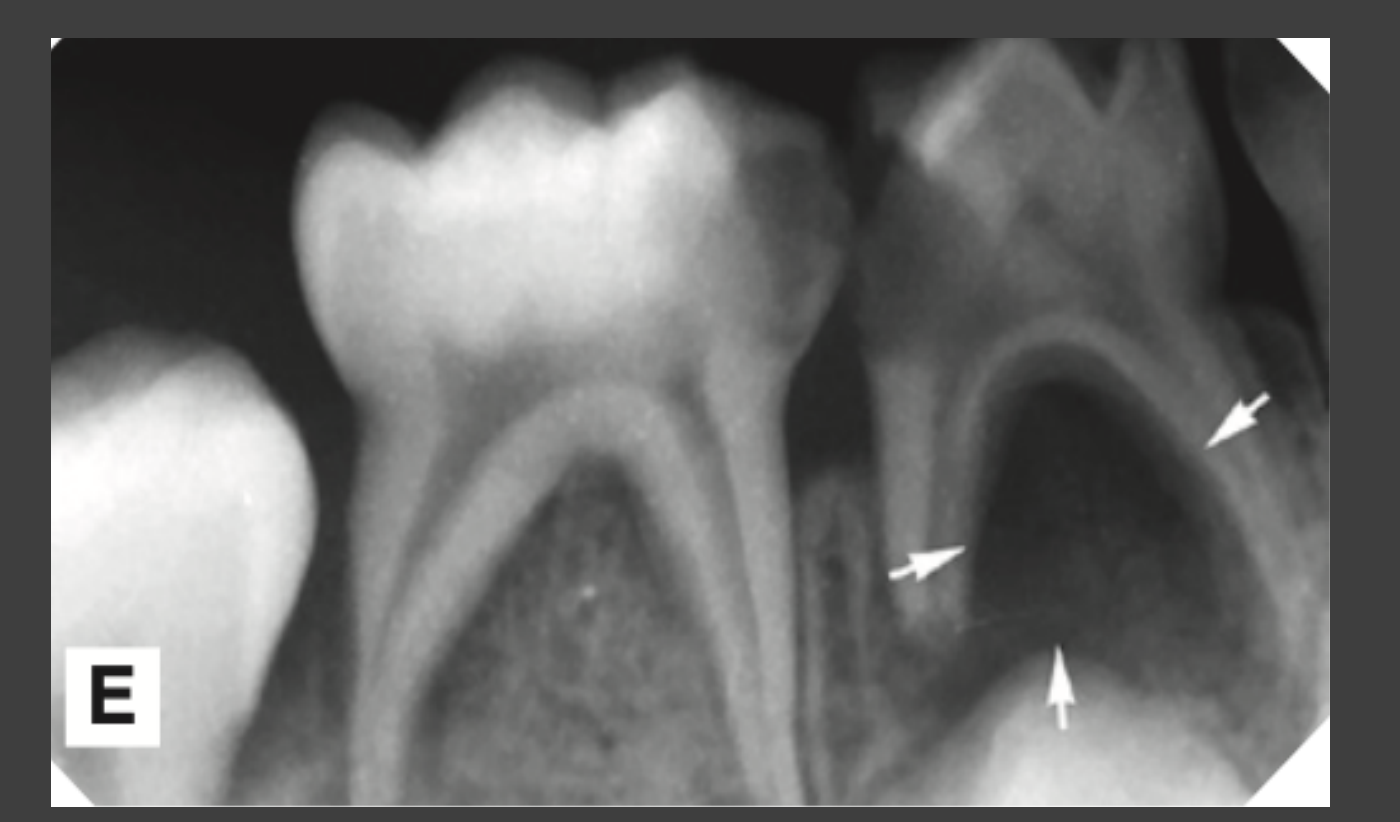

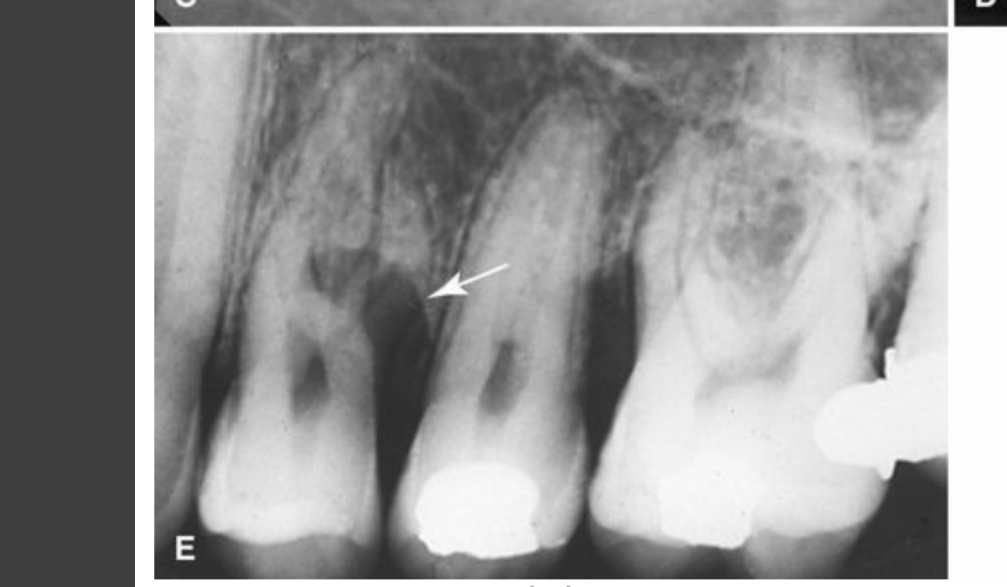

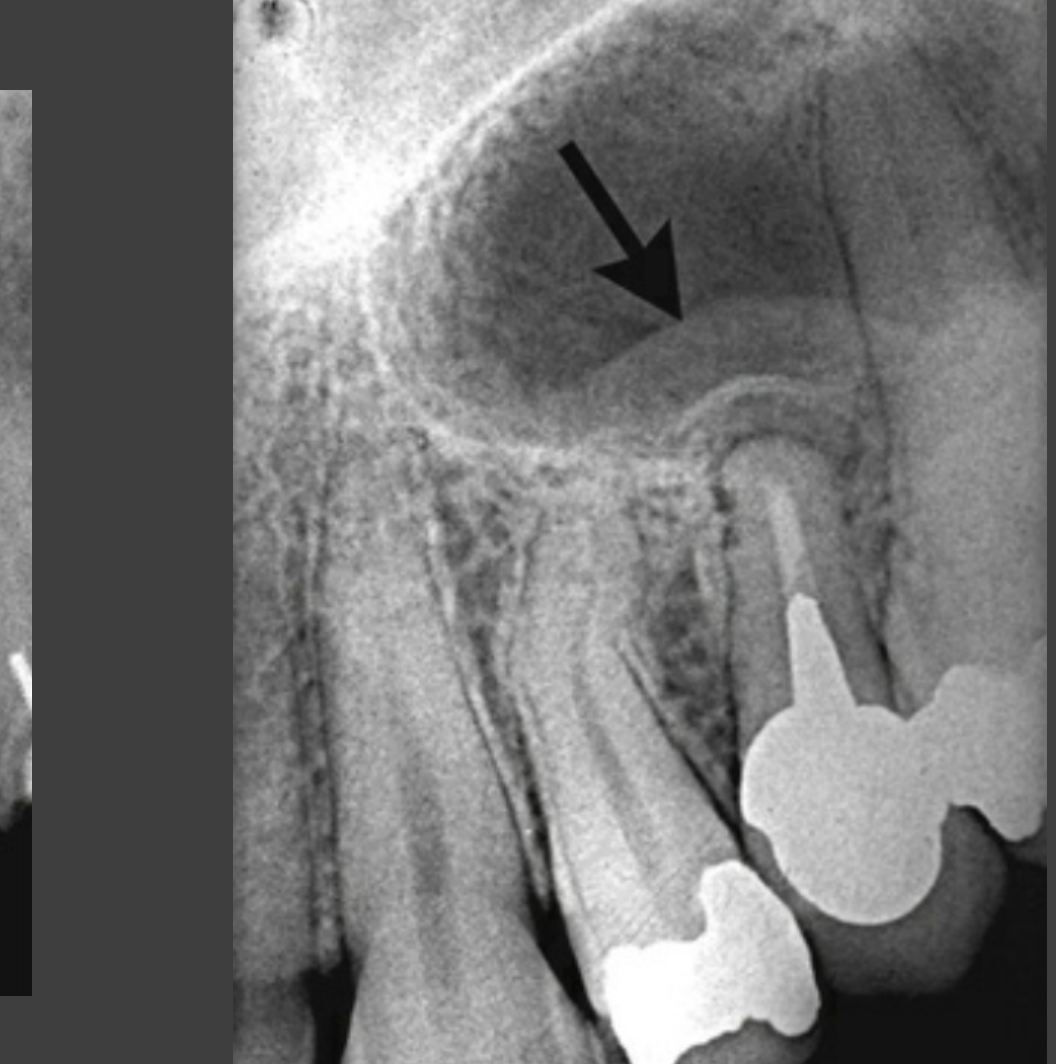

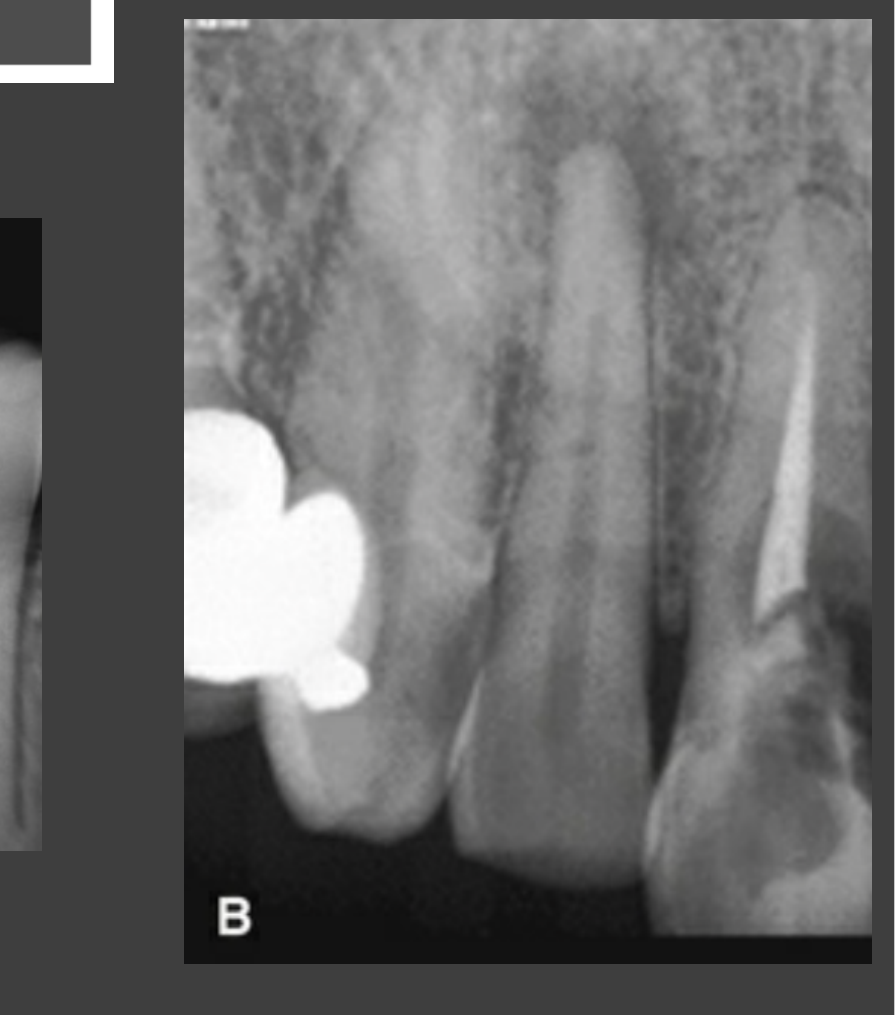

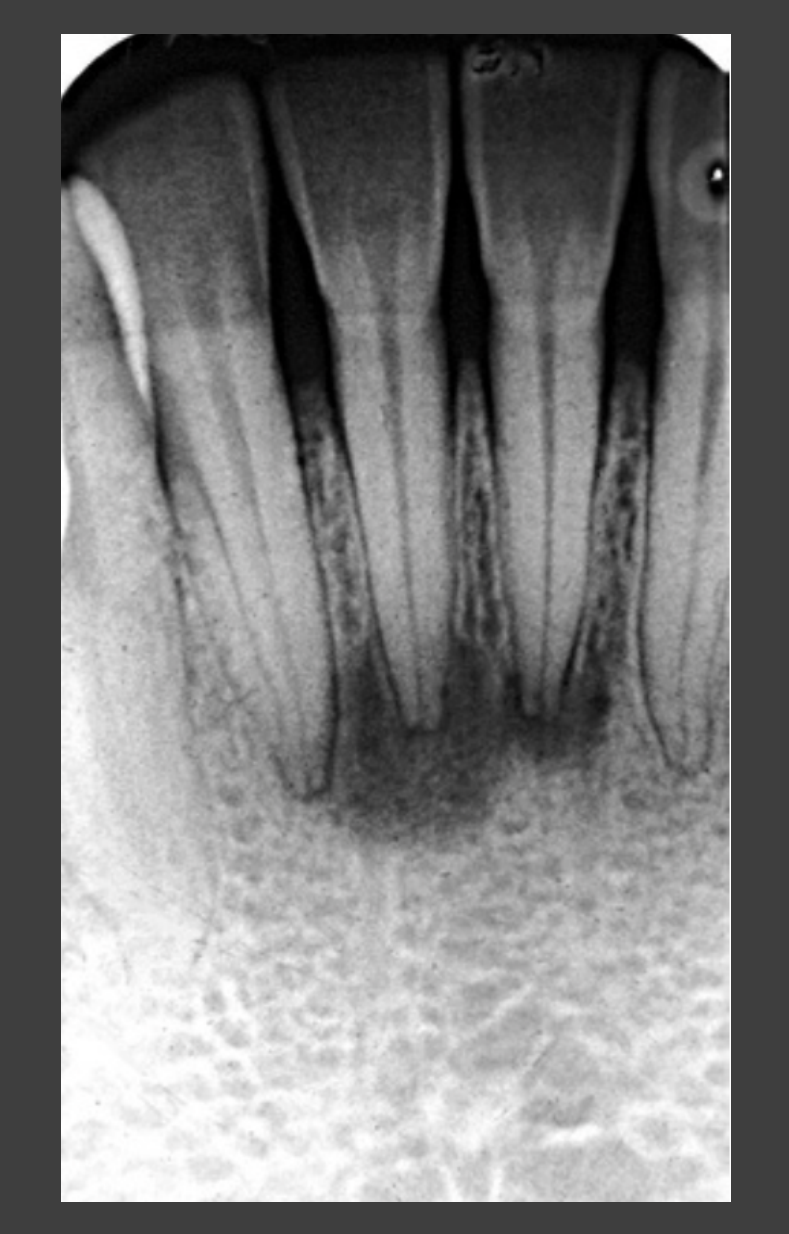

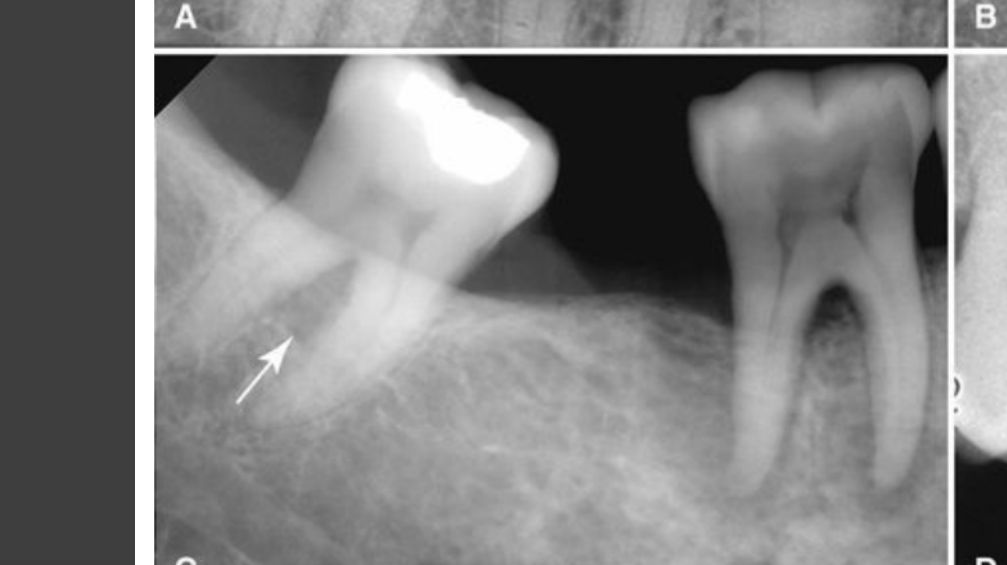

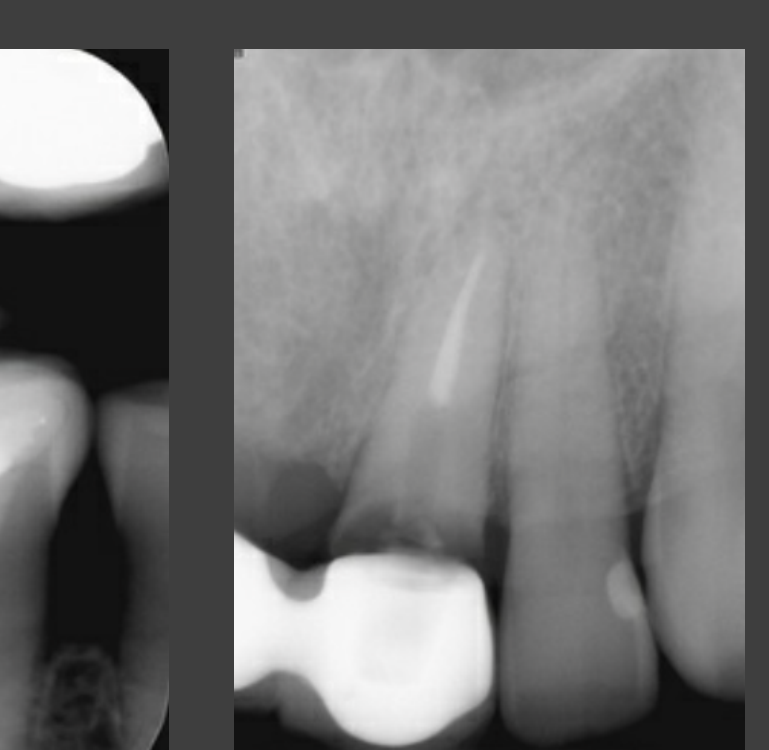

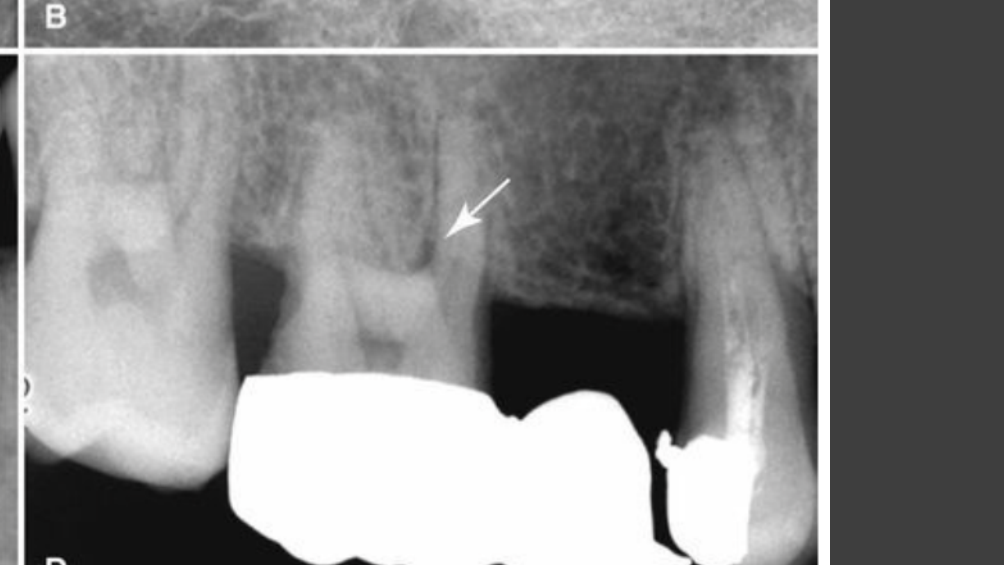

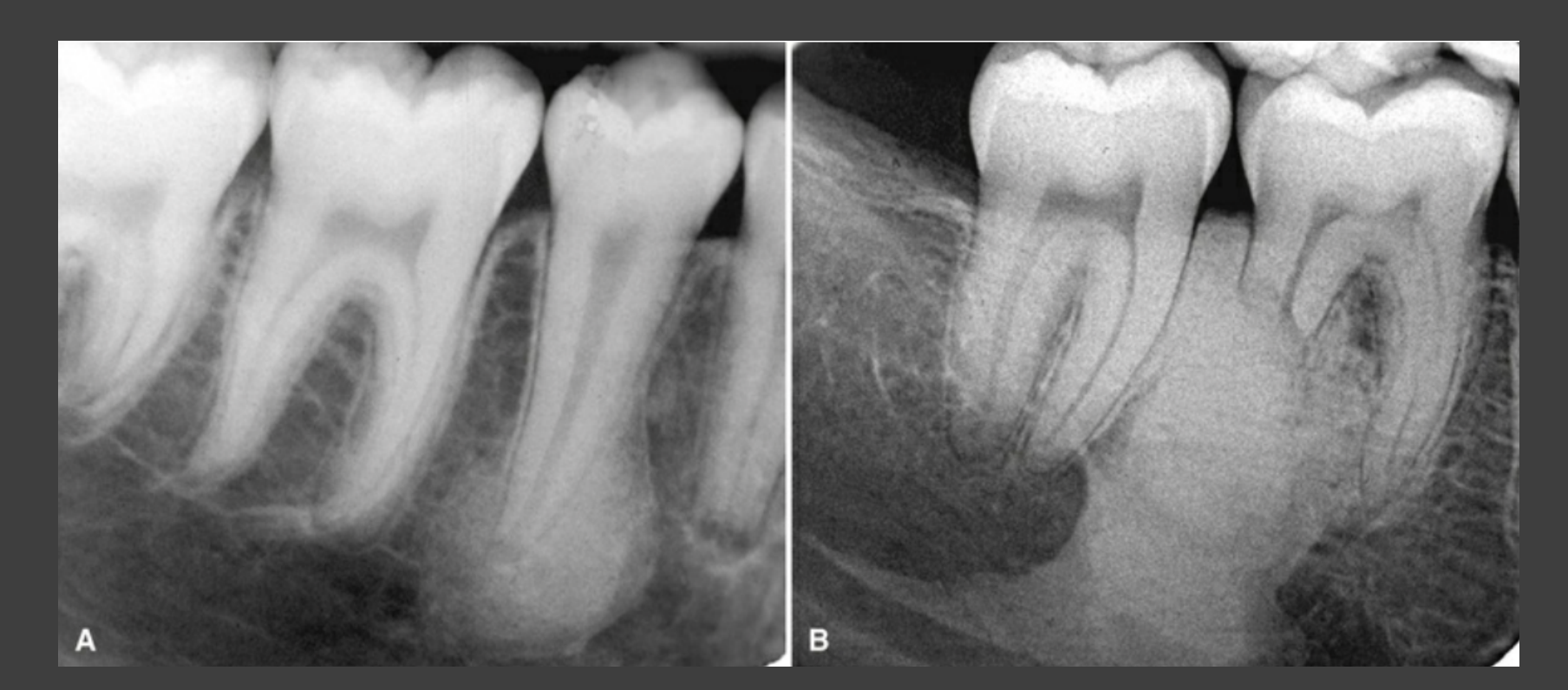

Clinical Radiographic Examples Of Periapical Lesions^{22232425262728}

Clinical History And Treatment Outcomes²⁹

before after A B Importance of clinical history

Conclusion³⁰

End
