Kennedy Class IV Removable Partial Denture (RPD) Design

This document outlines the clinical and technical considerations for designing Kennedy Class IV Removable Partial Dentures (RPDs). A Class IV situation involves a single edentulous area crossing the midline

, located anterior to the remaining natural teeth.


1. General Design Principles

When designing for a Class IV arch, the primary goal is to manage the rotation and leverage caused by the anterior extension.

Retention and Attachment

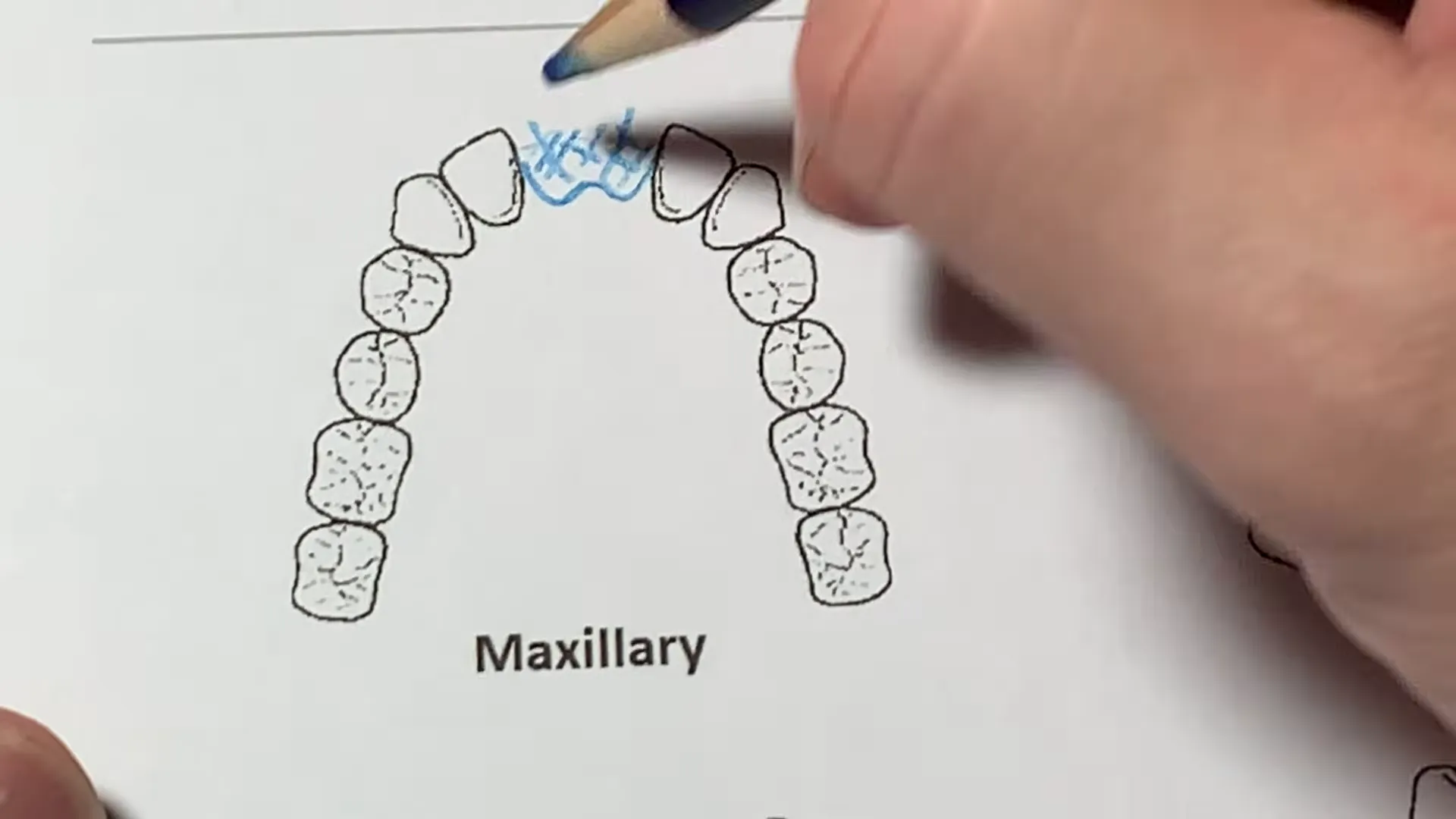

  • Edentulous Outlining: Identify the area and determine the method of tooth attachment (e.g., post retention, mesh, or metal backing/opaque on the lingual

).

  • Metal Backing: In cases of reduced vertical space, a high metal backing with metal bonders, beads, or loops is preferred over traditional mesh to ensure structural integrity.
  • Aesthetics: Metal can be opaqued to enhance the shade of the prosthetic teeth.

Clasping Strategies

There are two primary schools of thought regarding clasp placement for Class IV designs:

StrategyDescriptionPros/Cons
Embrasure ClaspingPlacing clasps on teeth immediately adjacent to the space (e.g., teeth 5 and 6).Pros: Simple, less hardware. Cons: High risk of anterior-posterior rotation; relies on tightening clasps to maintain stability.
Trapezoidal DesignPlacing clasps as far anterior and as far posterior as possible (e.g., teeth 4 and 7).Pros: Significantly more stable; creates a larger surface area for statics. Cons: More metal in the mouth; more complex tooth preparation.

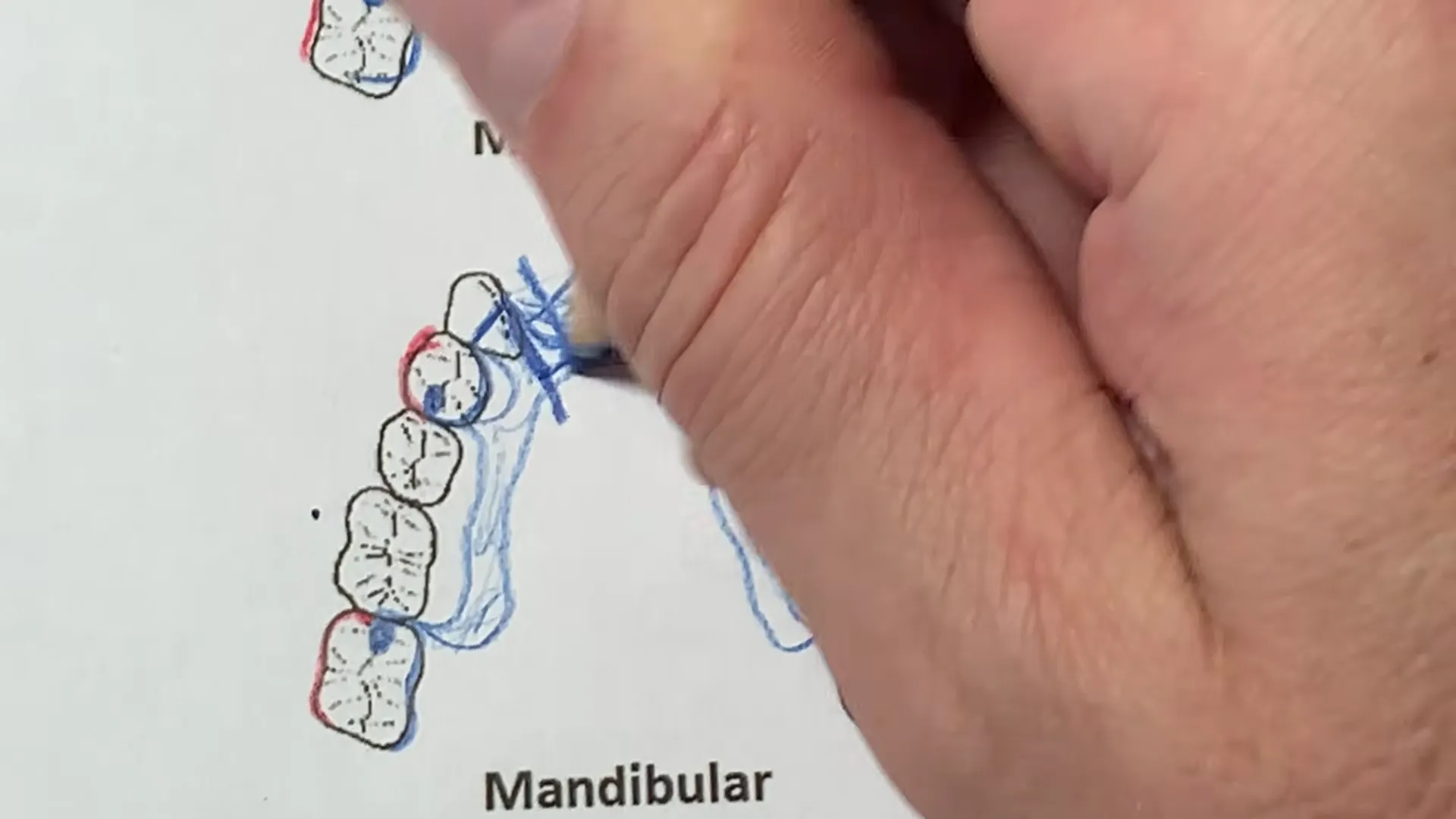

2. Mandibular Class IV Considerations

Lower anterior designs face unique challenges due to ridge atrophy and tooth inclination.

  • Retention Challenges: As the mandibular ridge atrophies, it becomes narrow and moves “south.” This results in long prosthetic teeth (7–12mm) that require robust reinforcement, such as posts, rather than just mesh.
  • Lingual Bar Clearance: Posterior lower teeth often have a lingual inclination. If the bar is not designed with enough relief, it may sit 3–4mm away from the tissue to clear the lingual cusps, creating a food trap or discomfort.
  • Major Connectors: Options include the standard lingual bar or an interrupted lingual bar

with cingulum rests or plating at the canines for added stability.


3. The “Long Span” Class IV (The Pseudo-Class V)

When a Class IV involves the loss of many teeth (e.g., 6 to 8 anterior teeth), it behaves more like a “Long Span” Class IV or a “Reverse Class I.”

The Rotation Line

In these cases, a rotation line is drawn through the two most anterior

rests. To counteract the “lift” of the anterior section, indirect retention must be placed as far posterior as possible.

Design Requirements:

  • Indirect Retention: The major connector (often a closed oval) should extend toward the soft palate to counterbalance the anterior load.
  • Clasping: Use a “G-clasp” or similar design on the furthest posterior molars.
  • Major Connector: A horseshoe design is often insufficient; a closed oval or full palatal plate is preferred depending on the depth of the palate and the prominence of the mid-palatine raphe.

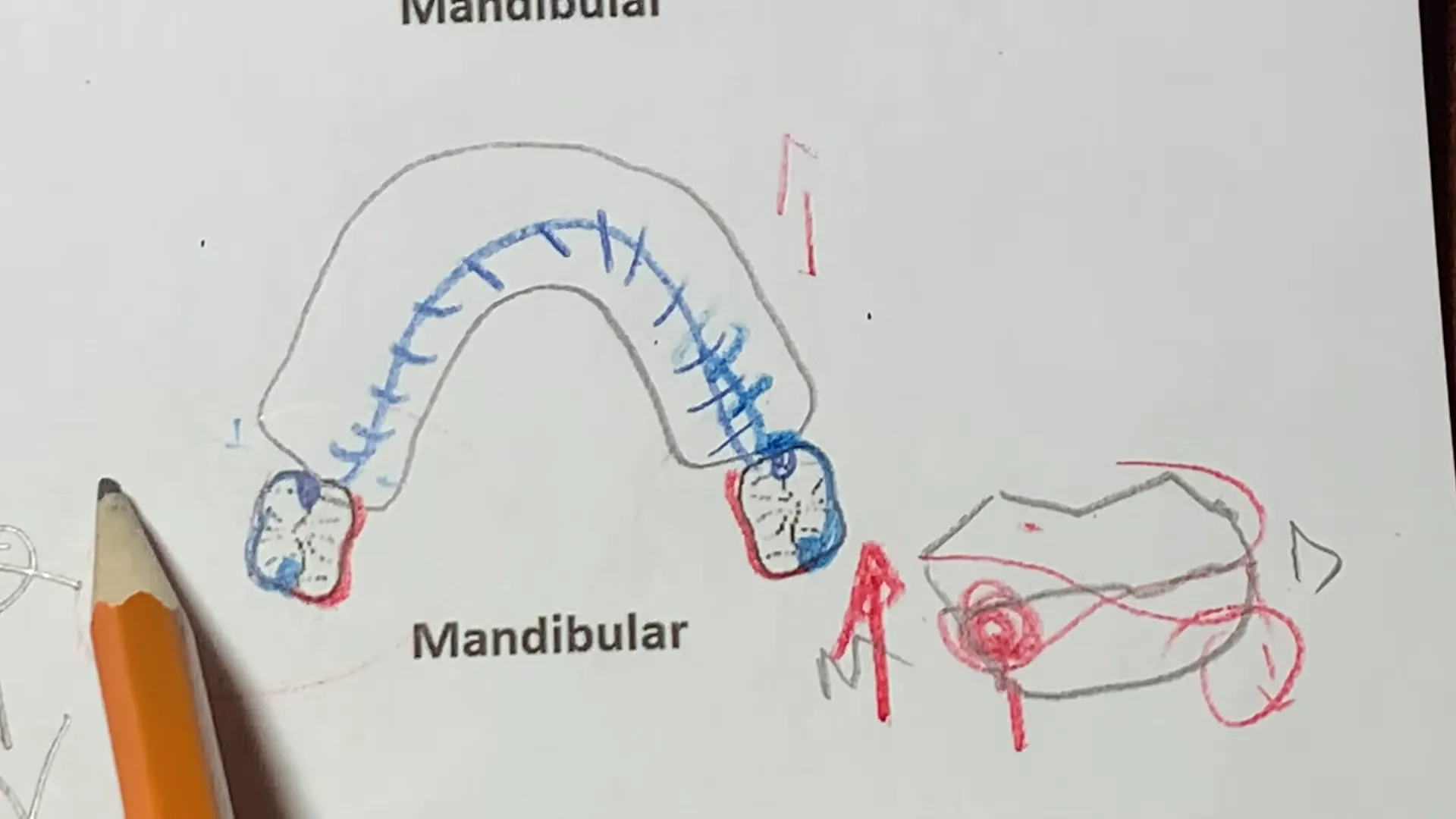

4. The Two-Molar-Only Scenario

A specific challenge occurs when only two molars remain (e.g., teeth 37 and 47) with a massive anterior edentulous span.

  • The Akers Clasp Fallacy: Using a standard Akers (circlet) clasp is the most common design error. When the anterior section lifts, an Akers clasp does not engage the undercut; it simply moves deeper into it or allows the denture to rotate into the tissue.
  • The Ring Clasp Solution: To provide actual retention, you must engage the mesio-lingual or mesio-buccal undercut. A ring clasp that circles the tooth to engage these specific undercuts will resist the lifting forces of the long anterior span.
  • Future-Proofing: This scenario is a prime candidate for dental implants. Implants act as direct retainers, extending the lifespan of the remaining molars and preventing the transition to a full tissue-supported denture.

5. Summary of the Four-Step Design Process

To ensure a professional and functional RPD, follow these steps in order:

  1. Outline Edentulous Areas: Determine the boundaries and the type of base (acrylic vs. metal).
  2. Direct Retainers: Select clasps based on the rotation line and available undercuts.
  3. Auxiliary Rests: Place rests to support the framework and provide indirect retention.
  4. Major Connector: Connect all components with a rigid framework (e.g., lingual bar, horseshoe, or closed oval), ensuring “metal flow” where all minor connectors and struts are logically joined.
